Kendo TreeList Moving A Node Up And Down In ASP.NET MVC Using JavaScript

Introduction

In this article, you will learn how to move a node up and down in Kendo TreeList in ASP.NET MVC, using JavaScript. Many times, while working with TreeList, we need to move a node up & down in ASP.NET MVC.

If you are going to display any tree on GUI, then you can use TreeView and TreeList. Generally, it is a tree structure with parent & child relationship.

The basic structure which you'll need to implement any tree will be a collection of nodes. If you need to only navigate down the tree, then a First Node needs a List of children. If you need to navigate up the tree, then the last node needs a link to its parent node.

Step 1

Create a new MVC Empty Project, using Visual Studio.

Add new Layout.cshtml into the shared folder. Add references of Kendo, CSS and JavaScript into this Layout.cshtml.
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <title>@ViewBag.Title - My Telerik MVC Application</title>
  5.     <style>
  6.             .k-header h1 {
  7.                 margin: 0;
  8.                 padding: 30px 15px;
  9.                 font-size: 32px;
  10.                 font-weight: lighter;
  11.             }
  12.
  13.             /* Sticky footer styles
  14.         -------------------------------------------------- */
  15.             html {
  16.                 position: relative;
  17.                 min-height: 100%;
  18.             }
  19.
  20.             body {
  21.                 /* Margin bottom by footer height */
  22.                 margin-bottom: 60px;
  23.             }
  24.
  25.             .footer {
  26.                 position: absolute;
  27.                 bottom: 0;
  28.                 width: 100%;
  29.                 /* Set the fixed height of the footer here */
  30.                 height: 60px;
  31.                 background-color: #f5f5f5;
  32.             }
  33.
  34.             .container-fluid .text-muted {
  35.                 margin: 20px 0;
  36.             }
  37.
  38.             .placeholders {
  39.                 margin: 30px auto;
  40.             }
  41.
  42.             .placeholder img {
  43.                 display: inline-block;
  44.             }
  45.
  46.             p .k-button {
  47.                 margin: 0 15px 0 0;
  48.             }
  49.
  50.             .btn-toggle {
  51.                 position: absolute;
  52.                 top: 0;
  53.                 left: 0;
  54.                 box-shadow: none;
  55.                 height: 48px;
  56.             }
  57.
  58.                 .btn-toggle .k-icon {
  59.                     opacity: 1;
  60.                 }
  61.
  62.                 .btn-toggle,
  63.                 .k-primary.btn-toggle:hover,
  64.                 .btn-toggle:focus:active:not(.k-state-disabled):not([disabled]),
  65.                 .btn-toggle:focus:not(.k-state-disabled):not([disabled]) {
  66.                     box-shadow: none;
  67.                     border-radius: 0;
  68.                 }
  69.
  70.                     .btn-toggle .k-i-hbars,
  71.                     .k-primary.btn-toggle:hover .k-i-hbars,
  72.                     .btn-toggle:focus:active:not(.k-state-disabled):not([disabled]) .k-i-hbars,
  73.                     .btn-toggle:focus:not(.k-state-disabled):not([disabled]) .k-i-hbars {
  74.                         background-position: -80px -32px;
  75.                     }
  76.
  77.             @@media (max-width: 768px) {
  78.                 .k-item {
  79.                     display: block;
  80.                     clear: both;
  81.                     float: none;
  82.                     width: 100%;
  83.                 }
  84.
  85.                 .k-header h1 {
  86.                     margin: 0;
  87.                     padding: 16px 15px 14px 60px;
  88.                     font-size: 18px;
  89.                     font-weight: lighter;
  90.                 }
  91.             }
  92.     </style>
  93.     <link href="@Url.Content("~/Content/kendo/2016.2.504/kendo.common-material.min.css")" rel="stylesheet" type="text/css" />
  94.     <link href="@Url.Content("~/Content/kendo/2016.2.504/kendo.mobile.all.min.css")" rel="stylesheet" type="text/css" />
  95.     <link href="@Url.Content("~/Content/kendo/2016.2.504/kendo.dataviz.min.css")" rel="stylesheet" type="text/css" />
  96.     <link href="@Url.Content("~/Content/kendo/2016.2.504/kendo.material.min.css")" rel="stylesheet" type="text/css" />
  97.     <link href="@Url.Content("~/Content/kendo/2016.2.504/kendo.dataviz.material.min.css")" rel="stylesheet" type="text/css" />
  98.     <script src="@Url.Content("~/Scripts/kendo/2016.2.504/jquery.min.js")"></script>
  99.     <script src="@Url.Content("~/Scripts/kendo/2016.2.504/angular.min.js")"></script>
  100.     <script src="@Url.Content("~/Scripts/kendo/2016.2.504/jszip.min.js")"></script>
  101.     <script src="@Url.Content("~/Scripts/kendo/2016.2.504/kendo.all.min.js")"></script>
  102.     <script src="@Url.Content("~/Scripts/kendo/2016.2.504/kendo.aspnetmvc.min.js")"></script>
  103. </head>
  104. <body>
  105.     <header>
  106.         <div class="content-wrapper">
  107.             <div class="float-left">
  108.                 <h2 class="site-title" style="margin-left: 30%;font-size: 1.2em !important;">www.CoderFunda.com</h2>
  109.             </div>
  110.         </div>
  111.     </header>
  112.     @RenderBody()
  113.     <div class="container-fluid">
  114.         <div class="row">
  115.
  116.         </div>
  117.     </div>
  118.     <footer class="footer">
  119.         <div class="container-fluid">
  120.             <p class="text-muted">Copyright © 2002-2015 Telerik. All rights reserved.</p>
  121.         </div>
  122.     </footer>
  123. </body>
  124. </html>
Step 2

Now, add one model into a Model folder & give the name as Product. Add some properties into it.
  1. public class Product
  2.  {
  3.      public int Id { get; set; }
  4.      public int SrNo { get; set; }
  5.      public string Name { get; set; }
  6.      public int? ParentId { get; set; }
  7.      public int ChildId { get; set; }
  8.  }
Add HomeController in Controller. There are two action methods; where the first will be adding a some dummy data to our properties & returns an IEnumerable result. Second one is used to bind the data into a tree structure format, using parent child relationship.
  1. public class HomeController : Controller
  2.     {
  3.         public HomeController()
  4.         {}
  5.         public ActionResult Index()
  6.         {
  7.             return View();
  8.         }
  9.         public JsonResult GetTree([DataSourceRequest] DataSourceRequest request)
  10.         {
  11.             var result = TreeList()
  12.                 .ToTreeDataSourceResult(request,
  13.                 e => e.ChildId,
  14.                 e => e.ParentId,
  15.                 e => e
  16.             );
  17.             return Json(result, JsonRequestBehavior.AllowGet);
  18.         }
  19.
  20.         private IEnumerable<Models.Product> TreeList()
  21.         {
  22.             List<Models.Product> objCmp = new List<Models.Product>();
  23.             objCmp.Add(new Models.Product() { Id = 1, SrNo = 100, Name = "Pen", ParentId = null, ChildId = 1 });
  24.             objCmp.Add(new Models.Product() { Id = 2, SrNo = 101, Name = "Ink Pen", ParentId = 1, ChildId = 2 });
  25.             objCmp.Add(new Models.Product() { Id = 3, SrNo = 102, Name = "Jel Pen", ParentId = 1, ChildId = 3 });
  26.             objCmp.Add(new Models.Product() { Id = 4, SrNo = 103, Name = "Marker Pen", ParentId = 1, ChildId = 4 });
  27.
  28.             objCmp.Add(new Models.Product() { Id = 11, SrNo = 200, Name = "Books", ParentId = null, ChildId = 11 });
  29.             objCmp.Add(new Models.Product() { Id = 12, SrNo = 201, Name = "Horror", ParentId = 11, ChildId = 12 });
  30.             objCmp.Add(new Models.Product() { Id = 13, SrNo = 202, Name = "Satire", ParentId = 11, ChildId = 13 });
  31.             objCmp.Add(new Models.Product() { Id = 14, SrNo = 203, Name = "Mystery", ParentId = 11, ChildId = 14 });
  32.
  33.             IEnumerable<Models.Product> itemsResult = objCmp.ToList();
  34.             return itemsResult.AsEnumerable();
  35.         }
  36.     }
Step 3

Add View by right clicking on Action Method Index, which will show a tree list with the hierarchy. This tree contains a read method from which we are binding the records to treelist. Also, take two buttons, where first is to move a tree node in up & another one to move a tree node down. I have added some custome css for better look & feel of headers of treelist. Now, add a JavaScript code into a document.ready function. For onclick button, I am going to write the code, which will move the record up & down.
  1. @using System.Web.Optimization
  2. @using Kendo.Mvc.UI
  3. @using Kendo.Mvc.Extensions
  4. @{
  5.     Layout = "~/Views/Shared/_Layout.cshtml";
  6. }
  7. <style type="text/css">
  8.     .myCSS {
  9.         font-weight: 800 !important;
  10.         text-align: center !important;
  11.         background-color: #F1E1AE !important;
  12.         border-color: #ffffff;
  13.         border-style: solid;
  14.         border-width: thin;
  15.     }
  16. </style>
  17. <br />
  18. <br />
  19. <div class="col-xs-12">
  20.     <div class="row">
  21.         <div class="col-xs-6" style="height:450px; width:60%; margin-left:5%">
  22.             @(Html.Kendo().TreeList<TreeList.Models.Product>()
  23.                                  .Name("ProductTreeList")
  24.                                  .Columns(columns =>
  25.                                  {
  26.                                      columns.Add().Field(e => e.SrNo).Title("Sr. No.").Width(10).HeaderAttributes(new { @class = "myCSS" });
  27.                                      columns.Add().Field(e => e.Name).Width(20).HeaderAttributes(new { @class = "myCSS" });
  28.                                      columns.Add().Field(e => e.ParentId).Hidden(true).Width(5);
  29.                                      columns.Add().Field(e => e.ChildId).Hidden(true).Width(5);
  30.                                  })
  31.                                 .DataSource(dataSource => dataSource
  32.                                 .Read(read => read.Action("GetTree", "Home"))
  33.                                 .ServerOperation(false)
  34.                                 .Model(m =>
  35.                                 {
  36.                                     m.Id(f => f.ChildId);
  37.                                     m.ParentId(f => f.ParentId);
  38.                                     m.Expanded(true);
  39.                                     m.Field(f => f.SrNo);
  40.                                 })
  41.                                 )
  42.                                 .Selectable(true)
  43.                                 .Height(480)
  44.             )
  45.         </div>
  46.         <div align="right" class="col-xs-2" style="margin-right:20%;">
  47.             <div>
  48.                 <button id="btnUp" type="button" class="btn btn-primary" style="line-height:1.0;">Move Up</button>
  49.             </div>
  50.         </div>
  51.         <br />
  52.         <div align="right" class="col-xs-2" style="margin-right:20%;">
  53.             <div>
  54.                 <button id="btnDown" type="button" class="btn btn-primary" style="line-height:1.0;">Move Down</button>
  55.             </div>
  56.         </div>
  57.     </div>
  58. </div>
  59. <script>
  60.     $(document).ready(function () {
  61.         var myProductList = $("#ProductTreeList").data("kendoTreeList");
  62.         $('#btnUp').click(function (e) {
  63.             var rowIndex = myProductList.dataItem(myProductList.select());
  64.             var selectedSrNo = rowIndex.SrNo;
  65.             var data = myProductList.dataSource.data();
  66.             for (var i = 0; i < data.length; i++) {
  67.                 var currentDataItem = data[i];
  68.                 var currentSrNo = currentDataItem.get("SrNo");
  69.                 var currentName = currentDataItem.get("Name");
  70.                 var currentChildId = currentDataItem.get("ChildId");
  71.                 var oldName;
  72.                 var oldChildId;
  73.                 if (currentSrNo == (selectedSrNo - 1)) {
  74.                     oldName = currentName;
  75.                     oldChildId = currentChildId;
  76.                 }
  77.                 if (currentSrNo == selectedSrNo) {
  78.                     data[i].set("SrNo", (selectedSrNo - 1));
  79.                     data[i].set("Name", oldName);
  80.                     data[i].set("ChildId", oldChildId);
  81.                     data[i -1].set("SrNo", (selectedSrNo));
  82.                     data[i - 1].set("Name", currentName);
  83.                     data[i - 1].set("ChildId", currentChildId);
  84.                 }
  85.             }
  86.         });
  87.         $('#btnDown').click(function (e) {
  88.             var rowIndex = myProductList.dataItem(myProductList.select());
  89.             var selectedSrNo = rowIndex.SrNo;
  90.             var data = myProductList.dataSource.data();
  91.             for (var i = 0; i < data.length; i++) {
  92.                 var currentDataItem = data[i];
  93.                 var currentSrNo = currentDataItem.get("SrNo");
  94.                 var currentName = currentDataItem.get("Name");
  95.                 var currentChildId = currentDataItem.get("ChildId");
  96.                 if (currentSrNo == (selectedSrNo)) {
  97.                     data[i].set("SrNo", (data[i + 1].get("SrNo")));
  98.                     data[i].set("Name", (data[i + 1].get("Name")));
  99.                     data[i].set("ChildId", (data[i + 1].get("ChildId")));
  100.                     data[i + 1].set("SrNo", (selectedSrNo));
  101.                     data[i + 1].set("Name", currentName);
  102.                     data[i + 1].set("ChildId", currentChildId);
  103.                     return;
  104.                 }
  105.             }
  106.         });
  107.     });
  108. </script>
Step 4

Now, run the Application. First, select the node, which you want to move up or down.

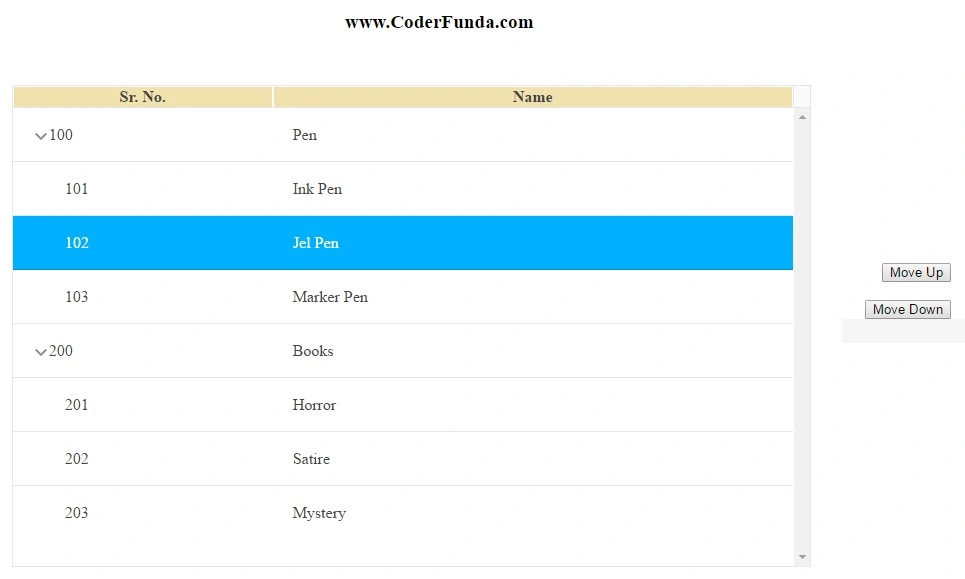

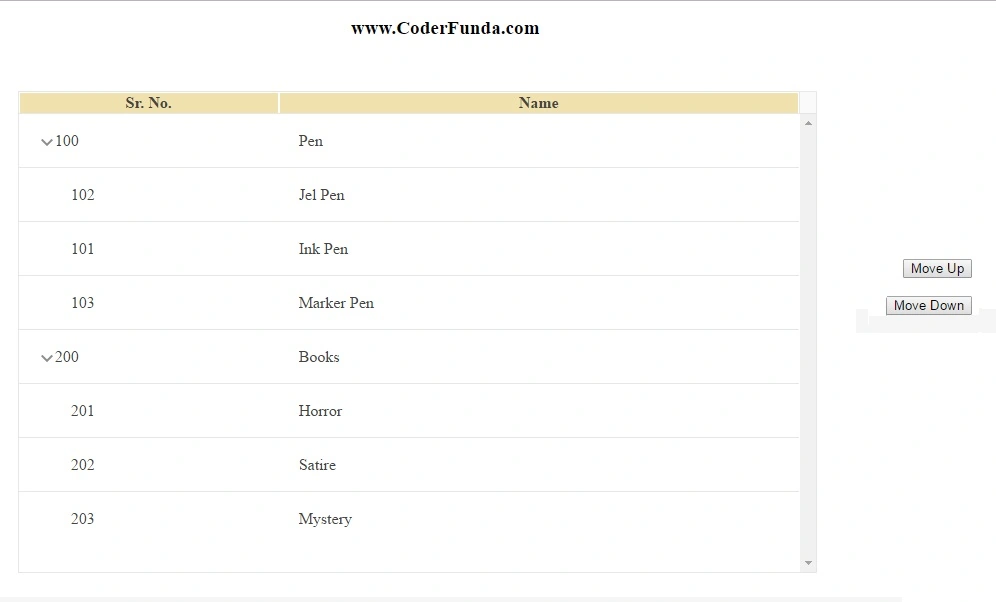

If we select record 'Jel Pen' with Sr. No 102 & click Move up, then we will get the result, as shown below.

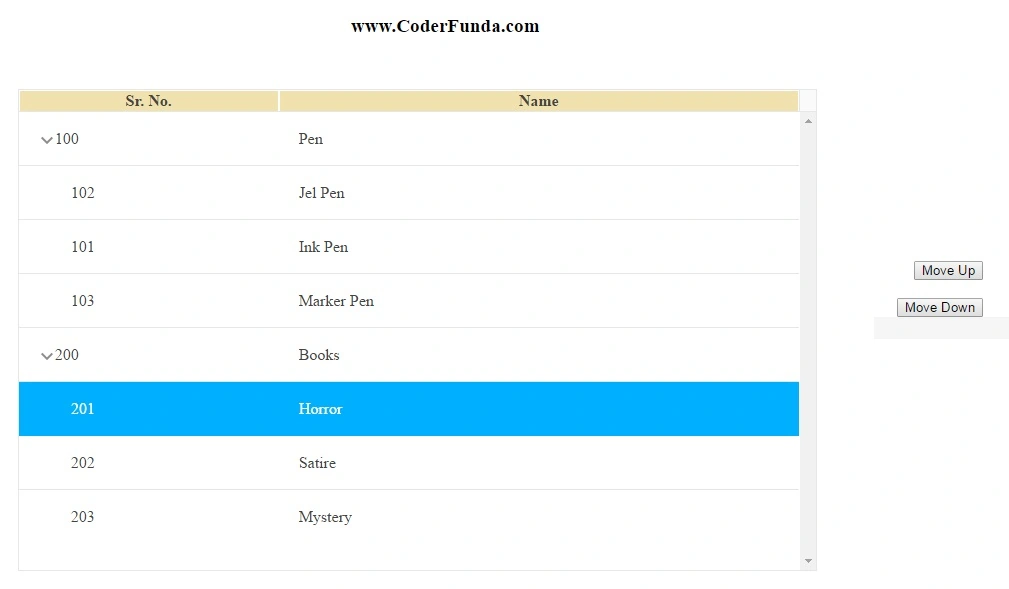

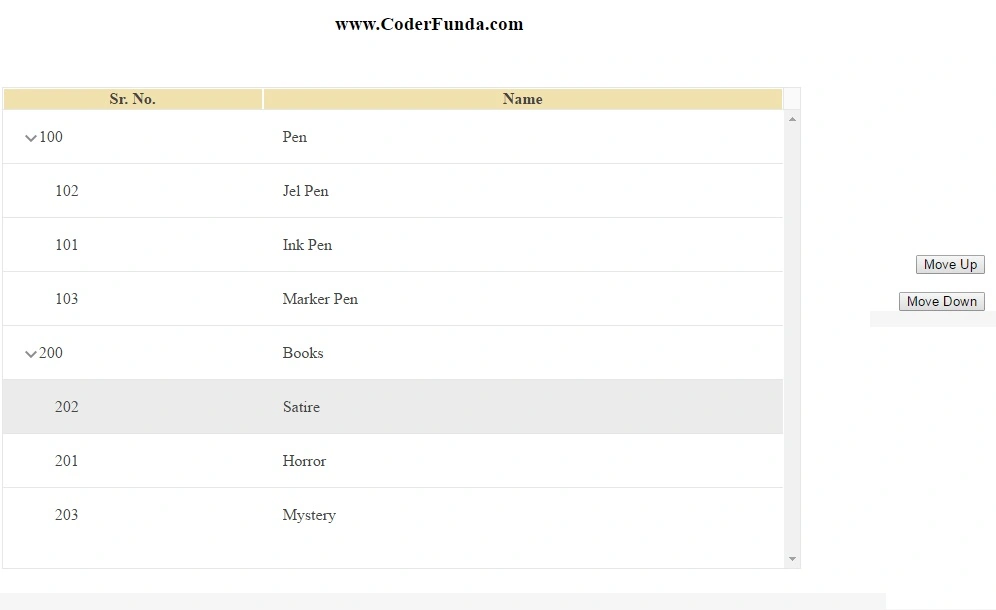

If we select record 'Horror' with Sr. No. 201 & click Move down, then we will get the result, as shown below.





Important
  • This treelist has only 2 levels i.e. parent nodes and children nodes.
  • For simplicity, this example uses some dummy data.
  • This example may not be covered in all real-world scenarios.
  • Please note that this is a custom implementation. Feel free to modify the implementation, as per your preferences.
Summary

In this article, you learned the basics of how to move a Kendo TreeList node up and down in ASP.NET MVC, using JavaScript.


Similar Articles
