Making The Clap Switch Using Arduino Mega 2560

Introduction

  • In this article, I will explain about making the clap switch by using ArduinoMega2560.
  • It can be used to operate by making sound
  • When the sound is produced it can be automatically ON.
Parts Of Lists
  • ArduinoMega2560
  • Sound Sensor
  • Relay
  • Bulb or Led
  • HookUp wires
Sound sensor
  • It can find the sound easily by sound nature.
  • It can detect the sound of the environment.
  • It can have the three-pin standard.

Figure 1 - Sound Sensor.
Relay
  • A relay is an electrically operated switch
  • Many relays are operated by electromagnetic into the mechanical switch.
  • It can be used to operate as the switch.

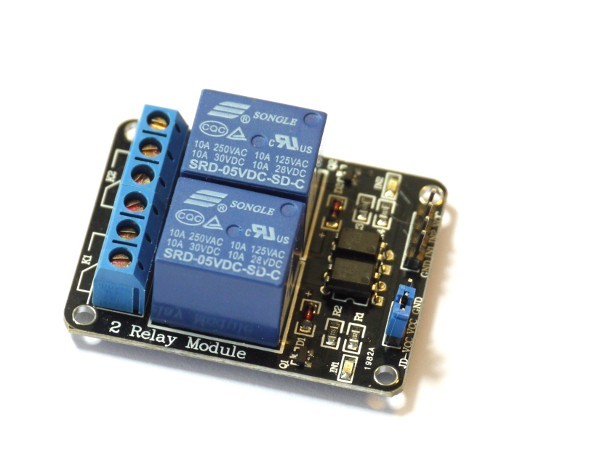

Figure 2 - Relay

Connection

Step 1 - Connection From Arduino mega To Sound Sensor
  • Connect the Vin pin of the sound sensor to the 13 of the Arduino board.
  • Connecte the VCC pin of the sound sensor to the 5v of the Arduino board.
  • Connect the gnd pin of the sound sensor to the gnd of the Arduino board.
Step 2 - Connection From Relay To ArduinoMega2560
  • Connect the same procedure as the sound sensor of VCC and Gnd.
  • Connect the Vin of the relay to the 12 of the Arduino board.
  • Connect the bulb or led as it the positive side and the negative side.
Programming
  1. int soundSensor = 13;
  2. int relay = 12;
  3. int claps = 0;
  4. long detectionSpanInitial = 0;
  5. long detectionSpan = 0;
  6. boolean lightState = false;
  7.
  8. void setup() {
  9.   pinMode(soundSensor, INPUT);
  10.   pinMode(relay, OUTPUT);
  11. }
  12.
  13. void loop() {
  14.
  15.   int sensorState = digitalRead(soundSensor);
  16.
  17.   if (sensorState == 0)
  18.   {
  19.     if (claps == 0)
  20.     {
  21.       detectionSpanInitial = detectionSpan = millis();
  22.       claps++;
  23.     }
  24.     else if (claps > 0 && millis()-detectionSpan >= 50)
  25.     {
  26.       detectionSpan = millis();
  27.       claps++;
  28.     }
  29.   }
  30.
  31.   if (millis()-detectionSpanInitial >= 400)
  32.   {
  33.     if (claps == 2)
  34.     {
  35.       if (!lightState)
  36.         {
  37.           lightState = true;
  38.           digitalWrite(relay, HIGH);
  39.         }
  40.         else if (lightState)
  41.         {
  42.           lightState = false;
  43.           digitalWrite(relay, LOW);
  44.         }
  45.     }
  46.     claps = 0;
  47.   }
  48. }
Explanation
  • It can be used to generate the bulb as the sound of the clap
  • It can work with the function of the clap as the fixed.
Output


Figure 3 - Output
