Set Up Cloud Messaging Service In Android Studio: Part Four

Introduction


In this article, you will learn how to set up a Cloud Messaging Service In Android Studio. This is part four of the article series.

Here are the first three articles of the series,

GCM Receiver Class

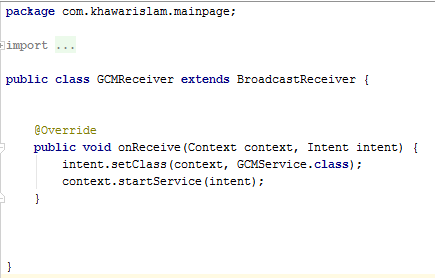

Now we extend GCM Receiver Class to BroadcastReceiver Class and we override the method onReceive and call the GCMService class using the intent method.

code


Receive A Message Notification


Now move to the GCMService.java class and make this method to receive the message at mobile-only powered by android app devices. Futhermore we call this method into another method in the next step.

code


Receive A Message Using Intent Service

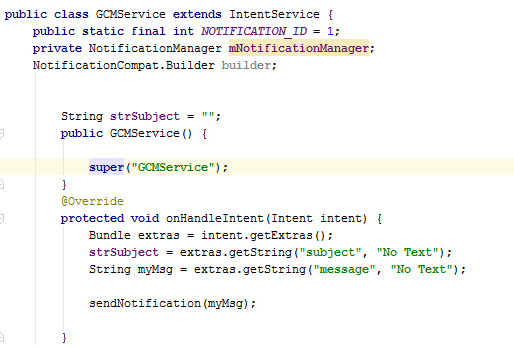

Now in this class first we extend our class with IntentService and then we declare some class instances on the class level then we make a default constructor and pass it GCMService class and then we override the method onHandle and set two methods and then call the sendNotification method which is created in previous step.

code


Check Registered Devices from Web Server

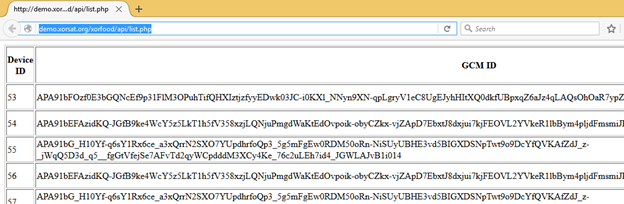

Now I will give you the link in which you can register and take your GCM ID  and then send a message to android device.

Server Link

link

Now open the Android Studio and run the project

Visual Representation

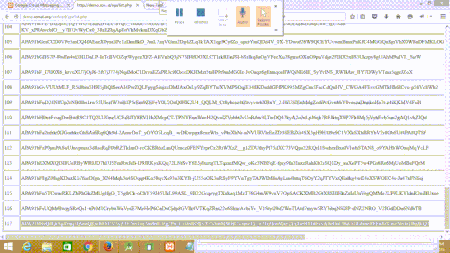

Now you see that we send the message to webserver and web server sends the message to android device. This is the end of Google Cloud Messaging Services.

output
