Working With Video Player In Android Application

Introduction

Android is one of the most popular operating systems for mobile. A lot of people use Android for multimedia purposes and entertainment. Video player is the most important element in multimedia. So, I will show you how to integrate video in your Android application using Android Studio. Android is the kernel based operating system. In Android, the user can modify the GUI components and source code.

Requirements

Steps to be followed

Carefully follow the below steps to integrat video in your Android application using Android Studio. I have included the source code too.

Step 1

Open the Android Studio and start a new project.

Android

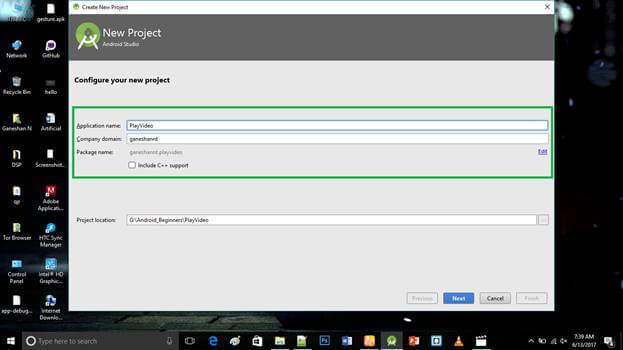

Step 2

Put the application name and company domain. If you wish to use C++ for coding the project. Mark the "Include C++ support", and click Next.

Android

Step 3

Select the Android minimum SDK. After that, click Next.

Android

Step 4

Choose "Basic Activity" and click Next.

Android

Step 5

Put the activity name and layout name. Android Studio basically takes the java class name same as the activity name you provided. Now, click Finish.

Android

Step 6

Go to activity_main.xml and click the text botton. This xml file contains the designing code for Android app. In the activity_main.xml file, copy and paste the below code.

Activity_main.xml code

  1. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:app="http://schemas.android.com/apk/res-auto"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:orientation="vertical"
  7.     tools:context="ganeshannt.playvideo.MainActivity">
  8.
  9.     <Button
  10.         android:id="@+id/button"
  11.         android:layout_width="0dp"
  12.         android:layout_height="wrap_content"
  13.         android:layout_marginEnd="8dp"
  14.         android:layout_marginStart="8dp"
  15.         android:onClick="videoplay"
  16.         android:text="Play video"
  17.         app:layout_constraintLeft_toLeftOf="parent"
  18.         app:layout_constraintRight_toRightOf="parent"
  19.         app:layout_constraintTop_toTopOf="parent"
  20.         tools:layout_constraintLeft_creator="1"
  21.         tools:layout_constraintRight_creator="1"
  22.         tools:layout_constraintTop_creator="1" />
  23.
  24.     <VideoView
  25.         android:id="@+id/videoView"
  26.         android:layout_width="0dp"
  27.         android:layout_height="wrap_content"
  28.         tools:layout_constraintTop_creator="1"
  29.         tools:layout_constraintRight_creator="1"
  30.         android:layout_marginStart="8dp"
  31.         android:layout_marginEnd="8dp"
  32.         app:layout_constraintRight_toRightOf="parent"
  33.         app:layout_constraintTop_toBottomOf="@+id/button"
  34.         tools:layout_constraintLeft_creator="1"
  35.         app:layout_constraintLeft_toLeftOf="parent" />
  36. </android.support.constraint.ConstraintLayout>

Android

Step 7

In the MainActivity.java file, copy and paste the below code. Java is the back-end language for Android. Do not replace your package name, otherwise the app will not run.

MainActivity.java code

  1. package ganeshannt.playvideo;
  2. import android.net.Uri;
  3. import android.os.Bundle;
  4. import android.support.v7.app.AppCompatActivity;
  5. import android.view.View;
  6. import android.widget.Button;
  7. import android.widget.MediaController;
  8. import android.widget.VideoView;
  9.
  10. public class MainActivity extends AppCompatActivity{
  11.
  12.     Button clk;
  13.     VideoView videov;
  14.     MediaController mediac;
  15.
  16.     @Override
  17.     protected void onCreate(Bundle savedInstanceState) {
  18.         super.onCreate(savedInstanceState);
  19.         setContentView(R.layout.activity_main);
  20.
  21.         clk = (Button) findViewById(R.id.button);
  22.         videov = (VideoView) findViewById(R.id.videoView);
  23.         mediac = new MediaController(this);
  24.
  25.     }
  26.
  27.     public void videoplay(View v)
  28.     {
  29.        String videopath = "android.resource://ganeshannt.playvideo/"+R.raw.google;
  30.         Uri uri = Uri.parse(videopath);
  31.         videov.setVideoURI(uri);
  32.         videov.setMediaController(mediac);
  33.         mediac.setAnchorView(videov);
  34.         videov.start();
  35.     }
  36.
  37. }
Step 8

Create Resources folder for pasting your video file as you play (res->>new->>folder->>res folder).

Android

Change the folder path.

Android

Step 9

Click the "Make Project" option and run it.

Android

Step 10

Run the application >> choose Virtual Machine >> click OK.

Android

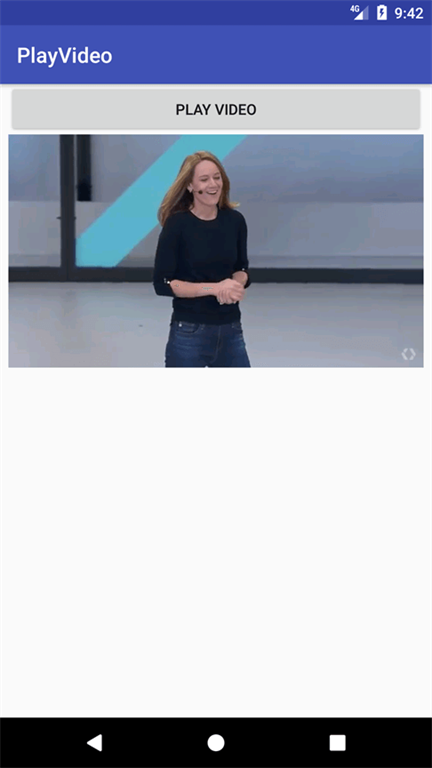

Deliverables

Here, we have been successful in integration of video in Android app.

Android

Android

Android

Don’t forgot to like and follow me. If you have any doubts, just comment below.
