Delete Rows from DataGridView using Checkbox with ADO.NET

Step 1

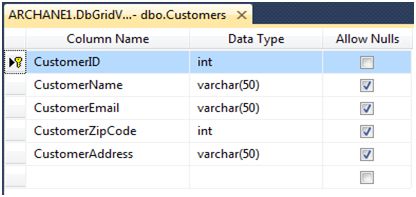

Create database and table named Customers using definition as shown in the below figure



Step 2

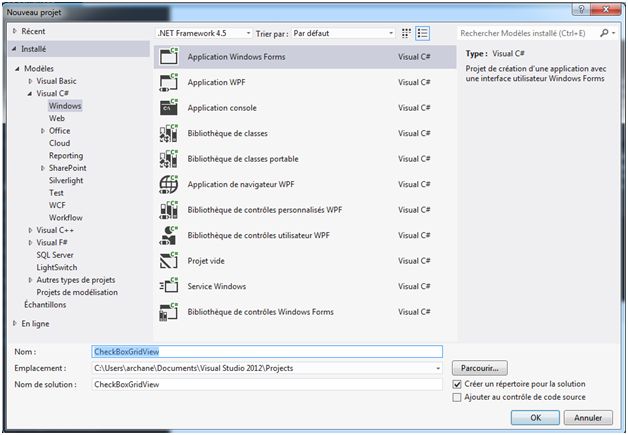

Now, using Visual Studio, we create application windows Forms named CheckBoxGridView, then click on OK. You can see the following figure.



Step 3

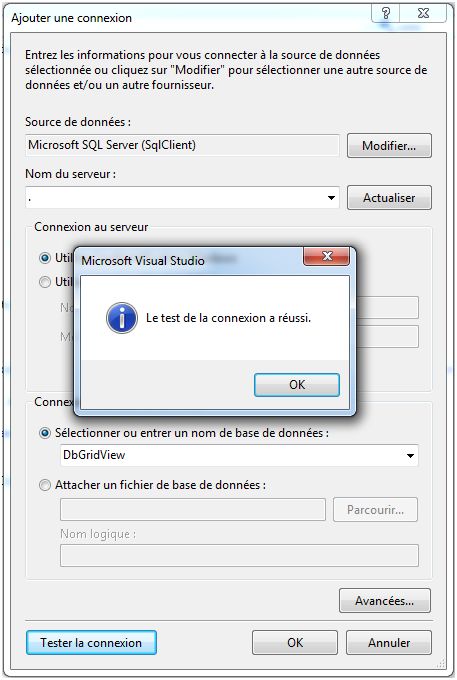

At this stage, we need to add connection to database. You shouldbe selecting Server Name, then the Database Name (in this case: DbGridView) that will be used in our application.

*DbGridView

Step 4

Now, Add DataGridView and button controls to the form by selecting them from Toolbox as shown in the following figure,


Step 5

Adding source code for DataGridView.

  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.ComponentModel;
  4. usingSystem.Data;
  5. usingSystem.Data.SqlClient;
  6. usingSystem.Drawing;
  7. usingSystem.Linq;
  8. usingSystem.Text;
  9. usingSystem.Threading.Tasks;
  10. usingSystem.Windows.Forms;
  11. namespace CheckBoxGridView
  12. {
  13.     publicpartialclassForm1: Form
  14.     {
  15.         public Form1()
  16.         {
  17.             InitializeComponent();
  18.         }
  19.         privateSqlConnectionconx = newSqlConnection("Data Source=.;Initial Catalog=DbGridView;Integrated Security=True"); // Connection String
  20.         privateSqlDataAdapteradp = null;
  21.         privateDataSet ds = newDataSet();
  22.         // loading data from "Customers" Table to DataGridView
  23.         privatevoidLoadData()
  24.         {
  25.             AddCheckBoxForDataGridView();
  26.             adp = newSqlDataAdapter("SELECT * FROM Customers", conx);
  27.             adp.Fill(ds);
  28.             dataGridView1.DataSource = ds.Tables[0];
  29.         }
  30.         // AddCheckBoxForDataGridView Function allow to add checkbox in DataGridView
  31.         privatevoidAddCheckBoxForDataGridView()
  32.         {
  33.             DataGridViewCheckBoxColumn col = newDataGridViewCheckBoxColumn()
  34.             {
  35.                 Name = "Select Rows to be deleted"
  36.             };
  37.             dataGridView1.Columns.Add(col);
  38.         }
  39.         privatevoid Form1_Load(object sender, EventArgs e)
  40.         {
  41.             LoadData();
  42.         }
  43.         privatevoidDeleteRowFromGrid(int id)
  44.         {
  45.             try
  46.             {
  47.                 conx.Open(); //Open Connection
  48.                 SqlCommandcmd = newSqlCommand("DELETE FROM Customers WHERE CustomerID = '" + id + "'", conx); //Here, we specify query with {Id} parameter which allow us to delete rows from Db.
  49.                 int Result = cmd.ExecuteNonQuery(); // Execute Query for deleting all rows selected from DataGridView
  50.                 conx.Close(); // Close Connection
  51.             }
  52.             catch (Exception ex)
  53.             {
  54.                 MessageBox.Show(ex.Message);
  55.             }
  56.             finally
  57.             {
  58.                 conx.Close();
  59.             }
  60.         }
  61.         //Delete Button
  62.         privatevoid button1_Click(object sender, EventArgs e)
  63.         {
  64.             DataGridViewRow row = newDataGridViewRow();
  65.             for (inti = 0; i < dataGridView1.Rows.Count; i++)
  66.             {
  67.                 row = dataGridView1.Rows[i];
  68.                 if (Convert.ToBoolean(row.Cells[0].Value))
  69.                 {
  70.                     int id = Convert.ToInt16(row.Cells[1].Value);
  71.                     DeleteRowFromGrid(id);
  72.                     dataGridView1.Rows.Remove(row);
  73.                     i--;
  74.                 }
  75.             }
  76.         }
  77.     }
  78. }
Step 6

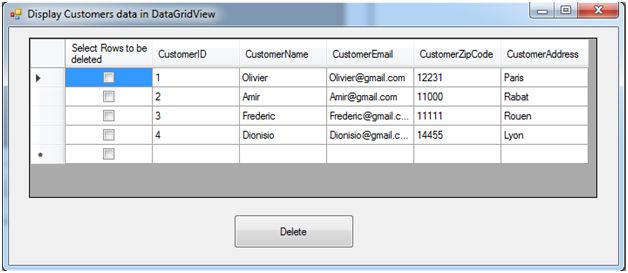

Run Application.
