How to Perform Self Outer JOIN using LINQ

Introduction

In this blog we will see how to perform self outer join using LINQ.

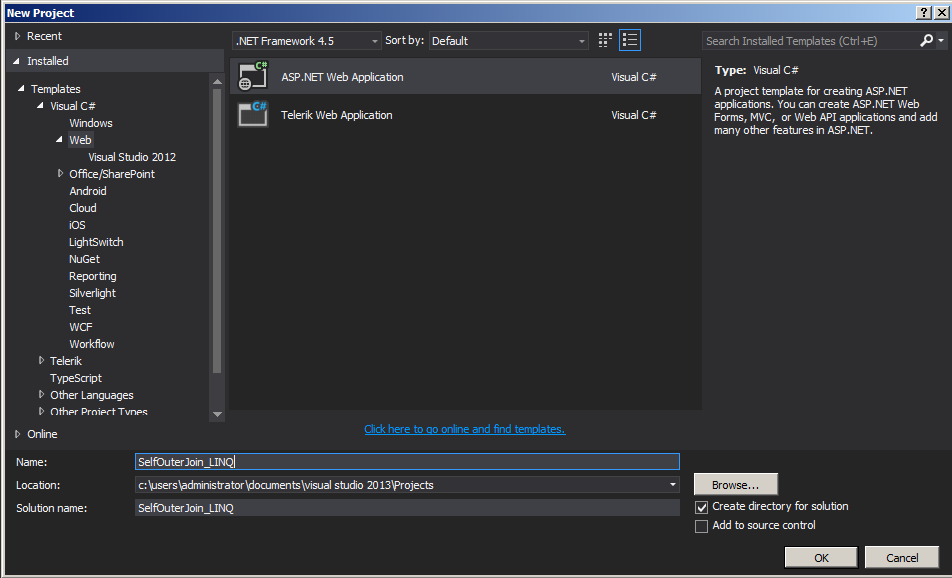

Step 1: Create asp.net web application

Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="SelfOuterJoin_LINQ.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.         <asp:GridView ID="GridView1" runat="server"></asp:GridView>
  13.     </div>
  14.     </form>
  15. </body>
  16. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace SelfOuterJoin_LINQ
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         EmployeeDBEntities objEmpEntities = new EmployeeDBEntities();
  13.         protected void Page_Load(object sender, EventArgs e)
  14.         {
  15.             var query = (from r in objEmpEntities.Employees
  16.                          join q in objEmpEntities.Employees on r.EmpId equals q.ManagerId into result
  17.                          from emp in result.DefaultIfEmpty()
  18.                          select new
  19.                          {
  20.                              r.FirstName,
  21.                              r.LastName,
  22.                              emp.ManagerName
  23.                          }).ToList();
  24.
  25.             GridView1.DataSource = query;
  26.             GridView1.DataBind();
  27.         }
  28.     }
  29. }

Output of the application looks like this

Summary

In this blog we have seen how we can perform self-outer join using LINQ. Happy coding!
