iOS Development - Timer App

Here, we are going to make a Timer app for an iOS, using Swift 3 and Xcode 8.

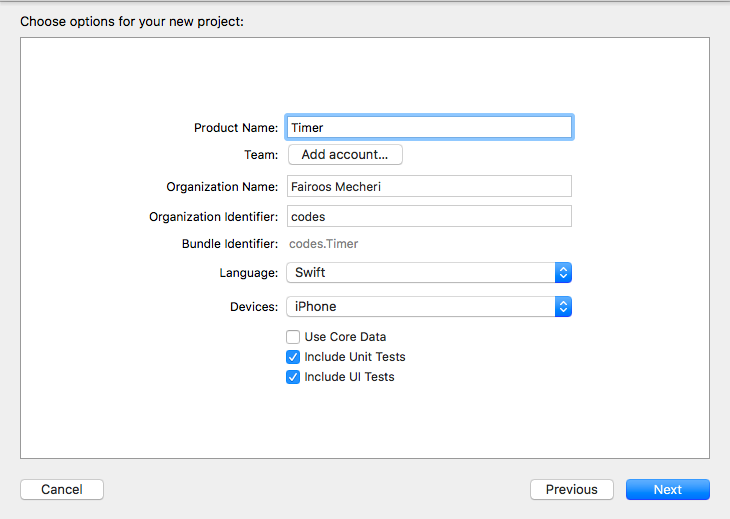

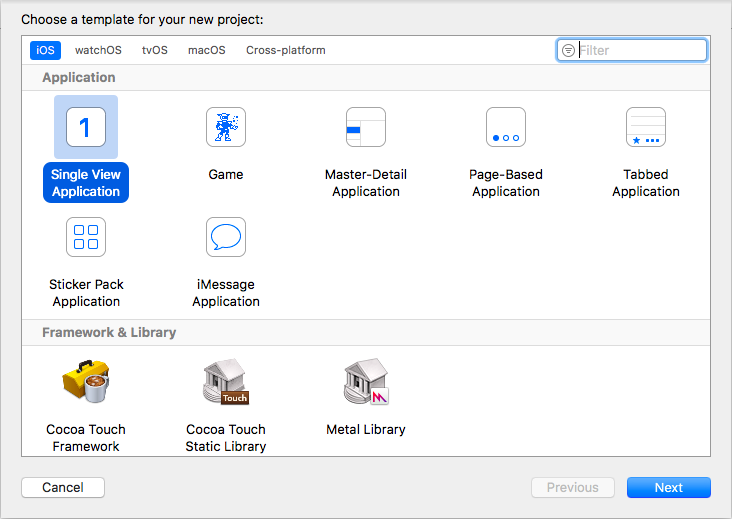

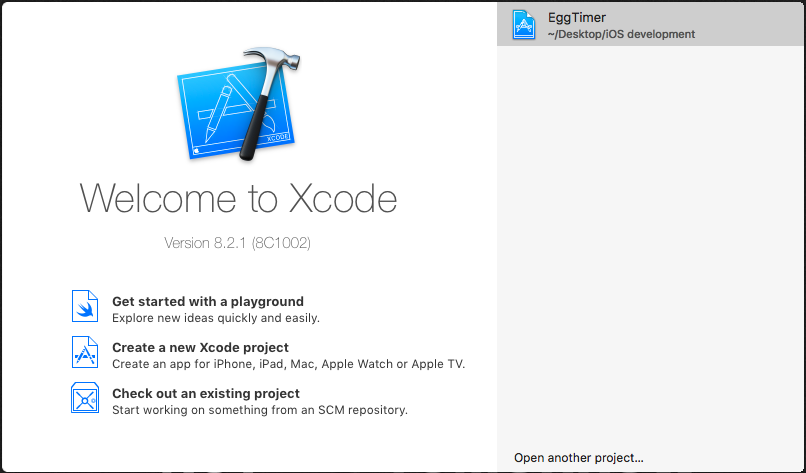

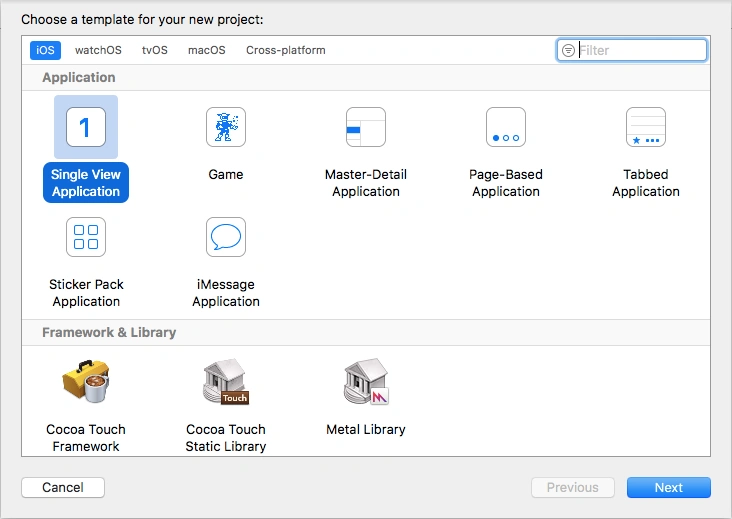

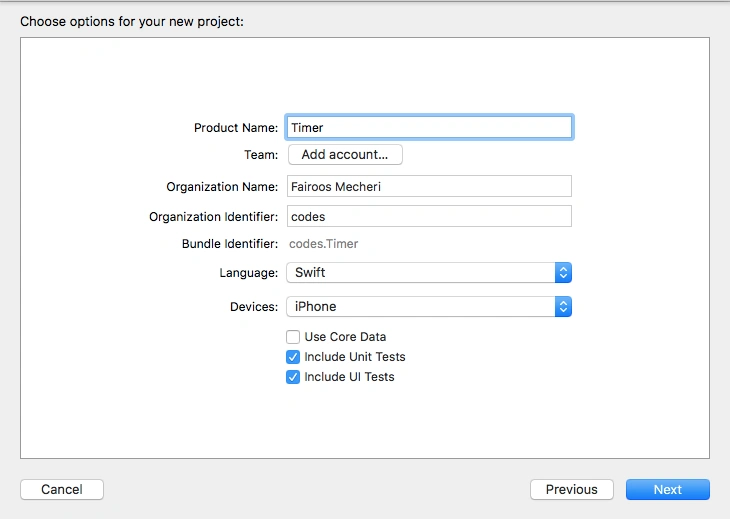

Open Xcode and create a new Single View Application and name it Timer (You can name it anything you like).

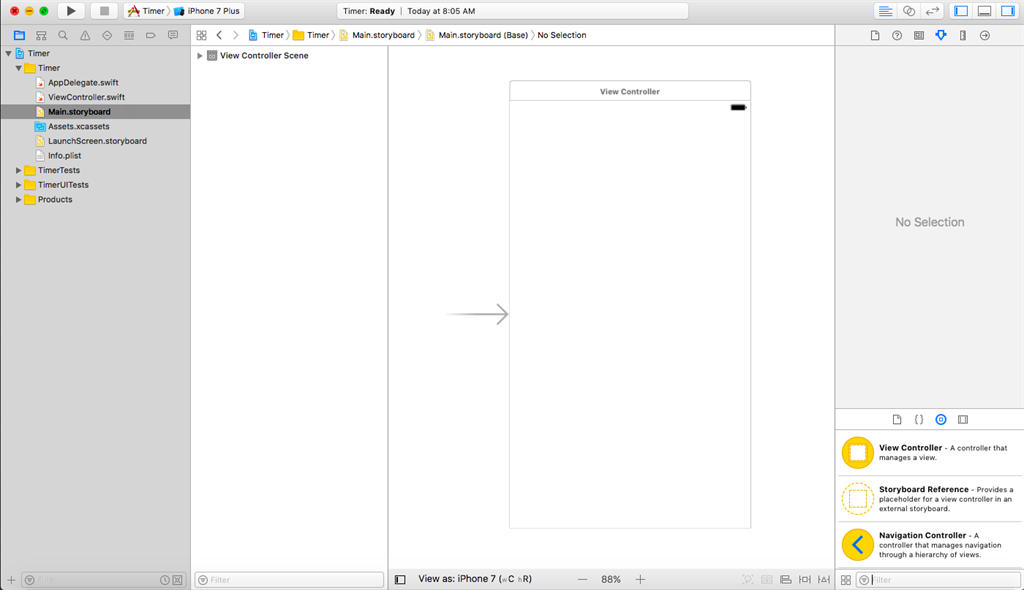

Click Main.StoryBoard.

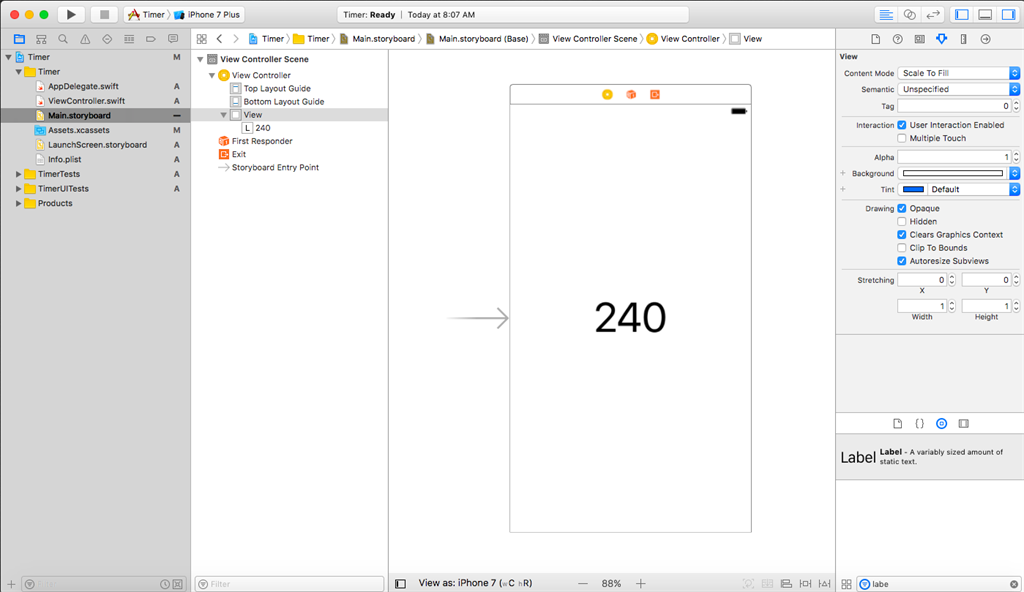

Add a label to display the seconds (We are going to set 240 as default ). Resize it in Properties menu.

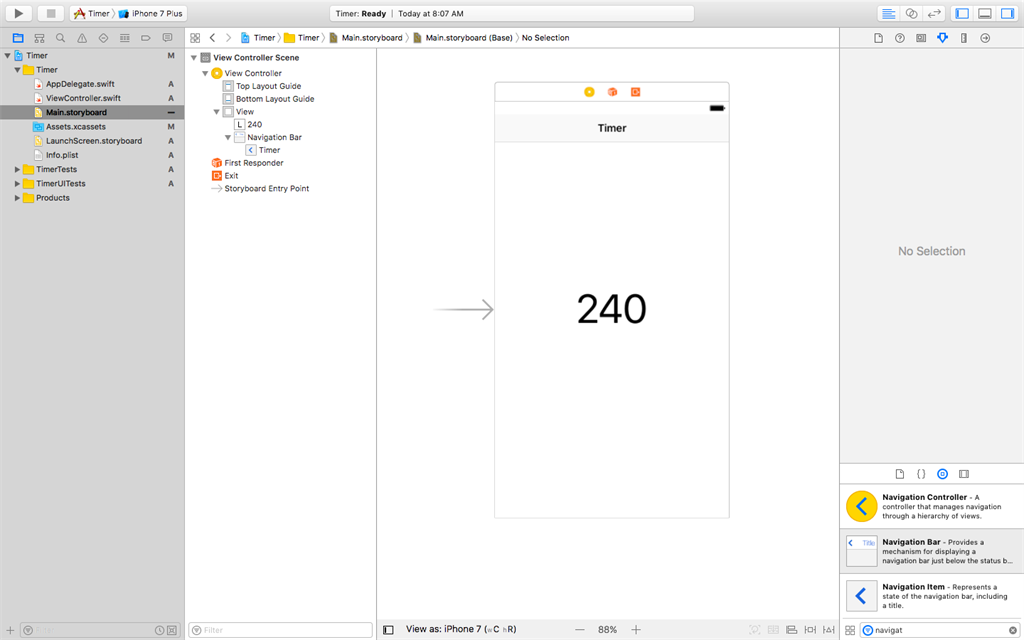

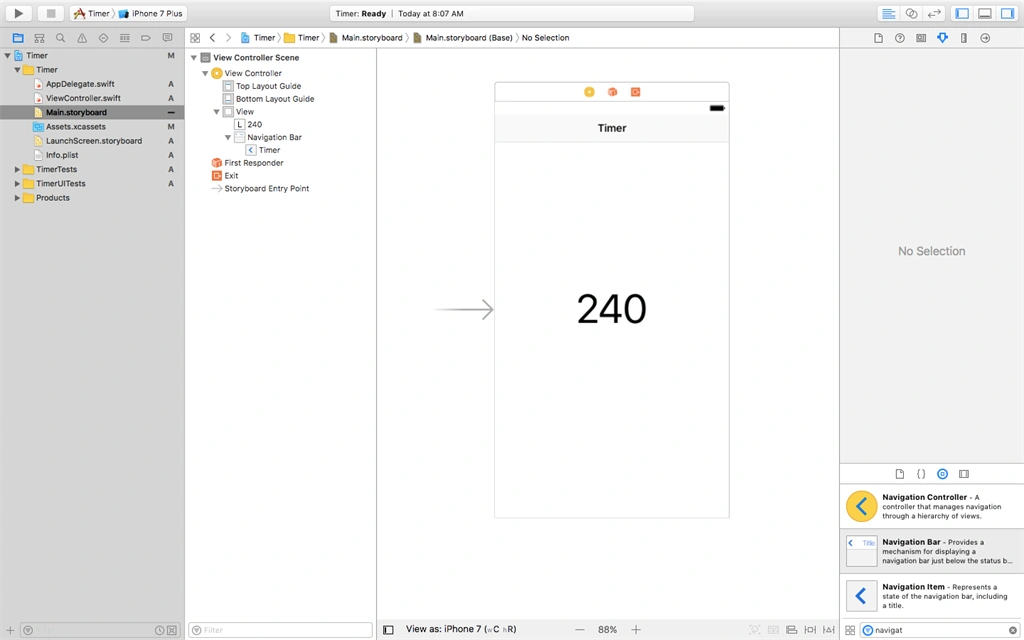

Add a navigation bar to the top and change the title of Timer.

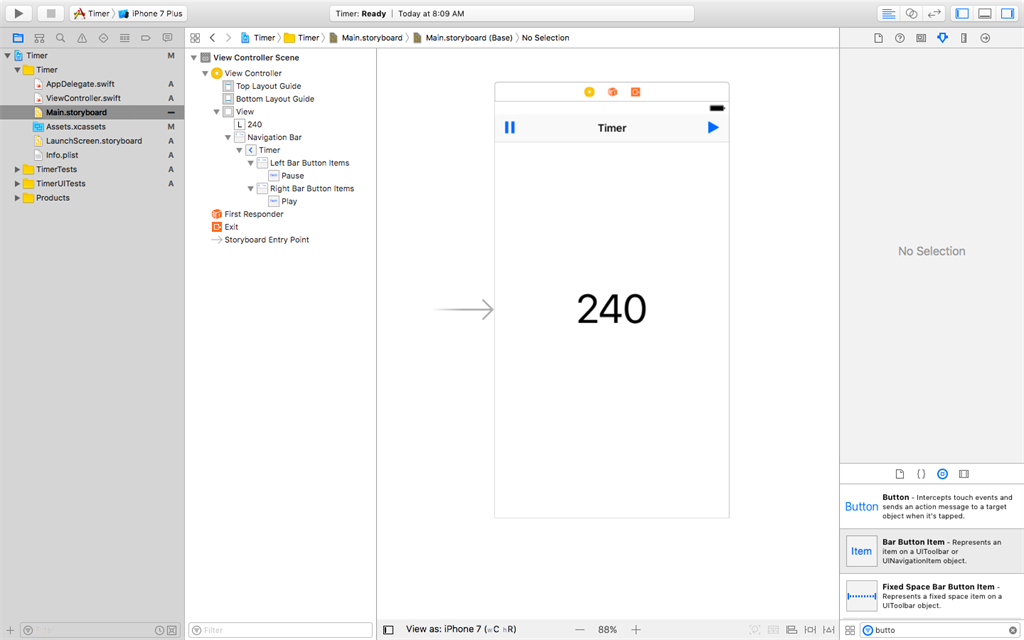

Add two Bar buttons on the top navigation bar and change the System Item into play and pause.

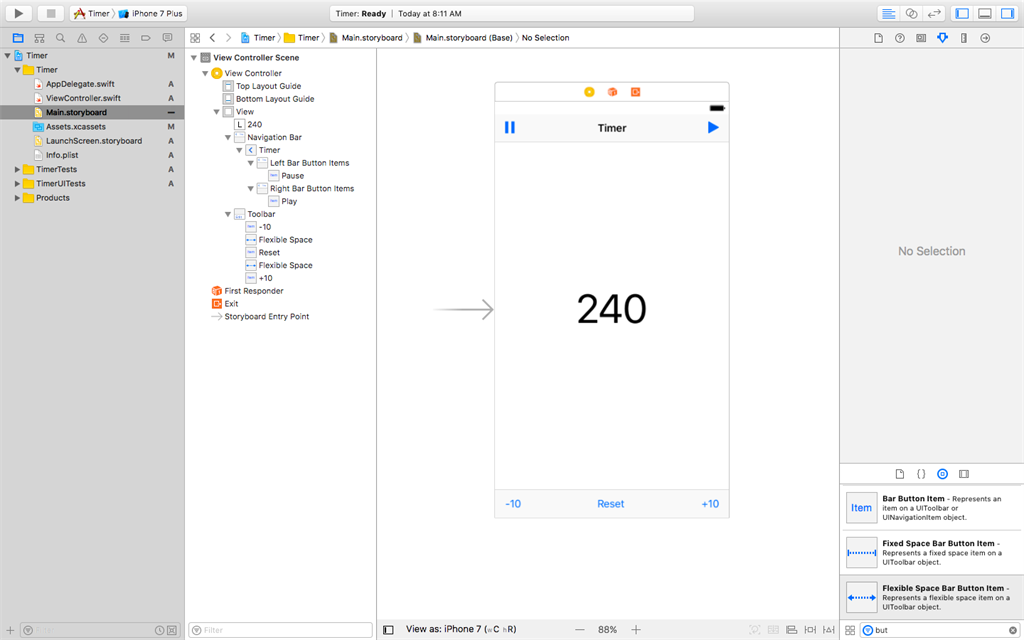

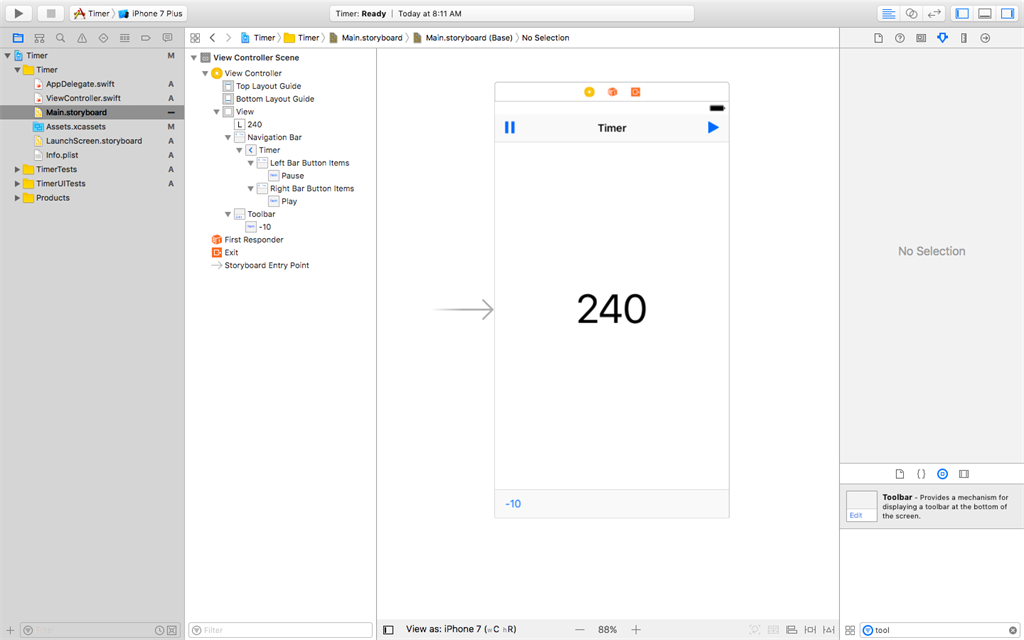

Add a Toolbar to the bottom and rename the item to “-10”.



Add two bar button items and name them “Reset “and “+10”.

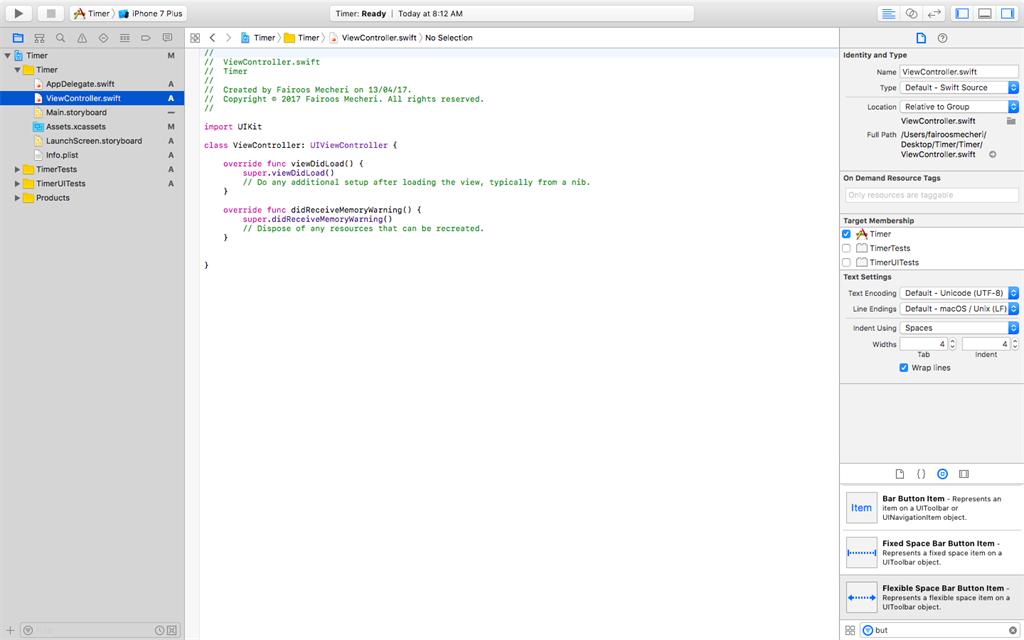

Click ViewController.Swift.



Now, control + drag label to the program and name it “timerLabel”.

Control + drag each button to the code and name them “play”,”pause”,”minusTen”,”plusTen”,”resetTimer”(Connection type must be Button).

Edit the code, as given below.

  1. import UIKit
  2. class ViewController: UIViewController {
  3.     var timer = Timer()
  4.     var time = 240
  5.     func decreaseTimer() {
  6.         if time > 0 {
  7.             time = time - 1
  8.             timerLabel.text = String(time)
  9.         } else {
  10.             timer.invalidate()
  11.         }
  12.     }
  13.     @IBOutlet weak
  14.     var timerLabel: UILabel!@IBAction func play(_ sender: Any) {
  15.         timer = Timer.scheduledTimer(timeInterval: 1, target: self, selector: #selector(ViewController.decreaseTimer), userInfo: nil, repeats: true)
  16.     }
  17.     @IBAction func pause(_ sender: Any) {
  18.         timer.invalidate()
  19.     }
  20.     @IBAction func minusTen(_ sender: Any) {
  21.         if time > 10 {
  22.             time -= 10
  23.             timerLabel.text = String(time)
  24.         }
  25.     }
  26.     @IBAction func plusTen(_ sender: Any) {
  27.         time += 10
  28.         timerLabel.text = String(time)
  29.     }
  30.     @IBAction func resetTimer(_ sender: Any) {
  31.         time = 240
  32.         timerLabel.text = String(time)
  33.     }
  34.     override func viewDidLoad() {
  35.         super.viewDidLoad()
  36.         // Do any additional setup after loading the view, typically from a nib.
  37.     }
  38.     override func didReceiveMemoryWarning() {
  39.         super.didReceiveMemoryWarning()
  40.         // Dispose of any resources that can be recreated.
  41.     }
  42. }

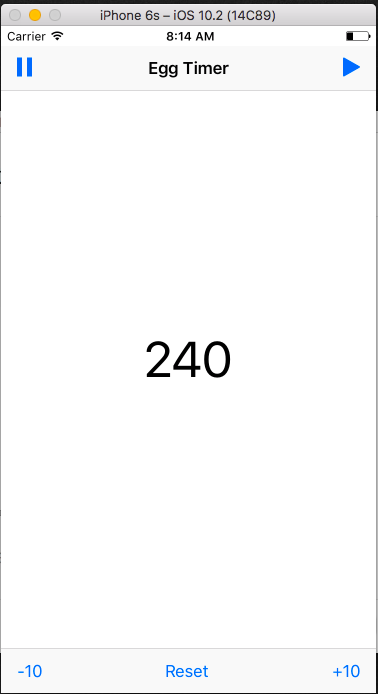

Now, run the app.
