Migrate SharePoint List From 2007 To 2013

Migration can be achieved in four different ways.
  1. Using Power shell Script.
  2. Using Third Party Tool like Sharegate
  3. Using List Template.
  4. Microsoft Access 2013.
In this blog, we will discuss only using power shell script.
  • Open window powershell in source machine.
  • Before running export command please change the WebURL to Source Site URL, ListName is the list which we need to migrate and provide the physical path to save the export file. Export-List -WebUrl "http://vmssharepdev02:7777/" -ListName"ExistingDemo" -Path "D:\ExistingDemoExport" -Overwrite

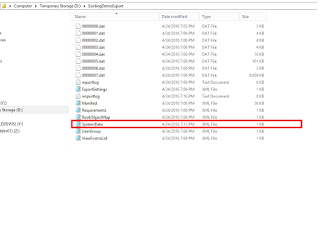

  • Run the export command in powershell window. When export command is successful following file will find in physical location.



  • Open the file into notepad. i.e. SystemData.xml
  • Change the version and build attributes value in SystemData.xml file according to the new environment.



  • To change the build attribute value open Central Administration on destination site and navigate to Upgrade and Migration->Check product and patch installation status. Copy the highlighted text and replace the build attribute value in SystemData.xml file.
  • Version attribute value will be:

    Sharepoint 2010 : Version="14.0.0.0"
    Sharepoint 2013 : Version="15.0.0.0"
  • After replacing build and attribute value as per above description. Save the SystemData.xml file at same location.
  • Open Window Powershell at destination site and run the export command after amending below line in Import command.
Import-List -WebUrl “http://intranet/sites/sales” -Path ""D:\ExistingDemoExport""
Using Power Shell Script

Export Command
  1. function Export-List
  2. {
  3. Param (
  4. [parameter(Mandatory=$true)][string]$WebUrl,
  5. [parameter(Mandatory=$true)][string]$ListName,
  6. [parameter(Mandatory=$true)][string]$Path,
  7. [parameter(Mandatory=$false)][switch]$ExcludeDependencies,
  8. [parameter(Mandatory=$false)][switch]$HaltOnWarning,
  9. [parameter(Mandatory=$false)][switch]$HaltOnNonfatalError,
  10. [parameter(Mandatory=$false)][switch]$AutoGenerateDataFileName,
  11. [parameter(Mandatory=$false)][switch]$TestRun,
  12. [parameter(Mandatory=$false)][string]$IncludeSecurity,
  13. [parameter(Mandatory=$false)][string]$IncludeVersions,
  14. [parameter(Mandatory=$false)][int]$FileMaxSize,
  15. [parameter(Mandatory=$false)][switch]$Overwrite,
  16. [parameter(Mandatory=$false)][switch]$SuppressLog
  17. )
  18. #Load SharePoint 2010 cmdlets
  19. $ver = $host | select version
  20. if ($ver.Version.Major -gt 1) {$Host.Runspace.ThreadOptions = "ReuseThread"}
  21. Add-PsSnapin Microsoft.SharePoint.PowerShell -ErrorAction SilentlyContinue
  22. #Load assemblies (needed for SharePoint Server 2007)
  23. [void][System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint")
  24. #Check parameters have the correct values
  25. if (!$IncludeSecurity)
  26. {
  27. $IncludeSecurity = "None"
  28. }
  29. else
  30. {
  31. if (($IncludeSecurity -ne "All") `
  32. -and ($IncludeSecurity -ne "WssOnly") `
  33. -and ($IncludeSecurity -ne "None"))
  34. {
  35. Throw "The IncludeSecurity parameter must be set to All, WssOnly or None"
  36. }
  37. }
  38. if (!$IncludeVersions)
  39. {
  40. $IncludeVersions = "LastMajor"
  41. }
  42. else
  43. {
  44. if (($IncludeVersions -ne "All") `
  45. -and ($IncludeVersions -ne "CurrentVersion") `
  46. -and ($IncludeVersions -ne "LastMajor") `
  47. -and ($IncludeVersions -ne "LastMajorAndMinor"))
  48. {
  49. Throw "The IncludeVersions parameter must be set to All, CurrentVersion, LastMajorAndMinor or LastMajor"
  50. }
  51. }
  52. if (!$FileMaxSize)
  53. {
  54. $FileMaxSize = 0
  55. }
  56. $site = New-Object Microsoft.SharePoint.SPSite($WebUrl)
  57. $web = $site.OpenWeb()
  58. $list = $web.Lists[$ListName]
  59. [bool]$FileCompression = $false
  60. #Set file paths for the export file and logs
  61. [string]$exportPath = $Path.TrimEnd("\")
  62. if ($exportPath.EndsWith(".cmp"))
  63. {
  64. $FileCompression = $true
  65. $exportFile = $Path.Replace($Path.Remove($Path.LastIndexOf("\")+1),"")
  66. $exportPath = $Path.Remove($Path.LastIndexOf("\"))
  67. }
  68. $logFilePath = $exportPath + "\exportlog.txt"
  69. New-Item -Path $logFilePath -Type File -Force | Out-Null
  70. Write-Host "Export log file created at" $logFilePath
  71. $exportObject = New-Object Microsoft.SharePoint.Deployment.SPExportObject
  72. $exportObject.Id = $list.ID
  73. $exportObject.Type = [Microsoft.SharePoint.Deployment.SPDeploymentObjectType]::List
  74. #Create the export settings from the parameters specified
  75. $exportSettings = New-Object Microsoft.SharePoint.Deployment.SPExportSettings
  76. $exportSettings.SiteUrl = $site.Url
  77. $exportSettings.ExportMethod = [Microsoft.SharePoint.Deployment.SPExportMethodType]::ExportAll
  78. $exportSettings.FileLocation = $exportPath
  79. $exportSettings.FileCompression = $FileCompression
  80. if ($FileCompression) { $exportSettings.BaseFileName = $exportFile }
  81. $exportSettings.ExcludeDependencies = $ExcludeDependencies
  82. $exportSettings.OverwriteExistingDataFile = $Overwrite
  83. $exportSettings.IncludeSecurity = $IncludeSecurity
  84. $exportSettings.IncludeVersions = $IncludeVersions
  85. $exportSettings.LogFilePath = $logFilePath
  86. $exportSettings.HaltOnWarning = $HaltOnWarning
  87. $exportSettings.HaltOnNonfatalError = $HaltOnNonfatalError
  88. $exportSettings.AutoGenerateDataFileName = $AutoGenerateDataFileName
  89. $exportSettings.TestRun = $TestRun
  90. $exportSettings.FileMaxSize = $FileMaxSize
  91. $exportSettings.ExportObjects.Add($exportObject)
  92. #Write the export settings to a log file
  93. Out-File -FilePath $logFilePath -InputObject $exportSettings -Append -Encoding utf8
  94. #Run the export procedure
  95. $export = New-Object Microsoft.SharePoint.Deployment.SPExport($exportSettings)
  96. $export.Run()
  97. #Load notepad showing the log file
  98. if (!$SuppressLog) { notepad $logFilePath }
  99. #Dispose of the web and site objects after use
  100. $web.Dispose()
  101. $site.Dispose()
  102. }
  103. Export-List -WebUrl "http://vmssharepdev02:7777/" -ListName "Incident" -Path "E:\Gaurav\ForMigration\FromLive\Incident" -Overwrite
Import Command
  1. function Import-List
  2. {
  3. Param (
  4. [parameter(Mandatory=$true)][string]$WebUrl,
  5. [parameter(Mandatory=$true)][string]$Path,
  6. [parameter(Mandatory=$false)][switch]$HaltOnWarning,
  7. [parameter(Mandatory=$false)][switch]$HaltOnNonfatalError,
  8. [parameter(Mandatory=$false)][switch]$RetainObjectIdentity,
  9. [parameter(Mandatory=$false)][string]$IncludeSecurity,
  10. [parameter(Mandatory=$false)][string]$UpdateVersions,
  11. [parameter(Mandatory=$false)][switch]$SuppressLog
  12. )
  13.
  14. #Load SharePoint 2010 cmdlets
  15. Add-PSSnapin Microsoft.SharePoint.PowerShell -erroraction SilentlyContinue
  16. #Load assemblies (needed for SharePoint Server 2007)
  17. [void][System.Reflection.Assembly]::LoadWithPartialName("Microsoft.SharePoint")
  18.
  19. #Check parameters have the correct values
  20. if (!$IncludeSecurity)
  21. {
  22. $IncludeSecurity = "None"
  23. }
  24. else
  25. {
  26. if (($IncludeSecurity -ne "All") `
  27. -and ($IncludeSecurity -ne "WssOnly") `
  28. -and ($IncludeSecurity -ne "None"))
  29. {
  30. Throw "The IncludeSecurity parameter must be set to All, WssOnly or None"
  31. }
  32. }
  33.
  34. if (!$UpdateVersions)
  35. {
  36. $UpdateVersions = "Overwrite"
  37. }
  38. else
  39. {
  40. if (($UpdateVersions -ne "Overwrite") `
  41. -and ($UpdateVersions -ne "Append") `
  42. -and ($UpdateVersions -ne "Ignore"))
  43. {
  44. Throw "The UpdateVersions parameter must be set to Overwrite, Append or Ignore"
  45. }
  46. }
  47.
  48. $site = New-Object Microsoft.SharePoint.SPSite($WebUrl)
  49. $web = $site.OpenWeb()
  50.
  51. $importSettings = New-Object Microsoft.SharePoint.Deployment.SPImportSettings
  52.
  53. #Set file paths for the import file and logs
  54. $fileName = ""
  55. if ($Path.EndsWith(".cmp"))
  56. {
  57. $fileName = $Path.Replace($Path.Remove($Path.LastIndexOf("\")+1),"")
  58. $importPath = $Path.Remove($Path.LastIndexOf("\"))
  59. $importSettings.FileCompression = $true
  60. $importSettings.BaseFileName = $fileName
  61. }
  62. else
  63. {
  64. $importPath = $Path.TrimEnd("\")
  65. $importSettings.FileCompression = $false
  66. }
  67.
  68. $logFilePath = $importPath + "\importlog.txt"
  69. New-Item -Path $logFilePath -Type File -Force | Out-Null
  70. Write-Host "Import log file created at" $logFilePath
  71.
  72. #Create the import settings from the parameters specified
  73. Write-Host "Configuring import settings"
  74. $importSettings.SiteUrl = $site.Url
  75. $importSettings.WebUrl = $web.Url
  76. $importSettings.FileLocation = $importPath
  77. $importSettings.IncludeSecurity = $IncludeSecurity
  78. $importSettings.UpdateVersions = $UpdateVersions
  79. $importSettings.LogFilePath = $logFilePath
  80. $importSettings.HaltOnWarning = $HaltOnWarning
  81. $importSettings.HaltOnNonfatalError = $HaltOnNonfatalError
  82. $importSettings.RetainObjectIdentity = $RetainObjectIdentity
  83. $importSettings.UserInfoDateTime = "ImportAll"
  84. if (!$SuppressLog) { $importSettings }
  85.
  86. #Write the import settings to a log file
  87. Out-File -FilePath $logFilePath -InputObject $importSettings -Append -Encoding utf8
  88.
  89. #Run the import procedure
  90. Write-Host "Import running, please wait..."
  91. $import = New-Object Microsoft.SharePoint.Deployment.SPImport($importSettings)
  92. $import.Run()
  93. Write-Host "Import from" $Path "complete"
  94.
  95. #Load notepad showing the log file
  96. if (!$SuppressLog) { notepad $logFilePath }
  97.
  98. #Dispose of the web and site objects after use
  99. $web.Dispose()
  100. $site.Dispose()
  101. }
Import-List -WebUrl “http://intranet/sites/sales” -Path "C:\Export\TeamContacts"
