Objective :
I have always felt the need to have a personal search engine like Google :) which would make life easy for me. Here I am creating a tool which would help us add topics and their corresponding sites to a database and also search them using the tool. Let's get started designing the Search Engine.
Create a table in the database:
create table WinSearchEngine_Dictionary
( id integer identity primary key,
topic varchar(200),
site_adress varchar(200)
);

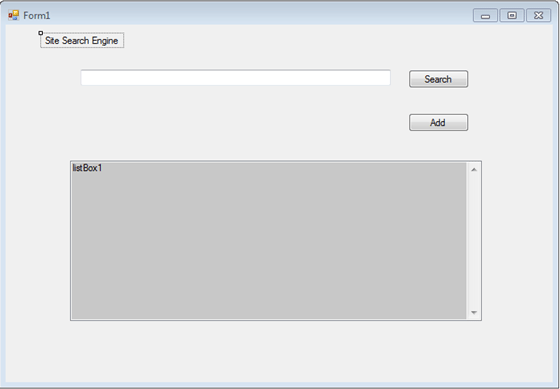

Let's create a Windows Form project WinSearchEngine. I have created a Simple User Interface:
Creating Data Model :
Let's add an ADO.Net Entity Data Model. Let's name it Dictionary.edmx.
Let's go ahead and create a dictionary class. This is a static class provides the methods I need to populate data. I have used LINQ with Lambda Expressions.
I have created a simple method getData. This is what the method looks like:
public static IEnumerable getData(string topic)
{
// create the context object to access the Entities
SearchEngineEntities context = new SearchEngineEntities();
// returning the Ienumerable data where topic starts with string parameter topic passed
return context.WinSearchEngine_Dictionary.Where(x => x.topic.StartsWith(topic))
.Select (x => x;
}
Inside the Search Button click let's bind the resultset to the ListBox. The display Member is site_adress.
private void Search_Click(object sender, EventArgs e)
{
listBox1.DataSource = Dictionary.getData(textBox1.Text);
listBox1.DisplayMember = "site_adress";
}
Ok we are done with the Search logic.
Now I create another method in the Dictionary class.
public static void addData(string topic, string siteaddress)
{
// create the context object to access the Entities
SearchEngineEntities context = new SearchEngineEntities();
// Create a new entity of the Type WinSearchEngine_Dictionary
var newSearchEntity = new WinSearchEngine_Dictionary();
// Lets set the values of the entity
newSearchEntity.topic = topic;
newSearchEntity.site_adress = siteaddress;
// Add the object to the context
context.AddObject("WinSearchEngine_Dictionary", newSearchEntity);
// Let's Save the context
context.SaveChanges();
}

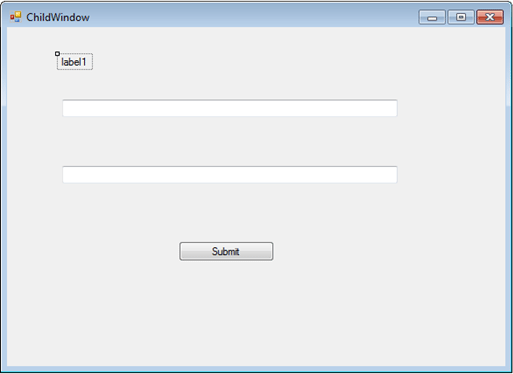

I then create a new form named ChildWindow. The UI looks as below:
I then go back to the Form1 and in the Add Button click handler add the following code to display the ChildWindow:
private void button1_Click(object sender, EventArgs e)
{
ChildWindow form2 = new ChildWindow();
form2.Activate();
form2.Show();
}
Now let's get to the Childwindow form.
private void button1_Click(object sender, EventArgs e)
{
try
{
Dictionary.addData(textBox1.Text, textBox2.Text);
MessageBox.Show("Entries have been added to the Database");
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}

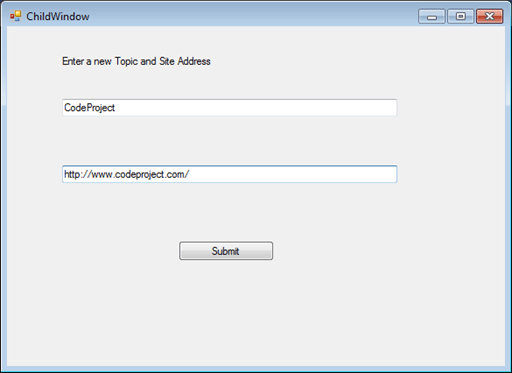

Let's now give it a run and see how the code works.
A message is displayed as shown below:
I went and checked the database; the entry was added.
So we have added an entry to the database. Now let's try searching it from our tool
What I also want is to be able to copy the link and be able to open it in the browser.
So for the ListBox click I add the following code:
private void listBox1_MouseClick(object sender, MouseEventArgs e)
{
var selectedDictionaryitem = listBox1.Items[listBox1.SelectedIndex] as WinSearchEngine_Dictionary;
Clipboard.SetText(selectedDictionaryitem.site_adress);
}
Now I should be able to copy the link and open it in the browser .
Ok so things are working fine now. But still there is something missing. AutoComplete that is it. Well let's add it then.
To add AutoComplete I will create a AutoCompleteStringCollection as shown below :
AutoCompleteStringCollection topicsCollection = new AutoCompleteStringCollection();
Let me add another method in the Dictionary Class.
public static IList gettopics()
{
SearchEngineEntities context = new SearchEngineEntities();
return context.WinSearchEngine_Dictionary.Select(x => x.topic).ToList();
}
As can be seen this method will list me all the topics.
Now I go ahead and add the following code in the TextBox change event of Form1 which displays the topics.
private void textBox1_TextChanged(object sender, EventArgs e)
{
// Dictionary.gettopics give me the list of topics . I loop through the resultset and add it to the topicsCollection
foreach(string str in Dictionary.gettopics())
{
topicsCollection.Add(str);
}
textBox1.AutoCompleteMode = AutoCompleteMode.Suggest;
textBox1.AutoCompleteSource = AutoCompleteSource.CustomSource;
// Assign the topicsCollection to the textBox1 AutoCompleteCustomSource
textBox1.AutoCompleteCustomSource = topicsCollection;
}

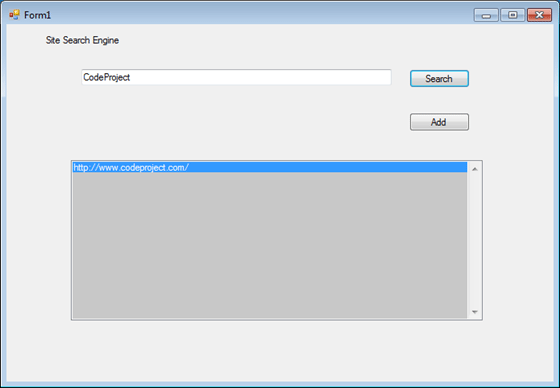

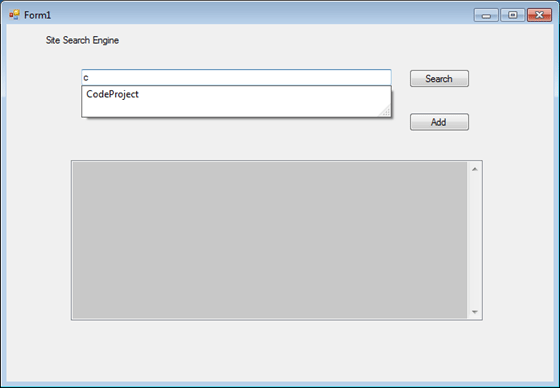

Ok so we are done now. Things should work now. Let's give it a try:
Great it works.
Happy Coding.
