Introduction
In this
post we are going to cover following points:
- Binding
tabular data to a GridView control using the SqlDataSource control
- Filtering the data using quick method
- Focus
on imperative code rather than declarative code
I am going
to explain it using step by step method so that you can follow it and create
the sample application. Follow the steps:
Step 1:

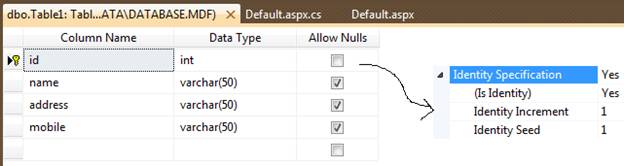

Create the
database as its structure given below in screenshot.
Step 2:

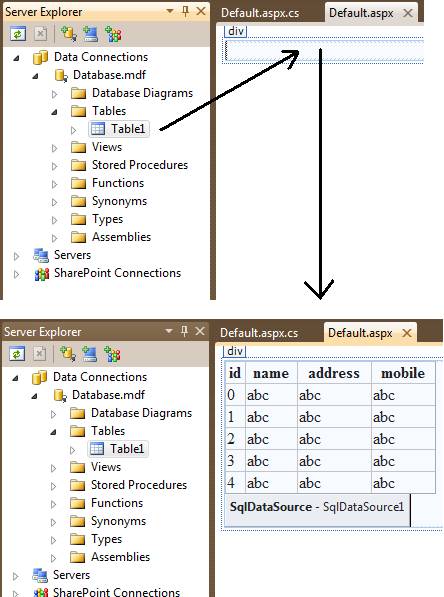

Now drag
the database table from Server Explorer to form (which should be in design
mode), find the screenshot given below.
Step 3:
Now add a DropDownList
box and list some item in this. For this you need to create a DropDownList on
form in design mode and then select its Items properties this will pop a window
which will allow you to add the items for this. You can simply add the items
using code as given below.
<asp:DropDownList ID="DropDownList1" runat="server">
<asp:ListItem>name</asp:ListItem>
<asp:ListItem>address</asp:ListItem>
<asp:ListItem>mobile</asp:ListItem>
</asp:DropDownList>
Step 4
When you
done with DropDownList, you need to add a TextBox that will accept the textual
data to filter records and also you need to add a Button to perform filter task
by its click event.
Step 5

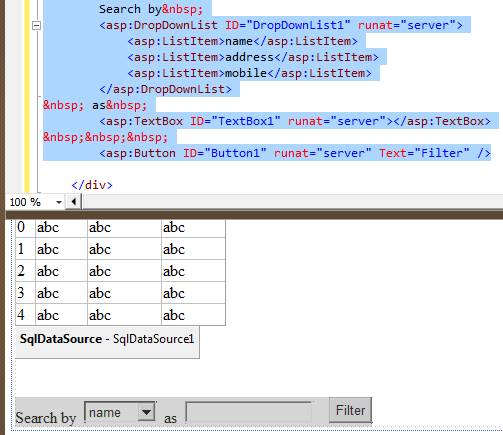

Now our
design work is over, let's place some code in button click event to filter
records. Remember I already have place some records in my database table. Here
is the code.
protected void Button1_Click(object
sender, EventArgs e)
{
string
FilterExpression = string.Concat(DropDownList1.SelectedValue,
" LIKE '%{0}%'");
SqlDataSource1.FilterParameters.Clear();
SqlDataSource1.FilterParameters.Add(new ControlParameter(DropDownList1.SelectedValue,
"TextBox1", "Text"));
SqlDataSource1.FilterExpression = FilterExpression;
}

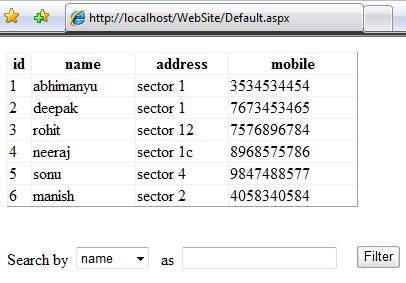

When I run
the application, I have following records.

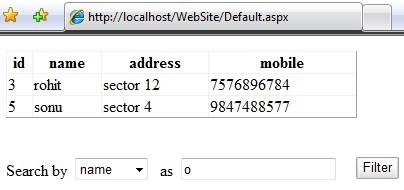

Let's
filter it by name or address or mobile, I am trying filter records by name by
typing just 'o' in text box. It will filter all names contain character 'o'.
Here is my output.
In the same
way, you can try by address or mobile as well.
I hope you
like it. Comments Please.
