Introduction:
Location based metadata defaults manages the default values of metadata fields
based on location and applies them so that they are available when the user
edits a document. SharePoint 2010 allows setting the default metadata values to
the document library, folders and sub folders, so that users do not have to
enter the metadata values when they upload the documents in the document
library. Please refer
http://msdn.microsoft.com/en-us/library/ee557925.aspx for
location-based metadata defaults on columns that support setting defaults, in a
hierarchy of folders. In this article we will be seeing how to get and set
metadata default values using SharePoint object model.
Description:

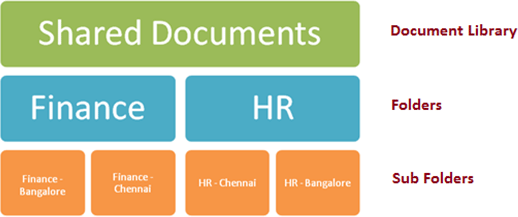

I have a document library "Shared Documents" which has folders and sub folders
as shown in the following figure.
I have created single line of text column in Shared Documents which will be used
for setting metadata defaults for the folder and sub folders.

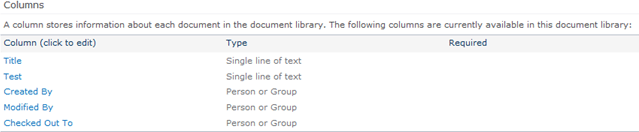

Shared Documents has the following columns

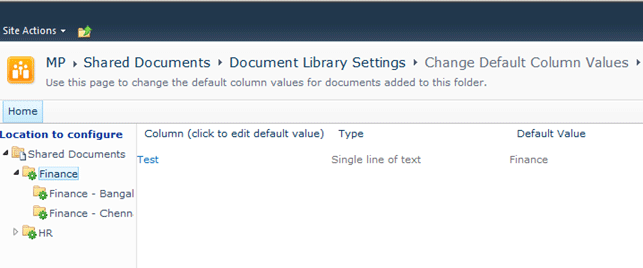

For the Finance folder I have set the metadata default value as Finance.
MetadataDefaults Class:
MetadataDefaults class is used to provide a way to set and get default values
for fields based on where the document is added.
Namespace: Microsoft.Office.DocumentManagement
Assembly: Microsoft.Office.DocumentManagement (in
Microsoft.Office.DocumentManagement.dll)
MetadataDefaults Constructor (SPList):
This is used to initialize a new instance of a object.
In this article we will be seeing the following
- Gets the default value for a specified folder and field.
- Gets the default value for a specified field and folder.
- Removes all of the default values set on the document library.
- Removes all of the defaults set at a specified location.
- Removes all of the default values that are set at a specified location.
- Removes the default value of aSPField object at a specified SPFolder object.
- Removes the default value of a field from an SPFolder object.
- Sets a default for a field at a location.
- Sets a default value for a default field to apply to documents at a specified location.
Create a Console Application:
- Open Visual Studio 2010,
- Go to File => New => Project.
- Select Console Application template from the installed templates.
- Enter the name for the project and click on Ok.
- Add the following reference
- Microsoft.SharePoint
- Microsoft.Office.DocumentManagement
- Add the following Namespaces
- Using Microsoft.SharePoint;
- Using Microsoft.Office.DocumentManagement;
Gets the default value for a specified
folder and field:
Replace Program.cs with the following code
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
SPFolder folder =
null;
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
folder = web.GetFolder("Shared
Documents/Finance");
string defaultValue
= metadata.GetFieldDefault(folder, "Default");

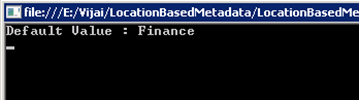

Console.WriteLine("Default
Value : {0}", defaultValue);
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title+
" does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
Gets the default value for a specified field and folder:
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
string folderPath =
web.GetFolder("Shared Documents/Finance").ServerRelativeUrl.ToString();
string defaultValue
= metadata.GetFieldDefault(folderPath, "Test");
Console.WriteLine("Default
Value : {0}", defaultValue);
Console.ReadLine();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title
+ " does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
Removes the default value of a SPField object at a specified SPFolder object
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
SPFolder folder =
null;
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
folder = web.GetFolder("Shared
Documents/Finance");
metadata.RemoveFieldDefault(folder,
"Test");
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title
+ " does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}

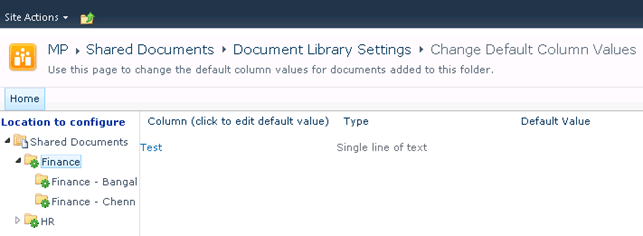

For Finance folder the default metadata value will be removed.
Removes the default value of a field from an SPFolder object.
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
string folderPath =
web.GetFolder("Shared Documents/Finance").ServerRelativeUrl.ToString();
metadata.RemoveFieldDefault(folderPath,
"Test");
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title
+ " does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
For Finance folder the default metadata value will be removed.
Removes all of the defaults set at a specified location
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
SPFolder folder =
null;
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
folder = web.GetFolder("Shared
Documents/Finance");
metadata.RemoveAllFieldDefaults(folder);
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title
+ " does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
Removes all of the default values that are set at a specified location
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
string folderPath =
web.GetFolder("Shared Documents/Finance").ServerRelativeUrl.ToString();
metadata.RemoveAllFieldDefaults(folderPath);
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title
+ " does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
Removes all of the default values set on the document library
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void Main(string[]
args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults
metadata = new
MetadataDefaults(list);
if (web.GetFolder("Shared
Documents/Finance").Exists == true)
{
metadata.RemoveAllDefaults();
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title+
" does not exists in the site");
Console.ReadLine();
}
}
}
}
}
}

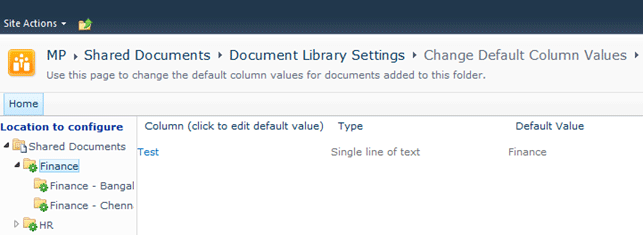

Sets a default for a field at a location
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void
Main(string[] args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults metadata = new MetadataDefaults(list);
SPFolder folder = null;
if (web.GetFolder("Shared Documents/Finance").Exists
== true)
{
folder = web.GetFolder("Shared
Documents/Finance");
metadata.SetFieldDefault(folder,
"Test", "Finance");
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title+ " does
not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
Sets a default value for a default field to apply to documents at a specified
location
using
System;
using
System.Collections.Generic;
using
System.Linq;
using
System.Text;
using
Microsoft.SharePoint;
using
Microsoft.Office.DocumentManagement;
namespace
LocationBasedMetadata
{
class Program
{
static void
Main(string[] args)
{
using (SPSite
site = new SPSite("http://servername:1111/hr/MP/"))
{
using (SPWeb
web = site.RootWeb)
{
SPList list =
web.Lists.TryGetList("Shared Documents");
if (list !=
null)
{
MetadataDefaults metadata = new MetadataDefaults(list);
if (web.GetFolder("Shared Documents/Finance").Exists
== true)
{
string folderPath =
web.GetFolder("Shared Documents/Finance").ServerRelativeUrl.ToString();
metadata.SetFieldDefault(folderPath,
"Test", "Finance");
metadata.Update();
}
else
{
Console.WriteLine("
Folder does not exists in the document library");
Console.ReadLine();
}
}
else
{
Console.WriteLine(list.Title+ " does
not exists in the site");
Console.ReadLine();
}
}
}
}
}
}
