Getting started with ADO.NET Entity Framework in .NET 3.5 - Part II

Posted by Anand Thakur Articles | ADO.NET in C# October 06, 2008
This article contains a very simple ADO.NET Entity Framework application to update and delete the data to the database using ADO Entity Framework.
Reader Level:
Download Files:


In my last article "Getting started with ADO.NET Entity Framework in .NET 3.5", we have done select and add operations, now let us extend with update and delete operations.

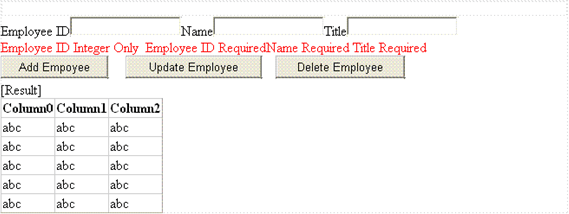

Now I have added there textboxes fro employee ID, name and title as follows. (you can find it with attached project)



Update:

There is no change in Data layer

In the business layer add the UpdateEmployee method

public string UpdateEmployee(Payroll.Entities.Employee e1)

        {

            PayrollDAO payrollDAO = new PayrollDAO();

            try

            {

                Employee e2 = null;

                e2 = (from emp in payrollDAO.Employee

                               where emp.EmployeeID == e1.EmployeeID

                               select emp).First();

                e2.Name = e1.Name;

                e2.Title = e1.Title;

                payrollDAO.SaveChanges();

            }

            catch

            {

                return "ERROR";

            }

            return "SUCCESS";

        }

In the Presentation layer, add the following code in update button click

protected void Button2_Click(object sender, EventArgs e)

    {

        EmployeeService es = new EmployeeService();

        DateTime dt = new DateTime(2008, 12, 12);

        Payroll.Entities.Employee e1 = Payroll.Entities.Employee.CreateEmployee(Convert.ToInt32(empID.Text), empName.Text, empTitle.Text, dt, "M", "M", dt);

        Result.Text = es.UpdateEmployee(e1);

        GridView1.DataSource = es.GetEmployee();

        GridView1.DataBind();

    }

Delete:

There is no change in Data layer

In the business layer add the DeleteEmployee method

public string DeleteEmployee(Payroll.Entities.Employee e1)

        {

            try

            {

                PayrollDAO payrollDAO = new PayrollDAO();

                Employee e2 = (from emp in payrollDAO.Employee

                               where emp.EmployeeID == e1.EmployeeID

                               select emp).First();

                payrollDAO.DeleteObject(e2);

                payrollDAO.SaveChanges();

            }

            catch

            {

                return "ERROR";

            }

            return "SUCCESS";

        }

In the Presentation layer, add the following code in delete button click

protected void Button3_Click(object sender, EventArgs e)

    {

        EmployeeService es = new EmployeeService();

        DateTime dt = new DateTime(2008, 12, 12);

        Payroll.Entities.Employee e1 = Payroll.Entities.Employee.CreateEmployee(Convert.ToInt32(empID.Text), "", "", dt, "M", "M", dt);

        Result.Text = es.DeleteEmployee(e1);

        GridView1.DataSource = es.GetEmployee();

        GridView1.DataBind();

    }

Now our CRUD operations are over, in next article we will try to include more tables with relationships.
