Silverlight Login Registration Page Using LINQ to SQL And WCF: Part 2

Posted by Shirsendu Nandi Articles | Silverlight with C# July 08, 2011
In this article I will describe how to use the WCF call in to the XAML page.
  • 0
  • 0
  • 8565
Download Files:



Here is the first article:

http://www.c-sharpcorner.com/UploadFile/b19d5a/7996/

In my previous article we have seen how to create the LINQ to SQL class. And thereafter how to create the WCF service reference class and create the suitable method in that class for data insertion by using the reference
of LINQ to SQL class.

Now here we will be seeing how to call the WCF function and service in the code behind of the XAML page.

Objective: Here we have a Login registration page. When you enter your required credentials a child window will display your user name and the email id.

Now let's see the first step:

Step 1:

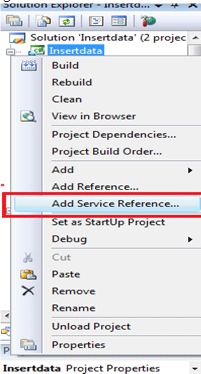

First go to the "insertData" project and right-click it. Click the service reference first, just like Figure 1 (marked wath red):



Figure 1:

Step 2:

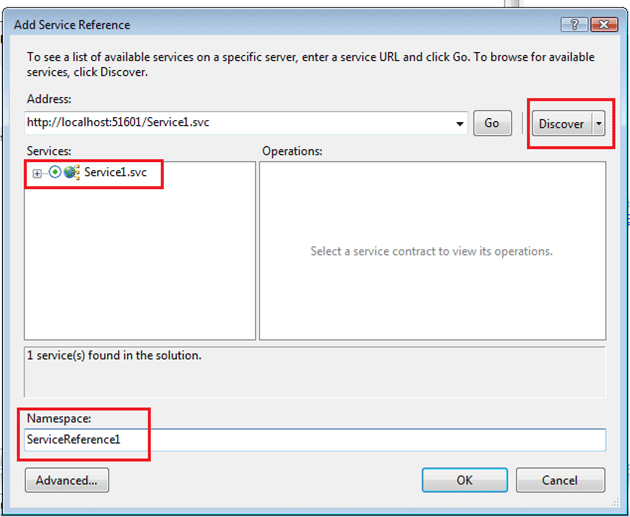

After clicking the add reference you will see a window. In that window click the Discover button. We have already created our WCF service in the "Insertdata" web project so when you click the Discover button it will show you the "service1.svc file".

Now in the Namespace part give the name "Servicereference1". After that click Ok. Just like Figure 2 (marked with red).



Figure 2:

Step 3:

Now go to the page.xaml file and paste the following code.

<Grid Margin="8,8,0,0" HorizontalAlignment="Left" Width="803" Height="659" VerticalAlignment="Top">
                                <Grid.Background>
                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                <LinearGradientBrush.RelativeTransform>
                                                                                <TransformGroup>
                                                                                                <ScaleTransform CenterX="0.5" CenterY="0.5" ScaleX="0.99900001287460327"/>
                                                                                                <SkewTransform AngleX="0" AngleY="0" CenterX="0.5" CenterY="0.5"/>
                                                                                                <RotateTransform Angle="0" CenterX="0.5" CenterY="0.5"/>
                                                                                                <TranslateTransform/>
                                                                                </TransformGroup>
                                                                </LinearGradientBrush.RelativeTransform>
                                                                <GradientStop Color="Black" Offset="0"/>
                                                                <GradientStop Color="#FF35DBD0" Offset="1"/>
                                                </LinearGradientBrush>
                                </Grid.Background>
                                <dataInput:Label Height="36" Margin="255,17,263,0" VerticalAlignment="Top" Content="New User Registration" FontWeight="Bold" FontSize="21.333" Foreground="#FFA2D6F2"/>
                                <Rectangle Stroke="Black" Margin="163,91,132,295" RadiusX="27" RadiusY="27" RenderTransformOrigin="0.502,0.385">
                                                <Rectangle.Projection>
                                                                <PlaneProjection RotationX="17"/>
                                                </Rectangle.Projection>
                                                <Rectangle.RenderTransform>
                                                                <TransformGroup>
                                                                                <ScaleTransform/>
                                                                                <SkewTransform/>
                                                                                <RotateTransform/>
                                                                                <TranslateTransform X="-7" Y="-11"/>
                                                                </TransformGroup>
                                                </Rectangle.RenderTransform>
                                                <Rectangle.Fill>
                                                                <LinearGradientBrush EndPoint="0.682,0.132" StartPoint="0.318,0.868">
                                                                                <GradientStop Color="Black" Offset="0.029"/>
                                                                                <GradientStop Color="#FF02ECFF" Offset="0.95"/>
                                                                </LinearGradientBrush>
                                                </Rectangle.Fill>
                                </Rectangle>
                                <dataInput:Label x:Name="lblUserName" Height="23" HorizontalAlignment="Left" Margin="175,124,0,0" VerticalAlignment="Top" Width="151" FontSize="18.667" FontWeight="Bold" Foreground="#FFA2D6F2" Content="User Name :-" RenderTransformOrigin="0.5,0.5">
                                                <dataInput:Label.RenderTransform>
                                                                <TransformGroup>
                                                                                <ScaleTransform/>
                                                                                <SkewTransform/>
                                                                                <RotateTransform/>
                                                                                <TranslateTransform X="1"/>
                                                                </TransformGroup>
                                                </dataInput:Label.RenderTransform>
                                                <dataInput:Label.Projection>
                                                                <PlaneProjection RotationY="-5" RotationX="12"/>
                                                </dataInput:Label.Projection>
                                </dataInput:Label>
                                <dataInput:Label x:Name="lblPassword" Height="23" HorizontalAlignment="Left" Margin="175,170,0,0" VerticalAlignment="Top" Width="151" FontSize="18.667" FontWeight="Bold" Foreground="#FFA2D6F2" Content="PassWord :-"/>
                                <dataInput:Label x:Name="lblEmailid" Height="23" HorizontalAlignment="Left" Margin="175,219,0,0" VerticalAlignment="Top" Width="224" FontSize="18.667" FontWeight="Bold" Foreground="#FFA2D6F2" Content="EmailId :-"/>
                                <TextBox x:Name="txtUserName" Height="23" Margin="0,124,197,0" VerticalAlignment="Top" TextWrapping="Wrap" HorizontalAlignment="Right" Width="170"/>
                                <TextBox x:Name="txtPassword" Foreground="White"  Height="23" Margin="0,170,197,0" VerticalAlignment="Top" TextWrapping="Wrap" HorizontalAlignment="Right"  Width="170"/>
                                <TextBox x:Name="txtemailid" Height="23" Margin="0,219,197,0" VerticalAlignment="Top" TextWrapping="Wrap" HorizontalAlignment="Right" Width="170"/>
                                <Button x:Name="Register" Margin="293,279,387,0" Content="Register" Cursor="Hand" Click="Register_Click" Height="33" VerticalAlignment="Top">
                                                <Button.Background>
                                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                                <GradientStop Color="Black" Offset="0"/>
                                                                                <GradientStop Color="#FF93949E" Offset="1"/>
                                                                </LinearGradientBrush>
                                                </Button.Background>
                                                <Button.Projection>
                                                                <PlaneProjection RotationX="-28"/>
                                                </Button.Projection>
                                </Button>
                                <Button x:Name="Cancel" HorizontalAlignment="Right" Margin="0,279,261,0" Width="106" Content="Cancel" Click="Cancel_Click" Height="33" VerticalAlignment="Top">
                                                <Button.Projection>
                                                                <PlaneProjection RotationX="-28"/>
                                                </Button.Projection>
                                </Button>
                                <Rectangle Stroke="Black" RadiusX="19" RadiusY="19" Height="235" Margin="163,0,142,60" VerticalAlignment="Bottom">
                                                <Rectangle.Fill>
                                                                <LinearGradientBrush EndPoint="0.534,0.995" StartPoint="0.466,0.005">
                                                                                <GradientStop Color="#FFE4C5EC" Offset="0.026"/>
                                                                                <GradientStop Color="#FF872E9F" Offset="0.999"/>
                                                                </LinearGradientBrush>
                                                </Rectangle.Fill>
                                </Rectangle>
                                <data:DataGrid Height="192" Margin="188,0,174,77" VerticalAlignment="Bottom" RenderTransformOrigin="0.869,0.137" UseLayoutRounding="False" d:LayoutRounding="Auto">
                                                <data:DataGrid.Background>
                                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                                <GradientStop Color="Black" Offset="0"/>
                                                                                <GradientStop Color="#FF9EA7E6" Offset="1"/>
                                                                </LinearGradientBrush>
                                                </data:DataGrid.Background>
                                                <data:DataGrid.AlternatingRowBackground>
                                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                                <GradientStop Color="Black" Offset="0"/>
                                                                                <GradientStop Color="#FFAB7979" Offset="1"/>
                                                                </LinearGradientBrush>
                                                </data:DataGrid.AlternatingRowBackground>
                                                <data:DataGrid.RenderTransform>
                                                                <TransformGroup>
                                                                                <ScaleTransform/>
                                                                                <SkewTransform/>
                                                                                <RotateTransform Angle="0.629"/>
                                                                                <TranslateTransform X="0.755" Y="1.79"/>
                                                                </TransformGroup>
                                                </data:DataGrid.RenderTransform>
                                </data:DataGrid>
              </Grid>

  </UserControl>

Step 4:

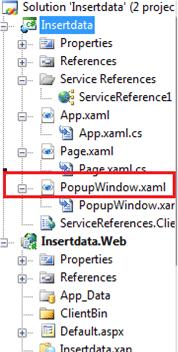

Now open this Silverlight Project in ExpressionBlend. Now add a new child window named "Popupwindow.xaml" in to the Silverlight "insertdata" project just like Figure 3 (marked with red):


Figure 3:

Step 5:

Go to "page.caml.cs". First add the reference of your WCF service in the namespace declaration part:

using Insertdata.ServiceReference1;

After that write the code into the "Register_Click" event.

 Service1Client sc = new Service1Client();
            a = txtUserName.Text;
            b = txtemailid.Text;
            sc.InsertDataAsync(txtUserName .Text ,txtPassword .Text ,txtemailid .Text  );
            PopupWindow pw = new PopupWindow(a,b);
            pw.Show();


Here I first create the object of Service reference. Now we have the 'InsertData" methods in our WCF file.

So here it will come "InsertdataAsync" and according to your method parameter you will pass your required Information.

Here I am passing username, password and mail id information.

Now create the object of Popupwindow and pass the username and mailid to the constructor of that "PopuoWindow".

So when we click the register button it will save the data to the table and display the username and mailid in to the
popup window.

Now here is the complete code of that "page.xaml.cs" file.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Insertdata.ServiceReference1;

namespace Insertdata
{
    public partial class Page : UserControl
    {
        public string a, b, c;
        public Page()
        {
            InitializeComponent();

        }

        private void Register_Click(object sender, RoutedEventArgs e)
        {

            Service1Client sc = new Service1Client();
            a = txtUserName.Text;
            b = txtemailid.Text;
            sc.InsertDataAsync(txtUserName .Text ,txtPassword .Text ,txtemailid .Text  );
            PopupWindow pw = new PopupWindow(a,b);
            pw.Show();

        }

        private void Cancel_Click(object sender, RoutedEventArgs e)
        {
            txtemailid.Text = "";
            txtPassword.Text = "";
            txtUserName.Text = "";
            txtUserName.Focus();
        }
    }
}


Step 6:

Now go to the "Popupwindow.xaml.cs" file and paste the following code.

public PopupWindow(string a,string b)
        {
            InitializeComponent();
            lblshow.Content = "Your userName is:-"+a.ToString();
                                                lblshow_Copy.Content ="Your Given Email Id NAme Is :"+b.ToString ();

        }

        private void OKButton_Click(object sender, RoutedEventArgs e)
        {
            this.DialogResult = true;
        }

        private void CancelButton_Click(object sender, RoutedEventArgs e)

        {
            this.DialogResult = false;
        }


Step 7:

Now in the XAML portion of the pop up window paste the following code:

<basics:ChildWindow.Background>
                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                <GradientStop Color="Black" Offset="0"/>
                                                <GradientStop Color="#FF23D2EA" Offset="1"/>
                                </LinearGradientBrush>
                </basics:ChildWindow.Background>
                <Grid x:Name="LayoutRoot" Margin="0,0,0,-6">
                                <Grid.RowDefinitions>
                                                <RowDefinition />
                                                <RowDefinition Height="Auto" />
                                </Grid.RowDefinitions>

                                <Grid.Background>
                                                <LinearGradientBrush EndPoint="0.357,-0.024" StartPoint="0.643,1.024">
                                                                <GradientStop Color="#FF12031E" Offset="0.204"/>
                                                                <GradientStop Color="#FFB30BB1" Offset="0.9"/>
                                                </LinearGradientBrush>
                                </Grid.Background>

                                <Button x:Name="OKButton" Content="OK" Click="OKButton_Click" Width="75" Height="23" HorizontalAlignment="Right" Margin="0,0,62,53" VerticalAlignment="Bottom" d:LayoutOverrides="Height" />
                                <Button x:Name="CancelButton" Content="Cancel" Click="CancelButton_Click" Height="23"  Margin="195,0,158,53" VerticalAlignment="Bottom" d:LayoutOverrides="Height" />
                                <dataInput:Label Height="59" Margin="55,8,62,0" VerticalAlignment="Top" Content="Thank You for Your registration" FontSize="18.667" FontStyle="Italic" RenderTransformOrigin="0.5,0.5" Foreground="#FFDBE2EC">
                                                <dataInput:Label.Projection>
                                                                <PlaneProjection RotationY="-2" RotationX="-37"/>
                                                </dataInput:Label.Projection>
                                                <dataInput:Label.RenderTransform>
                                                                <TransformGroup>
                                                                                <ScaleTransform/>
                                                                                <SkewTransform/>
                                                                                <RotateTransform/>
                                                                                <TranslateTransform X="-2"/>
                                                                </TransformGroup>
                                                </dataInput:Label.RenderTransform>
                                </dataInput:Label>
                                <dataInput:Label x:Name="lblshow" Margin="55,71,62,0" FontSize="13.333" Foreground="#FFEBF2D7" Height="22" VerticalAlignment="Top">
                                                <dataInput:Label.Background>
                                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                                <GradientStop Color="Black" Offset="0"/>
                                                                                <GradientStop Color="#FFECFA5B" Offset="1"/>
                                                                </LinearGradientBrush>
                                                </dataInput:Label.Background>
                                </dataInput:Label>
                                <dataInput:Label x:Name="lblshow_Copy" Margin="55,109,62,107" FontSize="13.333" Foreground="#FFEBF2D7">
                                                <dataInput:Label.Background>
                                                                <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                                                                                <GradientStop Color="Black" Offset="0"/>
                                                                                <GradientStop Color="#FFB5E60F" Offset="1"/>
                                                                </LinearGradientBrush>
                                                </dataInput:Label.Background>
                                </dataInput:Label>
                </Grid>
</
basics:ChildWindow>


Step 8:

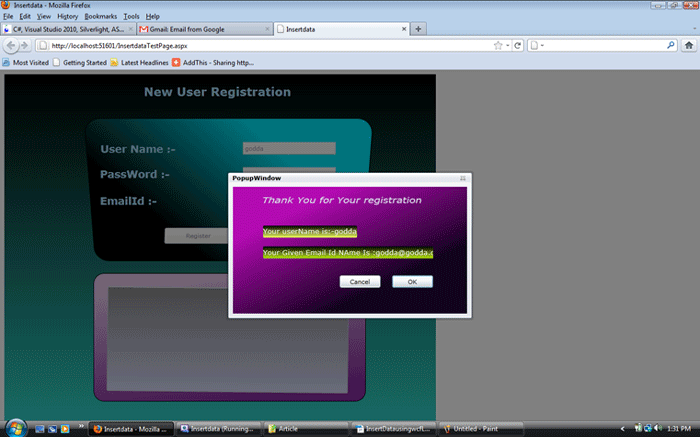

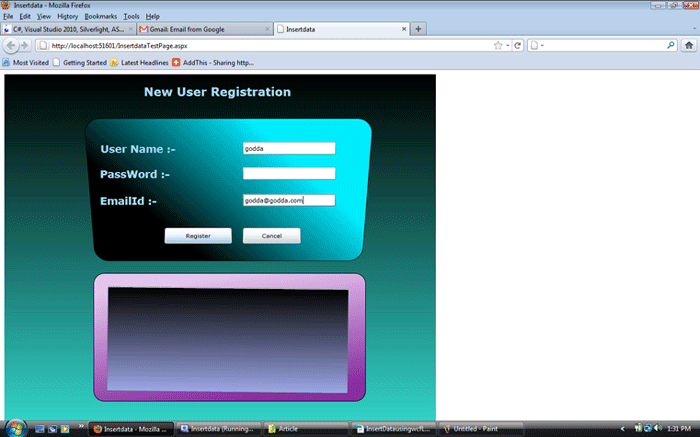

Now run the code. It will look like that in Figure 4. And when you click the registration button by giving the required credentials it will look like:


Figure 4:


Figure 5:
