article we will take an "as needed" approach, discussing only the techniques we
will use in our applications.
To understand ASP.NET and
Visual Studio .NET integration, we will write a simple non-GDI+ Web application.
In this application we will add some controls to a Web page: a generic button, a
text box, and an Image button. After adding these controls, we will write
code in the button click event handler that will read the contents of the text
box as a file name and display the file in the Image button. Let's get
Creating a Web Application
Creating a new ASP.NET Web
application using Visual Studio .NET is simple: First we create a new project by
choosing File | New | Project | Visual C# Projects and then selecting the
ASP.NET Web Application template. As Figure 12.3 shows, we give our
application the name FirstWebApp. It resides in the GDIPlusGuide folder of
localhost, which is the default Web server on our local machine.
The Location box
displays the default option of
http://localhost and the application name. Here localhost represents the
default the IIS server running on our local machine. The default virtual
directory for localhost is c:/Inetpub\wwwroot.
If you are using a remote
server for you development, you'll need to provide your server name instead of
localhost. You can either create the project in the root of the server or create
a new folder.
Clicking the OK
button creates a new directory, FirstWebApp, in the server's virtual directory.
It also creates a new Web application and sends us to the default WebForm1.aspx
page (see Figure 12.4)

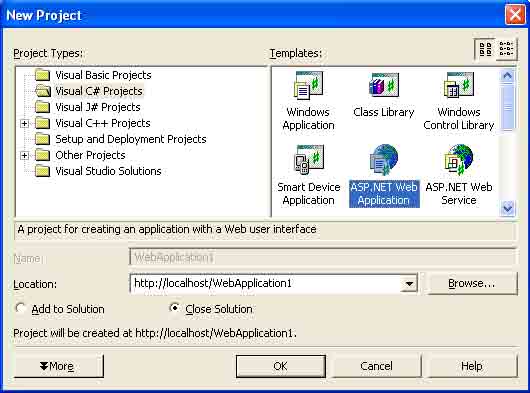

12.3: The FirstWebApp project
From here we can edit our
page's HTML. Two modes are available: Design and HTML (see the
bottom left corner of Figure 12.4). We click the HTML button on edit the
code, as shown in Figure 12.5
The HTML view shows us the
HTML code of a page, its controls and its control properties. The HTML editor
also lets us edit the HTML manually.
If we switch back to the
design mode and right-click on the page, we see several options: View HTML
Source, Build Style, View in Browser, View Code, Synchronize Document Outline,
and so on.
We can set the properties
of a page by selecting Properties from the context menu (which we bring
up with a right mouse-click). The Properties menu opens the DOCUMENT
Property Pages windows (see Figure 12.6). Three tabs are available in this
window: General, Color and Margins, and Keywords.
Most of the properties are self-explanatory. The General tab contains
page title, background image, target schema, character set, page layout, and
client and server language properties.

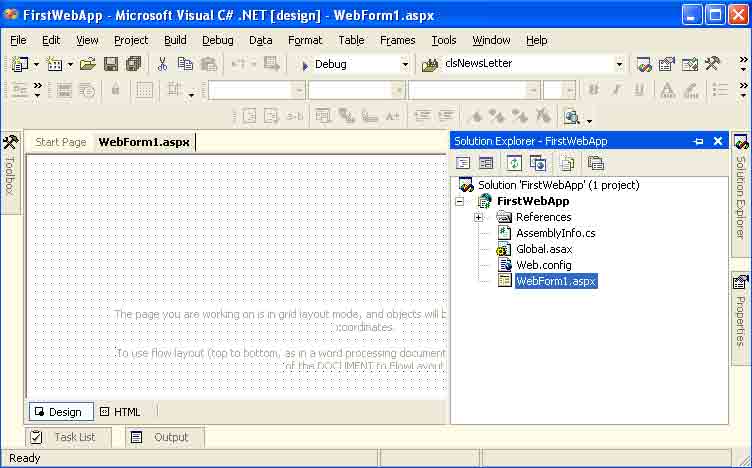

12.4: The default WbForm1.aspx page

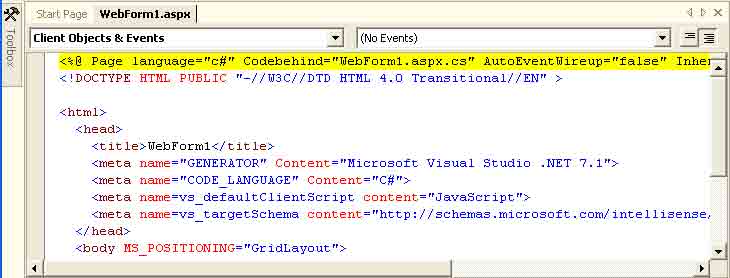

12.5: The HTML view of WebForm1.apsx

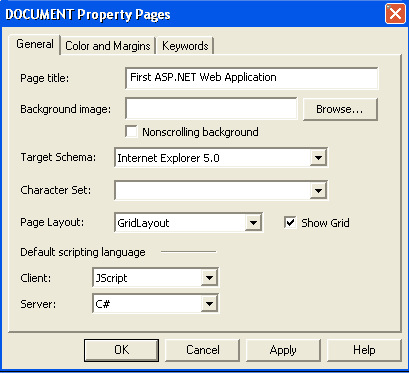

12.6: An ASP.NET document's page properties
The Page Layout
property has two options: GridLayout and FlowLayout. We use
GridLayout when we want to drop controls to the page and reposition them. If
we want to add text to the page, we must set the page layout to FlowLayout.
After we set the Page Layout property to FlowLayout, the editor
works as a text editor.
