Default End Points in WCF 4.0

By Dhananjay Kumar on December 05, 2010
For a normal developer such as I, a great challenge was working with WCF 3.x configuration of End Points in config file. A developer had to add endpoints to setup a WCF service. In WCF 4, Defualt End Point is associated with the service, if we don't configure any WCF endpoint.
  • 0
  • 0
  • 6006


For a normal developer such as I, a great challenge was working with WCF 3.x configuration of End Points in config file. A developer had to add endpoints to setup a WCF service. In WCF 4, Defualt End Point is associated with the service, if we don't configure any WCF endpoint.

To see how Default EndPoint works follow the steps below,

Step 1 : Create a WCF service application

Let us create two service contracts

IService1.cs

[ServiceContract]
    public interface IService1
    {

        [OperationContract]
        string GetData();

    }


IService2.cs

[ServiceContract]
    public interface IService2
    {
        [OperationContract]
        string GetMessage();
    }


Now let us implement the service as below,

public class Service1 : IService1, IService2
    {
        public string GetData()
        {
            return "Hello From Iservice1 ";

        }

        public string GetMessage()
        {
            return " Hello From Iservice2";
        }


Step 2

Now we will host this service in a console application; create a new console application project.

Add reference of WCF service application project and also add reference of System.serviceModel in the console application project.

Note: There is no App.Config associated with console application.


Here, we are registering two base addresses with the servicehost. One for http binding and another for nettcp binding.

Now we don't have any configuration for the service EndPoint. ServiceHost will create default EndPoints.

Now ServiceHost will configure EndPoints for two base addresses

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using System.ServiceModel.Description;
using WcfService1;

namespace ConsoleApplication1
{
    class Program
    {
        static void Main(string[] args)
        {

            ServiceHost host = new ServiceHost(typeof(WcfService1.Service1),
                new Uri("http://localhost:8080/service"),
                new Uri("net.tcp://localhost:8081/service"));

            host.Open();
            foreach (ServiceEndpoint se in host.Description.Endpoints)
            {
                Console.WriteLine("Address: " +  se.Address.ToString() +
                    "  Binding: " + se.Binding.Name +
                    " Contract :"+ se.Contract.Name);
            }

            Console.ReadKey(true);

        }
    }
}

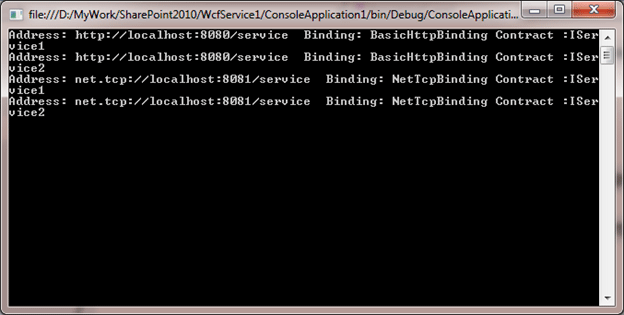

Output would be

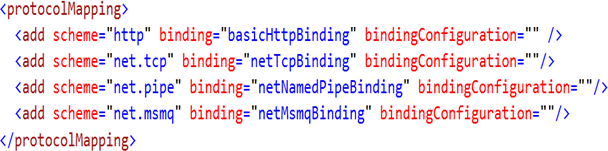

The default protocol mapping is as below,


Since HTTP is mapped with basicHttpBinding, so we got the default EndPoint with basicHttpBinding.

Default EndPoint will only get created if there is not a single Endpoint configured. If we add any single EndPoint then all then there won't be any default EndPoint get configured.

If we add one EndPoint as below,


We added one service EndPoint. Now to the output we get add the following code:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using System.ServiceModel.Description;
using WcfService1;

namespace ConsoleApplication1
{
    class Program
    {
        static void Main(string[] args)
        {
            ServiceHost host = new ServiceHost(typeof(WcfService1.Service1),
                new Uri("http://localhost:8080/service"),
                new Uri("net.tcp://localhost:8081/service"));

            host.AddServiceEndpoint(typeof(IService1),
                new WSHttpBinding(),
                "myBinding");

            host.Open();
            foreach (ServiceEndpoint se in host.Description.Endpoints)
            {
                Console.WriteLine("Address: " +  se.Address.ToString() +
                    "  Binding: " + se.Binding.Name +
                    " Contract :"+ se.Contract.Name);
            }

            Console.ReadKey(true);


        }
    }
}

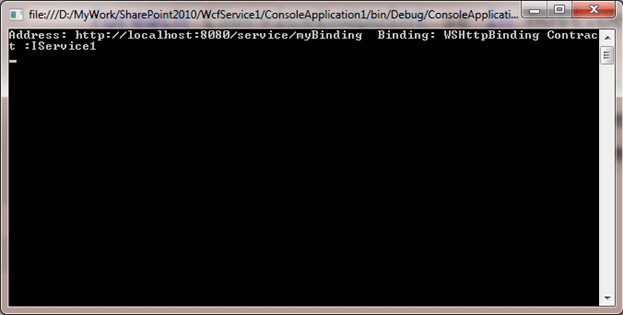

Output


Now we see that if we configure a EndPoint then WCF does not support default Endpoints.
