Radio Button in Silverlight 3.0 Data Grid

By Dhananjay Kumar on November 19, 2009
In this article, I will explain how to put Radio Button as one of the column in Silverlight Datagrid. I will also show how to work with radio button as column of Datagrid.
  • 0
  • 0
  • 8035

Objective

In this article, I will explain how to put Radio Button as one of the column in Silverlight  Datagrid.  I will also show how to work with radio button as column of Datagrid.

Procedure

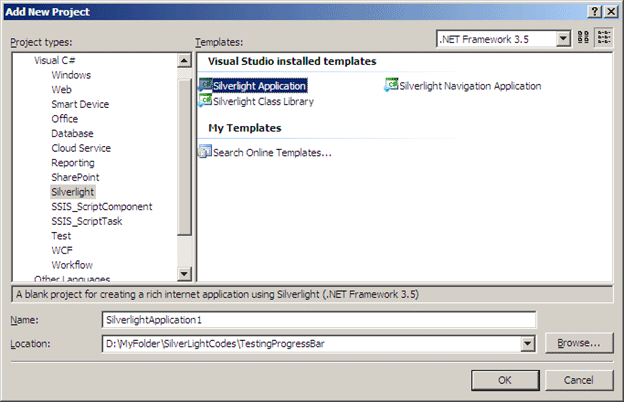

Create a Silverlight  application by File -> New -> Project -> SilverLight then selecting Silverlight  Application project template.

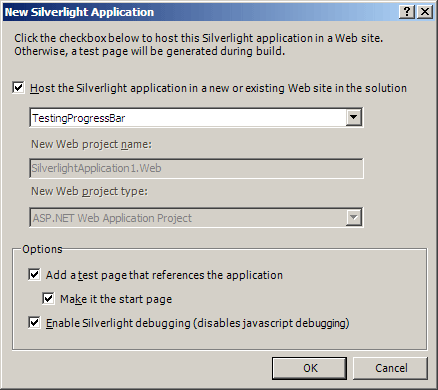

Host the SilverLightApplication1 in Web Application


Design the Silverlight  page (XAML)

Add Datagrid as below and a text box as below.  To add Datagrid, drag and drop Datagrid from toolbox on Silverlight  page.

<
UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="SilverlightApplication1.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d" d:DesignWidth="640" d:DesignHeight="480">
    <Grid x:Name="LayoutRoot" Background="Azure">
        <Grid.RowDefinitions>
            <RowDefinition Height="400"/>
            <RowDefinition Height="*" />

</Grid.RowDefinitions>
      <TextBlock x:Name="txtDisplay" Grid.Row="0" Height="100" Width="300" />

<data:DataGrid Grid.Row="1" Height="auto" Width="auto"   AutoGenerateColumns="False" AlternatingRowBackground="azue" CanUserResizeColumns="False">

</data:DataGrid>

</Grid>
</UserControl>

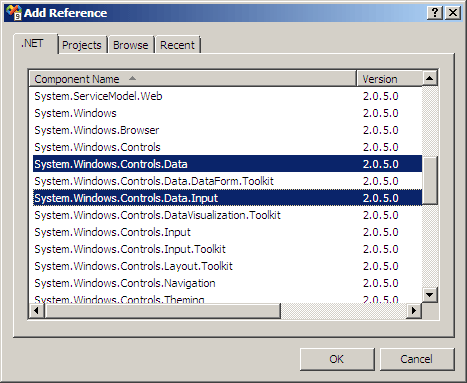

Add Reference

Add below references in Silverlight  Application

System.Windows.Control
System.Windows.Control.Data.Input


Now add below namespace on Silverlight  page (XAML).  You could give any namespace name instead of basic.

xmlns
:basic="clr-namespace:System.Windows.Controls;assembly=System.Windows"
xmlns:dataInput="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.Input"

After adding the above namespace, the namespace section of XAML should look like below

<
UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:basic ="clr-namespace:System.Windows.Controls;assembly=System.Windows"
    mc:Ignorable="d" xmlns:dataInput="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.Input" x:Class="SilverlightApplication1.MainPage"
    d:DesignWidth="640" d:DesignHeight="480">

Adding Radio Button in Datagrid

To add Radio Button

  1. Add Datagrid Template column in Datagrid
  2. Inside Datagrid Template column add a cell template
  3. Inside cell template add  Data Template
  4. Inside Data Template add any control you want to add. We are adding Radio Button here.
  5. Set the properties of Radio Button.
  6. Add SelectionChanged  event handler to Datagrid
  7. Binding other two text column of Datagrid with other properties.
<data:DataGrid x:Name="myDataGrid" Grid.Row="1" Height="auto" Margin="20,20,20,20" IsReadOnly="True" Width="auto" AutoGenerateColumns="False" AlternatingRowBackground="azure" CanUserResizeColumns="False" SelectionChanged="myDataGrid_SelectionChanged">
            <data:DataGrid.Columns>
            <data:DataGridTemplateColumn Header="RadioButtons">
            <data:DataGridTemplateColumn.CellTemplate>
             <DataTemplate>
 <RadioButton x:Name="rdbIndataGrid" IsChecked="false"            GroupName="myGroup" />
             </DataTemplate>
             </data:DataGridTemplateColumn.CellTemplate>
            </data:DataGridTemplateColumn>
 <data:DataGridTextColumn Header="Name" Binding="{Binding Name}" />
 <data:DataGridTextColumn Header="Number Of Article" Binding="{Binding Articles}" />
 </data:DataGrid.Columns>
</data:DataGrid>

Complete code for MainPage.Xaml

<
UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x=http://schemas.microsoft.com/winfx/2006/xaml
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:basic ="clr-namespace:System.Windows.Controls;assembly=System.Windows"
    mc:Ignorable="d" xmlns:dataInput="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.Input"  x:Class="SilverlightApplication1.MainPage"
    d:DesignWidth="640" d:DesignHeight="480">
    <Grid x:Name="LayoutRoot" Background="Azure">
        <Grid.RowDefinitions>
            <RowDefinition Height="50"/>
            <RowDefinition Height="*" />

</Grid.RowDefinitions>
        <TextBox  x:Name="txtDisplay" Grid.Row="0" Height="100" Width="300" Text="This is Dhananjay" />
      <data:DataGrid x:Name="myDataGrid" Grid.Row="1" Height="auto" Margin="20,20,20,20" IsReadOnly="True" Width="auto" AutoGenerateColumns="False" AlternatingRowBackground="azure" CanUserResizeColumns="False" SelectionChanged="myDataGrid_SelectionChanged">
            <data:DataGrid.Columns>

<data:DataGridTemplateColumn Header="RadioButtons">

<data:DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <RadioButton x:Name="rdbIndataGrid" IsChecked="false" GroupName="myGroup" />
                        </DataTemplate>

</data:DataGridTemplateColumn.CellTemplate>
                </data:DataGridTemplateColumn>

<data:DataGridTextColumn Header="Name" Binding="{Binding Name}" />
                <data:DataGridTextColumn Header="Number Of Article" Binding="{Binding Articles}" />

</data:DataGrid.Columns>
        </data:DataGrid>
</
Grid>
</
UserControl>

Binding the Datagrid

private
void GetData()
{
    Service1Client Proxy = new Service1Client();
    ObservableCollection<Author> authors = new ObservableCollection<Author>();
    Proxy.DisplayAuthorCompleted += (sender, e) =>
    {
        ObservableCollection<ServiceReference1.Author> obj = new ObservableCollection<ServiceReference1.Author>();
        obj = e.Result;
        myDataGrid.ItemsSource = obj;
    };
    Proxy.DisplayAuthorAsync();
}

Checking Radio Button is checked or not
  1. Create a Radio Button reference by getting row column from Datagrid.
  2. Checking whether Radio button is checked or not.
  3. If checked, text box content is getting set with name of the author.
private void myDataGrid_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
    ServiceReference1.Author author;
    RadioButton r = myDataGrid.Columns[0].GetCellContent(this.myDataGrid.SelectedItem) as RadioButton;
    if(r.IsChecked == true)
    {
        author = myDataGrid.SelectedItem as ServiceReference1.Author;
        txtDisplay.Text = author.Name;
    }
}

Complete code for MainPage.Xaml.cs

using
System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using SilverlightApplication1.ServiceReference1;
using System.Collections.ObjectModel;

namespace SilverlightApplication1

{

    public partial class MainPage : UserControl

    {



public MainPage()

        {

            InitializeComponent();

            GetData();

        }

        private void GetData()

        {

            Service1Client Proxy = new Service1Client();

            ObservableCollection<Author> authors = new ObservableCollection<Author>();

            Proxy.DisplayAuthorCompleted += (sender, e) =>

            {

                ObservableCollection<ServiceReference1.Author> obj = new ObservableCollection<ServiceReference1.Author>();

                obj = e.Result;

                myDataGrid.ItemsSource = obj;

            };

            Proxy.DisplayAuthorAsync();

        }

        private void myDataGrid_SelectionChanged(object sender, SelectionChangedEventArgs e)

        {

            ServiceReference1.Author author;

            RadioButton r = myDataGrid.Columns[0].GetCellContent(this.myDataGrid.SelectedItem) as RadioButton;

            if(r.IsChecked == true)

            {

                author = myDataGrid.SelectedItem as ServiceReference1.Author;

                txtDisplay.Text = author.Name;

            }

        }

    }

}

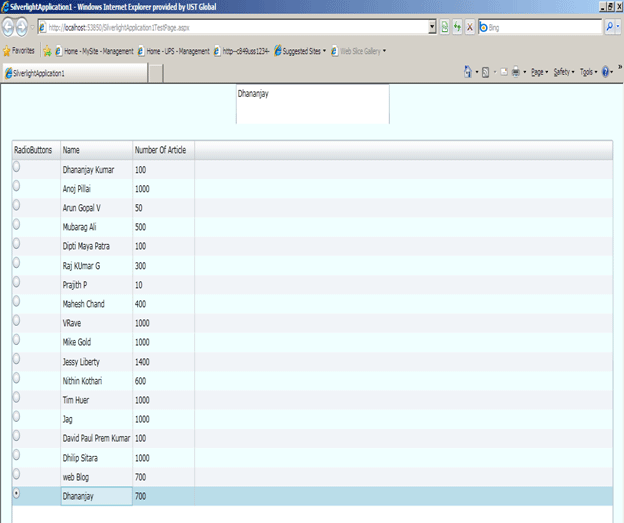

Output


Service

  1. We are calling a WCF service.
  2. This is hosted in same web application where Silverlight  application is hosted.
  3. There is one Data Contract is there. Name of the Data Contract is Author.
Service1.svc.cs

using System;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Activation;
using System.Collections.Generic;
using System.Text;

namespace
TestingProgressBar
{
    [ServiceContract(Namespace = "")]
    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
    public class Service1
    {
        [OperationContract]
        public List<Author> DisplayAuthor()
        {
            List<Author> result = new List<Author>();

            result.Add(new Author() { Name = "Dhananjay Kumar ", Articles = "100" });

            result.Add(new Author() { Name = "Anoj Pillai ", Articles = "1000" });

            result.Add(new Author() { Name = "Arun Gopal V ", Articles = "50" });

            result.Add(new Author() { Name = "Mubarag Ali  ", Articles = "500" });

            result.Add(new Author() { Name = "Dipti Maya Patra ", Articles = "100" });

            result.Add(new Author() { Name = "Raj KUmar G ", Articles = "300" });

            result.Add(new Author() { Name = "Prajith P  ", Articles = "10" });

            result.Add(new Author() { Name = "Mahesh Chand  ", Articles = "400" });

            result.Add(new Author() { Name = "VRave ", Articles = "1000" });

            result.Add(new Author() { Name = "Mike Gold ", Articles = "1000" });

            result.Add(new Author() { Name = "Jessy Liberty  ", Articles = "1400" });

            result.Add(new Author() { Name = "Nithin Kothari", Articles = "600" });

            result.Add(new Author() { Name = "Tim Huer", Articles = "1000" });

            result.Add(new Author() { Name = "Jag  ", Articles = "1000" });

            result.Add(new Author() { Name = "David Paul Prem Kumar", Articles = "100" });

            result.Add(new Author() { Name = "Dhilip Sitara ", Articles = "1000" });

            result.Add(new Author() { Name = "web Blog", Articles = "700" });

            result.Add(new Author() { Name = "Dhananjay ", Articles = "700" });

            return result ;

        }

    }

    [DataContract]

    public class Author

    {

        [DataMember]

        public String Name { get; set; }

        [DataMember]

        public String Articles { get; set; }

    }

}

Conclusion

In this article, we saw how to work with Radio Button in Silverlight  Datagrid. Thanks for reading. I hope it was useful.
