Busy Indicator Control In Silverlight 3

Posted by Diptimaya Patra Articles | Silverlight with C# November 25, 2009
Busy Indicator is a control that is added in Silverlight 3 Toolkit November 2009 Release. In this article we will see how to use it.
  • 0
  • 0
  • 35350
Download Files:


Introduction

Busy Indicator is a control that is added in Silverlight 3 Toolkit November 2009 Release. In this article we will see how to use it.

Creating the Silverlight Application

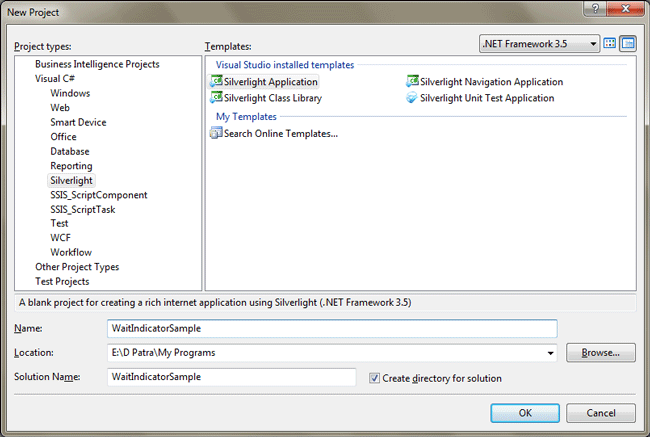

Fire up Visual Studio 2008 and create a Silverlight Application, name it as BusyIndicatorSample.


Open your application in Blend 3.

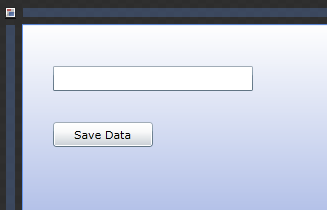

Add some controls to your application. I have added one Button and a TextBox control.


Now add a Busy Indicator Control to your application. Before adding it your application you need to take care of something:

  • Always add the Busy Indicator as your last control in the order. In our case it's in the order
    • TextBox
    • Button
    • BusyIndicator
  • Always make the Busy Indicator's Horizontal and Vertical Alignment to Stretch so that it covers the whole Parent Panel. In our case it's Grid[LayoutRoot]

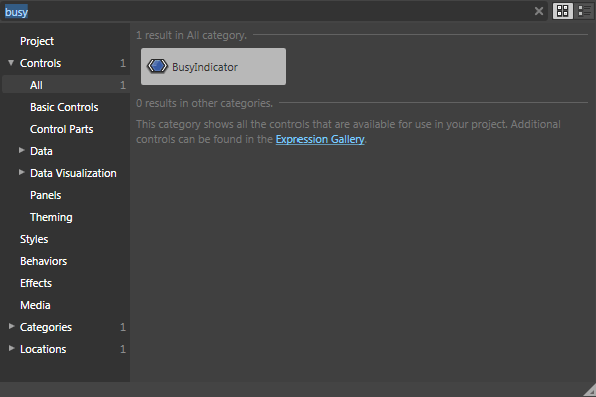

Now you are ready to add the Busy Indicator.


After adding it you can see several properties associated to it.


You can remove the Content and add your own message in BusyContent.

Now we will add some code in the Button Click event and we will see how it is effective to use BusyIndicator Control.

Name the BusyIndicator as BusyWindow.

<
Button x:Name="btnLoad" Click="btnLoad_Click"
            Height="25" HorizontalAlignment="Left" Margin="30,97,0,0" VerticalAlignment="Top" Width="100" Content="Save Data"/>
          <TextBox Height="25" HorizontalAlignment="Left" Margin="30,41,0,0" VerticalAlignment="Top" Width="200" TextWrapping="Wrap"/>
          <controlsToolkit:BusyIndicator x:Name="BusyWindow" Content="" BusyContent="Please Wait While Saving Data..."/>

private
void btnLoad_Click(object sender, RoutedEventArgs e)
{
    int busyDisplay = 3;
    int delayDisplay = 500;
    BusyWindow.DisplayAfter = TimeSpan.FromMilliseconds(delayDisplay);
    BusyWindow.IsBusy = true;
    ThreadPool.QueueUserWorkItem((state) =>
        {
            Thread.Sleep(busyDisplay * 1000);
            Dispatcher.BeginInvoke(() => BusyWindow.IsBusy = false);
        });
    txtStatus.Text = "Data Saved";
}

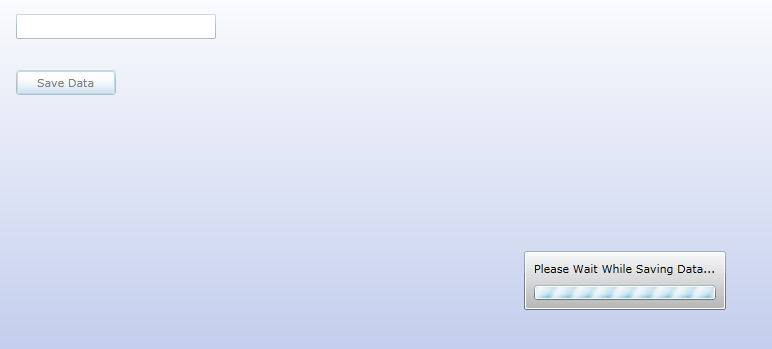

Now run your application and type some text in the TextBox and then click on the Save Data Button.


Now you would understand why we made the Alignment of BusyIndicator as Stretch. If you don't make it, the controls would be available for user to operate on.

Hope you like this article.
