ARTICLE

Select all CheckBox in DataGrid and delete rows in Silverlight 3

Posted by Diptimaya Patra in Articles | Silverlight with C# on December 02, 2009

Tags: DataGrid, Delete Rows, Select All CheckBox, Silverlight 3

In this article we will see how we can select all rows of DataGrid and delete all selected.

Tweet
23633
5

Reader Level: Advanced

Download Files:

SelectAllRowsDataGrid.zip

Introduction

In the previous article we have seen how to add a Checkbox Column In DataGrid and how to achieve multi select delete operation. In this article we will see how we can select all rows of DataGrid and delete all selected.

Creating Silverlight Project

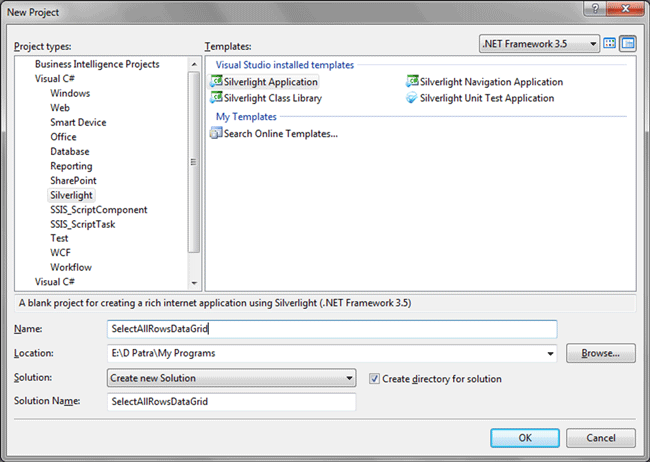

Fire up Visual Studio 2008 and create a new Silverlight 3 Project. Name it as SelectAllRowsDataGrid.

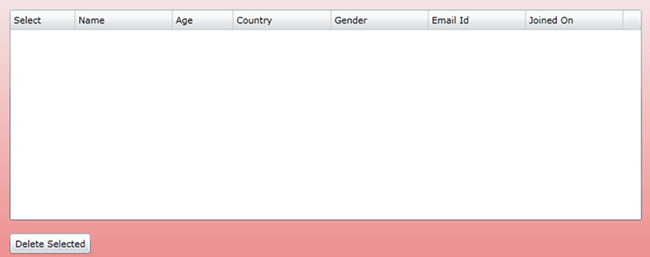

First we will design our application to have a DataGrid to display data and a Button to Delete Selected Rows.

As you see we have customized the Columns in the DataGrid.

Now we will add a CheckBox Control in the Header of first column.

I tried many ways to put a CheckBox over there, but the effective way is to create a style and assign the style to HeaderStyle of that Column.

Here is the Style in XAML.

<UserControl.Resources>

<Setter.Value>

<Grid.ColumnDefinitions>

</Grid.ColumnDefinitions>

<VisualStateManager.VisualStateGroups>

</Storyboard>

</VisualState>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<Rectangle.Fill>

</LinearGradientBrush>

</Rectangle.Fill>

</Rectangle>

</Grid>

</ControlTemplate>

</Setter.Value>

</Setter>

</Style>

</UserControl.Resources>

Now assign the Style to your HeaderStyle of the Column.

<data:DataGrid x:Name="dgPerson" Margin="8" Grid.Column="1" IsReadOnly="True"

LoadingRow="dgPerson_LoadingRow" Grid.Row="1" AutoGenerateColumns="False">

<data:DataGrid.Columns>

<data:DataGridTemplateColumn Width="80" HeaderStyle="{StaticResource DataGridColumnHeaderStyle}">

<data:DataGridTemplateColumn.CellTemplate>

<CheckBox x:Name="chkPerson" Click="chkPerson_Click"

VerticalAlignment="Center" IsChecked="false" HorizontalAlignment="Center" HorizontalContentAlignment="Center"/>

</DataTemplate>

</data:DataGridTemplateColumn.CellTemplate>

</data:DataGridTemplateColumn>

<data:DataGridTextColumn Header="Name" Binding="{Binding Name}" MinWidth="120" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

<data:DataGridTextColumn Header="Age" Binding="{Binding Age}" MinWidth="75" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

<data:DataGridTextColumn Header="Country" Binding="{Binding Country}" MinWidth="120" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

<data:DataGridTextColumn Header="Gender" Binding="{Binding Gender}" MinWidth="120" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

<data:DataGridTextColumn Header="Email Id" Binding="{Binding EmailId}" MinWidth="120" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

<data:DataGridTextColumn Header="Joined On" Binding="{Binding JoinedOn}" MinWidth="120" Width="SizeToCells" CanUserReorder="True" CanUserSort="True"/>

</data:DataGrid.Columns>

</data:DataGrid>

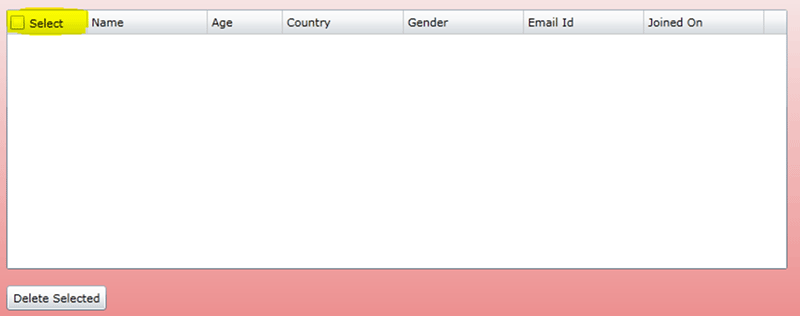

Now Run the Application to see the Header CheckBox.

Now we will create a class that will hold the Properties of sample data and create sample data to populate the DataGrid.

public class Person

{

public string Name { get; set; }

public int Age { get; set; }

public string Country { get; set; }

public string Gender { get; set; }

public string EmailId { get; set; }

public DateTime JoinedOn { get; set; }

}

//List for Original List of Persons

ObservableCollection<Person> myList;

//List for selected Persons

ObservableCollection<Person> personList = new ObservableCollection<Person>();

        public MainPage()
   {
        InitializeComponent();
   myList = new ObservableCollection<Person>()
   {
   new Person{ Name="Person 1", Age=21, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 2", Age=29, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 3", Age=20, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now},
        new Person{ Name="Person 4", Age=22, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 5", Age=23, Country="India", Gender="Female", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 6", Age=23, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 7", Age=25, Country="India", Gender="Female", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 8", Age=25, Country="India", Gender="Female", EmailId="some@some.com", JoinedOn=DateTime.Now},
   new Person{ Name="Person 9", Age=24, Country="India", Gender="Male", EmailId="some@some.com", JoinedOn=DateTime.Now}
   };
   dgPerson.ItemsSource = myList;
   }

We will add the event for LoadingRow for the DataGrid.

private void dgPerson_LoadingRow(object sender, DataGridRowEventArgs e)
{
   CheckBox chk = (CheckBox)this.dgPerson.Columns[0].GetCellContent(e.Row);
   chk.Click += new RoutedEventHandler(chkPerson_Click);
   Person p = chk.DataContext as Person;
   chk.IsChecked = personList.Contains(p);
}

Now we will add the Click event handler to the Header CheckBox and the CheckBox in DataGrid Rows.

void chk_Click(object sender, RoutedEventArgs e)
{
   CheckBox chk = sender as CheckBox;
   bool check = chk.IsChecked.Value;
   if (check)
   {
        foreach (Person p in myList)
   {
        personList.Add(p);
   chk = dgPerson.Columns[0].GetCellContent(p) as CheckBox;
   if (chk != null)
        chk.IsChecked = true;
   }
   }
   else
   {
        foreach (Person p in myList)
   {
        chk = dgPerson.Columns[0].GetCellContent(p) as CheckBox;
        if (chk != null)
            chk.IsChecked = false;
   }
   personList.Clear();
   }
}

private void chkPerson_Click(object sender, RoutedEventArgs e)
{
   CheckBox chk = sender as CheckBox;
   bool check = chk.IsChecked.Value;
   Person p = chk.DataContext as Person;
   if (check)
   {
        if (!personList.Contains(p))
            personList.Add(p);
   }
   else
   {
        personList.Remove(p);
   }
}

Now we will have the Delete Button Click handler.

private void btnDelete_Click(object sender, RoutedEventArgs e)
{
   string persons = string.Empty;
   foreach (var item in personList)
   {
        myList.Remove(item);
   }
   dgPerson.ItemsSource = myList;
   personList.Clear();
}

Now we will run the application and test the application.

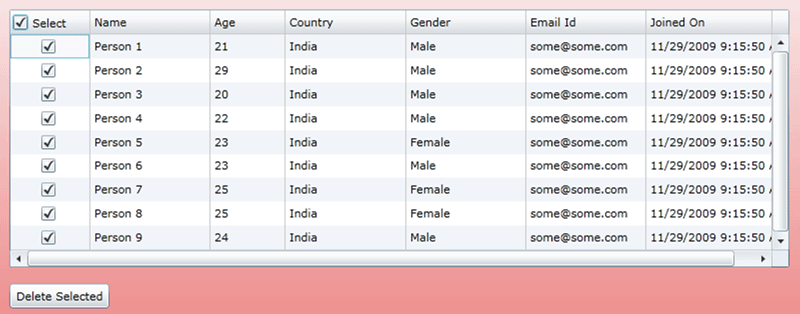

If we click on the Select CheckBox in the header of the First Column, all the rows would be selected.

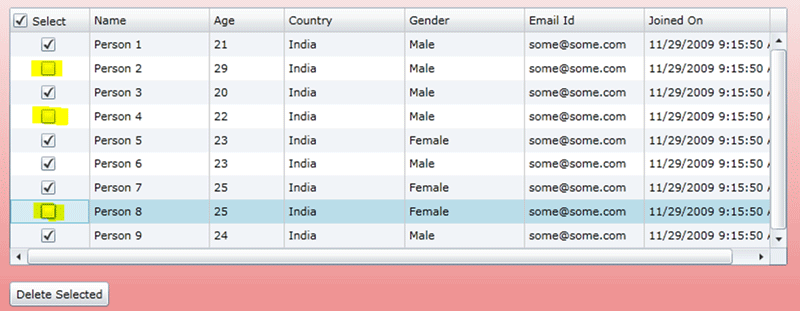

Now if we don't need everything to be selected but few, then we would uncheck the respective rows.

Now we would delete the selected rows.

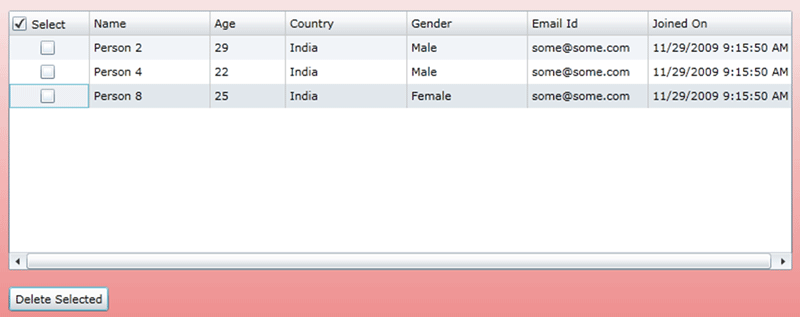

The selected rows got deleted.

Hope this article helps.

post comment

Hi!, When I tried to run this solution by implementing on my page. it is giving me following error. Failed to create a 'System.Type' from the text 'dataPrimitives:DataGridColumnHeader'. can any one solve my problem? Thanks in advance. :)

Posted by Mitesh Patel on Mar 20, 2012

This is actually a bad example with several issues in it. It doesn't work well once virtualization kicks in. The event handler for the row checkbox is added every time a row is loaded, which results in potentially hundreds of unnecessary invokes (with all side effects and performance degradation) when you scroll through the list for some time. It doesn't use data binding for the check boxes which would've made things easier and reduced code, and it has superfluous code fragments in it that are not needed (e.g. updating the ItemsSource property of the grid in the delete routine). More discussion: http://forums.silverlight.net/forums/p/227596/553093.aspx#553093 -Peter

Posted by Peter on May 05, 2011

This is just what I was looking for, thank you so much. Now, have you ever made the default Key.Enter work like a Key.Tab in a datagrid? My users are used to what is called 10 key entry, easy in asp.net but I have not figured it out in Silverlight. Thanks for all your fine articles. David Sullivan

Posted by drsullivan on Apr 04, 2011

You have to call ScrollIntoview before call GetCellContent to get CheckBox.

void chk_Click(object sender, RoutedEventArgs e)
{
   CheckBox chk = sender as CheckBox;
   bool check = chk.IsChecked.Value;
   if (check)
   {
        foreach (Person p in myList)
   {
        personList.Add(p);
            dgPerson.ScrollIntoView(p, null);
            chk = dgPerson.Columns[0].GetCellContent(p) as CheckBox;
   if (chk != null)
        chk.IsChecked = true;
   }
   }
   else
   {
        foreach (Person p in myList)
   {
            dgPerson.ScrollIntoView(p, null);
            chk = dgPerson.Columns[0].GetCellContent(p) as CheckBox;
        if (chk != null)
            chk.IsChecked = false;
   }
   personList.Clear();
   }
}

Forrest
