ListBox With Data From Many Tables

By Mayur Dighe on June 22, 2011
This article shows transferring of data from one type of Data Source to another type of Data Source.
  • 0
  • 0
  • 8580


This article shows transferring of data from one type of Data Source to another type of Data Source.

Aim: To add ListBox items with values from multiple tables or views.

Problem:

During my Academic Project (The Event Management System) there is a situation where I needed to display the Supplier's Names from multiple Tables (such as Caterer, Manpower, and Advertisement etc.). Right now I have completed my Academic year, but after extensive efforts and guidance from many people I succeed to achieve the intended goal in a simple manner.

Some weeks ago I placed this question in the Mind Cracker Network. Here I tried to present the sample for the same portion of the code.

This article contains the simplest way to do it.

Solution:

Requirements:

  • One ListBox Control to display data.
  • One Command Button to Perform associated actions
  • Here I take Northwind Database as Sample Database

Justification:
  1. First we have to make some declarations as follows.

    SqlConnection Conn =new SqlConnection("Data Source=.\\SqlExpress; "
                                                  + "Initial Catalog=Northwind; Integrated security=True");
              SqlDataReader rdr;
              SqlCommand cmd;

                //The target is very simple, we just have to
                //execute simple SELECT statements with Data Reader using Command Object

  2. After the declarations, execute the SELECT statement; then add each item from the Data Reader to the ListBox. To identify data from each table you can add a TABLE name as ListBox item at the beginning of the data being displayed.

    private void button1_Click(object sender, EventArgs e)
            {
                Conn.Open();

                //Supplier
                listBox1.Items.Add("-----Suppliers----");
                cmd = new SqlCommand("Select TOP(5) ContactName As PersonName from Suppliers", Conn);
                rdr = cmd.ExecuteReader();

                while (rdr.Read())
                {
                         listBox1.Items.Add(rdr.GetValue(0).ToString());
                }
                rdr.Close();

                //Customers
                listBox1.Items.Add("-----Customers----");
                cmd = new SqlCommand("Select TOP(5) ContactName As PersonName from Customers", Conn);
                rdr = cmd.ExecuteReader();

                while (rdr.Read())
                {
                        listBox1.Items.Add(rdr.GetValue(0).ToString());
                }
                rdr.Close();

                            .
                            .
                            .
                            .
                                        .
            }

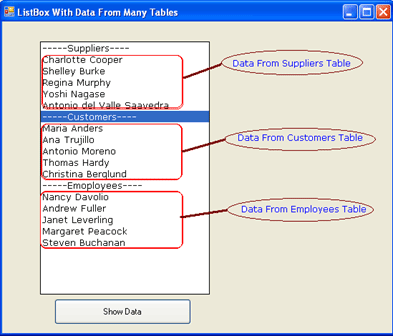

  3. Figure 1 shows the intended result:


    Figure 1

Summary:

In this article, we have seen the ListBox operation with multiple data sources in C# Programming.
