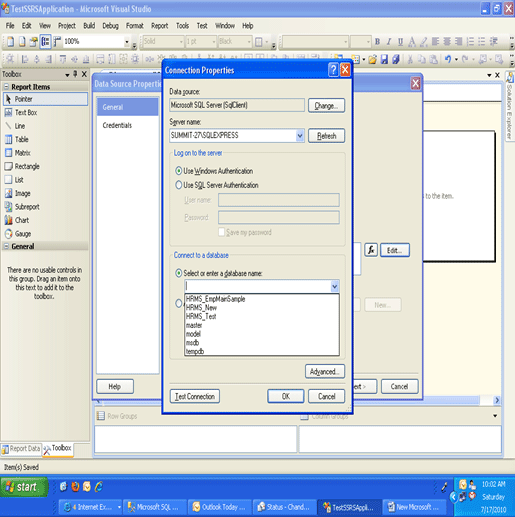

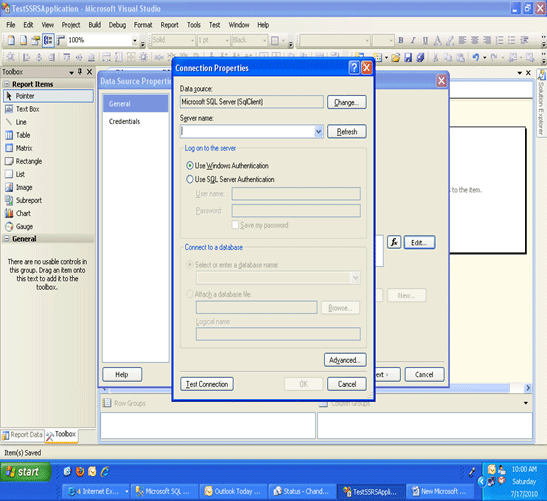

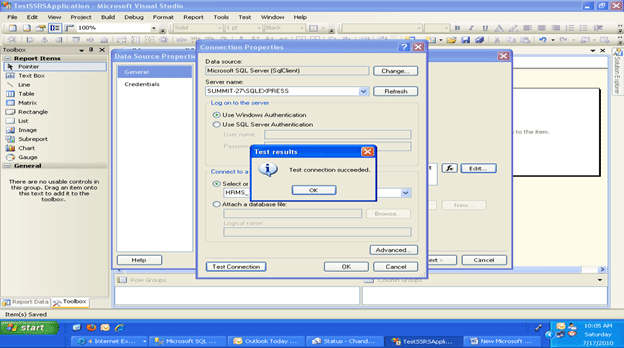

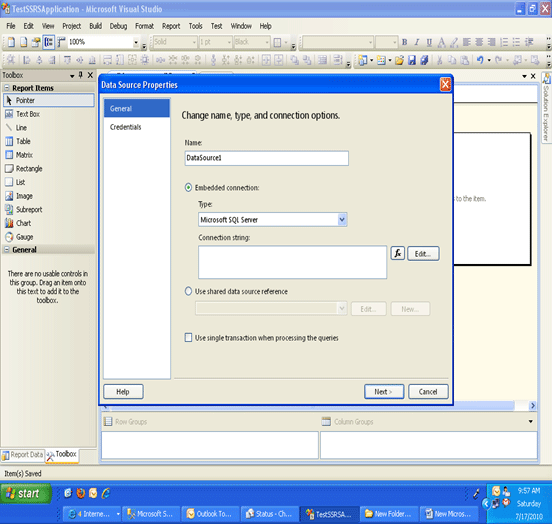

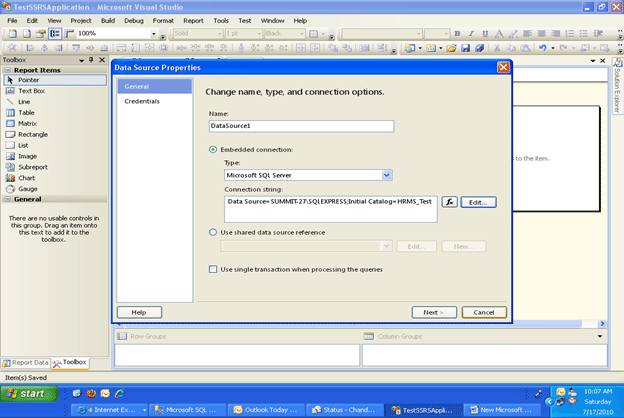

2. Create a new Connection String by Clicking EDIT button. When you click on that EDIT Button the screen will be like below 3. Select Server Name, Select Authentication Type. That is Windows Authentication or Sql server Authentication . 4. Select the Database name from the Option from drop down that is (Select or enter a database name) 5. And click on Test Connection button and Click on OK Button . The screen shot will be like this 6. By clicking on the Ok Button the Screen will close. Next Screen will be looks like below format. 7. Next Click on NEXT BUTTON it will display QUERY DESIGNER WINDOW. The screen shot looks like below 8. Next Click on EDIT TEXT Button that was located left side at topmost Place.
9. By Clicking on the EDIT AS TEST button it will display the following options.

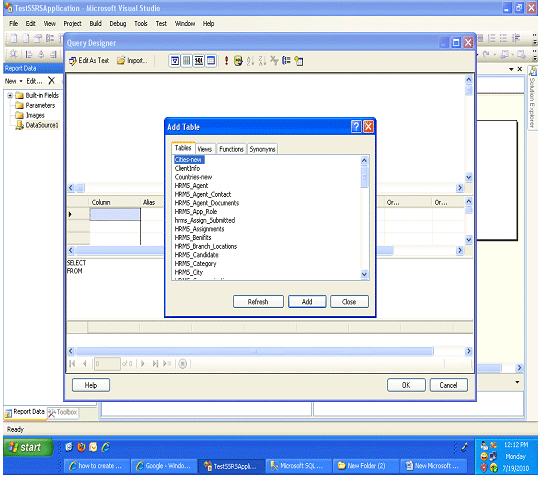

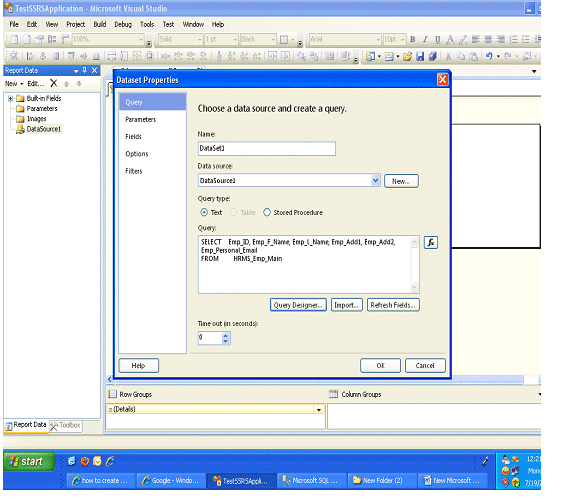

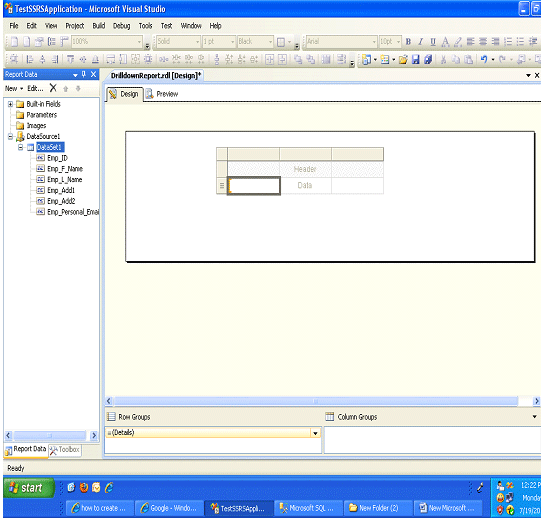

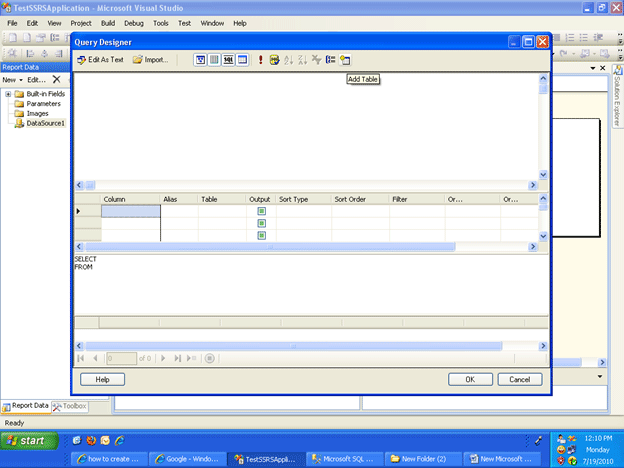

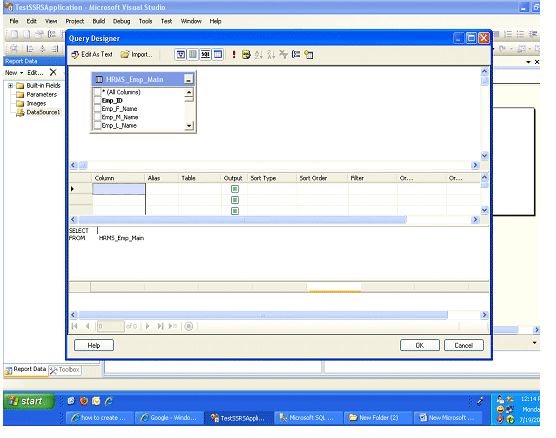

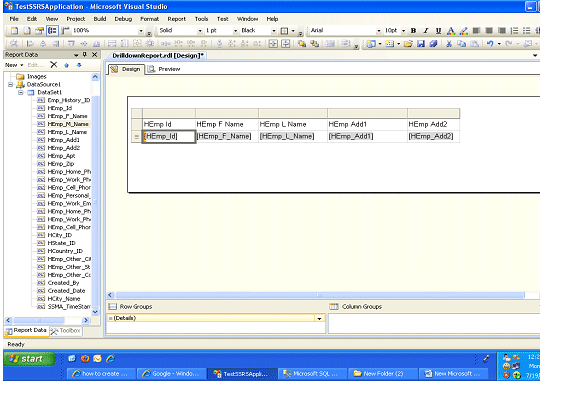

The screen show looks like below format 10. Click on Add Table ICON(Located at the end of right side).have a look for window 11. By Clicking on the ADD TABLE ICON the list of Tables will be displayed. The screen looks like below format 12. Select the table name from the List of Table and click on ADD Button. Next click on CLOSE BUTTON To close the window. Next the screen looks like below format. 13. Select what are all the columns are required by checking the check box . Kindly have a look below screen shot to get an idea. 14. Next Click on OK Button . After that the screen shot looks like below format 15. Next Click on OK Button . After that the screen shot looks like below format 16. Drag the what are all the columns are to display. 17. Select the column for Group By. Here I have selected EmpID for Grouping. 18. Right Click on that Empid column and click on AddGroup , Select Parent group from ROW GROUP The Screen will be looks like below format. 19. Click on Parent Group, Select EmpID Column from Group by DropDown list and Click on OK BUTTON. The screen shot looks like below format. 20. Select Detail section, right click on that Detail section, Click on INSERT ROW . There 2 options are available . ABOVE and BELOW. Select ABOVE. The screen shot looks like below format. 21. Next Select Detail section again and right click on that select ROW VISIBILITY Property . The screen shot looks like below format. 22. When select ROWVISIBILTY property , The ROW VISIBILITY window will open .Find the Screen shot below format. 23. Select HIDE Option from "When the report is initially run" and Check on "Display can be toggled by this Report item". 24. Select Group name from the Dropdown list which was enabled when check box checked(Display can be toggled by this Report item) Next the screen shot will be looks like below format. 25. Click on OK Button Next the screen shot will be looks like below format 26. After that build and run the reports the screen shot looks like below format 27.By clicking on the Plus button the record will be shown. The screen shot looks like below format.
