Bind ScrollBarToTextBox and TextBoxToScrollBar in Silverlight

By Raj Kumar Beniwal on Aug 30, 2010
Thisarticle is all about binding of scrollbar to textbox and textbox to scrollbar with small piece of code in silverlight.
Download Files:


This blog is all about binding of scrollbar to textbox and textbox to scrollbar with small piece of code in silverlight.

Create a new project and drag and drop a scrollbar and a textbox on page. Let's start with ScrollBarToTextBox first.

<ScrollBar Height="138" HorizontalAlignment="Left" Margin="66,10,0,0" Maximum="100" LargeChange="10" Value="{Binding ElementName=textBox1, Path=Text}" Name="scrollBar1" VerticalAlignment="Top" Width="22" />

<TextBox Height="23" HorizontalAlignment="Left" Margin="101,48,0,0" Name="textBox1" VerticalAlignment="Top" Width="265" Text="50" />

Here scrollbar will move according to textbox text. like if i enter 50 in textbox then scroll bar should be like this:

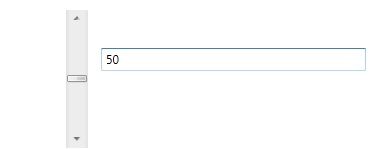

Image1.

If I change TextBox value then result should be like this:


Image2.

Now TextBoxToScrollBar.

<Separator Height="3" HorizontalAlignment="Left" Margin="9,154,0,0" Name="separator1" VerticalAlignment="Top" Width="471" />
<
ScrollBar Height="100" HorizontalAlignment="Left" Margin="67,175,0,0" Name="scrollBar2" VerticalAlignment="Top" Width="18" Maximum="100" LargeChange="10" />

<TextBox Height="23" HorizontalAlignment="Left" Margin="105,179,0,0" Name="textBox2" VerticalAlignment="Top" Width="261" DataContext="{Binding ElementName=scrollBar2}" Text="{Binding Path=Value}" />

And compile the application.

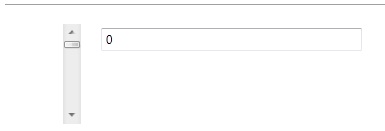

Image3.

When you move scroll bar the textbox text should change.

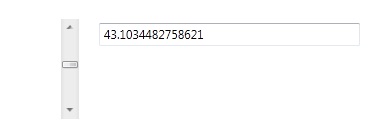

Image4.
