Data Access Application Block using MVC 2 Pattern

Posted by Raj Kumar Articles | ASP.NET MVC with C# July 21, 2010
In this article I am trying to illustrate how to use Microsoft enterprise library data using MVC 2 pattern.
Reader Level:

Introduction

In this article I am trying to illustrate how to use Microsoft enterprise library data using MVC 2 pattern.

MVC - known as Model, Views Controller that separates the modelling of domain, the presentation and the actions based on user input into three classes.

  1. Model - The model manages the behaviour and data of the application domain, responds to requests for information about its state (usually from the view), and responds to instructions to change state (usually from the controller).
  2. Controller - The controller interprets the mouse and keyboard inputs from the user, informing the model and/or the view to change as appropriate.

  3. View - The view manages the display of information.
DAAB - The Data Access Application Block encapsulates performance and resource management best practices for accessing Microsoft SQL Server databases. It can easily be used as a building block in your own .NET-based application. If you use it, you will reduce the amount of custom code you need to create, test, and maintain.

You can download DAAB from here - http://www.microsoft.com/downloads/details.aspx?familyid=f63d1f0a-9877-4a7b-88ec-0426b48df275&displaylang=en

Getting Started

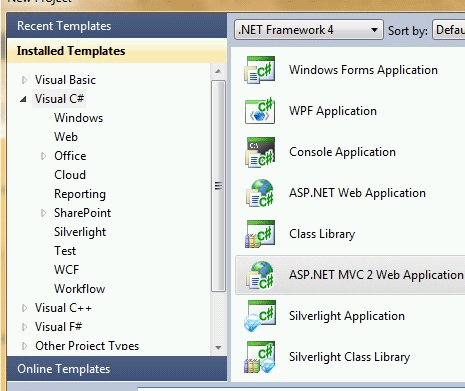

Make a new project using visual studio 2010 and select ASP.NET MVC 2 Web Application.


Image1.

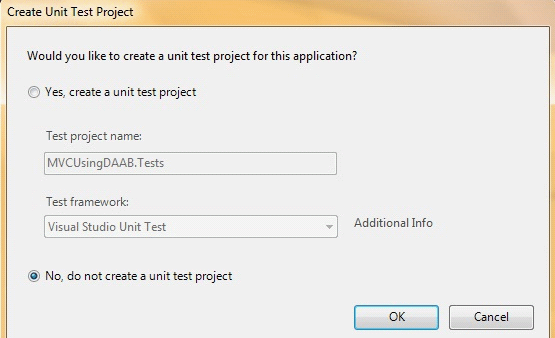

You can create unit test project if you want.

Note - If you are using the Standard or Express editions of Visual Studio, the Create Unit Test Project dialog box is not displayed. Instead, the new MVC application project is generated without a test project.

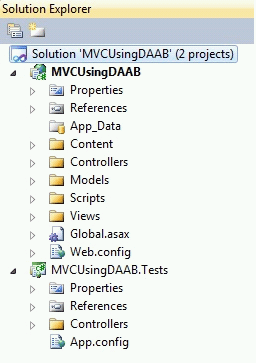

Image2.


Image3.

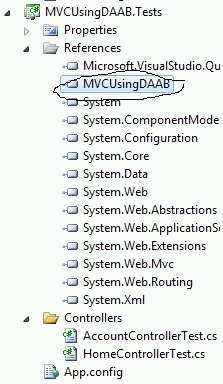

Unit test project has already added the reference of web project.


Image4.

The folder structure of an MVC project differs from that of an ASP.NET Web site project. The MVC project contains the following folders:
  1. Content, which is for content support files? This folder contains the cascading style sheet (.css file) for the application.
  2. Controllers, which is for controller files. This folder contains the application's sample controllers, which are named AccountController and HomeController. The AccountController class contains login logic for the application. The HomeController class contains logic that is called by default when the application starts.

  3. Models, which is for data-model files such as LINQ-to-SQL .dbml files or data-entity files.

  4. Scripts, which is for script files, such as those that support ASP.NET AJAX and jQuery.

  5. Views, which is for view page files. This folder contains three subfolders: Account, Home, and Shared. The Account folder contains views that are used as UI for logging in and changing passwords. The Home folder contains an Index view (the default starting page for the application) and an about page view. The Shared folder contains the master-page view for the application.
First of all you need to add the reference of Microsoft.Practices.EnterpriseLibrary.Data.dll

Add config section in configuration file.

<configSections>
<
sectionname="dataConfiguration
type="Microsoft.Practices.EnterpriseLibrary.Data.Configuration.DatabaseSettings, Microsoft.Practices.EnterpriseLibrary.Data" />
</configSections>

Here is connection string

<connectionStrings>
<
addname="NorthWNDConnectionStringconnectionString="data source=.\SQLEXPRESS;Integrated Security=SSPI;AttachDBFilename=|DataDirectory|NORTHWND.MDF;User Instance=true"
providerName="System.Data.SqlClient" />
<addname="ApplicationServices"
connectionString="data source=.\SQLEXPRESS;Integrated Security=SSPI;AttachDBFilename=|DataDirectory|aspnetdb.mdf;User Instance=true"
providerName="System.Data.SqlClient" />
</connectionStrings>

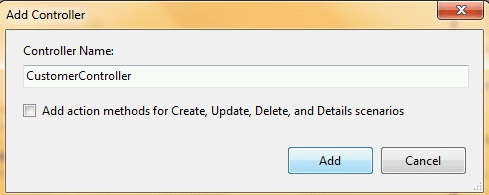

Now add a controller class in Controller folder


Image5.

CustomerController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;

namespace MVCUsingDAAB.Controllers
{
public class Default1Controller : Controller
    {
//
// GET: /Default1/

public ActionResult Index()
        {
return View();
        }

    }
}

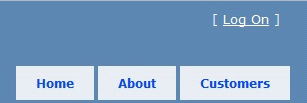

Add Tab in master page menu:

<li><%:Html.ActionLink("Customers", "Index", "Customer")%></li>


Image6.

Let me copy my models classes code first:

Models/Customer.cs

using System;
using System.Diagnostics;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.ComponentModel;
using System.ComponentModel.DataAnnotations;

namespace MVCUsingDAAB.Models
{

public class Customers
    {
///<summary>
///
Gets the CustomerID.
///</summary>
public string CustomerID { get; set; }
///<summary>
///
Gets the CompanyName.
///</summary>
public string CompanyName { get; set; }
///<summary>
///
Gets the ContactName.
///</summary>
public string ContactName { get; set; }
///<summary>
///
Gets the Address.
///</summary>
public string Address { get; set; }
///<summary>
///
Gets the City.
///</summary>
public string City { get; set; }

public Customers(string id, stringcompanyname, stringcontactname, string address, string city)
        {
CustomerID = id;
CompanyName = companyname;
ContactName = contactname;
            Address = address;
            City = city;
        }
public Customers()
        {
        }

    }
}


Models/CustomerModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace MVCUsingDAAB.Models
{
interface ICustomerModel
    {
List<Customers>GetCustomers();
    }
}

Models/CustomerListContainerViewModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using MvcContrib.Pagination;
using MvcContrib.UI.Grid;
using System.Data;

namespace MVCUsingDAAB.Models
{
public class CustomerListContainerViewModel
    {
public IPagination<Customers>CustomerPagedList { get; set; }
    }
}


Models/ICustomerModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace MVCUsingDAAB.Models
{
interface ICustomerModel
    {
List<Customers>GetCustomers();
    }
}

Models/CustomerListContainerViewModel.cs

using System;
using System.Collections.Generic;
using System.Linq;
usingSystem.Text;

namespace MVCUsingDAAB.Models
{
interface ICustomerModel
    {
List<Customers>GetCustomers();
    }
}


Controller/CustomerController.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using Microsoft.Practices.EnterpriseLibrary.Data;
using System.Configuration;
using System.Data;
using System.Data.Common;
using MVCUsingDAAB.Models;
using MvcContrib.Pagination;

namespace MVCUsingDAAB.Controllers
{
public class CustomerController : Controller
    {
//
// GET: /Customer/
ICustomerModel customerRepository;
public CustomerController()
        {
customerRepository = newCustomerModel();
        }
public ActionResult Index(int? page)
          {
var customerPagedList = customerRepository.GetCustomers().AsPagination(page ?? 1, 10);
var customerListContainer = new CustomerListContainerViewModel
              {
CustomerPagedList = customerPagedList,
              };

return View(customerListContainer);
          }

    }
}

Views/AllCustomers.ascx

<%@ControlLanguage="C#" Inherits="System.Web.Mvc.ViewUserControl<MVCUsingDAAB.Models.CustomerListContainerViewModel>"%>
<%
@ImportNamespace="MvcContrib.UI.Grid"%>
<%
@ImportNamespace="MVCUsingDAAB.Models"%>
<%
@ImportNamespace="MvcContrib.UI.Grid.ActionSyntax"%>
<%
=Html.Grid(Model.CustomerPagedList).AutoGenerateColumns()
    .Columns(column => {
column.For(a =>Html.ActionLink("Details", "Details", new { id = a.CustomerID })).InsertAt(0).Encode(false);
    })
    .Attributes(@class =>"table-list")
%>

Views/Shared/Page.ascx

<%@ControlLanguage="C#"Inherits="System.Web.Mvc.ViewUserControl<MvcContrib.Pagination.IPagination>"%>
<%
@ImportNamespace="MvcContrib.UI.Pager"%>
<p/>
<%=Html.Pager(Model)
        .First("First")
        .Last("Last")
        .Next("Next")
        .Previous("Previous")
%>
<p/>

Views/Index.aspx

<%@PageTitle=""Language="C#" MasterPageFile="~/Views/Shared/Site.Master"
Inherits="System.Web.Mvc.ViewPage<MVCUsingDAAB.Models.CustomerListContainerViewModel>"%>
<asp:ContentID="Content1"ContentPlaceHolderID="TitleContent"runat="server">
       Index
</asp:Content>
<
asp:ContentID="Content2"ContentPlaceHolderID="MainContent"runat="server">
<
h2>Customers</h2>
<%Html.RenderPartial("AllCustomers", Model); %>
<%Html.RenderPartial("Pager", Model.CustomerPagedList); %>
</asp:Content>

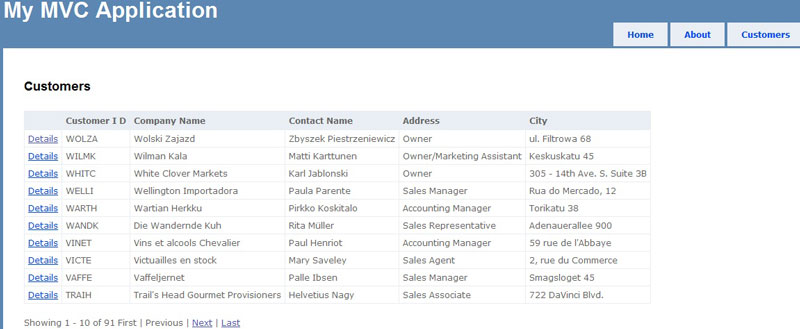

Now build the project and see the result like this.


Summary

In this article I tried to show how to use Data Access Application Block using MVC 2 Pattern. If you have any questions or comments then drop me a line in www.c-sharpcorner.com comments section or if you have other good solution then share with us.
