Adding Radio Button Control in Web API


In this article I will show you how to add a RadioButton control in the Web API. We use the radio button in a group in which we select only one at a time. When the user uses the radio button then the user makes a choice among a set of absolute and related options. The user can select only one option from the radio buttons set. Radio Buttons are so called because they work like channels on a radio.

Now see an example of adding the radio button control in the Web API.

Step 1

Create a Web API application as in the following:

  • Start Visual Studio 2012.
  • From the start window select "Installed" -> "Visual C#" -> "Web".
  • Select "ASP.NET MVC4 Web Application" and click the "OK" button.


  • From the "MVC4 project" window select "Web API".


  • Click the "OK" button.

Step 2

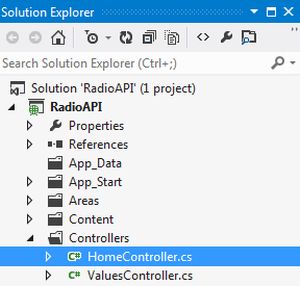

Select the "HomeController.cs" file and write some code. This file exists in:

  • In the "SolutionExplorer".
  • Select "Controller" -> "HomeController".


Add the following code in this file:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Mvc;


namespace RadioAPI.Controllers


    public class HomeController : Controller


        public ActionResult Index()


            return View();



        public string Display(FormCollection form)


            string selectlanguage = form["language"];

            return "Selected Language: <b>" + selectlanguage + "</b>";






Step 3

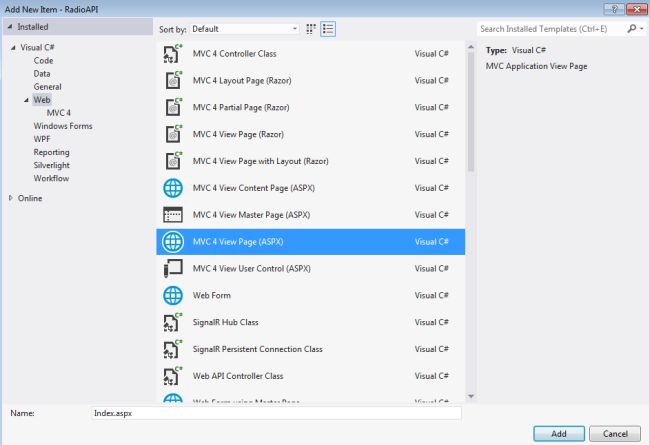

Add a View page "MVC 4  View Page (ASPX)" named "Index.aspx".

  • In the "Solution Explorer".

  • Right Click on the "Home" -> "Add" -> "New Item".


  • Select "Installed" -> "Visual C#" -> "Web" -> "MVC 4 View Page(ASPX)".


  • Click the "Add" button.

Add the following code in this view page:

<%@ Page Language="C#" Inherits="System.Web.Mvc.ViewPage" %>


<head id="Head1" runat="server">




<% using (Html.BeginForm("Display","Home",FormMethod.Post)) { %>

    <div><b>Choose any Language: </b><br />

       <br /> <%= Html.RadioButton("language", "C#") %> C#

        <br /><%= Html.RadioButton("language", "C++") %> C++

        <br /><%= Html.RadioButton("language", "C") %> C

      <br />  <%= Html.RadioButton("language", "Java") %> Java

         <br />  <%= Html.RadioButton("language", "HTML") %> HTML

         <br />  <%= Html.RadioButton("language", "Javascript") %> Javascript

        <br /><br />

        <input type="submit" value="Submit" />


    <%} %>



Step 4

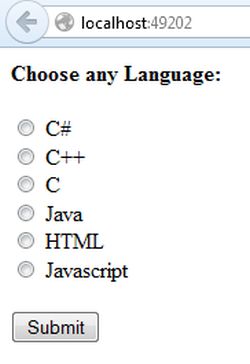

Execute the application by pressing "F5". The output will be shown like this:


Select any language and click on the submit button.
