Model Binding in ASP.Net 4.5 Label Control

Introduction


Model binding serves two purposes. It provides a way to fetch values from the client and bind them to a model. Client-side validation rules to determine if the model is valid before saving the model.

Create a new project using "File" -> "New" -> "Project..." then select Web then select "ASP.NET Web Forms Application". Name it “ModelBindingLabelControl".

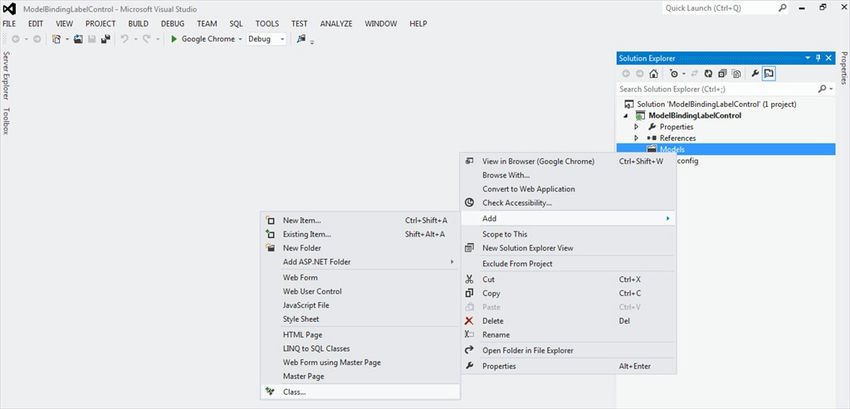

Now, in the project in the Solution Explorer click on Models then select Add > Class.

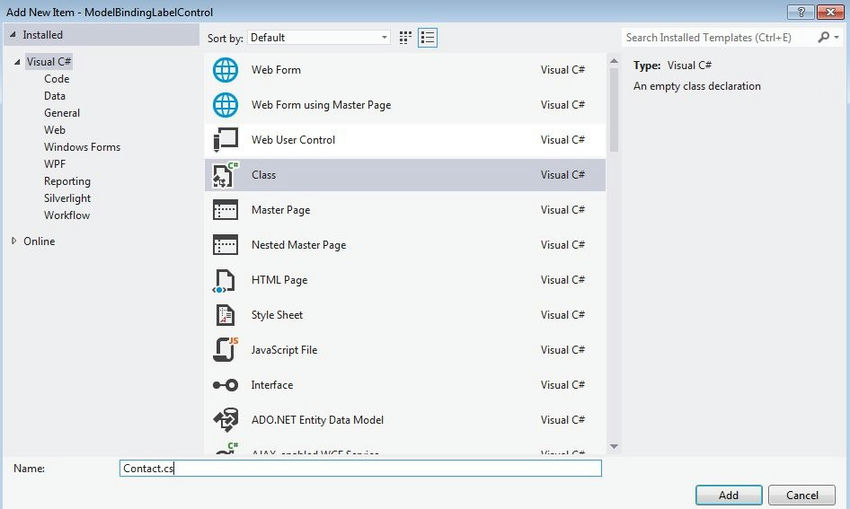

Now add a new item then select class > Contact.cs then click Add.


Now to apply the Models attributes to the Contact class.

Contact.cs
  1. using System;
  2.
  3. namespace ModelBindingLabelControl.Models
  4. {
  5.     public class Contact
  6.     {
  7.         public string FirstName
  8.         {
  9.             get;
  10.             set;
  11.         }
  12.         public string LastName
  13.         {
  14.             get;
  15.             set;
  16.         }
  17.         public string Email
  18.         {
  19.             get;
  20.             set;
  21.         }
  22.         public string Phone
  23.         {
  24.             get;
  25.             set;
  26.         }
  27.         public DateTime DateOfBirth
  28.         {
  29.             get;
  30.             set;
  31.         }
  32.         public string State
  33.         {
  34.             get;
  35.             set;
  36.         }
  37.     }
  38. }

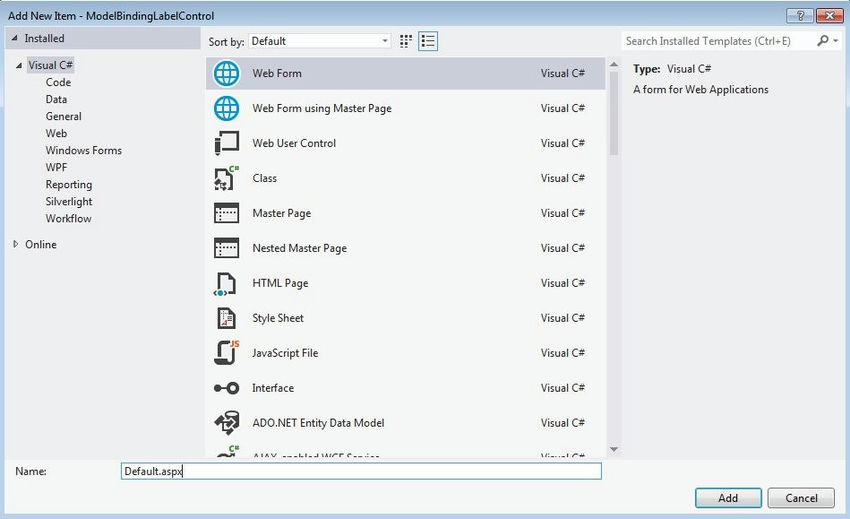

Now add a new item then select Web Form and leave Default.aspx as the name then click add.


The following are the contents of the Default.aspx:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="ModelBindingLabelControl.Default" %>
  2. <!DOCTYPE html>
  3. <html
  4.     xmlns="http://www.w3.org/1999/xhtml">
  5.     <head>
  6.         <title></title>
  7.         <link href="Content/bootstrap.cosmo.min.css" rel="stylesheet" />
  8.         <link href="Content/StyleSheet.css" rel="stylesheet" />
  9.     </head>
  10.     <body>
  11.         <form id="form1" runat="server">
  12.             <div id="mainContainer">
  13.                 <div class="shadowBox">
  14.                     <div class="container">
  15.                         <div class="page-container">
  16.                             <br />
  17.                             <div class="jumbotron">
  18.                                 <p class="text-danger">Model Binding in ASP.NET 4.5 Label Control</p>
  19.                             </div>
  20.                             <div class="row">
  21.                                 <div class="col-lg-12 ">
  22.                                     <div class="panel panel-default">
  23.                                         <div class="panel-heading">Contact Details</div>
  24.                                         <div class="panel-body">
  25.                                             <div class="col-md-8">
  26.                                                 <div class="form-group col-lg-6">
  27.                                                     <label>First Name</label>
  28.                                                     <asp:TextBox ID="FirstName" runat="server" class="form-control"></asp:TextBox>
  29.                                                 </div>
  30.                                                 <div class="form-group col-lg-6">
  31.                                                     <label>Last Name</label>
  32.                                                     <asp:TextBox ID="LastName" runat="server" class="form-control"></asp:TextBox>
  33.                                                 </div>
  34.                                                 <div class="form-group col-lg-6">
  35.                                                     <label>Email</label>
  36.                                                     <asp:TextBox ID="Email" runat="server" class="form-control"></asp:TextBox>
  37.                                                 </div>
  38.                                                 <div class="form-group col-lg-6">
  39.                                                     <label>Phone </label>
  40.                                                     <asp:TextBox ID="Phone" runat="server" class="form-control"></asp:TextBox>
  41.                                                 </div>
  42.                                                 <div class="form-group col-lg-6">
  43.                                                     <label>DOB </label>
  44.                                                     <asp:TextBox ID="DateOfBirth" runat="server" class="form-control" TextMode="Date"></asp:TextBox>
  45.                                                 </div>
  46.                                                 <div class="form-group col-lg-6">
  47.                                                     <label>State </label>
  48.                                                     <asp:TextBox ID="State" runat="server" class="form-control"></asp:TextBox>
  49.                                                 </div>
  50.                                                 <div class="form-group col-lg-6">
  51.                                                     <asp:Button ID="btnsubmit" runat="server" Text="Submit" OnClick="btnsubmit_Click" />
  52.                                                 </div>
  53.                                             </div>
  54.                                         </div>
  55.                                     </div>
  56.                                     <table class="table table-striped table-hover ">
  57.                                         <thead>
  58.                                             <tr class="warning">
  59.                                                 <th>#</th>
  60.                                                 <th>First Name</th>
  61.                                                 <th>Last Name</th>
  62.                                                 <th>Email</th>
  63.                                                 <th>Phone</th>
  64.                                                 <th>Date Of Birth</th>
  65.                                                 <th>State</th>
  66.                                             </tr>
  67.                                         </thead>
  68.                                         <tbody>
  69.                                             <tr class="active">
  70.                                                 <td>1</td>
  71.                                                 <td>
  72.                                                     <asp:Label ID="lblFirstName" runat="server" Text="Label"></asp:Label>
  73.                                                 </td>
  74.                                                 <td>
  75.                                                     <asp:Label ID="lblLastName" runat="server" Text="Label"></asp:Label>
  76.                                                 </td>
  77.                                                 <td>
  78.                                                     <asp:Label ID="lblEmail" runat="server" Text="Label"></asp:Label>
  79.                                                 </td>
  80.                                                 <td>
  81.                                                     <asp:Label ID="lblPhone" runat="server" Text="Label"></asp:Label>
  82.                                                 </td>
  83.                                                 <td>
  84.                                                     <asp:Label ID="lblDateOfBirth" runat="server" Text="Label"></asp:Label>
  85.                                                 </td>
  86.                                                 <td>
  87.                                                     <asp:Label ID="lblState" runat="server" Text="Label"></asp:Label>
  88.                                                 </td>
  89.                                             </tr>
  90.                                         </tbody>
  91.                                     </table>
  92.                                 </div>
  93.                             </div>
  94.                         </div>
  95.                     </div>
  96.                 </div>
  97.             </div>
  98.         </form>
  99.     </body>
  100. </html>
Next, create the code-behind as follows.

Default.aspx.cs
  1. using System;
  2. //using Namespace & Models
  3. using ModelBindingLabelControl.Models;
  4. using System.Web.ModelBinding;
  5. namespace ModelBindingLabelControl
  6. {
  7.     public partial class Default: System.Web.UI.Page
  8.     {
  9.         protected void Page_Load(object sender, EventArgs e)
  10.         {
  11.
  12.         }
  13.         protected Contact GetContact()
  14.         {
  15.             Contact model = new Contact();
  16.             IValueProvider provider = new FormValueProvider(ModelBindingExecutionContext);
  17.             if (TryUpdateModel < Contact > (model, provider))
  18.             {
  19.                 return model;
  20.             }
  21.             else
  22.             {
  23.                 throw new FormatException("Could not model bind");
  24.             }
  25.         }
  26.         protected void BindContact(Contact contact)
  27.         {
  28.             lblFirstName.Text = contact.FirstName;
  29.             lblLastName.Text = contact.LastName;
  30.             lblEmail.Text = contact.Email;
  31.             lblPhone.Text = contact.Phone;
  32.             lblDateOfBirth.Text = Convert.ToDateTime(contact.DateOfBirth).ToShortDateString();
  33.             lblState.Text = contact.State;
  34.         }
  35.         protected void btnsubmit_Click(object sender, EventArgs e)
  36.         {
  37.             BindContact(GetContact());
  38.         }
  39.     }
  40. }

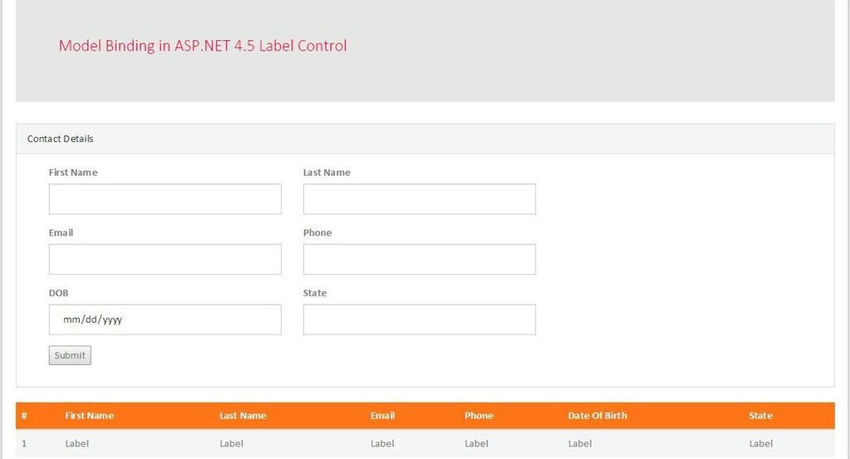

Now run the page and it will look like the following.

Default.aspx

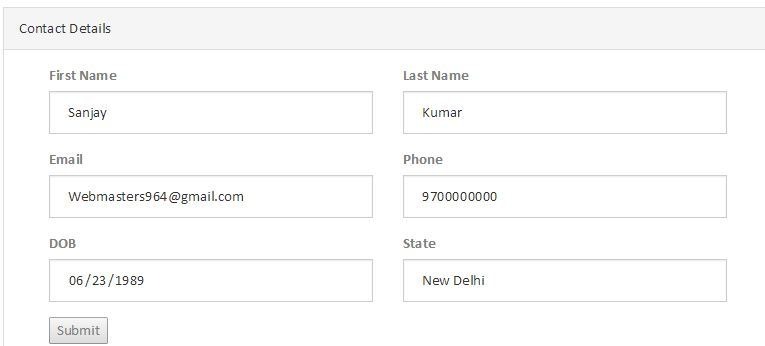

Now Info Fill this from.

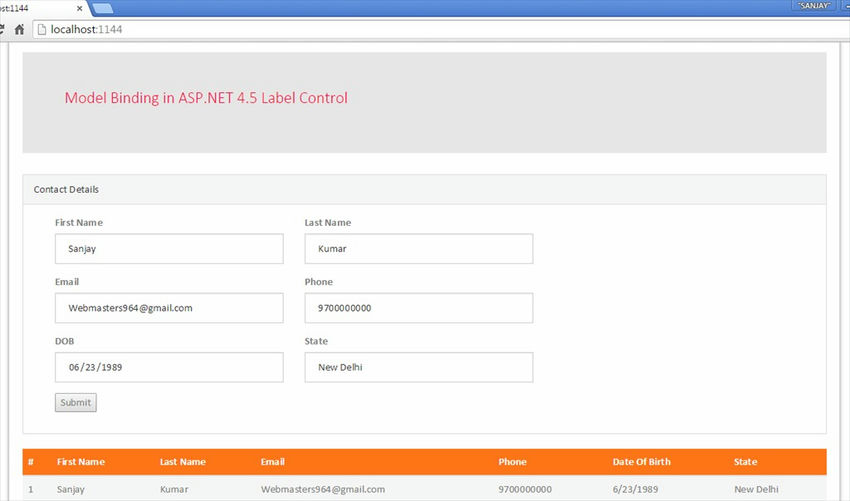

Now click the Submit button, it will display the data binding Label Control.


I hope this article is useful. If you have any other questions then please provide your comments in the following.
