Drawing Simple Graphics in GDI+

In this article you will learn how to use Drawing Simple Graphics in GDI+.


HTML clipboard

This article has been excerpted from book "Graphics Programming with GDI+".

As we discussed in the previous section, from the programming perspective, drawing on the Web is the same as drawing in Windows Forms, except for a few small differences. Drawing on the Web is often called "drawing on the fly" (or "graphics on the fly"). The code in Listing 12.4 draws various graphics objects, including lines, text, rectangles, and an ellipse. We create various pens, brushes, and a 300X300 bitmap. Then we create a Graphics object from this bitmap by calling Graphics.FromImage. Once we have a Graphics object, we can call its methods to draw and fill graphics shapes.

After creating the Graphics object, we set its smoothing mode to AntiAlias, create font and size objects, and call the DrawString, DrawLine and DrawEllipse methods to draw text, lines, and ellipse, respectively. At this point the bitmap we created contains these objects. The next step is to call the Save method and send the image to the browser, which we do with the Bitmap.Save method. Finally, we call the Dispose method to dispose of various objects.

LISTING 12.4: Drawing graphics objects on the fly

           //Contruct brush and pens
            Pen redPen = new Pen(Color.Red, 3);
            HatchBrush brush = new HatchBrush(HatchStyle.Cross, Color.Yellow, Color.Green);

            Pen hatchPen = new Pen(brush, 2);
            Pen bluePen = new Pen(Color.Blue, 3);
            Bitmap curBitmap = new Bitmap(300, 200);
            Graphics g = Graphics.FromImage(curBitmap);
            g.SmoothingMode = SmoothingMode.AntiAlias;
            string testString =
            "Hello GDI+ On the Web";
            Font verdana14 = new Font("Verdana", 14);
            Font Tahoma18 = new Font("Tahoma", 18);
            int nChars;
            int nLines;
            //Call MeasureString to measure a string
            SizeF sz = g.MeasureString(testString, verdana14);
            string testString =
            "Hello GDI+ On the Web";
            Font verdana14 = new Font("Verdana", 14);
            Font Tahoma18 = new Font("Tahoma", 18);
            int nChars;
            int nLines;
            //Call MeasureString to measure a string
            SizeF sz = g.MeasureString(testString, verdana14);
            string stringDetails =
            "Height: " + sz.Height.Tostring()
            + " , Width: " + sz.Width.Tostring();
            g.DrawString(testString, verdana14,
            Brushes.Wheat, new PointF(40, 70));
            g.Drawrectangle(new Pen(Color.Red, 2),
            40.0F, 70.0F, sz.Width, sz.Height);
            sz = g.MeasureString("Ellipse", tahoma18,
            new SizeF(0.0F, 100.0F),
            new StringFormat(),
            out nChars, out nLines);
            string stringDetails =
            "Height: " + sz.Height.ToString()
            + ", Width: " + sz.Width.ToString()
            + ", Lines: " + nLines.ToString()
            + ", Chars: " + nChars.ToString();
            //Draw lines
            g.DrawLine(Pens.WhiteSmoke, 10, 20, 180, 20);
            g.DrawLine(Pens.White, 20, 10, 20, 180);
            //Fill ellipse
            g.FillEllipse(brush, 120, 100, 100, 100);
            //Draw string
            g.DrawString("Ellipse", tahoma18,
            Brushes.Beige, new PointF(40, 20));
            //Draw ellipse
            g.DrawEllipse(new Pen(color.Yellow, 3),
            40, 20, sz.Width, sz.Height);
            //Send output to the browser and dispose of objects
            curBitmap.Save(this.Response.OutputStream, ImageFormat.Jpeg);
            g.Dispose();

For all practical purposes, Listing 12.4 could be a Windows Forms application. The only new code required creates a Bitmap object and calls its Save method to send output to the browser. We use the DrawString method to draw text, the DrawLine method to draw lines, and the DrawRectangle method to draw rectangles-just as in any other GDI+ application.

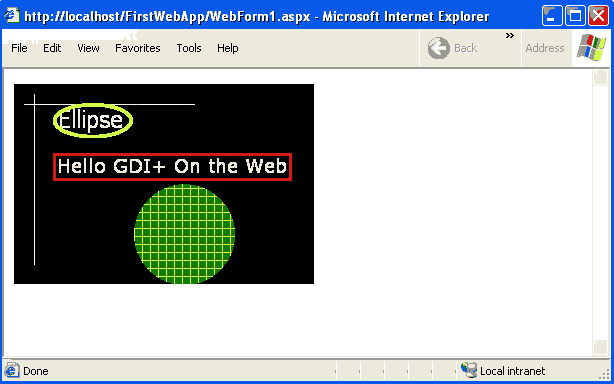

Figure 12.10 shows the output from Listing 12.4. The program draws lines, ellipses, and text.

Figure 12.10.gif

FIGURE 12.10: Drawing various graphics objects.
