Derived Custom Control to Count Button Clicks in ASP.NET

This article is about creating a derived custom server control in ASP.NET which will count how many times it has been clicked.


Introduction:

This article is about creating a derived custom server control in ASP.NET which will count  how many times it has been clicked. Derived custom controls are those controls which extend the feature of the control. Here we will discuss how we create this type of custom control and how it is used. Firstly we have to create it and later we will use it another application or website application. So by using the Button class we will make it and it will extend the features of the button control in ASP.NET. First of all we have to inherit the button class to extend the functionality of the button class. Further we will add control to the ASP.NET toolbox item. Now we will follow some steps to complete it which is given below.

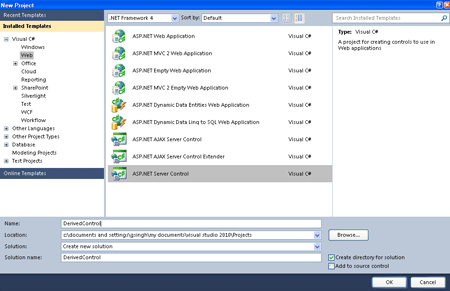

Step 1: Firstly we are going to open the Web server Control application let see how it will open.

  • Go to Visual Studio and open File->New->Project->Add ASP.NET Server Control application.

  • Click OK.

  • Let's see the figure given below.

  • Give the name as Derived Control.

Server application

Step 2: Now you have to change the name of the ServerControl.cs file to CountingButtonClick.cs.

Step 3: Further, enter the Toolbox Data attribute for the class, change the string "DerivedControl" to "CountingButtonClick" in both places where it occurs. Let see how we will add it.

[ToolboxData("<{0}:CountingButtonClick runat=server></{0}:CountingButtonClick>")]

Step 4: Now the write code for the class named as CountingButtonClick.cs which inherits from the base class Button.

Code :

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace DerivedControl
{
    [DefaultProperty("Text")]
    [ToolboxData("<{0}:CountingButtonClick runat=server></{0}:CountingButtonClick>")]
    public class CountingButtonClick : Button
    {
        public CountingButtonClick(  )
       {
           this.Text = "Click Button!!";
           ViewState["Count_Click"] = 0;
       }
       [Bindable(true)]
       [Category("Appearance")]
       [DefaultValue("")]
       [Localizable(true)]
       public string c
       {
          get
         {
             String s = (String)ViewState["c"];
             return ((s == null) ? "[" + this.ID + "]" : s);
         }
         set
        {
            ViewState["c"] = value;
        }
    }
    public int Count_Click
    {
        get
        {
            return (int)ViewState["Count_Click"];
        }
        set
       {
           ViewState["Count_Click"] = value;
       }
    }
     // firstly we have to override the OnClick to increment the count,
     // Here we have to  update the button text and then invoke the base method
      protected override void OnClick(EventArgs e)
      {
          ViewState["Count_Click"] = ((int)ViewState["Count_Click"]) + 1;
          this.Text = ViewState["Count_Click"] + " Times it has been clicked";
          base.OnClick(e);
     }
     protected override void RenderContents(HtmlTextWriter output)
     {
         output.Write(Text);
     }
  }
}

Code Description:

Now we will discuss about the code of .cs file. Firstly, our class named as CountingButtonClick will inherit the Button Class which is known as the  base class. After that we make a Constructor of a class, Inside the constructor we initialize the text property of button and also initialize view state of clicking button to 0. To ensure that the property will return a valid value, you initialize the Count_click property in the constructor, where you also set the initial text for the button, Further we are going to make a property name as Count_click which is necessary to build because every click page will be post and to preserve the value between postback we have to set property with viewstate which is used to get the value and set the value stored in view state. Now we have to override the Behavior of the click event because CountingdButtonClick class derives from Button, Whenever the user clicks the button, you will have to increase the Count_click value held in view state and will update the text on the button to reflect the new count_click.

Step 5: Now after doing all that we have to open a fine named as AssemblyInfo.cs and write the code given below.

  • Firstly add a namespace to the Top of the AssemblyInfo.cs file named as

        using System.Web.UI;

  • Now write the assembly name at the end of the AssemblyInfo.cs file.

       [assembly: TagPrefix("DerivedControl", "DC")].

Step 6: Now we have to build the application by click on build solution and close it.

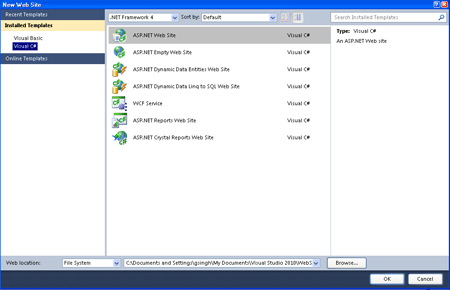

Step 7: Now we have to take a website to test the application.

  • File->New->Web Site

  • Click OK.

web application

Step 8: Now we will add a new project

  • Go to Solution Explorer

  • Right Click on it and add existing project

  • Add the Derived Control project to the website project.

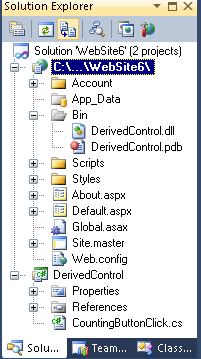

  • Now it will appear like that.

Both Project in one project

Step 9: Right click on Solution Explorer and set as start up project.

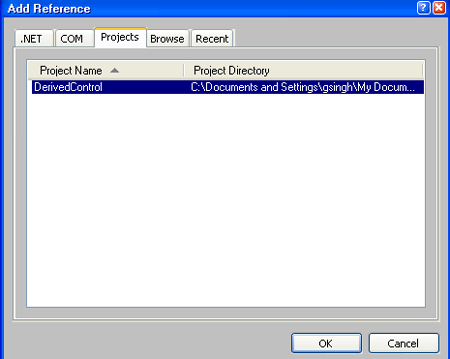

Step 10: Now Right Click on Website project and add reference of the project name as DerivedControl.

Add reference

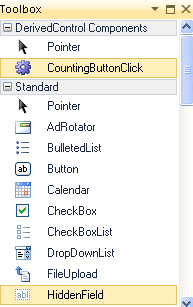

Step 11: Now it will appear into the DerivedControl Component.

Control component

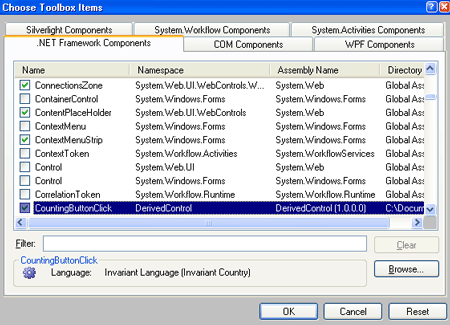

Step 12: Now if you want to add it into the Toolbox Control then

  • Right Click on any control of Toolbox.

  • And Select Choose item.

  • Select the .NET Component and browse the button add the DeriveControl.dll to the .NET Component

  • Now the component will be added to the .NET framework component.

  • Click OK let see how it will appear

add refence to framework

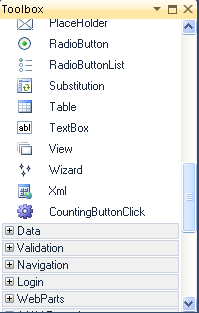

  • Now the control will appear into the toolbox.

Control in Toolbox

Step 13: We will see that a directive has been added to the source of the default.aspx which is shown below.

<%@ Register assembly="DerivedControl" namespace="DerivedControl" tagprefix="DC" %>

Step 14: Now we have to Drag and Drop the Control from the toolbox then the code will be written as like that any control drag from the toolbox which is shown below.

<DC:CountingButtonClick ID="CountingButtonClick1" runat="server" BackColor="#FF0066" BorderColor="Lime" BorderStyle="Groove" style="z-index: 1; left: 44px; top: 178px; position: absolute" />

Step 15: Now run the web site application by pressing F5.

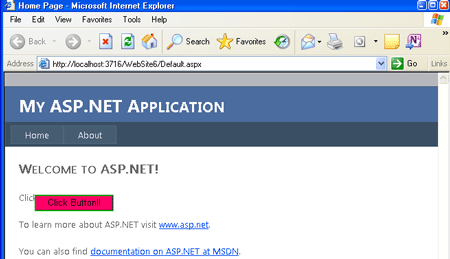

Before Click on Button:

before click

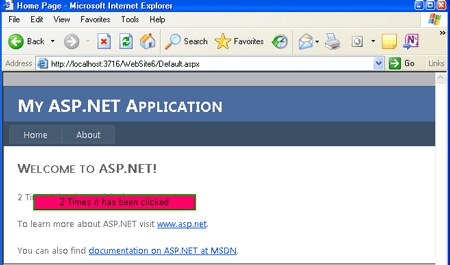

On Click Two times:

Click 2time

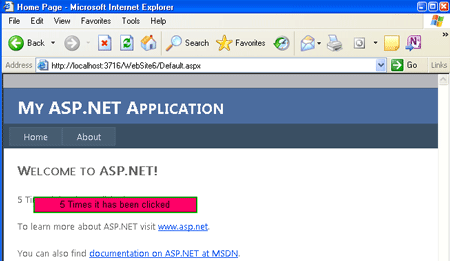

On click Five times:

Click 5time

After each click it will count the click and display text on the button.
