Capture Element in Windows Store Apps Using C#

Today we learn how to capture photos and videos from a capture device, such as a webcam, and how to preview the video live, rotate the video and the shakiness in capturing the video from a camera or webcam in a Windows Store App using C#.

I will use a CaptureElement object and the Windows.Media.Capture API to render video streams in a Windows Store app built for Windows using C#.

How to create the application.

Step 1

Create a Blank Windows Store App using C#.

Step 2

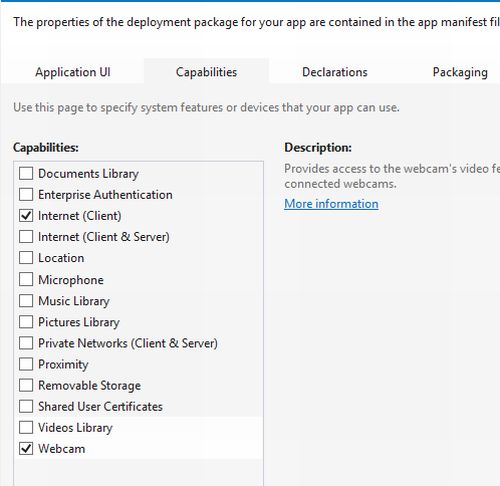

First of all you will need to set the device capability in your application to access the webcam.

  • In Microsoft Visual Studio 2012 for Windows 8, in Solution Explorer, open the designer for the application manifest by double-clicking the package.appxmanifest item.
  • Click Capabilities.
  • Check the box for the webcam.


Step 3

Now, I will create a CaptureElement to render the captured video in the application. For this write the following code in XAML file:

<CaptureElement Name="capturePreviewHeight="400/>


Step 4

Include the following namespaces in the .cs file:



using Windows.Media.Capture;
using Windows.Media;


Step 5

Here we use the MediaCapture class to preview the captured video. MediaCapture class contains the various methods and properties that allows us to set up and manage the videos. I am going to create an object of the MediaCapture Class as in:


MediaCapture captureMgr = new MediaCapture();


Step 6

After creating an object of the MediaCapture class I call InitializeAsync to initialize the MediaCapture object to the default settings, as in:


await captureMgr.InitializeAsync();


Step 7

In this step I will set the rotation of the video for previewing. Here I use the VideoRotation enumeration value to SetPreviewRotation of the MediaCapture object; see:

captureMgr.SetPreviewRotation(VideoRotation.Clockwise90Degrees);

captureMgr.SetRecordRotation(VideoRotation.Clockwise90Degrees);

You can specify the amount of rotation that you want to rotate the video. It contains values for None (0), 90, 180, and 270 degrees.

Step 8

Here I am getting the rotation value for the preview of a video by calling GetPreviewRotation() method of the MediaCapture class. This method returns a VideoRotation enum.

VideoRotation previewRotation = captureMgr.GetPreviewRotation();
Step 9

Now, I am going to add a video stabilization effect to the captured video. It helps to reduce shakiness in the video, such as from a hand-held camera. To add the stabilization effect during live capture

I use the MediaCapture.AddEffectAsync method. This method takes the following parameters:

  • MediaStreamType: This specifies the type of Stream.
  • EffectActivationID: This specify the implements the effect.
  • EffectSettings: This specifies the additional configuration parameters for the effect.

await captureMgr.AddEffectAsync(MediaStreamType.VideoRecord,

VideoEffects.VideoStabilization,null);


Step 10

You can also clear all the effects from the captured video that we applied earlier if required. Call the ClearEffectsAsync method to clear all of the effects from the stream; see:
// captureMgr is of type MediaCapture.
await captureMgr.ClearEffectsAsync(MediaStreamType.VideoRecord);

Step 11

Now I am going to Start the Video preview. I use the StartPreviewAsync() method, as in:


capturePreview.Source = captureMgr;

await captureMgr.StartPreviewAsync();

In the preceding code the CaptureElement.Source is set to the MediaCapture object and the preview is started using StartPreviewAsync.

Here is full code:


MediaCapture captureMgr = new MediaCapture();

await captureMgr.InitializeAsync();
captureMgr.SetPreviewRotation(VideoRotation.Clockwise90Degrees);
captureMgr.SetRecordRotation(VideoRotation.Clockwise90Degrees);
VideoRotation previewRotation = captureMgr.GetPreviewRotation();

await captureMgr.AddEffectAsync(MediaStreamType.VideoRecord,

VideoEffects.VideoStabilization,null);

// Start capture preview.

// capturePreview is a CaptureElement defined in XAML.

capturePreview.Source = captureMgr;

await captureMgr.StartPreviewAsync();


Summary

In this article we learned how preview a live video and rotate a video captured from a camera or webcam.
