Find File Type From Magic Number Of File In MVC 5

Introduction


In this article, we are going to upload a document from HTML input & we can find the magic number of that file & from that number we can find the type of that file.

Magic Number:
  • A magic number is a number embedded at or near the beginning of a file that indicates its file format (i.e. the type of file it is).
  • This number is not visible to us.
  • Every file has a number that represents the name of file types which is hexadecimal format.
  • In our program, we will convert it into bytes and an array for checking file type.

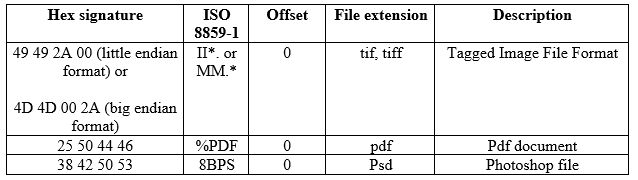

Chart for the magic number

table

Note: Refer chart source for file types Wikipedia.

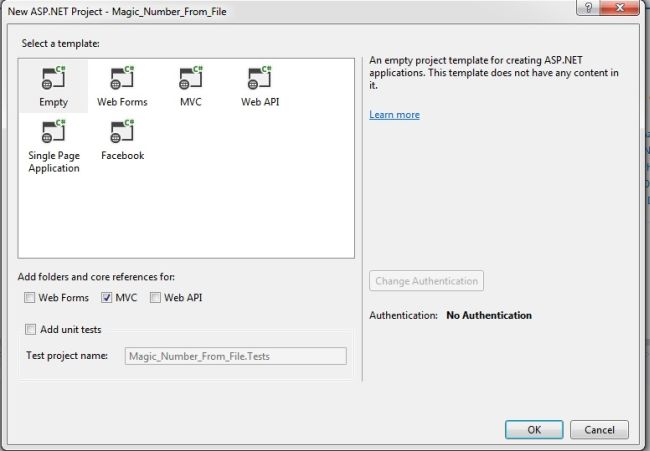

Step 1: Create a simple project in Visual Studio 2013.

Empty template

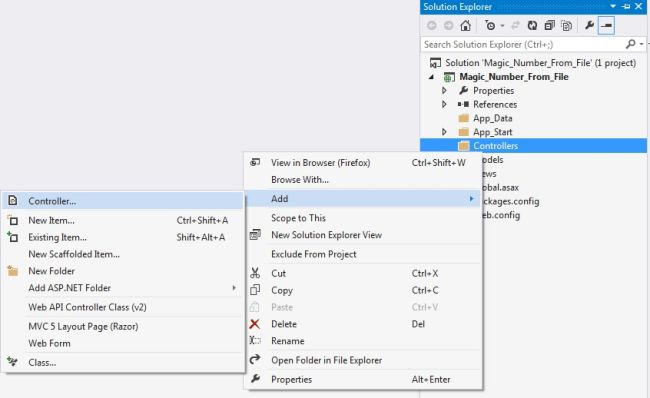

Step 2: Create one controller (right-click on the controller folder, add, then controller).

Controller

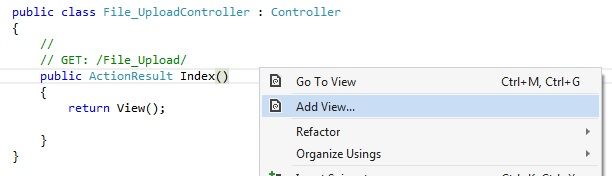

Step 3: Now from Index action create single view (right-click on action method => add view) for this action.

Add view

Step 4: Now add code for UI which will represent one input file button, one submit button & some label (to show error, success, file name, etc).
  1. <h2>Find File Type From Magic Number of File</h2>
  2. @using (Html.BeginForm("Index",
  3. "File_Upload",
  4. FormMethod.Post,
  5. new { enctype = "multipart/form-data" }))
  6. {
  7.    <label for="file">Upload file :</label>
  8.    <input type="file" name="file" id="file" /><br>
  9.    <input type="submit" id="submit" /> <br />
  10.    <p>Program_Errors will show here:</p>
  11.    @ViewBag.error
  12.    <p>You have uploaded file type is : @ViewBag.File_Type </p>
  13.    <br />
  14.    @ViewBag.Message
  15.    <br />
  16.    @ViewBag.signature
  17.    <br />
  18.    @ViewBag.out_put
  19. }
    Step 5: Now create another action method with the same name as the index & pass the ttpPostedFileBase object.

    In our action we will do the following things:
    • Will create one array in which we can store the above magic number so that it will help us at the end to compare file type in the switch case.
    • We need to add namespace using System.IO;
    • Create one folder in our solution file as “Docs” to upload a document in this folder (download code for more information).
    • Substring to select the first 11 characters from hexadecimal array because every file has a different magic number so I chose only three which have the same characters.
      1. [HttpPost]
      2.
      3. public ActionResult Index(HttpPostedFileBase file)
      4. {
      5.     string ext = null;
      6.     string[] file_hexa_signature = {
      7.         "38-42-50-53",
      8.         "25-50-44-46",
      9.         "4D-4D-00-2A",
      10.         "4D-4D-00-2A"
      11.     };
      12.
      13.     try
      14.     {
      15.         ext = System.IO.Path.GetExtension(file.FileName).ToLower();
      16.     }
      17.     catch (Exception ex)
      18.     {
      19.         ViewBag.error = ex.Message;
      20.     }
      21.
      22.     if (ext == null)
      23.     {
      24.         ViewBag.error = "please select onlt psd, pdf, tif file types only";
      25.     }
      26.
      27.     if (file != null && file.ContentLength > 0)
      28.     {
      29.         string str = Path.GetFileName(file.FileName);
      30.         string path = Path.Combine(Server.MapPath("~/Docs"),
      31.             Path.GetFileName(file.FileName));
      32.         file.SaveAs(path);
      33.         BinaryReader reader = new BinaryReader(new FileStream(Convert.ToString(path), FileMode.Open, FileAccess.Read, FileShare.None));
      34.         reader.BaseStream.Position = 0x0; // The offset you are reading the data from
      35.         byte[] data = reader.ReadBytes(0x10); // Read 16 bytes into an array
      36.         string data_as_hex = BitConverter.ToString(data);
      37.         reader.Close();
      38.
      39.         // substring to select first 11 characters from hexadecimal array
      40.         string my = data_as_hex.Substring(0, 11);
      41.         string output = null;
      42.         switch (my)
      43.         {
      44.             case "38-42-50-53":
      45.                 output = " => psd";
      46.                 break;
      47.
      48.             case "25-50-44-46":
      49.                 output = " => pdf";
      50.                 break;
      51.
      52.             case "49-49-2A-00":
      53.                 output = " => tif";
      54.                 break;
      55.
      56.             case "4D-4D-00-2A":
      57.                 output = " => tif";
      58.                 break;
      59.
      60.             case "null":
      61.                 output = "file type is not matches with array";
      62.                 break;
      63.
      64.         }
      65.
      66.         ViewBag.Message = data_as_hex;
      67.         ViewBag.signature = my;
      68.         ViewBag.out_put = output;
      69.     }
      70.     return View();

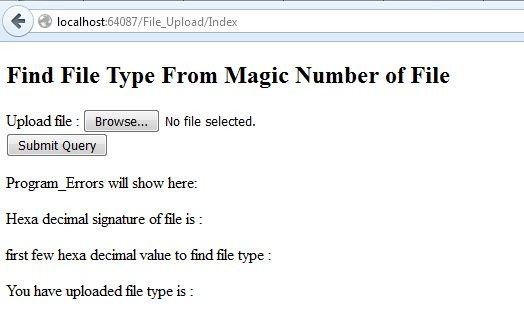

    Step 6: Now run our program.

    run our program

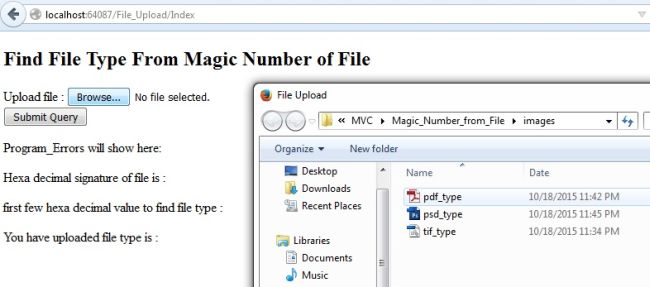

    Step 7: Now click on the browse button & select the file as shown.

    click on browse button

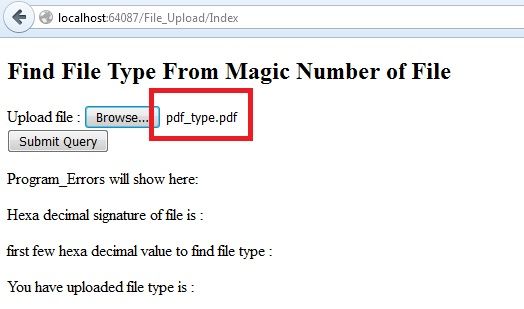

    Step 8: After selecting the file it will show the file name.

    shows file name

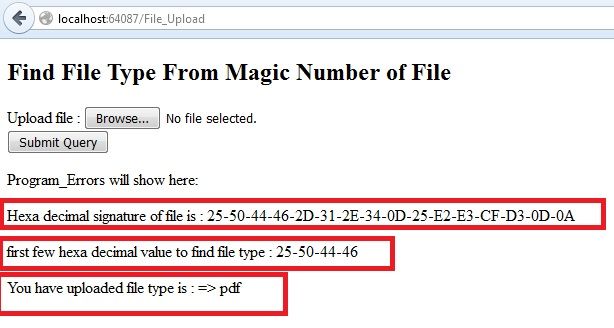

    Step 9: Now click on submit query & our output will be like. the following

    click on submit query


    Summary


    This article will help freshers as well as experienced candidates.

    Hope you enjoyed this complete article. Don’t forget to comment.
