Create a Gradient Color Text Using HTML5

Posted by Manish Singh Articles | HTML 5 February 28, 2012
This is a simple application for beginners that shows how to create a gradient color text on a canvas using HTML5.
Reader Level:
Download Files:


Introduction

This is a simple application for beginners that shows how to create a gradient color text on a canvas using HTML5. We know that HTML 5 is the advanced version of HTML. Basically HTML 5 can be used to develop 3D applications. This article is intended to help with the use of HTML5 tools to develop a gradient color text on a canvas application. <canvas> is an HTML element which can be used to draw graphics using scripting. It can be used to draw graphs to make photo compositions or do simple animations. The <canvas> element is a bitmap drawing API and once you have committed to a set of pixels you are stuck with them. The Canvas tag is an important tag of a HTML 5 that is used to show the image and text in a HTML 5 application. I hope this article helps to create a gradient color text on a canvas using HTML5 tools.

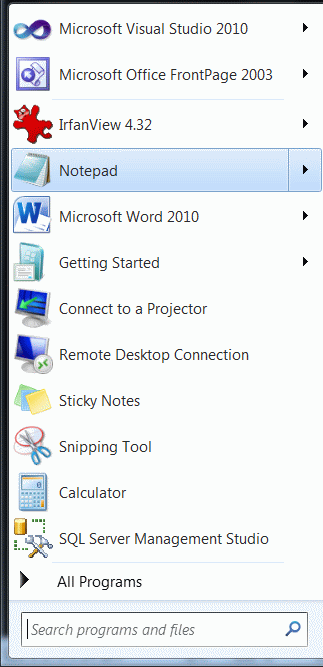

Step 1 : First open a HTML editor such as Notepad.

  • Open start->Notepad.
  • The name of editor is "Text".


Step 2 :

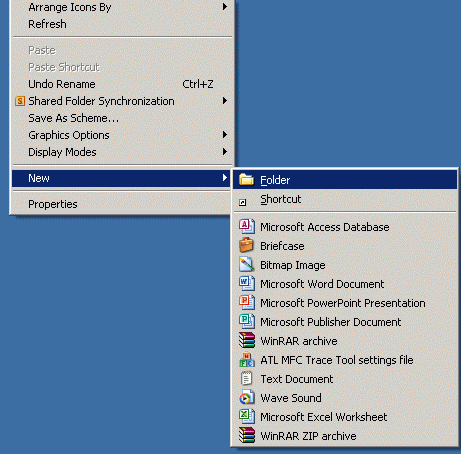

Create a folder on a desktop.

  • Right-click on desktop->new->Folder.
  • Name of folder is "Sam".


Step 3 :

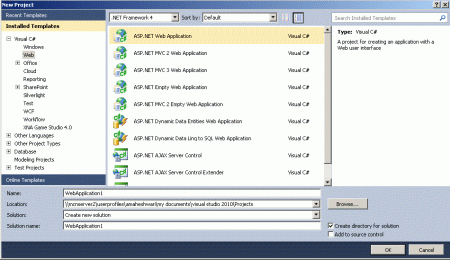

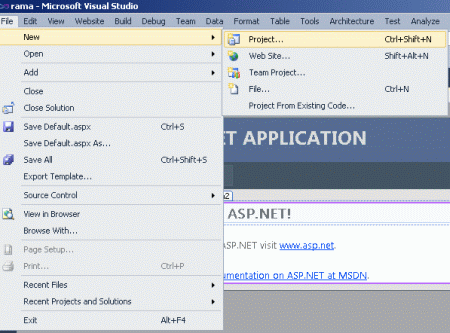

Open Visual Studio.

  • Go to file -> New->Projects.
  • Crete an ASP. NET Web Application.
  • Name of "DemoTextColor.aspx".



Step 4 :

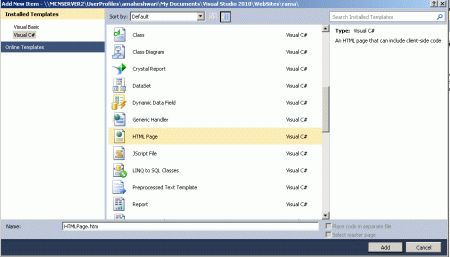

Add a HTML file to your web application.

  • Right-click on Solution Explorer.
  • Add->add new item->HTML form.
  • The Name of the HTML form is "gradient.html".


Step 5 :
Now in this step we create a variable named "elem" and assign a canvas id.

Code

window.addEventListener('load', function ()
     {

      var elem = document.getElementById('myCanvas');

      if (!elem || !elem.getContext)
       {

      return;

         }

     var Syntext = elem.getContext('2d');

     if (!Syntext)
      {

         return;
  }



Step 6 : Now in this step we set a color hex code of a text and set destination of a x and y coordinate.



Code



  var COLOR, hue = [

    [0, 255, 0],
    [255, 255, 0],
    [0, 255, 0],
    [0, 255, 255],

    [0, 0, 255],
    [255, 0, 255],

    [51, 255, 153]],

    gradient = Syntext.createLinearGradient(0, 0, elem.width, 0);

       for (var i = 0; i <= 6; i++) {

    COLOR = 'rgb(' + hue[i][0] + ', ' + hue[i][1] + ', ' + hue[i][2] + ')';

                gradient.addColorStop(i * 1 / 6, COLOR);

 }



Step 7 : Now in this step we used a gradient for the fill Style and draw a rectangle with a black shadow.



Code

Syntext.shadowOffsetX = 10;

       Syntext.shadowOffsetY = 10;

       Syntext.shadowBlur = 8;

       Syntext.shadowColor = 'rgba(0, 0, 0, 0.5)';

       Syntext.fillRect(10, 10, 400, 200);

Step 8 :  Now in this step we set a text family of a color text.

Code



Syntext.font = 'bold 200px sans-serif';

     Syntext.textBaseline = 'top';

     Syntext.font = 'bold 200px Verdana';

     context.textBaseline = 'top';

     Syntext.font = 'bold 200px sans-serif';

     context.textBaseline = 'top';

    if (Syntext.fillText)
      {

        Syntext.fillText('Csharpcorner', 10, 220, 300);

          }

 . Syntext.strokeStyle = '#666';

   if (Syntext.strokeText)
    {

   Syntext.strokeText('Csharpcorner', 10, 220, 300);

         }

 }, false);

Step 9 : The complete demo of a color text code is a given below.

Code

<html>

  <head>

  <title>Tom application</title>

  <script type="text/javascript">

window.addEventListener('load', function ()
     {

      var elem = document.getElementById('myCanvas');

      if (!elem || !elem.getContext)
       {

      return;

         }

     var Syntext = elem.getContext('2d');

     if (!Syntext)
      {

         return;
       }

  var COLOR, hue = [

    [0, 255, 0],
    [255, 255, 0],
    [0, 255, 0],
    [0, 255, 255],

    [0, 0, 255],
    [255, 0, 255],

    [51, 255, 153]],

    gradient = Syntext.createLinearGradient(0, 0, elem.width, 0);

       for (var i = 0; i <= 6; i++) {

    COLOR = 'rgb(' + hue[i][0] + ', ' + hue[i][1] + ', ' + hue[i][2] + ')';

                gradient.addColorStop(i * 1 / 6, COLOR);

           }

   Syntext.shadowOffsetX = 10;

       Syntext.shadowOffsetY = 10;

       Syntext.shadowBlur = 8;

       Syntext.shadowColor = 'rgba(0, 0, 0, 0.5)';

       Syntext.fillRect(10, 10, 400, 200);

       Syntext.font = 'bold 200px sans-serif';

       Syntext.textBaseline = 'top';

       Syntext.font = 'bold 200px Verdana';

       context.textBaseline = 'top';

       Syntext.font = 'bold 200px sans-serif';

       context.textBaseline = 'top';

    if (Syntext.fillText)
      {

        Syntext.fillText('Csharpcorner', 10, 220, 300);

          }

 . Syntext.strokeStyle = '#666';

   if (Syntext.strokeText)
    {

   Syntext.strokeText('Csharpcorner', 10, 220, 300);

         }

 }, false);

  </script>

  </head>

  <body bgcolor="#ff99cc">

  <p><canvas id="myCanvas" width="600" height="500"></canvas></p>

 </body>

</html>



Step 10 :  Press Ctrl + F5 to run the application in a browser.

Output
