Create a Transparency in Image Using HTML5

Introduction


This is a simple application for beginners that shows how to create a transparent photo using an HTML 5 canvas and JavaScript tools. We know that HTML 5 is the advanced version of HTML. Basically HTML 5 can be used to develop 3D applications. This article is intended to help with the use of HTML5 tools to create a transparent photo on canvas applications. JavaScript was designed to add interactivity to HTML pages. JavaScript is usually embedded directly into HTML pages. Canvas is an important tag of an HTML 5 that is used to show images and text in HTML 5 applications. I hope this article helps to create a transparent photo on canvas using HTML 5 and JavaScript tools.

Step 1: Open Visual Studio.

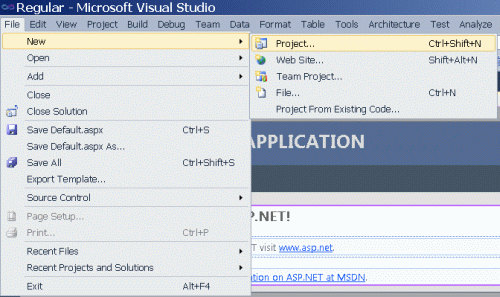

  • Go to file -> New->Projects.

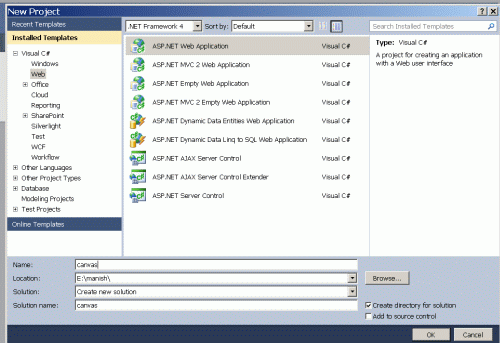

  • Create an ASP. NET Web Application.
  • Name of "Image.aspx".

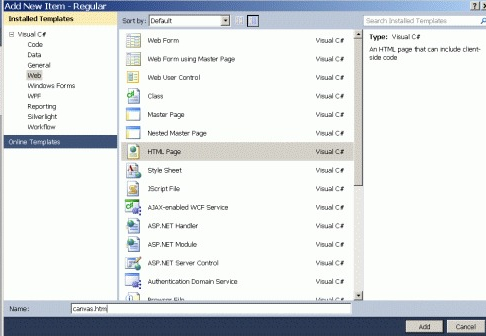

Step 2: Add an HTML file to your web application.

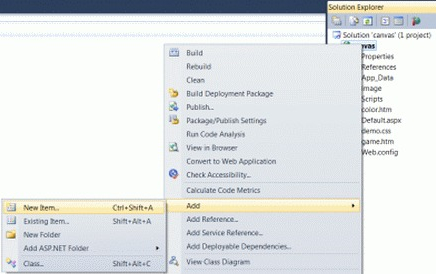

  • Right-click on the Solution Explorer.

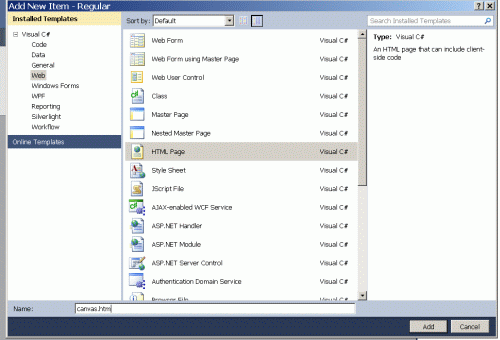

  • Add->add new item->HTML form.
  • The Name of the HTML form is "Transparent.html".

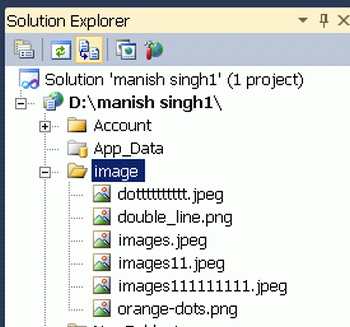

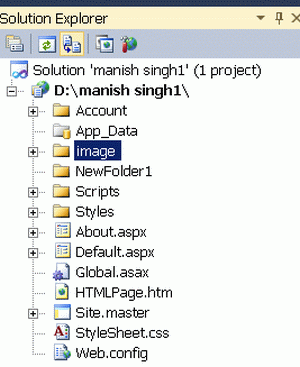

Step 3: In this step, we add a folder named "image" that is used to store all images. The images are used to display on the canvas.

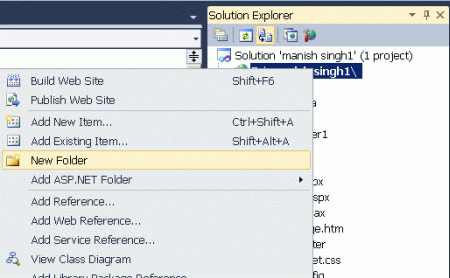

  • Right-click on the Solution Explorer.

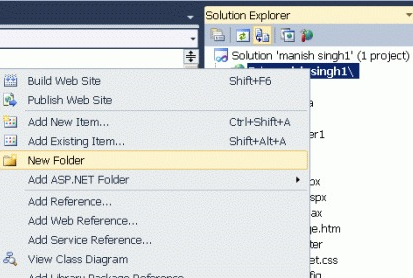

  • Add-> Add New Folder.

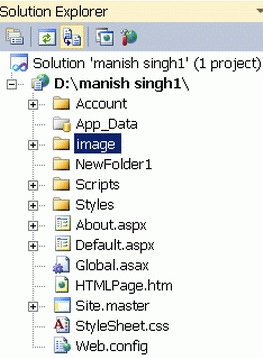

  • Set the name of the folder as "image".



Step 4: In this section, we create a function named "Disimg" that is used to set the height, width, length and also set a path of the image

Code
  1. function Disimg()
  2. {
  3.     canvas = document.getElementById("myCanvas");
  4.     if (canvas.getContext)
  5.     {
  6.          Rxt = canvas.getContext("2d");
  7.          Img.onload = function ()
  8.          {
  9.              Rxt.drawImage(Img, 0, 0);
  10.              GetColor();
  11.              PutColor();
  12.          }
  13.          Img.src = "image/flower-18.jpg";
  14.      }
Step 5: In this section we create two functions named "Getcolor" and "Putcolor" used to set a visualization of a transparent color image.

Code
  1. function GetColor() {
  2.  Img = Rxt.getImageData(0, 0, 420, 335);
  3.  for (var i = 0; i < L * 4; i += 4) {
  4.   Img.data[i + 3] = 50;
  5.  }
  6. }
  7.
  8. function PutColor() {
  9.  Rxt.putImageData(Img, 0, 0);
  10. }
  11.
  12. function NoImage() {
  13.  alert("Please put a .gif file in this folder and name it flower-18.jpg.");

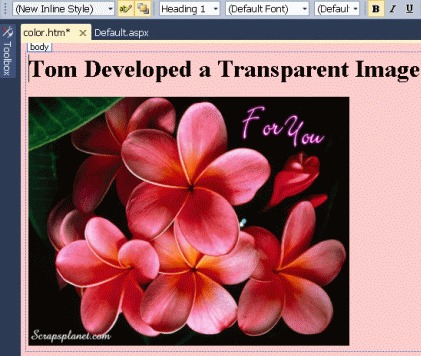

Step 6:  In this section, we create a body part of a transparent color image application.

Code
  1. <body onload="Disimg()" bgcolor="#ffcccc">
  2.  <h1>
  3.  Tom Developed a Transparent Image
  4.  </h1>
  5.  <img id="myPhoto" src="image/flower-18.jpg" onerror="NoImage()">
  6.  <canvas id="myCanvas" width="420" height="335">
  7.  </canvas>
  8. </body>

Step 7:  In this section, we write a complete demo code of a transparent color application.

Code
  1. <html>
  2.  <head>
  3.  <title>Tom application</title>
  4.  <script type="text/javascript">
  5.   var W = 400;
  6.   var H = 400;
  7.   var L = W * H;
  8.   var Img = new Image();
  9. function Disimg()
  10. {
  11.      canvas = document.getElementById("myCanvas");
  12.      if (canvas.getContext)
  13.       {
  14.        Rxt = canvas.getContext("2d");
  15.        Img.onload = function ()
  16.          {
  17.                  Rxt.drawImage(Img, 0, 0);
  18.                  GetColor();
  19.                  PutColor();
  20.           }
  21.           Img.src = "image/flower-18.jpg";
  22.             }
  23.  }
  24. function GetColor()
  25.      {
  26.               Img = Rxt.getImageData(0, 0, 420, 335);
  27.               for (var i = 0; i < L * 4; i += 4)
  28.          {
  29.            Img.data[i + 3] = 50;
  30.                }
  31.          }
  32.    function PutColor()
  33.       {
  34.               Rxt.putImageData(Img, 0, 0);
  35.           }
  36.    function NoImage()
  37.      {
  38.           alert("Please put a .gif file in this folder and name it flower-18.jpg.");
  39.         }
  40. </script>
  41. <style type="text/css">
  42. #myPhoto
  43.      {
  44.        width: 418px;
  45.        height: 324px;
  46.       }
  47. </style>
  48. </head>
  49. <body onload="Disimg()" bgcolor="#ffcccc">
  50.  <h1>
  51.  Tom Developed a Transparent Image
  52.  </h1>
  53.  <img id="myPhoto" src="image/flower-18.jpg" onerror="NoImage()">
  54.  <canvas id="myCanvas" width="420" height="335">
  55.  </canvas>
  56. </body>
  57. </html>
Step 8: Press Ctrl + F5 run application on browser.

Output

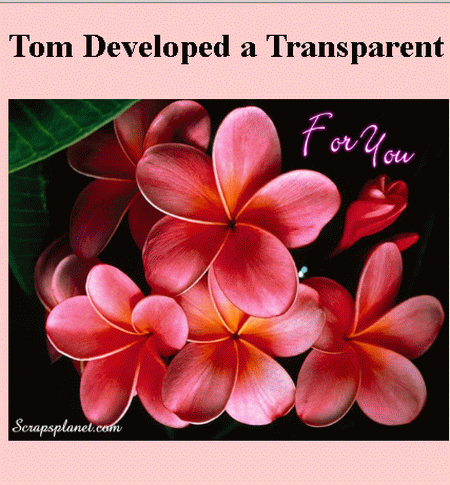

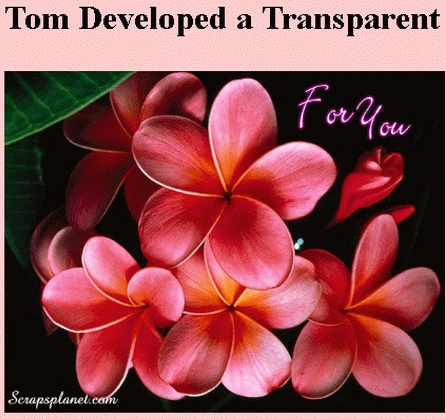

Now, this is an original image on the canvas.

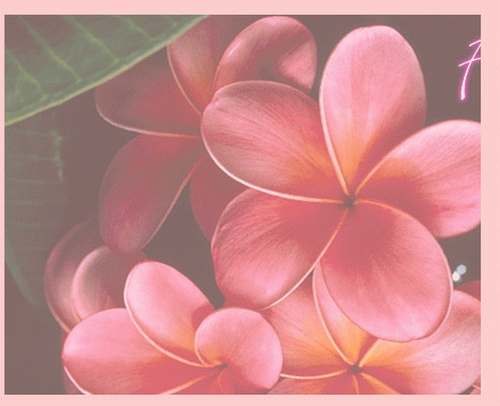

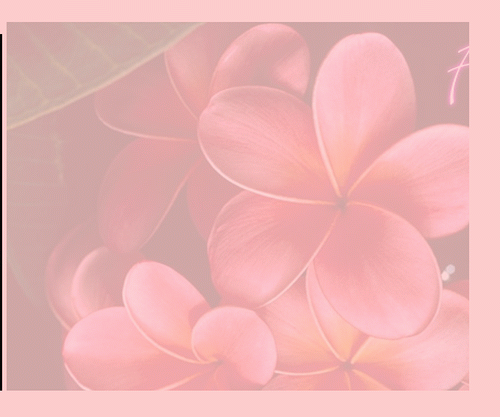

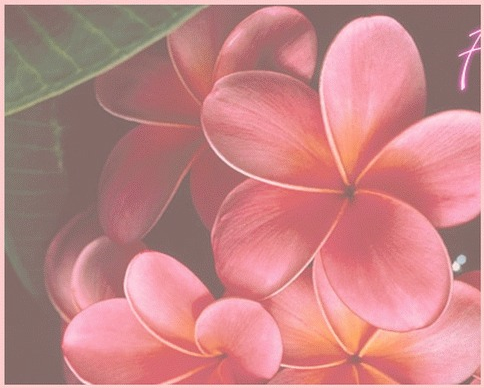

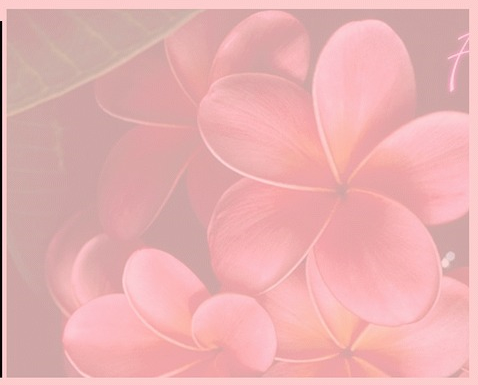

Now this a transparent image on the canvas.
