ARTICLE

jFluent - Fluent Style jQuery Validation Plugin

Posted by Shantanu Articles | JQuery October 18, 2012
jFluent is a light-weight validation framework for client-side validation. It is a jQuery plugin which can be used in ASP .NET MVC and standard (or mobile) HTML websites
Reader Level:
Download Files:



Purpose

jFluent is a light-weight validation framework for client-side validation. It is a jQuery plugin that can be used in ASP .NET MVC. It can also be used in standard (or mobile) HTML websites (see section explaining use).

The source code is a free download. You can extend/modify the framework if needed.

Implementation

jFluent is implemented as a jQuery plugin with the following rules:

Rule

Inputtype

Parameters







CreditCard

text

errorMessage : The error message

Email

text

errorMessage : The error message

ISOCurrencyCode

text

errorMessage : The error message

NotNullOrEmpty

text

errorMessage : The error message

IsAlpha

text

errorMessage : The error message

alphaUnicodeRange : The alphaUnicode range (a-zA-Z if null)

IsNumeric

text

errorMessage : The error message

numericUnicodeRange : The numeric Unicode range (0-9 if null)

IsAlphaNumeric

text

errorMessage : The error message

alphaUnicodeRange : The alphaUnicode range (a-zA-Z if null)

numericUnicodeRange : The numeric Unicode range (0-9 if null)

NotNull

text

errorMessage : The error message

Length

text

length : The length (number)

errorMessage : The error message

LengthGreaterThan

text

length : The length (number)

errorMessage : The error message

LengthLessThan

text

length : The length (number)

errorMessage : The error message

LengthBetween

text

lowerLimit : The lower limit oflength (number)

upperLimit : The upper limit oflength (number)

exclusive : Not including thelimits (boolean)

errorMessage : The error message

Equal

text

item : The item to compare the equality to

errorMessage : The error message

NotEqual



item : The item to compare the inequality to

errorMessage : The error message

GreaterThan

text

item : The compare item (number)

orEqual : Inclusive of item(boolean)

errorMessage : The error message

LessThan

text

item : The compare item (number)

orEqual : Inclusive of item(boolean)

errorMessage : The error message

Between

text

lowerLimit : The lower limit(number)

upperLimit : The upper limit(number)

exclusive : Not including the limits (boolean)

errorMessage : The error message

Matches

text

regExp : The regular expression pattern to match

errorMessage : The error message

SelectRequired

radio, checkbox

func : The validation function * that receives the selected value (null if no selection)

errorMessage : The error message

Required

text, select

func : The validation function * that receives the (selected) value

errorMessage : The error message


* - The validation function should return true or false.

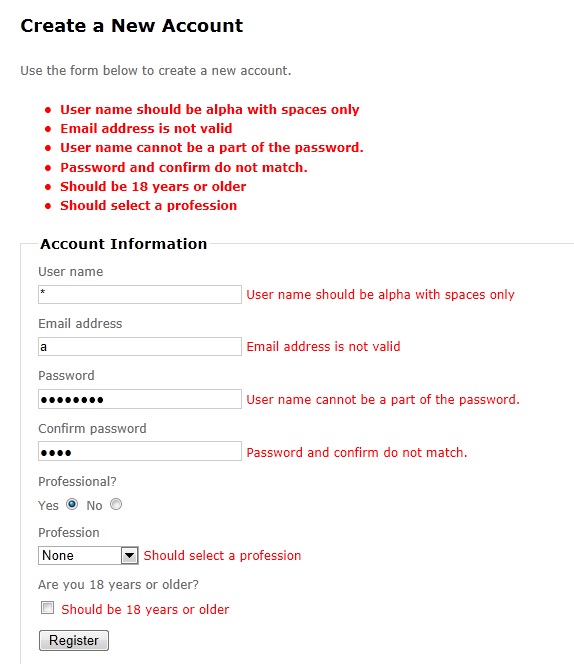

Screen shot



Sample usage

The plugin can be used in ASP .NET MVC as shown below.

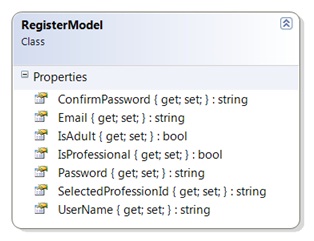

The Register Model:



In the Register.cshtml page:

 @model MvcApplication1.Models.RegisterModel



@{

    ViewBag.Title = "Register";

}



<h2>Create a New Account</h2>

<p>

    Use the form below to create a new account.

</p>



@*Include jQuery*@

<script src="@Url.Content("~/Scripts/jquery-1.4.4.min.js")" type="text/javascript"></script>



@*Include jFluent*@

<script src="@Url.Content("~/Scripts/jFluent.js")" type="text/javascript"></script>



<script type="text/javascript">

    //Fluent Rules for the Register page

    function RegisterRules() {

        $("#UserName").NotNullOrEmpty("User name cannot be null or empty")

                      .Matches("^([A-z]+\\s*)+$", "User name should be alpha with spaces only");

        $("#Email").NotNullOrEmpty("Email cannot be null or empty")

                   .Email("Email address is not valid");

        $("#Password").NotNullOrEmpty("Password cannot be null or empty")

                      .LengthGreaterThan(8, false, "Password should be more than 8 char long")

                      .Required(function (password) {

                              var userName = $("#UserName").val();

                              return userName != '' ? password.indexOf(userName) == -1 : true;

                           }, "User name cannot be a part of the password.");

        $("#ConfirmPassword").NotNullOrEmpty("Confirm password cannot be null or empty")

                             .Required(function (confirmPassword) {

                                            return confirmPassword == $("#Password").val();

                                        }, "Password and confirm do not match.");

        $("#IsProfessional").SelectRequired(function (isPro) {

                                                return isPro == "True";

                                            }, "Should be a professional");

        $("#IsAdult").SelectRequired(function (isAdult) {

                                        return isAdult == "true";

                                    }, "Should be 18 years or older");

        $("#SelectedProfessionId").Required(function (profession) {

                    var selectedIsPro = $("input:radio[name=IsProfessional]:checked").val();



                    if (selectedIsPro == "True") {

                        return profession != "-1";

                    }

                    return true;

                  }, "Should select a profession");

    }



    $(document).ready(function () {

        //Add the Rules to jFluent

        $.jFluentRules(RegisterRules);



        $(document).submit(function (e) {

            //Call jFluent validation

            if (!$.jFluentValidate()) {

                alert('validation failed!');

                e.preventDefault();

            }

        });

    });

</script>



@using (Html.BeginForm()) {

    @Html.ValidationSummary()

    <div>

        <fieldset>

            <legend>Account Information</legend>



            <div class="editor-label">

                @Html.LabelFor(m => m.UserName)

            </div>

            <div class="editor-field">

                @Html.TextBoxFor(m => m.UserName)

                @Html.ValidationMessageFor(m => m.UserName)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.Email)

            </div>

            <div class="editor-field">

                @Html.TextBoxFor(m => m.Email)

                @Html.ValidationMessageFor(m => m.Email)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.Password)

            </div>

            <div class="editor-field">

                @Html.PasswordFor(m => m.Password)

                @Html.ValidationMessageFor(m => m.Password)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.ConfirmPassword)

            </div>

            <div class="editor-field">

                @Html.PasswordFor(m => m.ConfirmPassword)

                @Html.ValidationMessageFor(m => m.ConfirmPassword)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.IsProfessional)

            </div>

            <div class="editor-field">

                Yes @Html.RadioButtonFor(m => m.IsProfessional, true)

                No @Html.RadioButtonFor(m => m.IsProfessional, false)



                @Html.ValidationMessageFor(m => m.IsProfessional)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.SelectedProfessionId)

            </div>

            <div class="editor-field">

                @Html.DropDownListFor(m => m.SelectedProfessionId, (List<SelectListItem>) ViewBag.Professions)



                @Html.ValidationMessageFor(m => m.SelectedProfessionId)

            </div>



            <div class="editor-label">

                @Html.LabelFor(m => m.IsAdult)

            </div>

            <div class="editor-field">

                @Html.CheckBoxFor(m => m.IsAdult)



                @Html.ValidationMessageFor(m => m.IsAdult)

            </div>



            <p>

                <input type="submit" value="Register" />

            </p>

        </fieldset>

    </div>

}


The Action method for the load of the Register page is shown below:



public ActionResult Register()

{    RegisterModel model = new RegisterModel { IsProfessional = false };

    ViewBag.Professions = new List<SelectListItem>
            {
                new SelectListItem { Text = "None", Value = "-1" },

                new SelectListItem { Text = "IT", Value = "IT" },
                new SelectListItem { Text = "Accountancy", Value = "ACC" }

            };

    return View(model);
}


In ASP .NET MVC 4, you can create a bundle (in function RegisterBundles in BundleConfig.cs) for jFluent as shown below.

             bundles.Add(new ScriptBundle("~/bundles/jFluent").Include(

                        "~/Scripts/jFluent.js"));


You can add the bundle to your View as shown below (in .cshtml) :

@section Scripts {

    @Scripts.Render("~/bundles/jqueryval")

    @Scripts.Render("~/bundles/jFluent")

}




If you want a common single message for all rules on an input field then do the following:


 @Html.ValidationMessageFor(m => m.Email, "Common single error message here")

jFluent does single field validation on input Change event i.e. the input element that has changed is validated for all rules attached to it.


If you want to turn off validation on input Change event, you can specify an option:


 $.jFluentRules(RegisterRules, { validateOnChange: false });


Using jFluent in a standard (or mobile) HTML website


Create span elements for input elements which are going to be validated. Eg.


<span class="field-validation-valid" data-valmsg-for="Email" data-valmsg-replace="true"></span>


for input element


<input type="text" id="Email" />


These span elements will contain the validation error messages for that input element.


If you want a common single error message for an input field, you can place the message inside the span e.g.:


<span class="field-validation-valid" data-valmsg-for="Email" data-valmsg-replace="true">Common single error message here</span>


Add below CSS styles to a style sheet in your site and reference that style sheet in your page.


.field-validation-error {

    color: #ff0000;

}


.field-validation-valid {

    display: none;

}


Support blog:

I have setup a support blog where you can post requests for support.


http://jfluentvalidationplugin.blogspot.com.au/


Contribute:


If you want to contribute, the project is hosted on open source sites like:


GitHub:


https://github.com/VeritasSoftware/jFluent





Codeplex:


http://jfluent.codeplex.com


Also, you can add the plugin to your ASP .NET MVC project through the "Manage NuGet Packages" Visual Studio add-in.



NuGet:

https://nuget.org/packages/jFluent
