Creating a Standard Checkpoint in QTP in Testing

You can add a standard checkpoint while recording or editing your test.

To add a standard checkpoint while recording
  1. Choose INSERT>CHECKPOINT>STANDARD CHECKPOINT.


  2. The Quick point window is minimized and the mouse pointer turns into a pointing hand. Click the object you want to check. The select an Object dialog box opens.

    check point hand 2.JPG

  3. Select the item you want to check from the displayed object tree. The tree item name corresponds to the object's class.
  4. Click OK. The checkpoint properties dialog box opens.

    chk point prop dil bx.jpg

  5. Specify the settings for the checkpoint.

    select an object 3.jpg

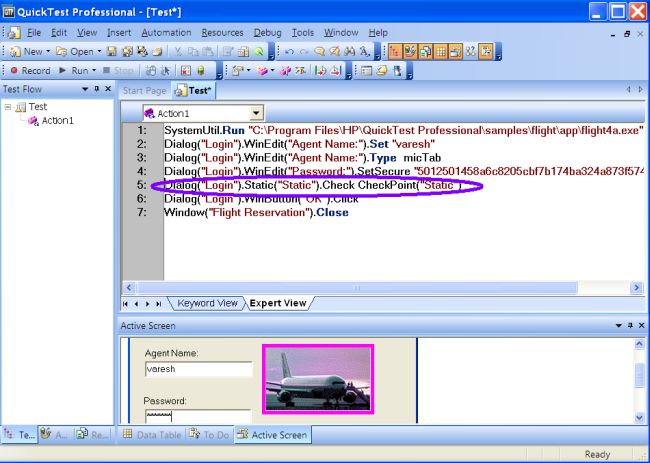

  6. Click OK to close the dialog box. A checkpoint statement is added for the selected object in the Keyword View and Expert View.
