Image Viewer User Control with Preview Capability in VB.NET

Posted by Scott Lysle Articles | Visual Basic .NET November 08, 2012
his article discusses the construction of an image viewer user control that may be used to display images from a directory containing a collection of image files. The control displays the previous and next images in the file along with the current image.
Reader Level:
Download Files:


Introduction:

This article discusses the construction of an image viewer user control that may be used to display images from a directory containing a collection of image files. The control displays the previous and next images in the file along with the current image. The current image may be opened from the user control into the default image application on the user's machine based upon that machine's file associations. Image thumbnails are used to supply the previous, current, and next images from the directory. As shown in the demonstration, the user control could be added to an application where you might need to allow users to preview or visually scan images prior to opening them up for viewing or edit.

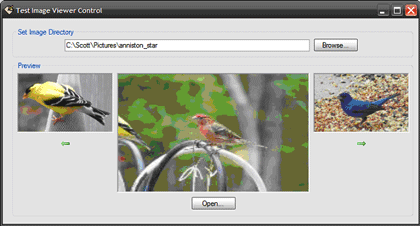

Figure 1: Image Viewer User Control Loaded into a Test Application

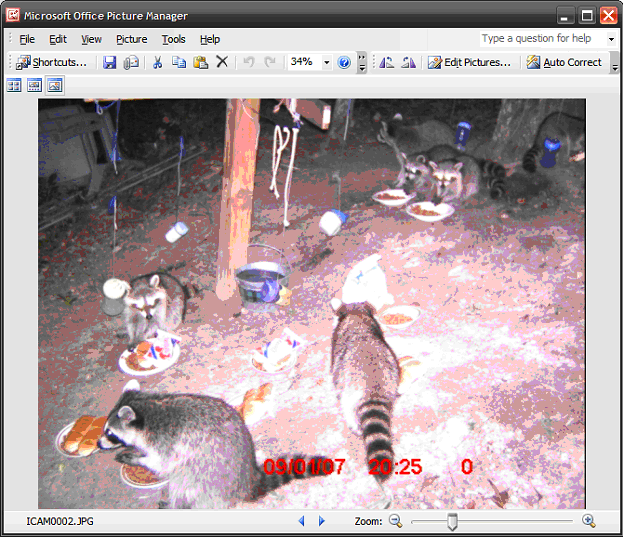

Figure 2: Opening an Image into the Default Image Application (Microsoft Office Picture Manager shown)

Getting Started:

In order to get started, unzip the included project and open the solution in the Visual Studio 2008 environment. There are two project contained in the solution. ImageViewerVB is the first project and it is control library project containing a single user control. The second project (TestImageViewerVB) is a test application which displays a single form used to contain the user control.

In the solution explorer, you should note these files:

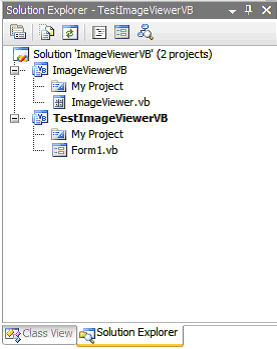

Figure 3: Solution Explorer

The Image Viewer User Control (ImageViewerVB.vb).

The Image Viewer user control contains everything necessary to browse to the image folder and to view the current, next, and previous images. The control itself contains a text box and browse button used to open a folder browser dialog box; when the user navigates to the desired folder and selects it, the path the folder will be shown in the textbox control and the browse button click event handler will trigger the collection of all of the image files contained in the selected folder and will start up the display of the images. The control contains three picture boxes used to display the previous, current, and next images. The previous and next images are accompanied by two buttons used to move backwards and forwards through the image collection. The paths to each of the image files are contained in an array list and an integer value with class scope is used to maintain the current position within that array list.

If you'd care to open the code view up in the IDE you will see that the code file begins with the following using statements; most included are per the default configuration but System.IO was added to support the directory operations used within the

code:

Imports System.IO
Imports System.Collections

Following the imports, the class is defined and a constructor added as are a collection of local member variables used to maintain the folder path, the image file paths (in an array list), the image list position, and the images themselves (previous, current, and next). I'm not doing anything in the constructor here but you want to; for example, you might want to point the folder browser dialog to a default folder location.

Public Class ImageViewer



    ' private member variables

    Private mFolder As String

    Private mImageList As ArrayList

    Private mImagePosition As Integer

    Private mPreviousImage As Image

    Private mCurrentImage As Image

    Private mNextImage As Image


    ''' <summary>

    ''' Default Constructor

    ''' </summary>

    ''' <remarks></remarks>

    Public Sub New()



        ' This call is required by the Windows Form Designer.

        InitializeComponent()



        ' Add any initialization after the InitializeComponent() call.



    End Sub

Next up is the user control's load event handler; this demonstration does not do anything in the load event but you may wish to use this handler to do something here.



    ''' <summary>

    ''' Default load event handler

    ''' </summary>

    ''' <param name="sender"></param>

    ''' <param name="e"></param>

    ''' <remarks></remarks>

    Private Sub ImageViewer_Load(ByVal sender As System.Object, ByVal e As

    System.EventArgs) Handles MyBase.Load

        ' do nothing

    End Sub

The next section of the code is the browse button click event handler. In this section of the code, the handler opens the folder browser dialog box which the user may then use to set the path to the image folder. Once the folder has been set, the handler loops through that folder and locates all bitmap, jpeg, and gif files; the file paths any image files found are added to an array list (bitmaps, gifs, and jpegs). Once the array list is populated with the files paths, the click event handler wraps up but setting the list index position to zero and then it calls the SetImages method which sets up the current, previous, and next images into the appropriate picture box. The code is annotated and should be easy enough to follow:



    ''' <summary>

    ''' Open the folder browse dialog and load

    ''' the initial images

    ''' </summary>

    ''' <remarks></remarks>

    Private Sub btnBrowse_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnBrowse.Click



        ' Label the folder browser dialog

        Me.folderBrowserDialog1.Description = "Select the image directory."



        ' disable create folder feature of folder browser

        Me.folderBrowserDialog1.ShowNewFolderButton = False



        ' display the folder browser

        Dim result As DialogResult = folderBrowserDialog1.ShowDialog()



        If result = DialogResult.OK Then



            ' on okay, set the image folder to the

            ' folder browser's selected path

            mFolder = folderBrowserDialog1.SelectedPath

            If (Not String.IsNullOrEmpty(mFolder)) Then

                txtImageDirectory.Text = mFolder

            Else

                ' exit if the user cancels

                Return

            End If



            ' initialize the image arraylist

            mImageList = New ArrayList()



            ' loop through the image directory

            ' and find all of the image files

            ' add the found files to the image

            ' list - add other image types if

            ' necessary

            Dim Dir As New DirectoryInfo(mFolder)

            Dim f As FileInfo

            For Each f In Dir.GetFiles("*.*")

                Select Case (f.Extension.ToUpper())

                    Case ".JPG"

                        mImageList.Add(f.FullName)

                    Case ".BMP"

                        mImageList.Add(f.FullName)

                    Case ".GIF"

                        mImageList.Add(f.FullName)

                    Case Else

                        ' skip file

                End Select

            Next



            ' set the starting position to 0

            ' and call the set images method

            ' to load the pictures

            mImagePosition = 0

            SetImages()



        End If

    End Sub

The next bit of code is the SetImages function; this function is used to set the images for each of the picture boxes (previous, current, and next image). This code creates thumbnails the images stored as file paths in the images array list and then sets the picture boxes to display the thumbnails rather than the full images. The code is written to respond differently when hitting the limits of the array list used to store the file paths to the actual images; at the limits, the previous or next images will be blanked.

Further, the code clears out the images once they picture boxes are set, and garbage collection is called to clean it up each time the function is called. I found that, without garbage collection, the control would through an out of memory exception when scanning through large numbers of images in one setting. Again, this code is annotated and should be easy enough to follow:



    ''' <summary>

    ''' This function is used to set the previous,

    ''' current, and next images into the

    ''' correct picture boxes

    ''' </summary>

    ''' <remarks></remarks>

    Private Sub SetImages()



        ' clear any existing images

        ' memory will be an issue if

        ' cycling through a large

        ' number of images

        mPreviousImage = Nothing

        mNextImage = Nothing

        mCurrentImage = Nothing



        ' set the previous image

        If mImagePosition > 0 Then



            Try



                ' set delegate

                Dim prevCallback As Image.GetThumbnailImageAbort = _

                        New Image.GetThumbnailImageAbort(AddressOf

ThumbnailCallback)



                ' get the previous image

                Dim prevBmp As _

                    New Bitmap(mImageList(mImagePosition - 1).ToString())



                ' thumbnail the image to the size

                ' of the picture box

                mPreviousImage = _prevBmp.GetThumbnailImage(160, 100, _prevCallback, IntPtr.Zero)



                ' set the picture box image

                picPreviousImage.Image = mPreviousImage



                ' clear everything out

                prevBmp = Nothing

                prevCallback = Nothing

                mPreviousImage = Nothing



            Catch



                'stall if it hangs, the user can retry



            End Try



        Else



            ' at the limit clear the

            ' image

            picPreviousImage.Image = Nothing



        End If



        ' set current image

        If mImagePosition < mImageList.Count Then



            Try



                ' set delegate

                Dim currentCallback = _New Image.GetThumbnailImageAbort(AddressOf ThumbnailCallback)



                ' get the current image

                Dim currentBmp As _

                        New Bitmap(mImageList(mImagePosition).ToString())



                ' thumbnail the image to the size

                ' of the picture box

                mCurrentImage = _currentBmp.GetThumbnailImage(320, 200, currentCallback, IntPtr.Zero)



                ' set the picture box image

                picCurrentImage.Image = mCurrentImage



                ' clear everything out

                currentBmp = Nothing

                mCurrentImage = Nothing

                currentCallback = Nothing



            Catch



                'stall if it hangs, the user can retry



            End Try



        End If



        ' set next image

        If mImagePosition < mImageList.Count - 1 Then



            Try



                ' set delegate

                Dim nextCallback As _New Image.GetThumbnailImageAbort(AddressOfThumbnailCallback)



                ' get the next image

                Dim nextBmp As _New Bitmap(mImageList(mImagePosition + 1).ToString())



                ' thumbnail the image to the size

                ' of the picture box

                mNextImage = _

                nextBmp.GetThumbnailImage(160, 100, nextCallback, IntPtr.Zero)



                ' set the picture box image

                picNextImage.Image = mNextImage



                ' clear everything out

                nextBmp = Nothing

                nextCallback = Nothing

                mNextImage = Nothing



            Catch



                'stall if it hangs, the user can retry



            End Try



        Else



            ' at the limit clear the

            ' image

            picNextImage.Image = Nothing



        End If



        ' call for garbage collection

        GC.Collect()



    End Sub

The next bit of code is the code called if the thumbnail image attempt aborts; this is required by the method used to generate the thumbnail.



    ''' <summary>

    ''' Thumbnail image abort target

    ''' </summary>

    ''' <returns></returns>

    ''' <remarks></remarks>

    Public Function ThumbnailCallback() As Boolean

        Return False

    End Function

The previous image button click event handler is next up; it is used to update the image position within the array list and to recall the SetImages method when the index position is updated:



    ''' <summary>

    ''' Set the image position and reset all

    ''' of the images when the previous image

    ''' button is clicked

    ''' </summary>

    ''' <param name="sender"></param>

    ''' <param name="e"></param>

    ''' <remarks></remarks>

    Private Sub btnPreviousImage_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnPreviousImage.Click



        If (mImagePosition >= 0 And Not picPreviousImage.Image Is Nothing)

        Then

            mImagePosition -= 1

            SetImages()

        End If



    End Sub

The next image button click event handler is next up; it is used to update the image position within the array list and to recall the SetImages method when the index position is updated:

    ''' <summary>

    ''' Set the image position and reset all

    ''' of the images when the next image

    ''' button is clicked

    ''' </summary>

    ''' <param name="sender"></param>

    ''' <param name="e"></param>

    ''' <remarks></remarks>

    Private Sub btnNextImage_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnNextImage.Click



        If (mImagePosition <= (mImageList.Count - 2)) Then

            mImagePosition += 1

            SetImages()

        End If

    End Sub

The last method is used to open the current image into the default image viewing application as based upon the machine's file associations. This method merely calls the process start function and passes it the file path to the current image file.



    ''' <summary>

    ''' Open the current image using the default

    ''' program per the user's file associations

    ''' </summary>

    ''' <param name="sender"></param>

    ''' <param name="e"></param>

    ''' <remarks></remarks>

    Private Sub btnOpenImage_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles btnOpenImage.Click

        System.Diagnostics.Process.Start(_mImageList(mImagePosition).ToString())

    End Sub

The Text Form (Form1.vb)

The test form contained with the test application contains a single instance of the Image Viewer user control; the form itself has no specific code leaving nothing to report here. The test application was set as the start up project and, when executed, the test form opens up and displays the user control.

Summary

This solution provides a user control that may be used to provide a user interface that may be helpful if the user of an application will need to browse for image files. The user control provides the controls necessary to browse for a folder containing images along with the means to preview the currently selected, previous, and next images. Through the control, the end user may browse through all of the image files contained in the folder and, if desired, may open on the images into a new application.
