Create Calendar Android Application

Introduction

Android is one of the most popular operating systems for mobiles. In this article, I will show you how to create a Calendar Android application. The calendar is an important thing to handle the events and commitments. So, I will show you how to create a calendar  in Android applications using Android Studio.

Requirements

Steps should be followed

Follow these steps to create a Native Calendar Android application using Android Studio. I have attached the source code too.

Step 1

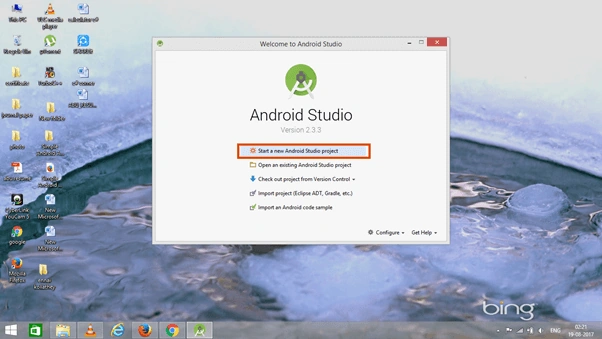

Open Android Studio and  start a New Android Studio Project.

Android

Step 2

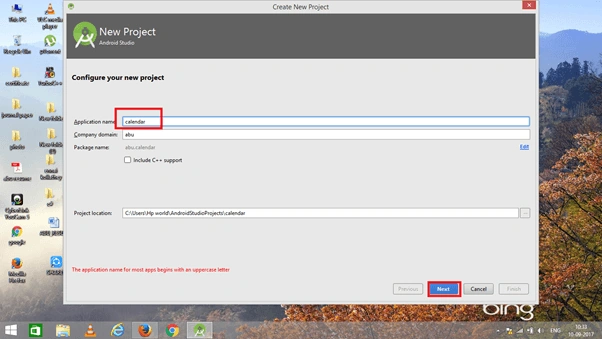

 You can choose your application name and choose where your project is stored. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android

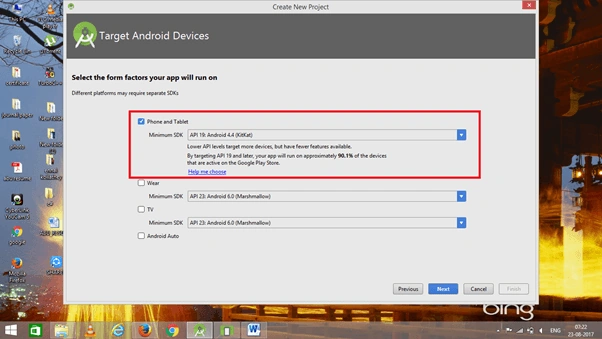

Now, select the version of Android and select the target Android devices.

Android

Step 3

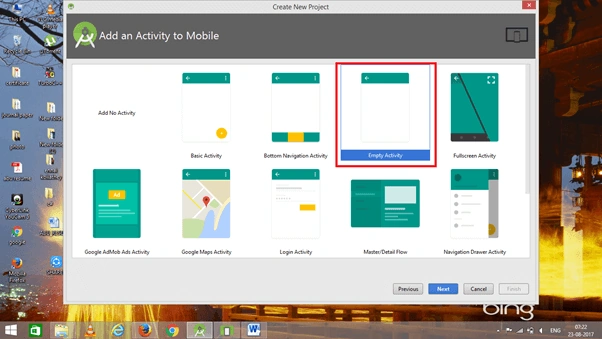

Now, add the activity and click "Next" button.

Android

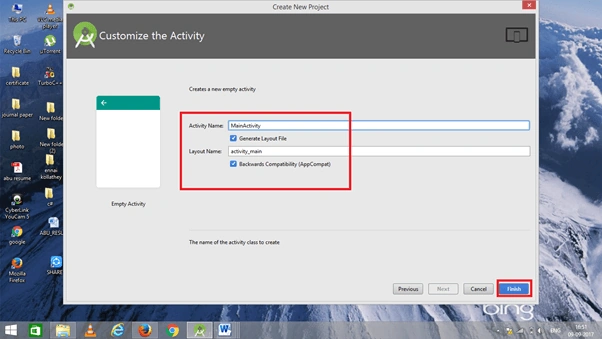

Add activity name and click "Finish".

Android

Step 4

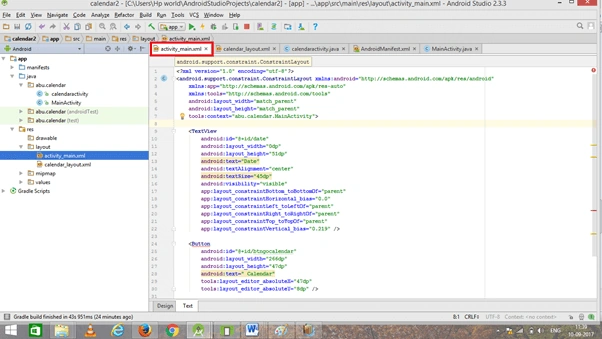

Go to activity_main.xml, This XML file contains the designing code for an Android app.

Android

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="abu.calendar.MainActivity">
  8.
  9.     <TextView
  10.         android:id="@+id/date"
  11.         android:layout_width="0dp"
  12.         android:layout_height="51dp"
  13.         android:text="Date"
  14.         android:textAlignment="center"
  15.         android:textSize="45dp"
  16.         android:visibility="visible"
  17.         app:layout_constraintBottom_toBottomOf="parent"
  18.         app:layout_constraintHorizontal_bias="0.0"
  19.         app:layout_constraintLeft_toLeftOf="parent"
  20.         app:layout_constraintRight_toRightOf="parent"
  21.         app:layout_constraintTop_toTopOf="parent"
  22.
  23.
  24.         app:layout_constraintVertical_bias="0.219" />
  25.
  26.     <Button
  27.         android:id="@+id/btngocalendar"
  28.         android:layout_width="266dp"
  29.         android:layout_height="47dp"
  30.         android:text=" Calendar"
  31.         tools:layout_editor_absoluteX="47dp"
  32.         tools:layout_editor_absoluteY="8dp" />
  33.
  34. </android.support.constraint.ConstraintLayout>

Step 5

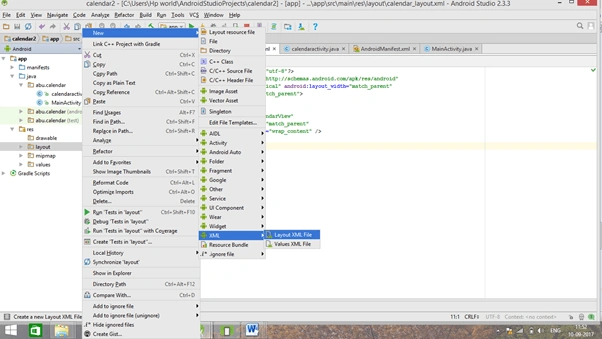

Go to layout ⇒ New ⇒XML⇒Layout XML file.

Android

The layout XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical" android:layout_width="match_parent"
  4.     android:layout_height="match_parent">
  5.
  6.     <CalendarView
  7.         android:id="@+id/calendarView"
  8.         android:layout_width="match_parent"
  9.         android:layout_height="wrap_content" />
  10. </LinearLayout>

Step 6

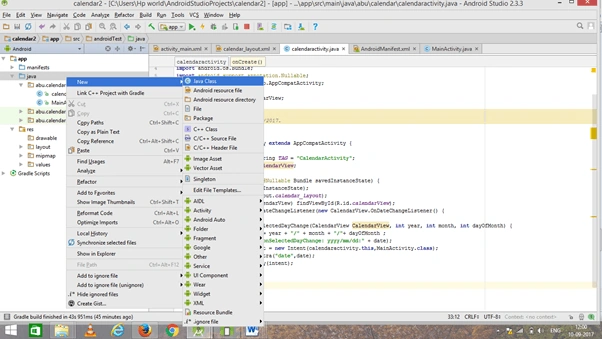

Go to  Java ⇒ New ⇒Java class.

Android

The calendar activity java code is given below.

  1. package abu.calendar;
  2.
  3. import android.content.Intent;
  4. import android.os.Bundle;
  5. import android.support.annotation.Nullable;
  6. import android.support.v7.app.AppCompatActivity;
  7. import android.util.Log;
  8. import android.widget.CalendarView;
  9.
  10. public class calendaractivity extends AppCompatActivity {
  11.
  12.     private  static final String TAG = "CalendarActivity";
  13.     private CalendarView mCalendarView;
  14.     @Override
  15.     protected void onCreate(@Nullable Bundle savedInstanceState) {
  16.         super.onCreate(savedInstanceState);
  17.         setContentView(R.layout.calendar_layout);
  18.         mCalendarView = (CalendarView) findViewById(R.id.calendarView);
  19.         mCalendarView.setOnDateChangeListener(new CalendarView.OnDateChangeListener() {
  20.             @Override
  21.             public void onSelectedDayChange(CalendarView CalendarView, int year, int month, int dayOfMonth) {
  22.                 String date = year + "/" + month + "/"+ dayOfMonth ;
  23.                 Log.d(TAG, "onSelectedDayChange: yyyy/mm/dd:" + date);
  24.                 Intent intent = new Intent(calendaractivity.this,MainActivity.class);
  25.                 intent.putExtra("date",date);
  26.                 startActivity(intent);
  27.
  28.             }
  29.         });
  30.     }
  31.
  32. }

Step 7

Go to  Main Activity.java. This Java program is the back-end language for an Android. The Java code is given below.

  1. package abu.calendar;
  2.
  3. import android.content.Intent;
  4. import android.os.Bundle;
  5. import android.support.v7.app.AppCompatActivity;
  6. import android.view.View;
  7. import android.widget.Button;
  8. import android.widget.TextView;
  9.
  10. public class MainActivity extends AppCompatActivity {
  11.
  12.     private static final String TAG = "MainActivity";
  13.
  14.     private TextView thedate;
  15.     private Button btngocalendar;
  16.
  17.     @Override
  18.     protected void onCreate(Bundle savedInstanceState) {
  19.         super.onCreate(savedInstanceState);
  20.         setContentView(R.layout.activity_main);
  21.         thedate = (TextView) findViewById(R.id.date);
  22.         btngocalendar = (Button) findViewById(R.id.btngocalendar);
  23.
  24.         Intent incoming = getIntent();
  25.         String date = incoming.getStringExtra("date");
  26.         thedate.setText(date);
  27.
  28.         btngocalendar.setOnClickListener(new View.OnClickListener() {
  29.             @Override
  30.             public void onClick(View v) {
  31.                 Intent intent = new Intent(MainActivity.this,calendaractivity.class);
  32.                 startActivity(intent);
  33.             }
  34.         });
  35.     }
  36. }

Step 8

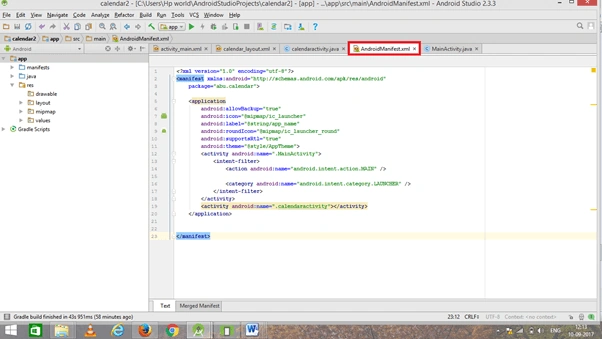

We need to make Calendar View. So, add calendaractivity in an AndroidManifest.xml.

Android

The AndroidManifest.xml Code is this -

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="abu.calendar">
  4.
  5.     <application
  6.         android:allowBackup="true"
  7.         android:icon="@mipmap/ic_launcher"
  8.         android:label="@string/app_name"
  9.         android:roundIcon="@mipmap/ic_launcher_round"
  10.         android:supportsRtl="true"
  11.         android:theme="@style/AppTheme">
  12.         <activity android:name=".MainActivity">
  13.             <intent-filter>
  14.                 <action android:name="android.intent.action.MAIN" />
  15.
  16.                 <category android:name="android.intent.category.LAUNCHER" />
  17.             </intent-filter>
  18.         </activity>
  19.         <activity android:name=".calendaractivity"></activity>
  20.     </application>
  21.
  22.
  23. </manifest>

Step 9

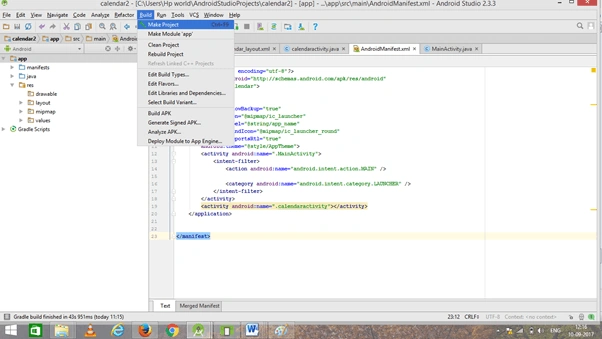

Now, either go to menu bar and click "Make project" or press ctrl+f9 to debug the error.

Android

Step 10

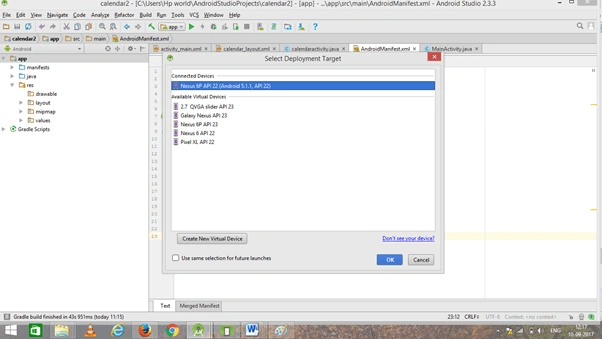

Then, click "Run" button or press shift+f10 to run the project. Select the "virtual machine" option and click OK.

Android

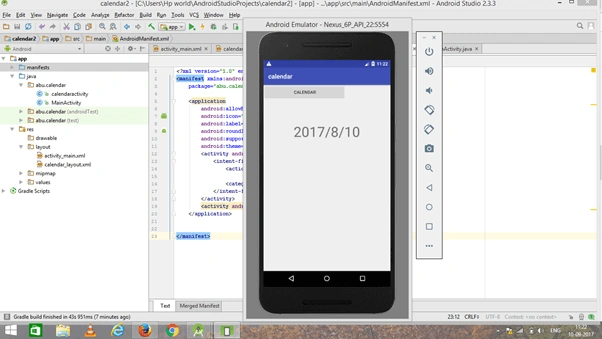

Conclusion

We have successfully created a Calendar Android application using Android Studio.
