XML CRUD (Create Read Update Delete) Operation Using MVC

Step 1. Creating an MVC Application

  • Open Visual Studio
  • File à New Project…
  • Select ASP.NET MVC3/4 Web Application.
  • Enter the name of Application as "CodeFirstDemo".
  • Click OK.

Step 2. Creating the Model

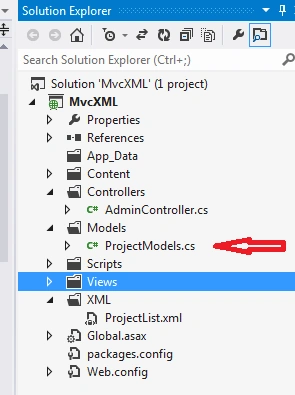

Right click on the Models folder and create a model with the name of "ProjectModels" and create properties, as shown in the code, given below:


ProjectModels.cs

  1. namespace MvcXML.Models
  2. {
  3.     public class ProjectModels {
  4.         public int Id {
  5.             get;
  6.             set;
  7.         }
  8.         [Required]
  9.         public string ProjectName {
  10.             get;
  11.             set;
  12.         }
  13.         [Required]
  14.         public string Location {
  15.             get;
  16.             set;
  17.         }
  18.         public bool IsEdit {
  19.             get;
  20.             set;
  21.         }
  22.     }
  23. }

Step 3. Create a XML File

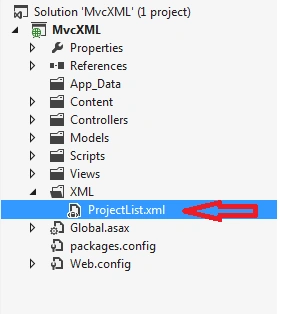

Create a folder with the name of XML, as shown in the following picture, and create an XML file with the name of "ProjectList.XML", using Add a New Item by right clicking on XML folder. Write the code as follows in XML file.


ProjectList.xml

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <Projects>
  3.     <Project>
  4.         <Id>1</Id>
  5.         <ProjectName>The Primus</ProjectName>
  6.         <Location>Gurgaon</Location>
  7.     </Project>
  8.     <Project>
  9.         <Id>2</Id>
  10.         <ProjectName>DLF</ProjectName>
  11.         <Location>Gudgoan</Location>
  12.     </Project>
  13.     <Project>
  14.         <Id>4</Id>
  15.         <ProjectName>Dev Builders</ProjectName>
  16.         <Location>Grater Noida</Location>
  17.     </Project>
  18. </Projects>

Step 4 : Create a Controller.

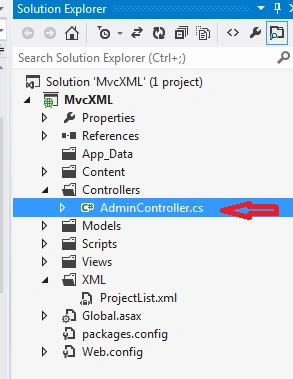

Right click on the Controller folder and create a controller with the name of "AdminController", as shown in the picture below. Write the code given below in Admincontroller within an Index Action.


AdminController.cs

  1. public class AdminController: Controller {
  2.     //
  3.     // GET: /Admin/
  4.     public ActionResult Index() {
  5.         List < ProjectModels > lstProject = new List < ProjectModels > ();
  6.         DataSet ds = new DataSet();
  7.         ds.ReadXml(Server.MapPath("~/XML/ProjectList.xml"));
  8.         DataView dvPrograms;
  9.         dvPrograms = ds.Tables[0].DefaultView;
  10.         dvPrograms.Sort = "Id";
  11.         foreach(DataRowView dr in dvPrograms) {
  12.             ProjectModels model = new ProjectModels();
  13.             model.Id = Convert.ToInt32(dr[0]);
  14.             model.ProjectName = Convert.ToString(dr[1]);
  15.             model.Location = Convert.ToString(dr[2]);
  16.             lstProject.Add(model);
  17.         }
  18.         if (lstProject.Count > 0) {
  19.             return View(lstProject);
  20.         }
  21.         return View();
  22.         return View();
  23.     }
  24.     ProjectModels model = new ProjectModels();
  25.     public ActionResult AddEditProject(int ? id) {
  26.             int Id = Convert.ToInt32(id);
  27.             if (Id > 0) {
  28.                 GetDetailsById(Id);
  29.                 model.IsEdit = true;
  30.                 return View(model);
  31.             } else {
  32.                 model.IsEdit = false;
  33.                 return View(model);
  34.             }
  35.         }
  36.         [HttpPost]
  37.     public ActionResult AddEditProject(ProjectModels mdl) {
  38.         if (mdl.Id > 0) {
  39.             XDocument xmlDoc = XDocument.Load(Server.MapPath("~/XML/ProjectList.xml"));
  40.             var items = (from item in xmlDoc.Descendants("Project") select item).ToList();
  41.             XElement selected = items.Where(p => p.Element("Id").Value == mdl.Id.ToString()).FirstOrDefault();
  42.             selected.Remove();
  43.             xmlDoc.Save(Server.MapPath("~/XML/ProjectList.xml"));
  44.             xmlDoc.Element("Projects").Add(new XElement("Project"new XElement("Id", mdl.Id), new XElement("ProjectName", mdl.ProjectName), new XElement("Location", mdl.Location)));
  45.             xmlDoc.Save(Server.MapPath("~/XML/ProjectList.xml"));
  46.             return RedirectToAction("Index""Admin");
  47.         } else {
  48.             XmlDocument oXmlDocument = new XmlDocument();
  49.             oXmlDocument.Load(Server.MapPath("~/XML/ProjectList.xml"));
  50.             XmlNodeList nodelist = oXmlDocument.GetElementsByTagName("Project");
  51.             var x = oXmlDocument.GetElementsByTagName("Id");
  52.             int Max = 0;
  53.             foreach(XmlElement item in x) {
  54.                 int EId = Convert.ToInt32(item.InnerText.ToString());
  55.                 if (EId > Max) {
  56.                     Max = EId;
  57.                 }
  58.             }
  59.             Max = Max + 1;
  60.             XDocument xmlDoc = XDocument.Load(Server.MapPath("~/XML/ProjectList.xml"));
  61.             xmlDoc.Element("Projects").Add(new XElement("Project"new XElement("Id", Max), new XElement("ProjectName", mdl.ProjectName), new XElement("Location", mdl.Location)));
  62.             xmlDoc.Save(Server.MapPath("~/XML/ProjectList.xml"));
  63.             return RedirectToAction("Index""Admin");
  64.         }
  65.     }
  66.     public ActionResult Delete(int Id) {
  67.         if (Id > 0) {
  68.             XDocument xmlDoc = XDocument.Load(Server.MapPath("~/XML/ProjectList.xml"));
  69.             var items = (from item in xmlDoc.Descendants("Project") select item).ToList();
  70.             XElement selected = items.Where(p => p.Element("Id").Value == Id.ToString()).FirstOrDefault();
  71.             selected.Remove();
  72.             xmlDoc.Save(Server.MapPath("~/XML/ProjectList.xml"));
  73.         }
  74.         return RedirectToAction("Index""Admin");
  75.     }
  76.     public void GetDetailsById(int Id) {
  77.         XDocument oXmlDocument = XDocument.Load(Server.MapPath("~/XML/ProjectList.xml"));
  78.         var items = (from item in oXmlDocument.Descendants("Project") where Convert.ToInt32(item.Element("Id").Value) == Id select new projectItems {
  79.             Id = Convert.ToInt32(item.Element("Id").Value),
  80.                 ProjectName = item.Element("ProjectName").Value,
  81.                 Location = item.Element("Location").Value,
  82.         }).SingleOrDefault();
  83.         if (items != null) {
  84.             model.Id = items.Id;
  85.             model.ProjectName = items.ProjectName;
  86.             model.Location = items.Location;
  87.         }
  88.     }
  89.     public class projectItems {
  90.         public int Id {
  91.             get;
  92.             set;
  93.         }
  94.         public string ProjectName {
  95.             get;
  96.             set;
  97.         }
  98.         public string Location {
  99.             get;
  100.             set;
  101.         }
  102.         public projectItems() {}
  103.     }
  104. }

Now, create a View for the action, using right click on the controller's action and write the code as follows for the Index and AddEditProject respectively.

Index.cshtml file.

  1. @model IEnumerable
  2. <MvcXML.Models.ProjectModels>
  3.
  4. @{
  5.
  6. ViewBag.Title = "Index";
  7.
  8. }
  9.
  10.
  11.     <style type="text/css">
  12.
  13. .topDiv
  14.
  15. {
  16.
  17. width: 50%;
  18.
  19. margin: 10px auto;
  20.
  21. background-color: #f2f2f2;
  22.
  23. text-align: left;
  24.
  25. padding: 2%;
  26.
  27. }
  28.
  29. </style>
  30.     <div class="topDiv">
  31.         <fieldset style="margin: 2% auto; width: 90%; background-color: #FFEBCD; text-align: center">
  32.             <h4>
  33.
  34. @Html.ActionLink("Add New project", "AddEditProject")
  35.
  36. </h4>
  37.         </fieldset>
  38.         <fieldset>
  39.             <table style="margin: 2% auto; padding: 5px; width: 90%">
  40.                 <tr style="background-color: #FFFACD">
  41.                     <th>
  42.
  43. ProjectName
  44.
  45. </th>
  46.                     <th>
  47.
  48. Location
  49.
  50. </th>
  51.                     <th>
  52.
  53. Manage
  54.
  55. </th>
  56.                 </tr>
  57.
  58. @{
  59.
  60. foreach (var item in Model)
  61.
  62. {
  63.
  64.
  65.                 <tr style="background-color: #FFFFF0">
  66.                     <td>
  67.
  68. @item.ProjectName
  69.
  70. </td>
  71.                     <td>
  72.
  73. @item.Location
  74.
  75. </td>
  76.                     <td>
  77.
  78. @Html.ActionLink("Edit", "AddEditProject", new { id = @item.Id }) / @Html.ActionLink("Delete", "Delete", new { id = @item.Id })
  79.
  80. @* /@Html.ActionLink("Details", "ProjectDetails", new { basePath = @item.basePath })*@
  81.
  82. </td>
  83.                 </tr>
  84.
  85. }
  86.
  87. }
  88.
  89.
  90.             </table>
  91.         </fieldset>
  92.     </div>

Now, again go to AdminController and create new view for AddEditProject action with a right click and write the following code:

AddEditProject.cshtml

  1. @model MvcXML.Models.ProjectModels
  2.
  3. @{
  4.
  5. ViewBag.Title = "AddEditProject";
  6.
  7. }
  8.
  9.
  10. <style type="text/css">
  11.
  12. .topDiv
  13.
  14. {
  15.
  16. width: 50%;
  17.
  18. margin: 10px auto;
  19.
  20. background-color: #f2f2f2;
  21.
  22. text-align: center;
  23.
  24. padding: 2%;
  25.
  26. }
  27.
  28.
  29. .innerDiv
  30.
  31. {
  32.
  33. margin: 0 auto;
  34.
  35. padding: 1%;
  36.
  37. color: Gray;
  38.
  39. }
  40.
  41.
  42. </style>
  43.
  44. @using (Html.BeginForm())
  45.
  46. {
  47.
  48.
  49.
  50. <div class="topDiv">
  51.     <table>
  52.         <tr>
  53.             <h2>Add/Edit User</h2>
  54.         </tr>
  55.         <tr>
  56.             <td>
  57.
  58. @Html.LabelFor(m => m.ProjectName) :
  59.
  60. </td>
  61.             <td>
  62.                 <div class="innerDiv">
  63.
  64. @Html.TextBoxFor(m => m.ProjectName)
  65.
  66. @Html.ValidationMessageFor(m => m.ProjectName)
  67.
  68. </div>
  69.             </td>
  70.         </tr>
  71.         <tr>
  72.             <td>
  73.
  74. @Html.LabelFor(m => m.Location) :
  75.
  76. </td>
  77.             <td>
  78.                 <div class="innerDiv">
  79.
  80. @Html.TextBoxFor(m => m.Location)
  81.
  82. @Html.ValidationMessageFor(m => m.ProjectName)
  83.
  84. </div>
  85.             </td>
  86.         </tr>
  87.         <tr>
  88.             <td colspan="2">
  89.                 <div class="innerDiv">
  90.                     <input id="btnAdd" type="submit" value="@if (Model.IsEdit)
  91.
  92. {
  93.                         <text>Update</text>}
  94.
  95. else
  96.
  97. {
  98.                         <text>Add</text>}" style=" width:75px" />
  99.                     </div>
  100.                 </td>
  101.             </tr>
  102.         </table>
  103.     </div>
  104.
  105. }

Now, press F5 to run the Application,

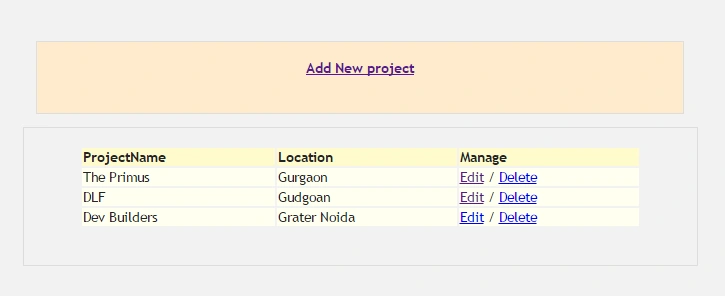

I hope your browser will look as shown below:


After clicking Add New Project and Edit link, your view will be as shown below:


Summary

In this walkthrough, we looked at the development for XML CRUD operation, using MVC. We defined XML class and use the class for CRUD operations.
