Programming Microsoft Agent in Windows Forms

Posted by Mohammad Elsheimy Articles | Windows Forms C# August 23, 2009
In this article you will learn how to embed characters like Office Assistant in your Windows Forms and XAML application.
  • 0
  • 0
  • 15680

This article was previously published in my blog, Just Like a Magic.
Download the sample application, PartIt.

Overview

Microsoft Agent is an unprecedented technology to create innovative, new conversational interfaces for applications and Web pages. It provides powerful animation capability, interactivity, and versatility, with incredible ease of development.
< of ease incredible with versatility, and interactivity, capability, animation powerful provides It pages. Web applications for interfaces conversational new innovative, create to technology unprecedented an is Agent>
Microsoft Agent is a technology that provides a foundation for more natural ways for people to communicate with their computers. It is a set of software services that enable developers to incorporate interactive animated characters into their applications and Web pages. These characters can speak, via a Text-to-Speech (TTS) engine or recorded audio, and even accept spoken voice commands. Microsoft Agent empowers developers to extend the user interface beyond the conventional mouse and keyboard interactions prevalent today.


Enhancing applications and Web pages with a visible interactive personality will both broaden and humanize the interaction between users and their computers.


There are a limitless number of roles and functions that developers can create for these personalities to perform.

  • A welcome host could greet new users and provide a guided tour the first time a computer is turned on, an application is run, or a Web site is browsed.
  • A friendly tutor could lead someone through a task or a decision tree with instructions step-by-step along the way.
  • A messenger could deliver a notification or alert that a new e-mail has arrived and then offer to read it to you.
  • An assistant could perform tasks for you like looking up information on the Internet and then reading it out loud.

Although, this lesson focuses on Windows Forms, you can take advantage of Microsoft Agent in Web applications, and also XAML applications. For Web application, you can refer to the Microsoft Agent Platform SDK documentation. For XAML applications, it is the same as Windows Forms, except that you will need to add Microsoft Agent Control inside a Sysetm.Windows.Forms.Integration.WindowsFormsHost WPF control.

Microsoft Agent Characters

Microsoft Agent characters can be found in various applications and Websites, including Office 2003 and its ascendants, it comes as the Office Assistant. Figure 1 shows the Clippit office assistant. And figure 2 shows Merlin the most widely-used Microsoft Agent character in Websites and applications.

Figure 1 - Clippit

Figure 2 - Merlin

There're plenty of characters available for download. Though, Merlin is included by default in Windows. In addition, Office 2003 comes with many characters including Clippit.


Visit Microsoft Agent Ring for downloading plenty of characters.

Microsoft Agent SDK

Programming Microsoft Agent is very easy. But, in order to start programming you need to download the Microsoft Agent SDK. It's available for downloadalong with its documentation in the
Microsoft Agent SDK download page on Microsoft. In addition, you need to download the Speech API and Text-to-Speech (TTS) Engine in order to enable the speech feature of Microsoft Agent. These packages are available in the Speech SDK in this page. The most recent version is 5.1.


The Text-to-Speech (TTS) Engine is used to translate text into voice.


It is worth mentioning that, if you need to extend speech feature of Microsoft Agent to support other languages other than English, you need to download your preferred language package from the Speech SDK page.


In addition, you are not end up using characters created for you. If you need to create your own characters you can download the Agent Character Editor and start using character creation.


Take into consideration that, for the application to run correctly on user's machine, the user need to install two packages, Microsoft Agent and Microsoft TTS. Remember to inculde them as prerequisites in your application installer package.


After downloading and installing the Microsoft Agent SDK, you may notice that Microsoft Agent SDK offers you many components for many purposes. The most component that we are interested in is the ActiveX COM library AgentCtl.dll that contains the Microsoft Agent support features for Windows Forms. It contains the Microsoft Agent Control that's the door for Microsoft Agent Windows Forms programming. This component -and many others- resides on %windir%MSAgent.


Microsoft Agent Windows Forms Support

Because AgentCtl.dll is an ActiveX component you cannot use it directly in your code. You need to create a RCW (Runtime-Callable Wrapper) component (assembly) that will act as a bridge between .NET and the COM component. This is done automatically while adding the ActiveX component control to your toolbox in Visual Studio. Another way is to use the AxImp.exe tool that comes with the .NET Framework SDK.


You might be wandering why we haven't used the TlbImp.exe tool? Because this is an ActiveX COM component contains ActiveX controls. Therefore, we used the AxImp.exe.

Because .NET and COM cannot call each other directly, two types of wrapper components exist in the space, RCWs (Runtime-Callable Wrappers) and CCWs (COM-Callable Wrappers). RCWs are .NET assemblies act as the bridge between .NET and COM. Conversely, CCWs are COM components act as the bridge between COM and .NET.

To use Microsoft Agent in our Windows Forms application, simply, we'll start by adding the Microsoft Agent Control to our toolbox. Figure 3 shows the Choose Toolbox Items dialog in the COM Components tab.

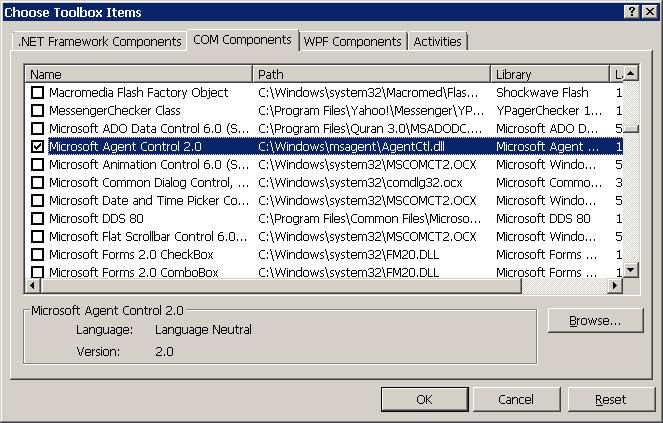

Figure 3 - Adding Microsoft Agent Control into Toolbox

This component contains a single control Microsoft Agent Control that will be added automatically to the toolbox. After dragging it to the form, two components will be added automatically to the project references, AgentObjects and AxAgentObjects. These are the interoperability RCW wrapper components for the COM component. AxAgentObjects is the wrapper for the control and its related types. On the other hand, AgentObjects component is the wrapper for other types in the COM component. You might have noticed that a square-shaped control of type AxAgentObjects.AxAgent added to the form. This control will not be visible at runtime. Figure 4 shows the form.

Figure 4 - Microsoft Agent Control

AgentCtl uses STA (Single-Threaded Apartment) threading model. Means, that the COM component supports -and bounds- only to a single thread. To enable STA for your application you need to adorn the Main() function with the STAThreadAttribute attribute. Conversely, MTA (Multi-Threaded Apartment) threading model means that the COM component supports and can be accessed by multiple threads. If neither STAThreadAttribute nor MTAThreadAttribute attributes has not been set, the threading model by default is MTA. Another way to set the threading model is the System.Threading.Thread.SetApartmentState instance (opposite of static) method. To know whether a COM component supports STA, MTA, or both threading models, you can check the registry value ThreadingModel on HKCRCLSIDInprocServer32.

Loading Characters

After adding the AxAgent control to the form, you can now order the control to load the character(s) and show it. AxAgent control contains a property Characters that's of type AgentObjects.IAgentCtlCharacters that acts as a dictionary collection contains the loaded characters and its names. For loading a character we use the Load() method of the Characters collection. For getting the loaded character we use the Character() method that returns an object of type AgentObjects.IAgentCtlCharacterEx that represents the loaded character.


Here's the code for loading the character Merlin and showing it:

// Here I'll specify the character name

// and the character location.

this.axAgent1.Characters.Load("Merlin", @"C:WindowsMSAgentcharsmerlin.acs");

AgentObjects.IAgentCtlCharacterEx character =

this.axAgent1.Characters.Character("Merlin");

// A single argument contains a value to whether to animate the character while

showing it

// or skipping the animation.

// You should set this to null or false. Set it to True to skip the animation.

character.Show(null);

In addition to Load() and Character() methods of the IAgentCtlCharacters object, you can use the Unload() method to unload a given loaded character. Also IAgentCtlCharacterEx supports the Hide() method for hiding the character, that's opposite to the Show() method.


Telling the Character to Speak

After creating the character and showing it you can order it to speak whether a specific text using the Text-to-Speech (TTS) Engine or a recorded audio file. The following code segment makes the character introduces itself using coded string first and a recorded audio file next:

character.Speak("Hello everybody, I'm Merlin. " + "I'll guide you throuh the application windows.", null);
character.Speak(null, @"D:Recorded Introduction.wav");

As you have noticed, the Speak() method can take either a text for the first argument or a file path for the second argument. Figure 5 shows Merlin while speaking the text.


Figure 5 - Merlin Speaks


Take a look at the Think() method, it is very similar to Speak().

Moving the Character

You can move the character around the screen by using the MoveTo() method.

character.MoveTo(100, 100, null);

This method takes three arguments, the first and second argument is the location on the screen that you wish to move the character to. The third argument takes a value indicating the moving speed. If this argument is null, then the default value 1000 is used. If you specified the value 0 the character will move without playing an animation. Obviously, a value under 1000 will slow down the character move, and a value greater than 1000 will speed up the move.


I had reasons to merge this section with the animation section. But, I had reasons too to put it in a single section, I think it's a special type of animations!

Animating the Character

Every character has its own animations. Although, many characters share many animation names but that's not required. Every animation has a name. And to get the animation names that a character supports, you need to dig into the AnimationNames property that's of type AgentObjects.IAgentCtlAnimationNames which implements the System.Collections.IEnumerable interface.


The following code enumerates the animation names of the character:

IEnumerator enumerator = character.AnimationNames.GetEnumerator();
while (enumerator.MoveNext())
    this.listBox1.Items.Add(enumerator.Current.ToString());

Now, it's time to have some fun with the character. Try the following code:

character.Play("DoMagic1");
character.Speak("I'm better than Harry Potter. Am not I?", null);

Figure 6 shows Merlin speaking while doing some magic. (Proud Merlin)


Figure 6 - Merlin Does Magic


Be aware that animation names that contain directions like left and right, it's the left and right of the character not you.

In addition to the Play() method, the character object supports two methods for stopping playing animations, Stop() and StopAll(). Stop() stops the animation that's specified by its single argument. StopAll() stops all animation of a specific type. This method has a single argument that can takes a string value of three "Move", "Play", and "Speak" to stop moving, animation or speaking commands. In addition to the three values, StopAll() can take a null value, and that means stopping all types of animations.


You might have noticed that many methods of the character object returns an object of type AgentObjects.IAgentCtlRequest. This type encapsulates a request to the character. If IAgentCtlRequest.Status is non-zero then the operation failed, otherwise succeeded. Pay attention to the methods that return IAgentCtlRequest object, and the methods that requires it as an argument like Stop() method.

Another type of animation is gesturing to a specific point. Try this animation using the GestureAt() method.

IAgentCtlCharacterEx Properties

This list contains the most common properties of the character object (IAgentCtlCharacterEx):

  • AutoPopupMenu:
    A Boolean property indicates whether to allow the character pop-up menu or not. Pop-up menu is the menu that is shown when the user right-clicks on the character or its icon -if exists- on the taskbar. Default value is False.
  • Balloon:
    This is a read-only property that's in turn contains read-only properties that indicate the characteristics like the back color of the balloon displayed while the character talking. This property contains many properties that most are self-explained from its names.
  • Left and Top:
    Controls the character location on the screen. (It is better using the MoveTo() method instead of these two properties if you want to play an animation while moving the character).
  • MoveCause:
    A read-only property returns a value indicates what caused the character's last move. This property can return one of 5 values: 0: The character has not been moved. 1: The user moved the character. 2: Your application moved the character. 3: Another client application moved the character. 4: The Agent server moved the character to keep it onscreen after a screen resolution change.
  • Pitch:
    A read-only property returns a value indicates the Pitch setting of the TTS.
  • SoundEffectsOn:
    Set this property to True to enable the sound effects, of False to disable it. Default is True.
  • Speed:
    A read-only property indicates the speed of the character. (Also there're some operations that supports specifying the speed like the MoveTo() method).
  • VisibilityCause:
    A read-only property returns a value indicates the character's visibility state. This property can return one of 8 values: 0: The character has not been shown. 1: User hid the character using the command on the character's taskbar icon pop-up menu or using speech input.. 2: The user showed the character. 3: Your application hid the character. 4: Your application showed the character. 5: Another client application hid the character. 6: Another client application showed the character. 7: The user hid the character using the command on the character's pop-up menu.

Agent Server is the hard-core component that controls the Microsoft Agent behind the scenes. It controls all the characters loaded by your application and other applications and Websites. It's the one which servers all orders for every Microsoft Agent character. Worth mentioning, it's contained in the executable file AgentSvr.exe located on %windir%MSAgent. This file will be launched automatically when the first character loaded, and will shuts down automatically when the last character unloaded. After all, you can think about the Agent Server as the hard-core internal component of the Microsoft Agent.

AxAgent Events

An odd behavior of that control is that it defines events that related to the character and most likely to be located in the character object itself. Maybe it's a feature to be located here because AxAgent controls the birth and death of the characters, but most of the time you will find that annoying.


The most widely-used events are:
  • BalloonShow and BalloonHide:
    Occur when a balloon of a loaded character shown or hid.
  • ClickEvent and DblClick:
    Occur when a loaded character clicked or double-clicked.
  • DragStart and DragComplete:
    Occur when a user tries to drag a loaded character.
  • ShowEvent and HideEvent:
    Occur when a loaded character shown or hide, whether the user who made this or your code. If you want to check what caused the character to be shown check the IAgentCtlCharacterEx.VisibilityCause. As a refresher, read the last section to know about this property.
  • MoveEvent:
    Occurs when a loaded character moved whether the user moved it or it's moved by your code. See the IAgentCtlCharacterEx.MoveCause in the previous section if you want to know what caused the character to be moved.
  • RequestStart and RequestComplete:
    Occur when a request being restarted or after it completed. Note that many methods accept and many others return IAgentCtlRequest objects that defines requests sent to the server.

Creating a Microsoft Agent Controller

 When dealing with Microsoft Agent, there's recommended practices. One of is abstracting the Microsoft Agent implementation code from the UI code for achieving the maintainability and usability goals, and these goals can be achieved through a controller class that encapsulates the functionality that you need and provides easy access to lots of operations using a single call. A good controller class example is like this:

internal
sealed class AgentController
{
   private AgentObjects.IAgentCtlCharacterEx _char;
   private AxAgentObjects.AxAgent _agent;
   public AgentController(AxAgentObjects.AxAgent agent, string characterLocation)
   {
       _agent = agent;
       _agent.Characters.Load("CHAR", characterLocation);
       _char = _agent.Characters.Character("CHAR");
       _char.Show(null);
   }
   public bool IsVisible()
   {
       return _char.Visible;
   }
   public void Animate(string animation, bool stopAll)
   {
       if (stopAll)
           _char.StopAll(null);
       _char.Play(animation);
   }
   public void Speak(string text, bool stopAll)
   {
       if (stopAll)
           _char.StopAll(null);
       _char.Speak(text, null);
   }
   public void MoveTo(int x, int y, bool stopAll)
   {
       if (stopAll)
           _char.StopAll(null);
       _char.MoveTo((short)x, (short)y, null);
   }
   // Encapsulating many operations into one
   public void Surprise()
   {
       _char.StopAll(null);
       _char.Play("Alert");
       _char.Play("Sad");
   }
}

Freeing up Resources


After finishing your work with Microsoft Agent you should first unload the character by calling AxAgent.Characters.Unload() method. Second, because all objects of the RCW (Runtime-Callable Wrapper) assemblies created earlier are just a wrapper around the unmanaged COM objects, they exhaust a great amount of unmanaged resources that can retain in memory for a long time, you strictly should always dispose these object when you have done with it. Fortunately, AxAgent control inherits indirectly from the IDisposable interface, so you can easily dispose it by calling its Dispose() method. Conversely, most objects (like the character object IAgentCtlCharacterEx) in the RCWs do not implement this interface, so you need to do it the hard way and use the Marshal class to dispose it. Here's the code that can do that:

while
(System.Runtime.InteropServices.Marshal.FinalReleaseComObject(_char) > 0) ;

The FinalReleaseComObject() simple tries to decrement the references of the COM object to 0. You need to call FinalReleaseComObject() again and again until it returns 0, means that no references remain.


FinalReleaseComObject() tries to decrement the reference count to 0 in one time, ReleaseComObject() tries to decrement it gradually. So ReleaseComObject() needs more calls than FinalReleaseComObject(). and FinalReleaseComObject() is faster than ReleaseComObject(). Decrementing object's references means disposing it.

You learned how to free-up the resources. But, there's a question now. At which point should you dispose objects? It depends! The point at which you need to dispose objects depends on your use of objects. First, if you finished working with the AxAgent control and you do not want it any more till the user closes your application, it's recommended that you dispose it as soon as possible. Otherwise, add the Dispose() call to the protected Dispose(bool) method of the form, so that it disposed when the form closes (honestly, disposes). The following code snippet demonstrates this:

protected
override void Dispose(bool disposing)

   try
   {
       if (disposing)
       {
           this.axAgent1.Dispose();
           if (components != null)
               components.Dispose();
       }
   }
   finally
   {
       base.Dispose(disposing);
   }
}

This code strictly follows the disposing design guidelines.

You can step to the Dispose() method from the Members combo box in the top-right of the Code Editor window of the form.

A programming extremist like me (one of the Qaeda squad programming team :P) always disposes his objects even if the application is shutting down. To be honest, when the application shuts down all resources and memory managed by the application will be released immediately, so you actually do not need to release objects while the application shuts down.

On the other hand, for some objects like IAgentCtlCharacterEx you should take the Marshal class approach. But where to use it? A great location for the FinalReleaseComObject() method (or ReleaseComObject() as well) is in the controller class. You can make your controller class implements the IDisposable interface and add your code inside the Dispose() method. See the following example:

Code abbreviated for clarity.


internal
sealed class AgentController : IDisposable

{

    ............

    public void Dispose()

    {

        _char.StopAll(null);

        _char.Hide(null);

        _agent.Characters.Unload("CHAR");

        while (System.Runtime.InteropServices.Marshal.FinalReleaseComObject(_char) > 0) ;

    }

}

It's not a joke, but you should dispose the controller class as soon as you finish using your character, or even with the form disposal along with the disposing of the AxAgent control.


The Last Word

Needless to say that you can take advantage of the Microsoft Agent and TTS technology to produce applications that provide friendly tutor for the user. You are not end up using existing Microsoft Agent characters, you can create your own characters and animations using the Microsoft Agent Character Editor that's available for download in the Microsoft Agent SDK download page.


Where to Go Next?

Good references for Microsoft Agent are:

  • Microsoft Agent SDK Documentation
    Available for download with the SDK, see "Micrososft Agent SDK" section on the top.
  • Book: Microsoft Agent Software Development Kit
    ISBN: 0-7356-0567-X
  • Book: Developing for Microsoft Agent
    ISBN: 1-5723-1720-5

A Real-World Application

This lesson does not contain a sample project, it contains a real-world application, Geming PartIt! that's used for parting large files into small pieces for merging them later, so you can send them via e-mail or storing them on CDs and Floppy Disks. This application uses Microsoft Agent character Merlin to provide a friendly guide for the user through the application.

Download the sample application, PartIt.


 It is my pleasure receiving comments and feedbacks about my application (and code of course.)
