Silverlight 4 Linq to Sql and RIA sevice for CRUD operations

Posted by Nipun Tomar Articles | Silverlight with C# April 26, 2010
Silverloght 4 has lots of new fearures, for details visit Silverlight 4 . Let's start with a small application to perform CRUD operations using Linq to SQL and RIA Services.
Reader Level:

Silverloght 4 has lots of new fearures, for details visit Silverlight 4 . Let's start with a small application to perform CRUD operations using Linq to
SQL and RIA Services.

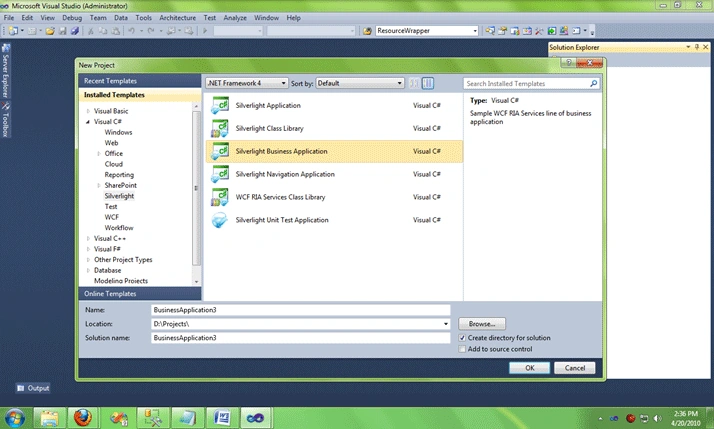

Open VS 2010 and create a new project named "Silverlight4LinqToSqlRiaServices"

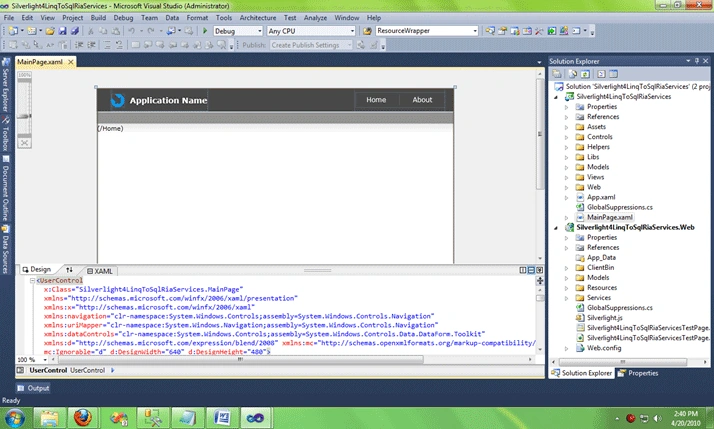

The resulting screen will be

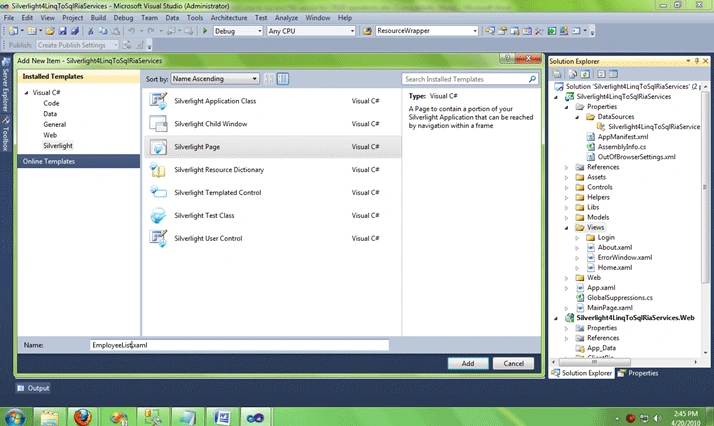

In Silverlight project view folder add new silverlight Page "EmployeeList"

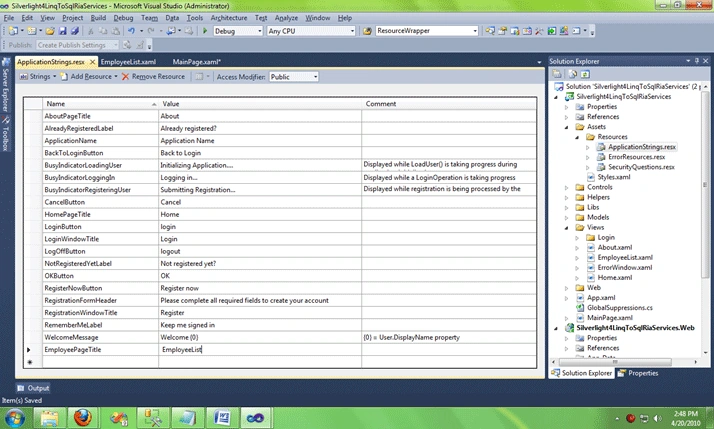

Add Employee page title in application strings file under Assets/Resources

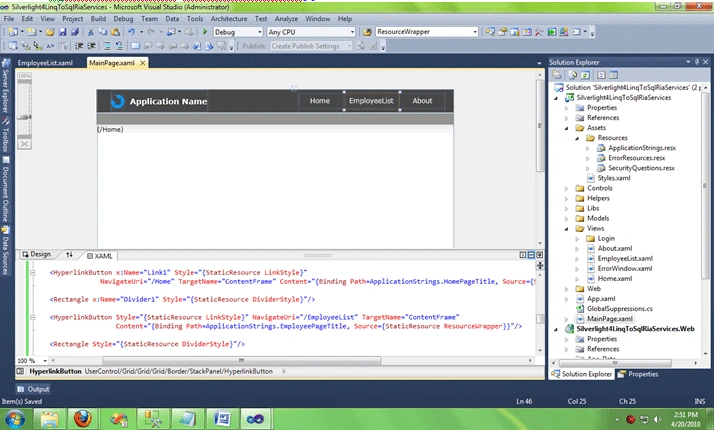

On the MainPage.xaml add new hyperlink to EmployeeList page

<HyperlinkButton Style="{StaticResource LinkStyle}"
                                     NavigateUri="/EmployeeList" TargetName="ContentFrame" Content="{Binding Path=ApplicationStrings.EmployeePageTitle, Source={StaticResource ResourceWrapper
}}"/>

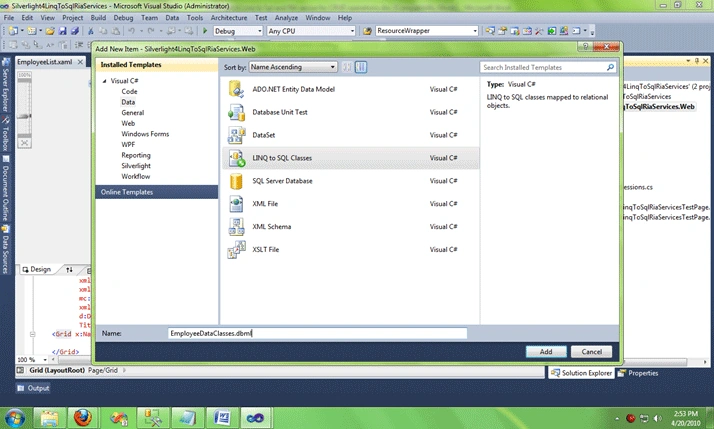

Add new Linq to Sql class

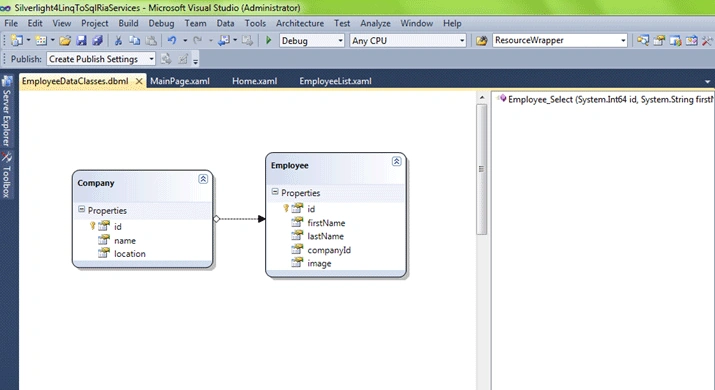

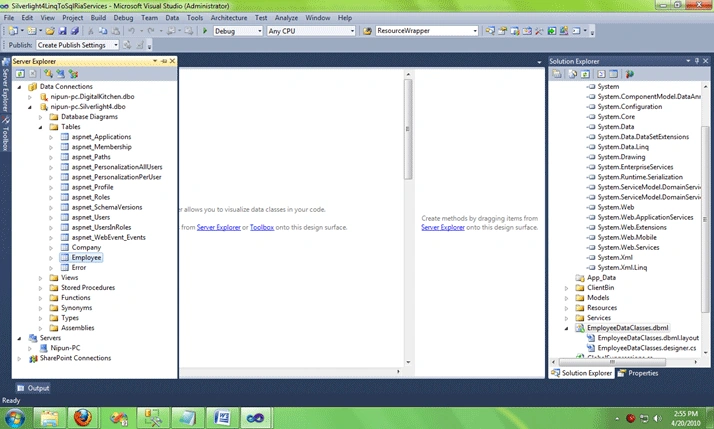

And add the Employee and Company tables and Employee_Select sp from Server Explorer

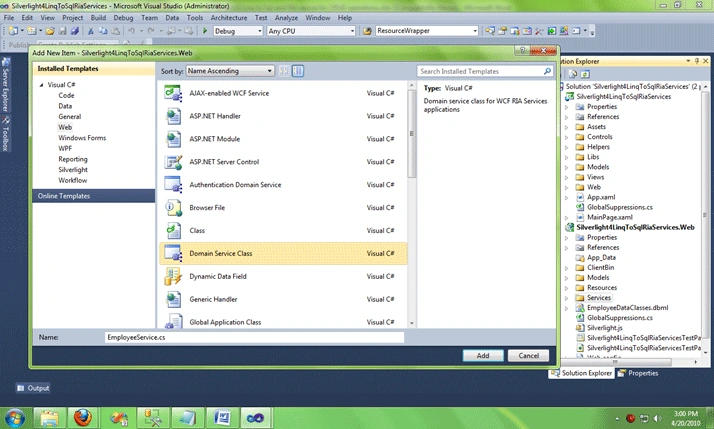

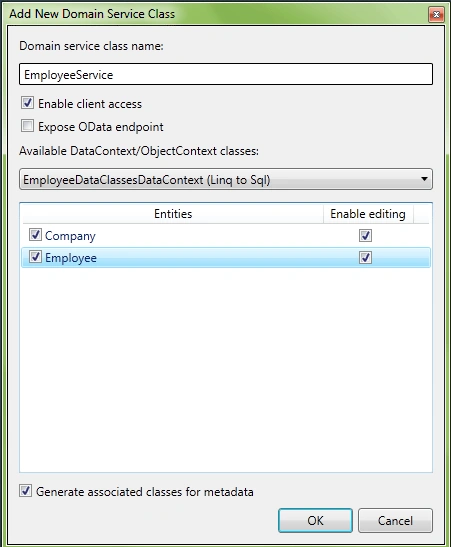

Add new domain service


And rebuild the solution



Update the EmployeeService to use the stored procedure (Employee_Select) to select records

public IList<Employee_SelectResult> Employee_Select(string employeeId, string firstName, string lastName, string companyId)
        {
            long? id = null; long? compId = null; string fName = null; string lName = null;
            id = string.IsNullOrEmpty(employeeId.Trim()) ? id : Convert.ToInt64(employeeId);
            compId = string.IsNullOrEmpty(companyId.Trim()) ? compId : Convert.ToInt64(companyId);
            fName = string.IsNullOrEmpty(firstName.Trim()) ? fName : firstName;
            lName = string.IsNullOrEmpty(lastName.Trim()) ? lName : lastName;
            return this.DataContext.Employee_Select(id, fName, lName, compId).ToList();
        }

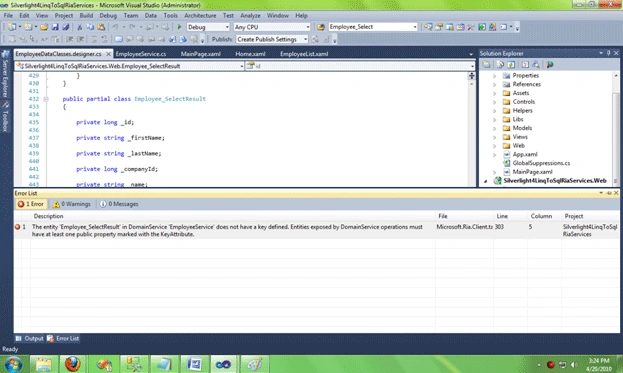

If you try to build the solutions you may have the error saying

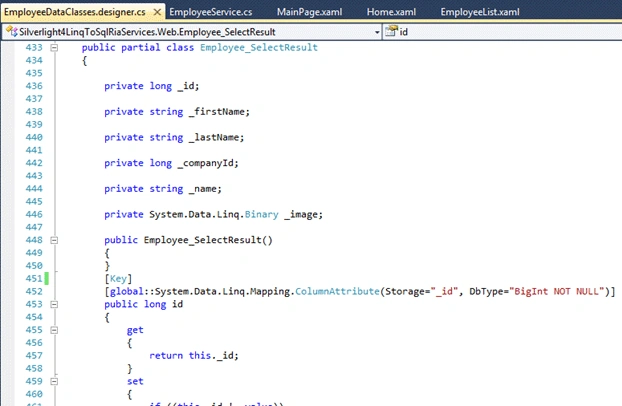

I am not sure how to overcome this, but as a work around you can add [Key] before the id property in EmployeeDataClasses.designer.cs


Now we get an error free build.

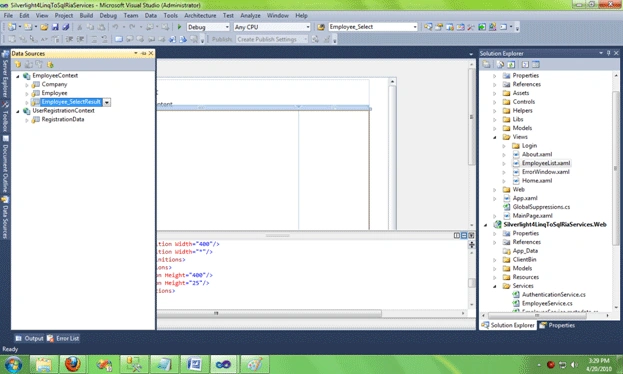

We can add the Employee_SelectResult or Employee datasource to EmployeeList.xaml from DataSources tab, I would go here with Employee datasource


You can have the validation and descriptionViewer in EmployeeService.Metadata.cs as below=

...

internal sealed class EmployeeMetadata
        {

            // Metadata classes are not meant to be instantiated.
            private EmployeeMetadata()
            {
            }

            [Display(AutoGenerateField = false)]
            public Company Company { get; set; }

            [Display(AutoGenerateField = false)]
            public long companyId { get; set; }

            [Display(AutoGenerateField = false)]
            [Key()]
            public long id { get; set; }

            [Display(Name = "First Name", Description = "Person's first name", Order = 1)]
            [Required()]
            [StringLength(10)]
            public string firstName { get; set; }

            [Display(Name = "Last Name", Description = "Person's last name", Order = 2)]
            [Required()]
            [StringLength(10)]
            public string lastName { get; set; }

            [Display(Name = "Gender", Description = "Male/Female", Order = 3)]
            public Nullable<char> gender { get; set; }

            [Display(Name = "Active", Description = "IsActive", Order = 4)]
            public Boolean isActive { get; set; }

            [Display(AutoGenerateField = false)]
            public Binary image { get; set; }

        }
...


Now drop the datapager from toolbox and set its datasource same as datagrid.

<sdk:DataPager Height="26" Name="dataPager1" PageSize="10" Source="{Binding ElementName=employeeDomainDataSource, Path=Data}" />

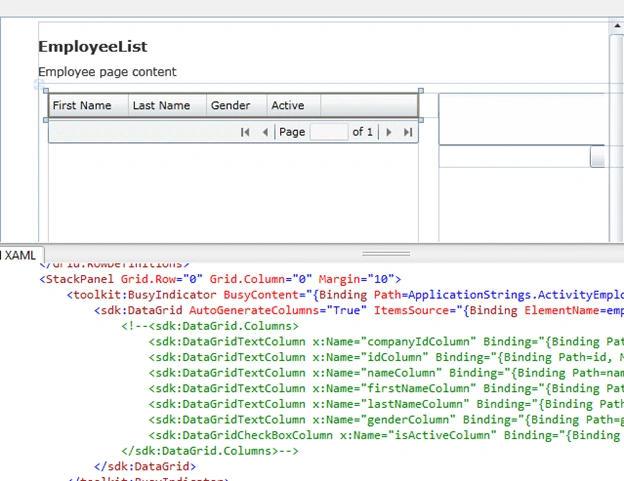

 Add Silverlight toolkit busy indicator and put the datagrid in side it.

<toolkit:BusyIndicator BusyContent="{Binding Path=ApplicationStrings.ActivityEmployeeList, Source={StaticResource ResourceWrapper}}" IsBusy="{Binding ElementName=employeeDomainDataSource, Path=DomainContext.IsLoading}">
                            <sdk:DataGrid AutoGenerateColumns="True" ItemsSource="{Binding ElementName=employeeDomainDataSource, Path=Data}" Name="employeeDataGrid" RowDetailsVisibilityMode="VisibleWhenSelected" Width="400" IsReadOnly="True">

                            </sdk:DataGrid>
                        </toolkit:BusyIndicator>

So the resultant screen will be


Lets add the dataform to EmployeeList.xaml from to edit the records. In employeeList.xaml you need to add

xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data.DataForm.Toolkit"

to include dataform. Add NewTemplate and EditTemplate to this DataForm as below

<dataForm:DataForm ItemsSource="{Binding ElementName=employeeDomainDataSource, Path=Data}" Name="dataFormEmployee" AutoEdit="False" AutoCommit="False" DeletingItem="dataFormEmployee_DeletingItem" EditEnded="dataFormEmployee_EditEnded" CurrentItemChanged="dataFormEmployee_CurrentItemChanged" AddingNewItem="dataFormEmployee_AddingNewItem" DescriptionViewerPosition="BesideContent" Header="Employee Details" AutoGenerateFields="False" IsReadOnly="False">
                                <dataForm:DataForm.ReadOnlyTemplate>
                                    <DataTemplate>
                                        <StackPanel>
                                            <dataForm:DataField Label="First Name" >
                                                <TextBox Text="{Binding firstName, Mode=TwoWay}" />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Last Name" >
                                                <TextBox Text="{Binding lastName, Mode=TwoWay}" />                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Company" >
                                                <StackPanel>
                                                    <ComboBox SelectedValuePath="id" DisplayMemberPath="name" ItemsSource="{Binding Source={StaticResource companyDomainDataSource}, Path=Data}" SelectedValue="{Binding companyId, Mode=OneWay}">
                                                        <ComboBox.ItemsPanel>
                                                            <ItemsPanelTemplate>
                                                                <VirtualizingStackPanel />
                                                            </ItemsPanelTemplate>
                                                        </ComboBox.ItemsPanel>
                                                    </ComboBox>
                                                </StackPanel>
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Gender" >
                                                <TextBox Text="{Binding gender, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Active" >
                                                <CheckBox IsChecked="{Binding isActive, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                        </StackPanel>
                                    </DataTemplate>
                                </dataForm:DataForm.ReadOnlyTemplate>
                                <dataForm:DataForm.EditTemplate>
                                    <DataTemplate>
                                        <StackPanel>
                                            <dataForm:DataField Label="First Name" >
                                                <TextBox Text="{Binding firstName, Mode=TwoWay}" />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Last Name" >
                                                <TextBox Text="{Binding lastName, Mode=TwoWay}" />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Company" >
                                                <StackPanel>
                                                    <ComboBox SelectedValuePath="id" DisplayMemberPath="name" ItemsSource="{Binding Source={StaticResource companyDomainDataSource}, Path=Data}" SelectedValue="{Binding companyId, Mode=TwoWay}">
                                                        <ComboBox.ItemsPanel>
                                                            <ItemsPanelTemplate>
                                                                <VirtualizingStackPanel />
                                                            </ItemsPanelTemplate>
                                                        </ComboBox.ItemsPanel>
                                                    </ComboBox>
                                                </StackPanel>
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Gender" >
                                                <TextBox Text="{Binding gender, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Active" >
                                                <CheckBox IsChecked="{Binding isActive, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                        </StackPanel>
                                    </DataTemplate>
                                </dataForm:DataForm.EditTemplate>
                                <dataForm:DataForm.NewItemTemplate>
                                    <DataTemplate>
                                        <StackPanel>
                                            <dataForm:DataField Label="First Name" >
                                                <TextBox Text="{Binding firstName, Mode=TwoWay}" />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Last Name" >
                                                <TextBox Text="{Binding lastName, Mode=TwoWay}" />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Company" >
                                                <StackPanel>
                                                    <riaControls:DomainDataSource AutoLoad="True" d:DesignData="{d:DesignInstance my1:Company, CreateList=true}" Height="0" LoadedData="companyDomainDataSource_LoadedData2"  Name="companyDomainDataSource" QueryName="GetCompaniesQuery" Width="0">
                                                        <riaControls:DomainDataSource.DomainContext>
                                                            <my:EmployeeContext />
                                                        </riaControls:DomainDataSource.DomainContext>
                                                    </riaControls:DomainDataSource>
                                                    <ComboBox SelectedValuePath="id" DisplayMemberPath="name" ItemsSource="{Binding ElementName=companyDomainDataSource, Path=Data}" SelectedValue="{Binding companyId, Mode=TwoWay}">
                                                        <ComboBox.ItemsPanel>
                                                            <ItemsPanelTemplate>
                                                                <VirtualizingStackPanel />
                                                            </ItemsPanelTemplate>
                                                        </ComboBox.ItemsPanel>
                                                    </ComboBox>
                                                </StackPanel>
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Gender" >
                                                <TextBox Text="{Binding gender, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                            <dataForm:DataField Label="Active" >
                                                <CheckBox IsChecked="{Binding isActive, Mode=TwoWay,NotifyOnValidationError=True,  ValidatesOnExceptions=True }"  />
                                            </dataForm:DataField>
                                        </StackPanel>
                                    </DataTemplate>
                                </dataForm:DataForm.NewItemTemplate>
                            </dataForm:DataForm>


Add the following events in the EmployeeList.xaml.cs

private void dataFormEmployee_DeletingItem(object sender, System.ComponentModel.CancelEventArgs e)
        {
            if (MessageBox.Show("Are you sure you want to delete this item?\nThis cannot be undone", "Delete Item", MessageBoxButton.OKCancel) == MessageBoxResult.Cancel)
                e.Cancel = true;
            else
                _isDeleting = true;
        }

        private void dataFormEmployee_EditEnded(object sender, DataFormEditEndedEventArgs e)
        {
            if (e.EditAction == DataFormEditAction.Commit)
            {
                if (dataFormEmployee.IsItemChanged)
                    employeeDomainDataSource.SubmitChanges();
                if (_isInserting)
                    if (employeeDomainDataSource.HasChanges)
                    {
                        employeeDomainDataSource.SubmitChanges();
                        _isInserting = false;
                    }
            }
            else
                _isInserting = false;
        }

        private void dataFormEmployee_CurrentItemChanged(object sender, EventArgs e)
        {
            if (_isDeleting)
            {
                if (employeeDomainDataSource.HasChanges)
                {
                    employeeDomainDataSource.SubmitChanges();
                    _isDeleting = false;
                }
            }
        }

        private void dataFormEmployee_AddingNewItem(object sender, DataFormAddingNewItemEventArgs e)
        {
            _isInserting = true;
        }

And yes you are done, you have a master/detail form to edit employees that use LinqToSQL with RIA services.
