Peek() Function In QlikView Application

Introduction

The Peek() function works as a scripting function. The Peek() function returns the field value from a specific field in a table. By using the Peek() function you can specify the row number and table name that you want to extract in the script.

Use the following procedure to create a sample showing how to use a Peek() function in a QlikView application.

Step 1: Open the QlikView application

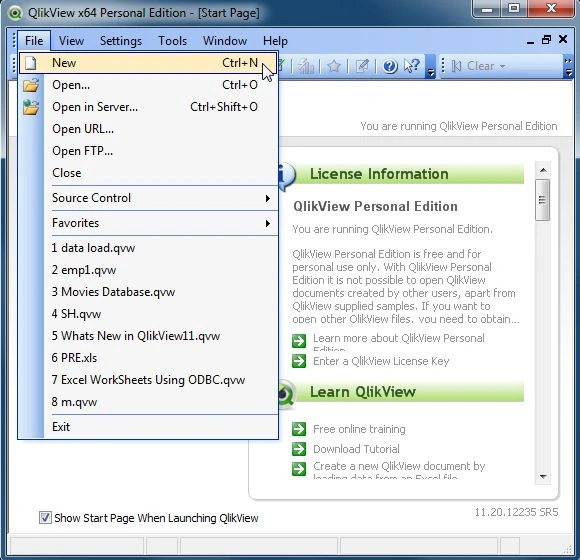

It is the first step, in this step you need to open the QlikView application then go to "File" -> "New" then this window will be opened.

After clicking New option

Step 2: Open Edit Script

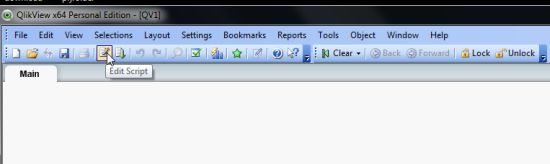

The second step is to open the edit script window from:
"File" -> "Edit Script".

window of edit script

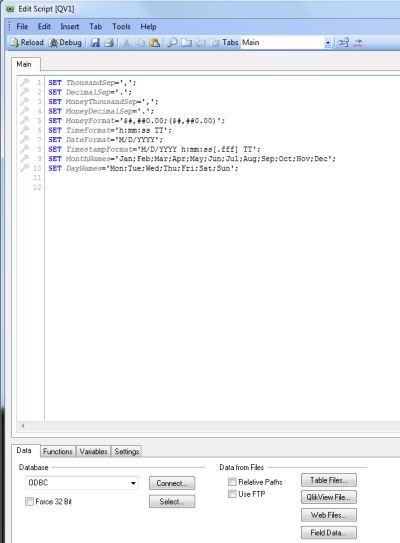

  • Then this window will be opened.

    window

Step 3: Select Database

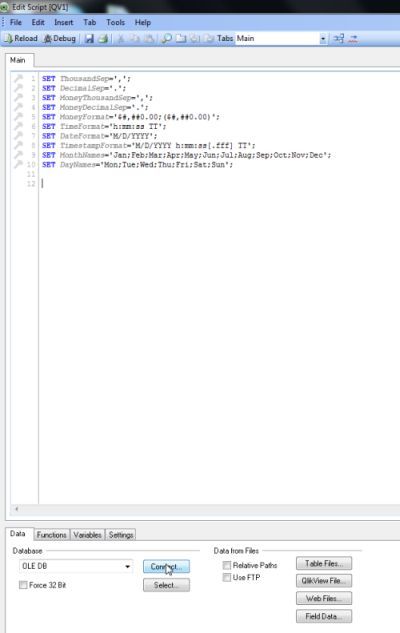

The third step is select the database from the data tab and click on the Connect Button.

select database

Step 4: Data link property window

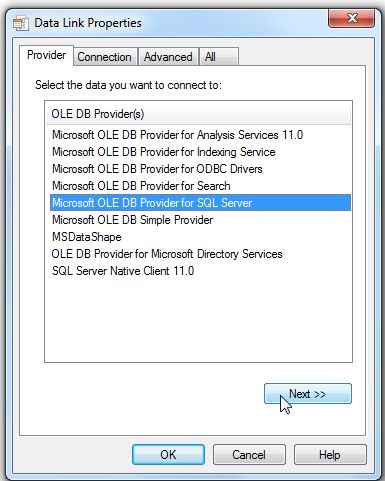

In this window we select the SQL Server and click on the Next Button.

data link


Step 5:

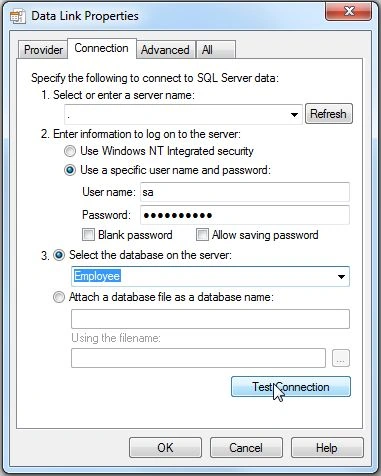

Connection tab

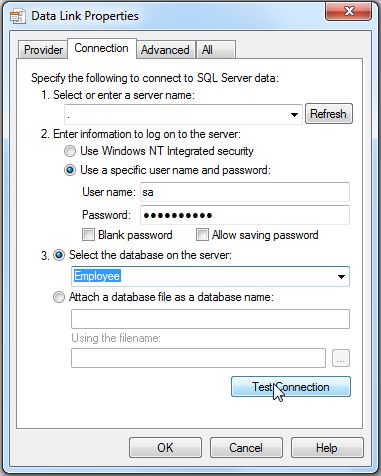

In the connection tab, you entered the server name and user name and password and selected the database from your server and click on Test Connection.

test

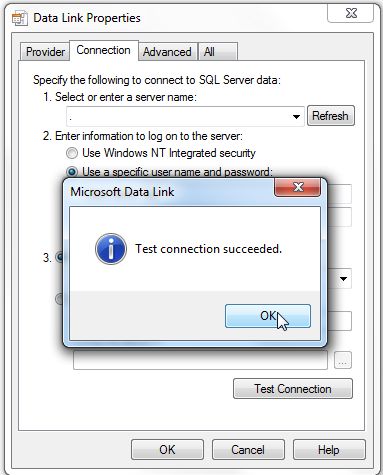

  • Then you find that the test connection succeeded and click on the OK button.

    Confirm box

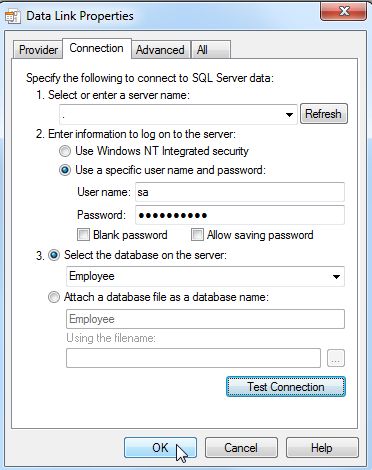

  • Then click on the OK button.

    ok box

Step 6: SQL Server login

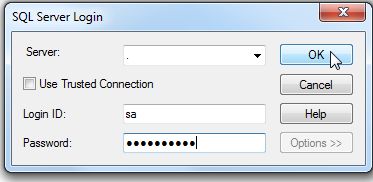

Then they require a SQL Server login so enter a valid login id and password and click on the OK button.

SQL server

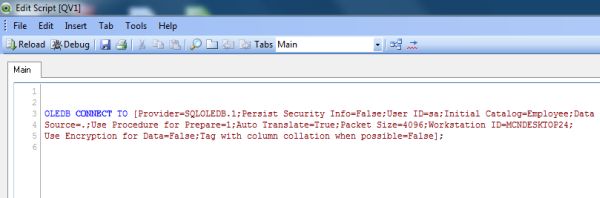

  • Then this window will be opened.

    edit

Step 7: Create a select statement

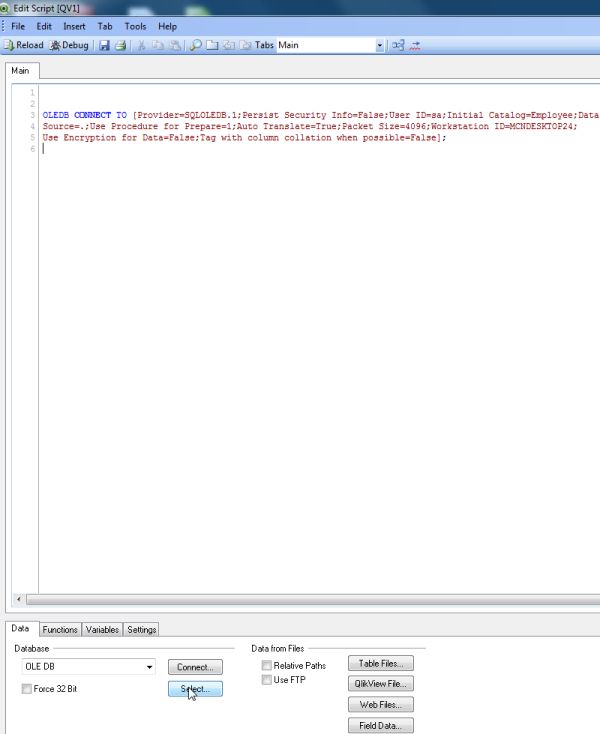

When we click on the Select button on the data tab then this window will be opened.

select statement

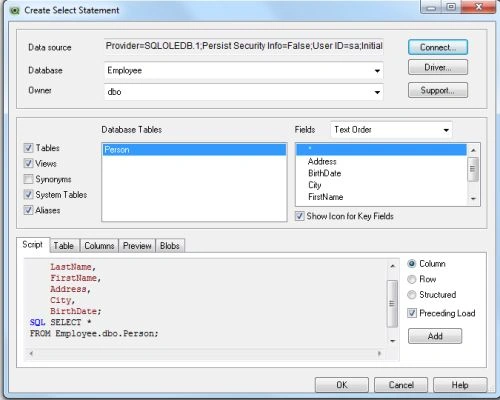

  • Then this window will be opened and click on the OK button.

    create select

Step 8: Code of edit script and use Peek() function

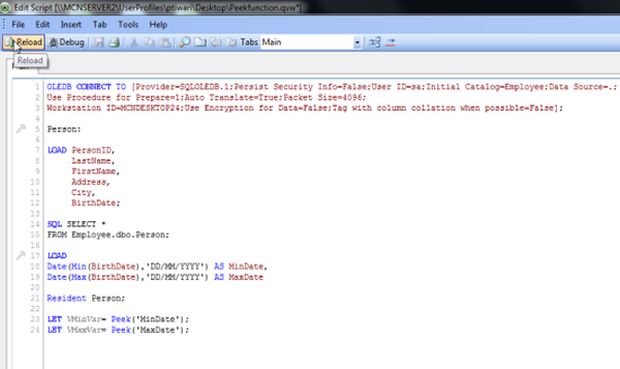

After login into the SQL Server, the edit script window will be opened and reload it and also use the Peek() function with a specific variable.

reloading

Step 9: Save QlikView file

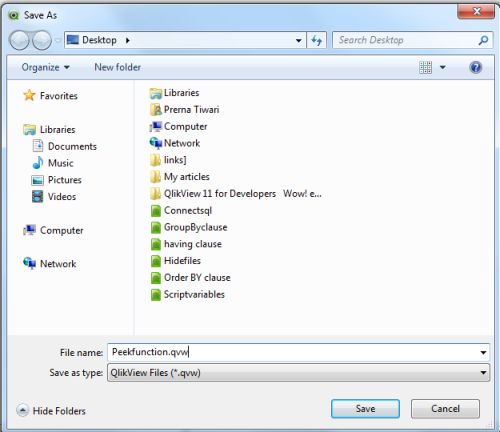

After reloading the edit script, the next step is to save the QlikView file and click on the Save button.

save file

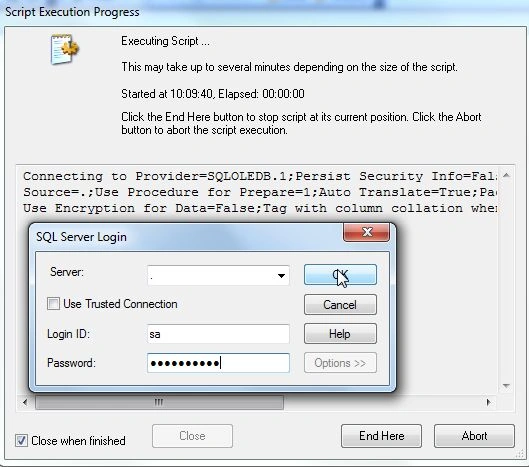

Step 10: Script execution progress

Then the script execution progress window will be opened and will require a login Id and password and click on the OK button.

Script execution

Step 11: Sheet property Window

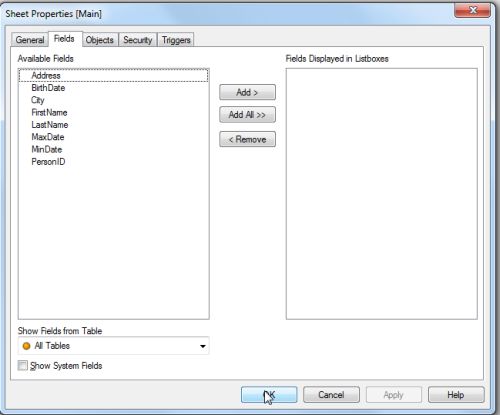

After this process, the sheet property window will be opened. Add a field and select a field from the available fields and click on the OK button.

  • Then this window will be opened.

    main sheet

Step 12: Select text object

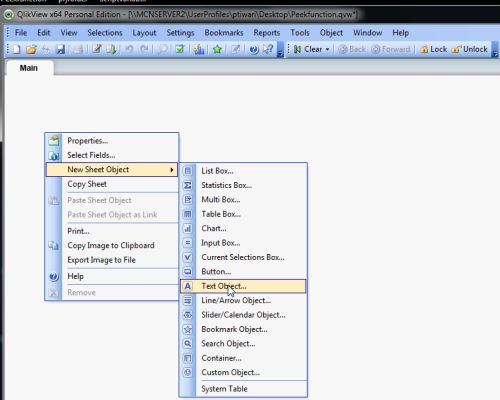

Right-click anywhere in the blank sheet and select "New Sheet Object" -> "Text Object...".

text object

Step 13: New text object

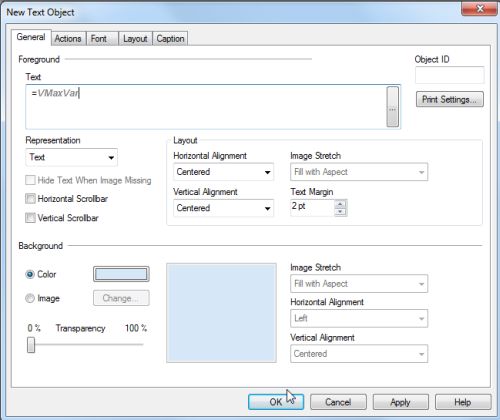

In this window, in the General tab you need to specify the variable in the text and click on the OK button.

general windows

Now here you can see, the maximum birth date will be shown that we declared in our database.

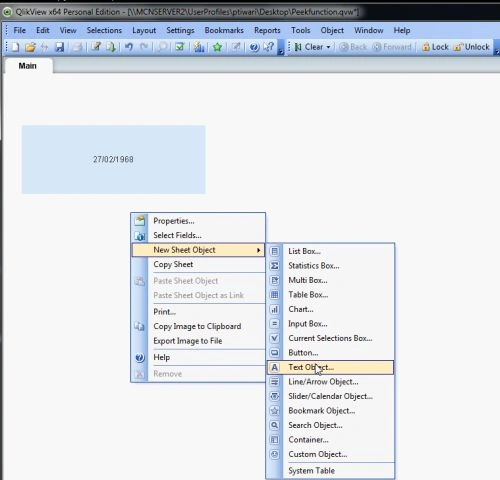

Step 14: Now again select another text object, right-click anywhere in the blank sheet and select, "New Sheet Object" -> "Text Object...".

general

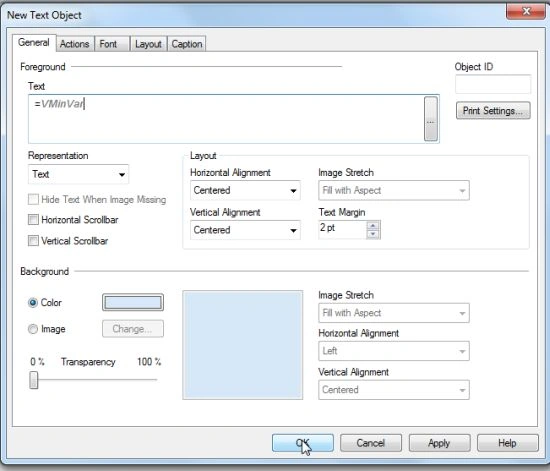

  • Then this window will be opened and click on the OK button.

    general1

Now here you can see, the minimum birth date will be shown that we declared in our database.

Step 15: Final window

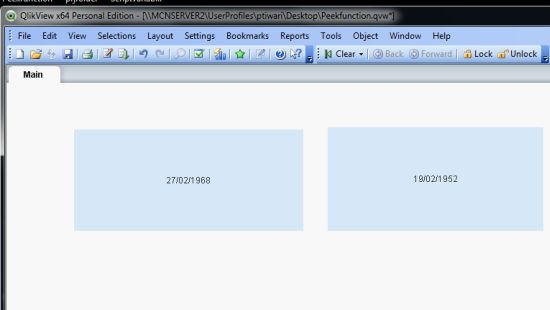

In the final window you can see the maximum and minimum birth dates.

final window

Summary

This article introduced the Peek() function and describes how the Peek()  function selects a specific value from a specific field in a table.
