UpdateProgress Control With UpdatePanel in AJAX


Introduction

Ajax (Asynchronous JavaScript and XML) is a new web development technique for interactive websites. With the help of AJAX we can develop web applications and retrieve small amounts of data from a web server. AJAX consists of a different type of technology.

  • JavaScript
  • XML
  • Asynchronous Call to the server

UpdateProgress

The UpdateProgress control provides status information about partial-page updates in UpdatePanel controls. You can customize the default content and the layout of the UpdateProgress control. To prevent flashing when a partial-page update is very fast, you can specify a delay before the UpdateProgress control is displayed.

Step 1 : Open Visual Studio 2010.

  • Go to File->New->WebSite
  • Select ASP.NET Empty WebSite

Step 2 : Go to Solution Explorer and right-click.

  • Select Add->New Item
  • Select WebForm
  • Default.aspx page open

Step 3 :  Go to Default.aspx page and click on the [Design] option and drag control from Toolbox.

  • Drag Panel, ScriptManager, TextBox, Label, UpdatePanel, RequireFieldValidator

Step 4 : Now we define ContentTemplate for the UpdatePanel.

ContentTemplate

Code

<asp:UpdatePanel ID="UpdatePanel1" runat="server" UpdateMode="Conditional">
    <ContentTemplate>
    <asp:Label ID="lblMessage" runat="server" EnableViewState="false" ForeColor="blue"></asp:Label
>
<table border="1">
    <tr>
        <td>Name</td>
        <td><asp:TextBox ID="TextBox1" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="Req1" runat="server" ControlToValidate="TextBox1" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td>Address</td>
        <td><asp:TextBox ID="TextBox2" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="TextBox2" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td>Phone</td>
        <td><asp:TextBox ID="TextBox3" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="TextBox3" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td>City</td>
        <td><asp:TextBox ID="TextBox4" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server" ControlToValidate="TextBox4" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
        <td><b>Notice "Please wait" message below after clicking button.</b></td>
        <td>
            <asp:Button ID="btnSave" runat="Server" Text="Add Records"
                onclick="btnSave_Click" />
        </td>
    </tr
>
</table>
</
ContentTemplate>

Step 5 : Now go to the Default.aspx[design] page and drag an UpdateProgress control from the Toolbox.


Step 6 : Now the following code is given below.

Code

<asp:UpdateProgress ID="Up1" runat="Server" AssociatedUpdatePanelID="UpdatePanel1">
    <ProgressTemplate>
        <span style="background-color:#66997A;"> <img src="img/images.jpg" alt="Please wait"  width="100px"/> Please wait ...</span>
    </ProgressTemplate
>
</asp:UpdateProgress>

Step 7 : Now click on the button control and write some code.

Code
System.Threading.Thread.Sleep(3000);
lblMessage.Text = "Processing completed";

Step 8 : Go to the default.aspx.cs option and write some code.

Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Threading;
public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
    }
    protected void btnSave_Click(object sender, EventArgs e)
    {
        System.Threading.Thread.Sleep(3000);
        lblMessage.Text = "Processing completed";
    }
}

Step 9 : Now the complete code in Default.aspx[source] page is:

Code

<title></title>
</
head>
<
body>
    <form id="form1" runat="server">
    <asp:ScriptManager ID="ScriptManager1" runat="server">
    </asp:ScriptManager>
    <div style="background-color: #BBC6DD">
    <asp:UpdatePanel ID="UpdatePanel1" runat="server" UpdateMode="Conditional">
    <ContentTemplate>
    <asp:Label ID="lblMessage" runat="server" EnableViewState="false" ForeColor="blue"></asp:Label
>
<table border="1">
    <tr>
        <td>Name</td>
        <td><asp:TextBox ID="TextBox1" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="Req1" runat="server" ControlToValidate="TextBox1" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td>Address</td>
        <td><asp:TextBox ID="TextBox2" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="TextBox2" Text=" * Required"></asp:RequiredFieldValidator>
       </td>
    </tr>
    <tr>
        <td>Phone</td>
        <td><asp:TextBox ID="TextBox3" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="TextBox3" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td>City</td>
        <td><asp:TextBox ID="TextBox4" runat="Server"></asp:TextBox>
        <asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server" ControlToValidate="TextBox4" Text=" * Required"></asp:RequiredFieldValidator>
        </td>
    </tr>
    <tr>
        <td><b>Notice "Please wait" message below after clicking button.</b></td>
        <td>
            <asp:Button ID="btnSave" runat="Server" Text="Add Records"
                onclick="btnSave_Click" />
        </td>
    </tr
>
</table>
</
ContentTemplate>
</
asp:UpdatePanel>
// UpdateProgress control
    <asp:UpdateProgress ID="Up1" runat="Server" AssociatedUpdatePanelID="UpdatePanel1">
    <ProgressTemplate>
        <span style="background-color:#66997A;"> <img src="img/images.jpg" alt="Please wait"  width="100px"/> Please wait ...</span>
    </ProgressTemplate
>
</asp:UpdateProgress>
    </div>

Step 10 : Now run the application by Pressing F5.


Step 11 : When we click on the Add Record button then the following message is shown.

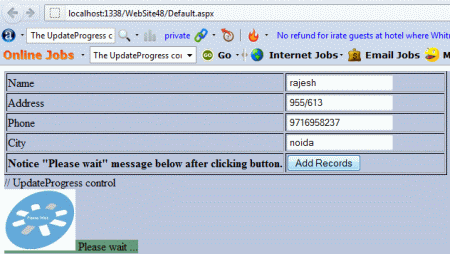

Step 12 : Now we define all require fields and click on the add record button.
