How to Add Color Events in Android

Procedure
  • Start Eclipse IDE.
  • Create a new project.
  • Create a MainActivity.java file.
  • Create an XML file in which there are two TableRows having two buttons each.
The following is an example:
  1. <TableRow android:layout_width="fill_parent"
  2.     android:layout_height="wrap_content">
  3.
  4.     <Button android:layout_width="wrap_content"
  5.         android:layout_height="wrap_content"
  6.         android:id="@+id/b1"
  7.         android:text="Background"/>
  8.
  9.     <Button  android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:id="@+id/b2"
  12.         android:text="Yellow"/>
  13.
  14. </TableRow>
In the onClick function add logic for each button using setBackgroundColor.

The code is as follows.

MainActivity.java
  1. package com.example.colorsevent;
  2. import android.os.Bundle;
  3. import android.app.Activity;
  4. import android.graphics.Color;
  5. import android.view.Menu;
  6. import android.view.View;
  7. import android.view.View.OnClickListener;
  8. import android.widget.Button;
  9. import android.widget.TableLayout;
  10. import android.widget.Toast;
  11.
  12. public class MainActivity extends Activity implements OnClickListener{
  13.    Button b1,b2,b3,b4;
  14.    TableLayout tt;
  15.
  16.    @Override
  17.    protected void onCreate(Bundle savedInstanceState) {
  18.       super.onCreate(savedInstanceState);
  19.       setContentView(R.layout.activity_main);
  20.       b1=(Button)findViewById(R.id.b1);
  21.       b2=(Button)findViewById(R.id.b2);
  22.       b3=(Button)findViewById(R.id.b3);
  23.       b4=(Button)findViewById(R.id.b4);
  24.       tt=(TableLayout)findViewById(R.id.tt);
  25.       b1.setOnClickListener(this);
  26.       b2.setOnClickListener(this);
  27.       b3.setOnClickListener(this);
  28.       b4.setOnClickListener(this);
  29.    }
  30.
  31.    public void onClick(View v) {
  32.       // TODO Auto-generated method stub
  33.       switch (v.getId()) {
  34.       case R.id.b1:
  35.          //tt.setBackgroundColor(Color.RED);
  36.          tt.setBackgroundDrawable(getResources().getDrawable(R.drawable.ts));
  37.       break;
  38.       case R.id.b2:
  39.          tt.setBackgroundColor(Color.YELLOW);
  40.       break;
  41.       case R.id.b3:
  42.          tt.setBackgroundColor(Color.BLUE);
  43.          Toast.makeText(getApplicationContext(), "Hello Sangeet, Good Morning"100).show();
  44.       break;
  45.       case R.id.b4:
  46.          tt.setBackgroundColor(Color.GREEN);
  47.          Toast.makeText(getApplicationContext(), "Hello Abhijeet, Good Morning"100).show();
  48.       break;
  49.       default:
  50.       break;
  51.       }
  52.    }
activity_main.xml
  1. <TableLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:id="@+id/tt"
  6.     android:layout_height="match_parent">
  7.
  8.     <View android:layout_width="fill_parent"
  9.          android:layout_height="10px"
  10.          android:background="#ff0000"/>
  11.
  12.     <TableRow android:layout_width="fill_parent"
  13.        android:layout_height="wrap_content">
  14.
  15.         <Button android:layout_width="wrap_content"
  16.            android:layout_height="wrap_content"
  17.            android:id="@+id/b1"
  18.            android:text="Background"/>
  19.
  20.         <Button  android:layout_width="wrap_content"
  21.            android:layout_height="wrap_content"
  22.            android:id="@+id/b2"
  23.            android:text="Yellow"/>
  24.
  25.     </TableRow>
  26.     <View android:layout_width="fill_parent"
  27.          android:layout_height="10px"
  28.          android:background="#ff0000"/>
  29.
  30.     <TableRow android:layout_width="fill_parent"
  31.        android:layout_height="wrap_content">
  32.
  33.         <Button android:layout_width="wrap_content"
  34.            android:layout_height="wrap_content"
  35.            android:id="@+id/b3"
  36.            android:text="Blue"/>
  37.
  38.         <Button android:layout_width="wrap_content"
  39.            android:layout_height="wrap_content"
  40.            android:id="@+id/b4"
  41.            android:text="Green"/>
  42.
  43.     </TableRow>
  44.
  45.     <View android:layout_width="fill_parent"
  46.          android:layout_height="10px"
  47.          android:background="#ff0000"/>
  48.
  49. </TableLayout>
Output

By clicking on the Blue button:

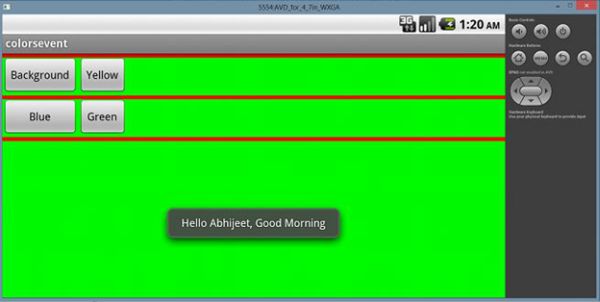

By clicking on the Green button:


By clicking on the Background button:


By clicking on the Yellow button:
