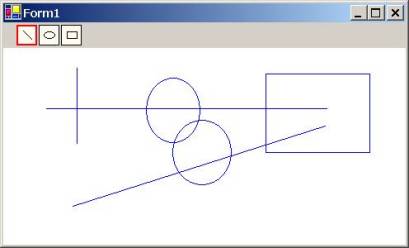

Drawing Rubber-Band Lines and Shapes in VB.NET

I would like to show how we can draw rubber-band lines and shapes in GDI+ with just a few lines of code.

The lack of XOR Drawing feature in GDI+ was not certainly welcome in the programmer's community. I guess it will be hard to survive with this handicap.

In spite of this, I would like to show how we can draw rubber-band lines and shapes in GDI+ with just a few lines of code.


Private Sub Form1_Load(ByVal sender As ObjectByVal e As System.EventArgs)
Dim size As Size = SystemInformation.PrimaryMonitorMaximizedWindowSize
bitmap =
New Bitmap(size.Width, size.Height)
gB = Graphics.FromImage(bitmap)
Dim bckColor As Color = Me.BackColor
gB.Clear(bckColor)
End Sub
Private
 Sub Form1_MouseDown(ByVal sender As ObjectByVal e AsSystem.Windows.Forms.MouseEventArgs)
Dim p As Point = New
 Point(e.X, e.Y)
x0 = p.X
y0 = p.Y
drag =
True
End
 Sub
Private
 Sub Form1_MouseMove(ByVal sender As ObjectByVal e AsSystem.Windows.Forms.MouseEventArgs)
Dim p As Point = New Point(e.X, e.Y)
x= p.X
y = p.Y
Dim cx As Integer = x - x0
Dim cy As Integer = y - y0
If drag Then
Dim
 gx As Graphics = CreateGraphics()
gx.DrawImage(bitmap, 0, 0)
gx.Dispose()
Dim g As Graphics = CreateGraphics()
Dim pen As Pen = New Pen(Color.Blue)
Select Case DrawMode
Case 1
g.DrawLine(pen, x0, y0, x, y)
Exit
Select
Case
 2
g.DrawEllipse(pen, x0, y0, cx, cy)
Exit
Select
Case
 3
g.DrawRectangle(pen, x0, y0, cx, cy)
Exit Select
End

Select
g.Dispose()
pen.Dispose()
End If
End
 Sub
Private
 Sub Form1_MouseUp(ByVal sender As ObjectByVal e AsSystem.Windows.Forms.MouseEventArgs)
Dim cx As Integer = x - x0
Dim cy As Integer = y - y0
Dim pen As Pen = New Pen(Color.Blue)
Select Case DrawMode
Case
 1
gB.DrawLine(pen, x0, y0, x, y)
Exit
Select
Case
 2
gB.DrawEllipse(pen, x0, y0, cx, cy)
Exit
Select
Case
 3
gB.DrawRectangle(pen, x0, y0, cx, cy)
Exit Select
End
 Select
drag =
False
pen.Dispose()
End Sub
Private
 Sub Form1_Paint(ByVal sender As ObjectByVal e AsSystem.Windows.Forms.PaintEventArgs)
Dim gx As Graphics = CreateGraphics()
gx.DrawImage(bitmap, 0, 0)
gx.Dispose()
End Sub
Private
 Sub button1_Click(ByVal sender As ObjectByVal e As System.EventArgs)button1.ForeColor = Color.Red
button2.ForeColor = Color.Black
button3.ForeColor = Color.Black
DrawMode = 1
End Sub
Private
 Sub button2_Click(ByVal sender As ObjectByVal e As System.EventArgs)
button2.ForeColor = Color.Red
button1.ForeColor = Color.Black
button3.ForeColor = Color.Black
DrawMode = 2
End Sub
Private
 Sub button3_Click(ByVal sender As ObjectByVal e As System.EventArgs)
button3.ForeColor = Color.Red
button1.ForeColor = Color.Black
button2.ForeColor = Color.Black
DrawMode = 3
End Sub
Private
 Sub panel1_Paint(ByVal sender As ObjectByVal e AsSystem.Windows.Forms.PaintEventArgs)
button1.ForeColor = Color.Red
button1.Focus()
End
Sub
