Learn How to configure Lightswitch with MVC Part 2

In this article we will see how to get started with Lightswitch using MVC

 Introduction

This article shows the walk through of how to use MVC with Visual Studio LightSwitch In previous article we have seen how to get started by creating a LightSwitch Application..Now lets continue by creating the MVC structure.
  • Step 1: Create the following folders in the Server project as shown
  1. App_Start
  2. Controllers
  3. Models
  4. Views


  •  Step 2 Add a class file named RouteConfig.cs to the App_Start folder and add the following implementation
  1. using System.Web.Mvc;
  2. using System.Web.Routing;
  3. namespace LightSwitchApplication
  4. {
  5.     public class RouteConfig
  6.     {
  7.         public static void RegisterRoutes(RouteCollection routes)
  8.         {
  9.
  10.             routes.IgnoreRoute("{*allsvc}"new { allsvc = @".*\.svc(/.*)?" });
  11.             routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
  12.             routes.MapRoute(
  13.                 name: "Default",
  14.                 url: "{controller}/{action}/{id}",
  15.                 defaults: new
  16.                 {
  17.                     controller = "Home",
  18.                     action = "Index",
  19.                     id = UrlParameter.Optional
  20.                 }
  21.             );
  22.         }
  23.     }
  24. }

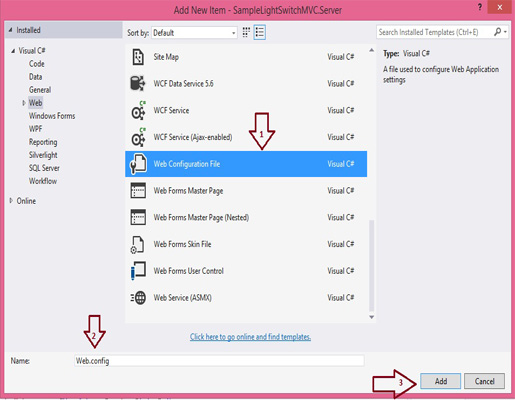

  • Step 3 Right click on views folder and add Web.config file and use the following code



  1. <?xml version="1.0"?>
  2. <configuration>
  3.   <configSections>
  4.     <sectionGroup name="system.web.webPages.razor"
  5.                   type="System.Web.WebPages.Razor.Configuration.RazorWebSectionGroup,
  6.                   System.Web.WebPages.Razor, Version=3.0.0.0,
  7.                   Culture=neutralPublicKeyToken=31BF3856AD364E35">
  8.       <section name="host" type="System.Web.WebPages.Razor.Configuration.HostSection,
  9.                System.Web.WebPages.Razor, Version=3.0.0.0,
  10.                Culture=neutralPublicKeyToken=31BF3856AD364E35"
  11.                requirePermission="false" />
  12.       <section name="pages" type="System.Web.WebPages.Razor.Configuration.RazorPagesSection,
  13.                System.Web.WebPages.Razor, Version=3.0.0.0,
  14.                Culture=neutralPublicKeyToken=31BF3856AD364E35"
  15.                requirePermission="false" />
  16.     </sectionGroup>
  17.   </configSections>
  18.   <system.web.webPages.razor>
  19.     <host factoryType="System.Web.Mvc.MvcWebRazorHostFactory,
  20.           System.Web.Mvc, Version=5.0.0.0,
  21.           Culture=neutralPublicKeyToken=31BF3856AD364E35/>
  22.     <pages pageBaseType="System.Web.Mvc.WebViewPage">
  23.       <namespaces>
  24.         <add namespace="System.Web.Mvc" />
  25.         <add namespace="System.Web.Mvc.Ajax" />
  26.         <add namespace="System.Web.Mvc.Html" />
  27.         <add namespace="System.Web.Routing" />
  28.       </namespaces>
  29.     </pages>
  30.   </system.web.webPages.razor>
  31.   <appSettings>
  32.     <add key="webpages:Enabled" value="false" />
  33.   </appSettings>
  34.   <system.web>
  35.     <httpHandlers>
  36.       <add path="*" verb="*" type="System.Web.HttpNotFoundHandler"/>
  37.     </httpHandlers>
  38.
  39.     <pages
  40.         validateRequest="false"
  41.         pageParserFilterType="System.Web.Mvc.ViewTypeParserFilter,
  42.         System.Web.Mvc, Version=5.0.0.0, Culture=neutralPublicKeyToken=31BF3856AD364E35"
  43.         pageBaseType="System.Web.Mvc.ViewPage,
  44.         System.Web.Mvc, Version=5.0.0.0, Culture=neutralPublicKeyToken=31BF3856AD364E35"
  45.         userControlBaseType="System.Web.Mvc.ViewUserControl,
  46.         System.Web.Mvc, Version=5.0.0.0, Culture=neutralPublicKeyToken=31BF3856AD364E35">
  47.       <controls>
  48.         <add assembly="System.Web.Mvc, Version=5.0.0.0,
  49.              Culture=neutralPublicKeyToken=31BF3856AD364E35"
  50.              namespace="System.Web.Mvc" tagPrefix="mvc" />
  51.       </controls>
  52.     </pages>
  53.   </system.web>
  54.   <system.webServer>
  55.     <validation validateIntegratedModeConfiguration="false" />
  56.     <handlers>
  57.       <remove name="BlockViewHandler"/>
  58.       <add name="BlockViewHandler" path="*" verb="*"
  59.            preCondition="integratedMode" type="System.Web.HttpNotFoundHandler" />
  60.     </handlers>
  61.   </system.webServer>
  62. </configuration>

 Summary

In this small article, I explained how to prepare LightSwitch Application to use MVC, In next article we will see the complete configuration.
