.NET Reverse Engineering: Part 2

This article describes details of the .NET CLR and ILASM coding, including a detailed analysis of each opcode instruction and how to integrate an IL code into an existing high-level C# written code and how to convert an already built C# code into IL code directly.

Before reading this article, I highly recommend reading the previous part:

1. .NET Binary Reverse Engineering: Part 1

Abstract

The first article of this series touched on the most significant aspect of the MSIL code instructions, for instance how is a program authored in ILASM code and how to define the basic components (classes, fields, functions and methods). In this article, we shall encounter use of rudimentary IL code, various data types, opcode instructions and remaining sophisticated features (interfaces, boxing and branching) of the .NET CLR and ILASM coding. After that, we"ll get an understanding of the detailed analysis of each opcode instruction, and how to integrate an IL code into an existing high-level C# written code and how to convert an already built C# code into IL code directly, in order to free the programmer from writing complex IL instruction code.

CIL Data Types

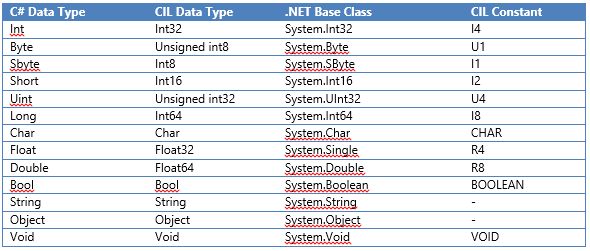

CIL also has data types like other high-level languages for mapping the data into their specific compartment. The following table shows how a .NET base class type that maps to the equivalent C# keyword and how each C# keyword maps into CIL codes with a constant.



MSIL Code Labels

Perhaps you would have noticed in the earlier article sample code in which each line of implementation is prefixed or annotated with a special token of the form IL_XXX (for example, IL_0000, IL _0002). These tokens are called code labels and they are completely optional, can be named in any manner. When we dump the assembly source code file using ILDASM.exe, it will automatically generate code labels. However, you may change them to make the code more descriptive. We can extract the token information from an assembly using the following command:

ILDASM /Token test.exe

This command produces the corresponding token information with IL_XXXX as in the following:
  1. .method /*06000001*/ private hidebysig static
  2.         void  Main(string[] args) cil managed
  3. {
  4.   .entrypoint
  5.   .maxstack  2
  6.   .locals init ([0] string str)
  7.
  8.   IL_0000:  nop
  9.   IL_0001:  ldstr      "Ajay"
  10.   IL_0006:  stloc.0
  11.   IL_0007:  ldstr      "Hello"
  12.   IL_000c:  ldloc.0
  13.   IL_000d:  call       string
  14.   IL_0012:  call       void
  15.   IL_0017:  nop
  16.   IL_0018:  ret
  17. }

We can transform the label information into more descriptive information as in the following (it doesn't matter what information we are putting in the label information because they are optional):

  1. Nothing_1     :  nop
  2. Load String   :  ldstr      "Ajay"
  3. Memory_Loca1  :  stloc.0
  4. Load Constant :  ldstr      "Hello"
  5. Memory_Loca2  :  ldloc.0
  6. Print_console :  call       string
  7. Call Method   :  call       void
  8. Nothing_2     :  nop
  9. Leave Function:  ret

MSIL Opcodes

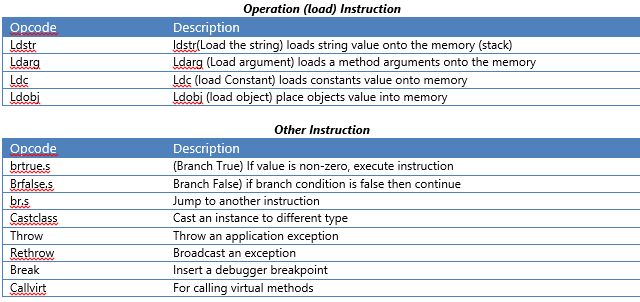

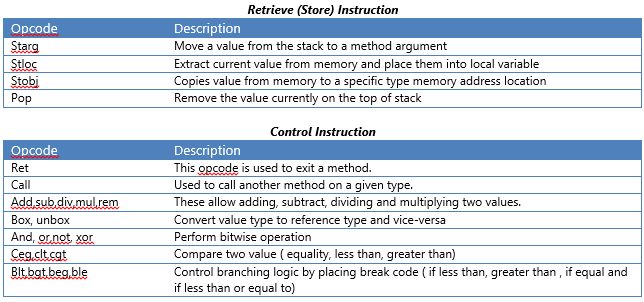

This section will explain various MSIL instructions that are generally termed operation codes (opcodes). Some of the instructions have already appeared in previous article sample code but they have not been reviewed in detail so far. Opcodes are typically CIL tokens used to build the implementation logic, such as if you need to load a string variable into memory, you need to use the ldstr opcode rather than the friendly Load Function. The complete set of CIL opcodes can be grouped into the following three broad segments:

  • Retrieve Instructions
  • Control Instructions
  • Operations Instructions





Detailed Analysis of Opcode Instructions

We have concentrated on individual opcode instructions up until now to understand each opcode instruction's meaning in detail, we therefore are presenting some complex sample code that encapsulates numerous tasks such as executing a loop, creating new class types and so on. Basically our prime motive is to encounter multiple instructions sets.

The following C# code does an addition of two local integer variables:

  1. public int Operation(int a,int b)
  2.  {
  3.     return (a + b);
  4.  }

Now the preceding code will be converted into its corresponding CIL code and interpreted in opcode terminology as in the following:

  1. .method public hidebysig instance int32 Operation(int32 a,int32 b) cil managed
  2.   {
  3.     .maxstack  2
  4.
  5. // Initialize the Local variable “a” and “b”
  6.     .locals init ([0] int32 a,[0] int32 b)
  7.
  8. // Blank Instruction, no operation
  9.     IL_0000:  nop
  10.
  11. // Loading a,b into memory
  12.     IL_0001:  ldarg.1
  13.     IL_0002:  ldarg.2
  14.
  15. // Performing Addition of a and b
  16.     IL_0003:  add
  17.
  18. // Store the calculated value at index ‘0’
  19.
  20.     IL_0004:  stloc.0
  21.
  22. // Jump to IL_0007 instruction
  23.     IL_0005:  br.s       IL_0007
  24. // Load this value at index ‘0’
  25.     IL_0007:  ldloc.0
  26.
  27. // exiting from Method
  28.
  29.     IL_0008:  ret
  30. }

Branching

The iteration is done using for, foreach and while loop constructs in the C# programming language. Here, the following C# code simply executes a for loop 7 times and adds all the numbers from 1 to 5 until the loop local variable reaches 5 as in the following:

  1. public int braching()
  2.   {
  3.     int x = 0;
  4.     for (int i =0;i<7;i++)
  5.       {
  6.         x = x + i;
  7.         if (i == 5)
  8.            break;
  9.       }
  10.             return x;
  11.    }

Here, the blt, br and bgt opcodes are used to create a break in the flow when some condition has been met. Here, the CIL opcode labels would be interpreted as in the following;

  1. .method public hidebysig instance void braching() cil managed
  2.   {
  3.     .maxstack  2
  4.
  5.     .locals init ([0] int32 x, [1] int32 i, [2] bool CS$4$0000)
  6.     IL_0000:  nop
  7.     // Load “x” value into memory
  8.     IL_0001:  ldc.i4.0
  9.     // Store ‘x’ value at index ‘0’
  10.     IL_0002:  stloc.0
  11.     // Load “i” value into memory
  12.     IL_0003:  ldc.i4.0
  13.     // Store ‘i’ value at index ‘1’
  14.     IL_0004:  stloc.1
  15.     // Jump to IL_001e instruction
  16.     IL_0005:  br.s       IL_001e
  17.
  18.     IL_0007:  nop
  19.     // Load Value of ‘x’ variable at index ‘0’
  20.     IL_0008:  ldloc.0
  21.     // Load Value of ‘i’ variable at index ‘1’
  22.     IL_0009:  ldloc.1
  23.     // Add current value on the memory at index ‘0’
  24.     IL_000a:  add
  25.     // Store addition value in the local variable 0
  26.     IL_000b:  stloc.0
  27.     // Load value of local variable 1 in memory
  28.     IL_000c:  ldloc.1
  29.     // Load Integer value 5 into memory
  30.     IL_000d:  ldc.i4.5
  31.     //Test the Equality
  32.     IL_000e:  ceq
  33.     // Load integer value 0 into memory
  34.     IL_0010:  ldc.i4.0
  35.     // compare two variables
  36.     IL_0011:  ceq
  37.     // Retrieve value from memory and store in variable 2
  38.     IL_0013:  stloc.2
  39.     // Load value of local variable 2 on memory
  40.     IL_0014:  ldloc.2
  41.     // branch to IL_0019
  42.     IL_0015:  brtrue.s   IL_0019
  43.     // Jump to IL_0026 instruction
  44.     IL_0017:  br.s       IL_0026
  45.     // No Instruction
  46.     IL_0019:  nop
  47.     // Load value of local variable 1 on memory
  48.     IL_001a:  ldloc.1
  49.     // Load Integer value 0 into memory
  50.     IL_001b:  ldc.i4.1
  51.     // Perform Addition
  52.     IL_001c:  add
  53.     // Store Addition value in the local variable 1
  54.     IL_001d:  stloc.1
  55.     // Load value of local variable 1 in memory
  56.     IL_001e:  ldloc.1
  57.     // Load integer value 7 into memory
  58.     IL_001f:  ldc.i4.7
  59.     // compare less than
  60.     IL_0020:  clt
  61.     // Get value from stack and store in variable 2
  62.     IL_0022:  stloc.2
  63.     // Load the value of 2 in memory
  64.     IL_0023:  ldloc.2
  65.     // branch to IL_0007 ( if the integer value is non-zero)
  66.     IL_0024:  brtrue.s   IL_0007
  67.     // Load the value of 0 in memory
  68.     IL_0026:  ldloc.0
  69.
  70.     // Calling Console.WriteLine() method
  71.     IL_0027:  call       void [mscorlib]System.Console::WriteLine(int32)
  72.     IL_002c:  nop
  73.     IL_002d:  ret
  74.   }

Boxing

Boxing is the process of explicitly assigning a value type to a Reference type (System. Object). When we box a value, the CLR allocates a new object on the heap and copies the values 10 into the instance. The opposite operation is unboxing that converts a value held in the reference back into the corresponding value type as in the following:

  1. static void BoxUnbox()
  2. {
  3.      int x = 10;
  4.      //Boxed
  5.
  6.      object bObj = x;
  7.      //Unboxed
  8.
  9.      int y = (int)bObj;
  10.      Console.WriteLine(y);

If you examine your compiled code using the ILDASM then you will find the boxing and unboxing entries in the CIL code as in the following:

  1. .method private hidebysig static void  BoxUnbox() cil managed
  2. {
  3.   .maxstack  1
  4.   .locals init ([0] int32 x,[1] object bObj,[2] int32 y)
  5.   IL_0000:  nop
  6.
  7.   // Load Integer value 10 into memory
  8.   IL_0001:  ldc.i4.s   10
  9.   // Store “x” value into local variable 0
  10.   IL_0003:  stloc.0
  11.   // Load the value of 0 onto memory
  12.   IL_0004:  ldloc.0
  13.
  14.   //Boxing (value to object)
  15.   IL_0005:  box        [mscorlib]System.Int32
  16.
  17.   // Store bObj value into local variable 1
  18.   IL_000a:  stloc.1
  19.   // Load the value of 1 onto memory
  20.   IL_000b:  ldloc.1
  21.
  22.   //Unboxing (object to value)
  23.   IL_000c:  unbox.any  [mscorlib]System.Int32
  24.
  25.   // Store “y” value into local variable 2
  26.   IL_0011:  stloc.2
  27.   // Load the value of 2 onto memory
  28.   IL_0012:  ldloc.2
  29.   IL_0013:  call       void [mscorlib]System.Console::WriteLine(int32)
  30.   IL_0018:  nop
  31.   IL_0019:  ret
  32. }

Interface

An interface can be defined in the MSIL using the interface keyword directly. Fields are not allowed in an interface and the member function must be public, abstract and virtual. A class uses the implements keyword to list interface that must be implemented as in the following:

  1. .assembly CILComplexTest
  2. {
  3. }
  4. .assembly extern mscorlib
  5. {
  6.   .publickeytoken = (B7 7A 5C 56 19 34 E0 89 )
  7.   .ver 4:0:0:0
  8. }
  9. // Interface Definition
  10. .class interface public abstract auto ansi CILComplexTest.Repository
  11. {
  12.   .method public hidebysig newslot abstract virtual  instance void  Display() cil managed
  13.   {
  14.   } // end of method Repository::Display
  15.
  16. // end of class CILComplexTest.Repository
  17.
  18. // Display() method
  19. .class public auto ansi beforefieldinit CILComplexTest.test  extends [mscorlib]System.Object
  20.                                                                  implements CILComplexTest.Repository
  21. {
  22.   .method public hidebysig newslot virtual final  instance void  Display() cil managed
  23.   {
  24.     // Code size       13 (0xd)
  25.     .maxstack  8
  26.     IL_0000:  nop
  27.     IL_0001:  ldstr      "Hello"
  28.     IL_0006:  call       void [mscorlib]System.Console::WriteLine(string)
  29.     IL_000b:  nop
  30.     IL_000c:  ret
  31.   } // end of method test::Display
  32.
  33. // Main class
  34. .class private auto ansi beforefieldinit CILComplexTest.Program extends [mscorlib]System.Object
  35. {
  36.   .method private hidebysig static void  Main(string[] args) cil managed
  37.   {
  38.     .entrypoint
  39.     // Code size       13 (0xd)
  40.     .maxstack  8
  41.     IL_0000:  nop
  42.     IL_0001:  newobj     instance void CILComplexTest.test::.ctor()
  43.     IL_0006:  call       instance void CILComplexTest.test::Display()
  44.     IL_000b:  nop
  45.     IL_000c:  ret
  46.   } // end of method Program::Main
  47.
  48. //constructor
  49.   .method public hidebysig specialname rtspecialname  instance void  .ctor() cil managed
  50.   {
  51.     // Code size       7 (0x7)
  52.     .maxstack  8
  53.     IL_0000:  ldarg.0
  54.     IL_0001:  call       instance void [mscorlib]System.Object::.ctor()
  55.     IL_0006:  ret
  56.   } // end of method Program::.ctor
  57. }

MSIL Code Generation

The .NET framework offers a utility ILDASM.exe to convert the existing C# code into MSIL code to spare the hassle of manually writing the CIL code that is deemed as one of the most error-prone tasks because each instruction is bizarre in terms of syntax specification and stipulates a different meaning.

Suppose we are writing a program using a CIL opcode instruction in which we want to simply flash a “Hello Ajay” message over the screen. Despite the simple nature of the program, there are still many complications when we choose the MSIL programming language for executing the instructions because MSIL opcode instructions are not in a user-friendly English language format. However, there is a trick. First write the instruction code implementation using a user-friendly C# language and compile this project file. The corresponding executable is created in the Bin/Debug folder.

  1. using System;
  2.
  3. namespace CILComplexTest
  4. {
  5.     class xyz
  6.     {
  7.         private string msg;
  8.         public xyz(string msg)
  9.         {
  10.             this.msg = msg;
  11.         }
  12.
  13.         public string display()
  14.         {
  15.             return "Hello " + msg;
  16.         }
  17.
  18.     }
  19.     class Program
  20.     {
  21.         static void Main(string[] args)
  22.         {
  23.             xyz obj = new xyz("Ajay");
  24.             Console.WriteLine(obj.display());
  25.
  26.         }
  27.     }

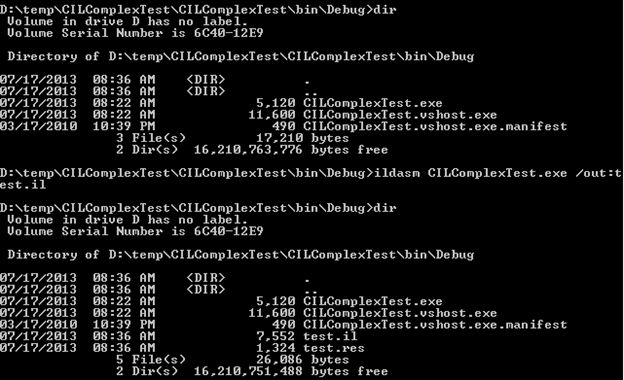

Now, open the Visual Studio Command prompt and go the project Bin/Debug folder and execute this command to convert this existing C# code instruction into MSIL code as in the following:

ILDASM CILComplexTest.exe /out:test.il



Notice that the test.il file has been created in the Bin/Debug folder that has the same instruction set implementations as its C# counterpart code. Now just open this file using any editor and compile it using the ILASM utility. Here, the automatically generated IL code is as in the following:

  1. //Microsoft (R) .NET Framework IL Disassembler.  Version 4.0.30319.1
  2. //Copyright (c) Microsoft Corporation.  All rights reserved.
  3. //Metadata version: v4.0.30319
  4.
  5. .assembly extern mscorlib
  6. {
  7.   .publickeytoken = (B7 7A 5C 56 19 34 E0 89 )
  8.   .ver 4:0:0:0
  9. }
  10. .assembly CILComplexTest
  11. {
  12. ..
  13.   .hash algorithm 0x00008004
  14.   .ver 1:0:0:0
  15. }
  16. .module CILComplexTest.exe
  17. // MVID: {631F60E4-6E43-4355-BC70-DAF16F1FE33A}
  18. .imagebase 0x00400000
  19. .file alignment 0x00000200
  20. .stackreserve 0x00100000
  21. .subsystem 0x0003       // WINDOWS_CUI
  22. .corflags 0x00000003    //  ILONLY 32BITREQUIRED
  23. // Image base: 0x003E0000
  24.
  25.
  26. // =============== CLASS MEMBERS DECLARATION ===================
  27.
  28. .class private auto ansi beforefieldinit CILComplexTest.xyz
  29.                              extends [mscorlib]System.Object
  30. {
  31.   .field private string msg
  32.   .method public hidebysig specialname rtspecialname instance void  .ctor(string msg) cil managed
  33.   {
  34.     // Code size       17 (0x11)
  35.     .maxstack  8
  36.     IL_0000:  ldarg.0
  37.     IL_0001:  call       instance void [mscorlib]System.Object::.ctor()
  38.     IL_0006:  nop
  39.     IL_0007:  nop
  40.     IL_0008:  ldarg.0
  41.     IL_0009:  ldarg.1
  42.     IL_000a:  stfld      string CILComplexTest.xyz::msg
  43.     IL_000f:  nop
  44.     IL_0010:  ret
  45.   } // end of method xyz::.ctor
  46.
  47.   .method public hidebysig instance string display() cil managed
  48.   {
  49.     // Code size       22 (0x16)
  50.     .maxstack  2
  51.     .locals init (string V_0)
  52.     IL_0000:  nop
  53.     IL_0001:  ldstr      "Hello "
  54.     IL_0006:  ldarg.0
  55.     IL_0007:  ldfld      string CILComplexTest.xyz::msg
  56.     IL_000c:  call       string [mscorlib]System.String::Concat(string,string)
  57.     IL_0011:  stloc.0
  58.     IL_0012:  br.s       IL_0014
  59.
  60.     IL_0014:  ldloc.0
  61.     IL_0015:  ret
  62.   } // end of method xyz::display
  63.
  64. // end of class CILComplexTest.xyz
  65.
  66. .class private auto ansi beforefieldinit CILComplexTest.Program
  67.        extends [mscorlib]System.Object
  68. {
  69.   .method private hidebysig static void  Main(string[] args) cil managed
  70.   {
  71.     .entrypoint
  72.     // Code size       31 (0x1f)
  73.     .maxstack  2
  74.     .locals init (class CILComplexTest.xyz V_0)
  75.     IL_0000:  nop
  76.     IL_0001:  ldstr      "Ajay"
  77.     IL_0006:  newobj     instance void CILComplexTest.xyz::.ctor(string)
  78.     IL_000b:  stloc.0
  79.     IL_000c:  ldloc.0
  80.     IL_000d:  callvirt   instance string CILComplexTest.xyz::display()
  81.     IL_0012:  call       void [mscorlib]System.Console::WriteLine(string)
  82.     IL_0017:  nop
  83.     IL_0018:  call       valuetype [mscorlib]System.ConsoleKeyInfo [mscorlib]System.Console::ReadKey()
  84.     IL_001d:  pop
  85.     IL_001e:  ret
  86.   } // end of method Program::Main
  87.
  88.   .method public hidebysig specialname rtspecialname instance void  .ctor() cil managed
  89.   {
  90.     // Code size       7 (0x7)
  91.     .maxstack  8
  92.     IL_0000:  ldarg.0
  93.     IL_0001:  call       instance void [mscorlib]System.Object::.ctor()
  94.     IL_0006:  ret
  95.   } // end of method Program::.ctor
  96.
  97. // end of class CILComplexTest.Program

Summary

This article has provided an overview of the various CIL Data Type syntaxes and opcode instructions. We had seen a detailed analysis of each instruction opcdoe meaning. We have also seen the rest of the complex types such boxing, unboxing, branching and interfaces in the form of CIL opcodes. Finally, you took an introductory look at the process of converting an existing C# source code file into MSIL opcode instructions using the ILDASM utility.
