Registration Form With Captcha Image in C#

Introduction

In this article, I will explain how to create a registration form in ASP.NET C#. This article also explains how we use Stored Procedures instead of explicit SQL statements to add data from a form to a database.

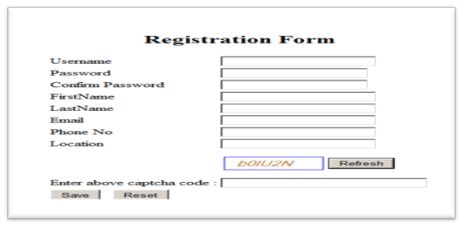

registration form

Use the following procedure to create a sample.

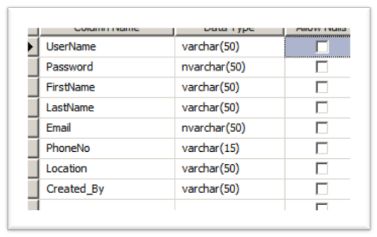

Step 1: Create a database and add a table for storing the data as in the following:

table

Step 2: Create a Stored Procedure to store the records in the database as in the following:
  1. Create PROCEDURE [dbo].[sp_EmpInformation]
  2. @UserName varchar(50),
  3. @Password varchar(50),
  4. @FirstName varchar(50),
  5. @LastName varchar(50),
  6. @Email varchar(50),
  7. @PhoneNo varchar(50),
  8. @Location varchar(50),
  9. @Created_By varchar(50),
  10. @ERROR VARCHAR(100) OUT
  11. AS
  12. BEGIN-- SET NOCOUNT ON added to prevent extra result sets from-- interfering with SELECT statements.
  13. SET NOCOUNT ON;
  14. ---Checking Condition if User exists or not if user not exists returns different message if exists returns different message
  15. IF NOT EXISTS(SELECT * FROM Employee_Information WHERE UserName=@UserName)
  16. BEGIN INSERT INTO Employee_Information
  17. (
  18.     UserName,
  19.     [Password],
  20.     FirstName,
  21.     LastName,
  22.     Email,
  23.     PhoneNo,
  24.     Location,
  25.     Created_By
  26. )VALUES(@UserName,
  27. @Password,
  28. @FirstName,
  29. @LastName,
  30. @Email,
  31. @PhoneNo,
  32. @Location,
  33. @Created_By
  34. )
  35. SET @ERROR=@UserName+' has registered successfully.'
  36. END
  37. ELSE
  38.   BEGIN
  39.       SET @ERROR=@UserName + ' has already exists.'
  40.   END
  41. End

Step 3: Open Visual Studio and select create Web application.

Step 4: Add a new Web page Emp_Registration.aspx and design it as below:

  1. <div>
  2.     <asp:ScriptManager ID="SM1" runat="server">
  3.     </asp:ScriptManager>
  4.     <table align="center">
  5.         <tr>
  6.             <td align="center" colspan="2">
  7.                 <h2>
  8.                     Registration Form</h2>
  9.             </td>
  10.         </tr>
  11.         <tr>
  12.             <td>
  13.                 <asp:Label ID="lbluser" runat="server" Text="Username"></asp:Label>
  14.             </td>
  15.             <td>
  16.                 <asp:TextBox ID="txtuser" runat="server"></asp:TextBox>
  17.             </td>
  18.         </tr>
  19.         <tr>
  20.             <td>
  21.                 <asp:Label ID="lblpwd" runat="server" Text="Password"></asp:Label>
  22.             </td>
  23.             <td>
  24.                 <asp:TextBox ID="txtpwd" runat="server" TextMode="Password"></asp:TextBox>
  25.             </td>
  26.         </tr>
  27.         <tr>
  28.             <td>
  29.                 <asp:Label ID="lblcnfmpwd" runat="server" Text="Confirm Password"></asp:Label>
  30.             </td>
  31.             <td>
  32.                 <asp:TextBox ID="txtcnmpwd" runat="server" TextMode="Password"></asp:TextBox>
  33.             </td>
  34.         </tr>
  35.         <tr>
  36.             <td>
  37.                 <asp:Label ID="lblfname" runat="server" Text="FirstName"></asp:Label>
  38.             </td>
  39.             <td>
  40.                 <asp:TextBox ID="txtfname" runat="server"></asp:TextBox>
  41.             </td>
  42.         </tr>
  43.         <tr>
  44.             <td>
  45.                 <asp:Label ID="lbllname" runat="server" Text="LastName"></asp:Label>
  46.             </td>
  47.             <td>
  48.                 <asp:TextBox ID="txtlname" runat="server"></asp:TextBox>
  49.             </td>
  50.         </tr>
  51.         <tr>
  52.             <td>
  53.                 <asp:Label ID="lblemail" runat="server" Text="Email"></asp:Label>
  54.             </td>
  55.             <td>
  56.                 <asp:TextBox ID="txtEmail" runat="server"></asp:TextBox>
  57.             </td>
  58.         </tr>
  59.         <tr>
  60.             <td>
  61.                 <asp:Label ID="lblCnt" runat="server" Text="Phone No"></asp:Label>
  62.             </td>
  63.             <td>
  64.                 <asp:TextBox ID="txtphone" runat="server"></asp:TextBox>
  65.             </td>
  66.         </tr>
  67.         <tr>
  68.             <td>
  69.                 <asp:Label ID="lbladd" runat="server" Text="Location"></asp:Label>
  70.             </td>
  71.             <td align="left">
  72.                 <asp:TextBox ID="txtlocation" runat="server"></asp:TextBox>
  73.             </td>
  74.         </tr>
  75.         <tr>
  76.             <td>
  77.             </td>
  78.             <td valign="middle">
  79.                 <asp:UpdatePanel ID="UP1" runat="server">
  80.                     <ContentTemplate>
  81.                         <table>
  82.                             <tr>
  83.                                 <td style="height: 50px; width: 100px;">
  84.                                     <asp:Image ID="imgCaptcha" runat="server" />
  85.                                 </td>
  86.                                 <td valign="middle">
  87.                                     <asp:Button ID="btnRefresh" runat="server" Text="Refresh" OnClick="btnRefresh_Click" />
  88.                                 </td>
  89.                             </tr>
  90.                         </table>
  91.                     </ContentTemplate>
  92.                 </asp:UpdatePanel>
  93.             </td>
  94.         </tr>
  95.         <tr>
  96.             <td>
  97.                 Enter above captcha code :
  98.             </td>
  99.             <td>
  100.                 <asp:TextBox ID="txtCaptcha" runat="server" Width="200px"></asp:TextBox>
  101.             </td>
  102.         </tr>
  103.         <tr>
  104.             <td align="left" colspan="2">
  105.                 <asp:Button ID="btnsubmit" runat="server" Text="Save" OnClick="btnsubmit_Click" />
  106.                   <asp:Button ID="btnReset" Text="Reset" runat="server" />
  107.             </td>
  108.         </tr>
  109.         <tr>
  110.             <td colspan="2">
  111.                 <span style="color: Red; font-weight: bold">
  112.                     <asp:Label ID="lblErrorMsg" runat="server"></asp:Label></span>
  113.             </td>
  114.         </tr>
  115.     </table>
  116. </div>

Step 5: Go to the Emp_Registration.aspx.cs page and add code.

Step 6 : Add code for the Page Load as below:

  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     FillCapctha();
  4. }
  5.
  6. void FillCapctha()
  7. {
  8.     try
  9.     {
  10.         Random random = new Random();
  11.         string combination = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz";
  12.         StringBuilder captcha = new StringBuilder();
  13.         for (int i = 0; i < 6; i++)
  14.         {
  15.             captcha.Append(combination[random.Next(combination.Length)]);
  16.             Session["captcha"] = captcha.ToString();
  17.             imgCaptcha.ImageUrl = "GenerateCaptcha.aspx?" + DateTime.Now.Ticks.ToString();
  18.         }
  19.     catch
  20.     {
  21.         throw;
  22.     }
  23. }

Step 7: Add code for the button Submit click as in the following:

  1. protected void btnsubmit_Click(object sender, EventArgs e)
  2. {
  3.     if (Session["captcha"].ToString() != txtCaptcha.Text)
  4.         lblErrorMsg.Text = "Invalid Captcha Code";
  5.      else
  6.      {
  7.          if (txtpwd.Text == txtcnmpwd.Text)
  8.          {
  9.              string UserName = txtuser.Text;
  10.              string Password = txtpwd.Text;
  11.              string ConfirmPassword = txtcnmpwd.Text;
  12.              string FirstName = txtfname.Text;
  13.              string LastName = txtlname.Text;
  14.              string Email = txtEmail.Text;
  15.              string Phoneno = txtphone.Text;
  16.              string Location = txtlocation.Text;
  17.              string Created_By = txtuser.Text;
  18.              SqlConnection con = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
  19.              con.Open();
  20.              SqlCommand cmd = new SqlCommand("sp_EmpInformation", con);
  21.              cmd.CommandType = CommandType.StoredProcedure;
  22.              cmd.Parameters.AddWithValue("@UserName", UserName);
  23.              cmd.Parameters.AddWithValue("@Password", Password);
  24.              cmd.Parameters.AddWithValue("@FirstName", FirstName);
  25.              cmd.Parameters.AddWithValue("@LastName", LastName);
  26.              cmd.Parameters.AddWithValue("@Email", Email);
  27.              cmd.Parameters.AddWithValue("@PhoneNo", Phoneno);
  28.              cmd.Parameters.AddWithValue("@Location", Location);
  29.              cmd.Parameters.AddWithValue("@Created_By", Created_By);
  30.              cmd.Parameters.Add("@ERROR", SqlDbType.Char, 500);
  31.              cmd.Parameters["@ERROR"].Direction = ParameterDirection.Output;
  32.              cmd.ExecuteNonQuery();
  33.              if (!string.IsNullOrEmpty(cmd.Parameters["@ERROR"].Value.ToString()))
  34.              {
  35.                  message = (string)cmd.Parameters["@ERROR"].Value;
  36.              }
  37.              con.Close();
  38.             }
  39.          else
  40.          {
  41.              Page.RegisterStartupScript("UserMsg""<Script language='javascript'>alert('" + "Password mismatch" + "');</script>");
  42.          }
  43.          lblErrorMsg.Text = message;
  44.          ClearControls();
  45.       }
  46. }

Step 8: Add code for the Refresh button as in the following:

  1. protected void btnRefresh_Click(object sender, EventArgs e)
  2. {
  3.     FillCapctha();
  4. }

Step 9: Add another Webform GenerateCaptcha.aspx

Step 10: Add the following code on the page Load of GenerateCaptcha.aspx:

  1. Response.Clear();
  2. int height = 30;
  3. int width = 100;
  4. Bitmap bmp = new Bitmap(width, height);
  5. RectangleF rectf = new RectangleF(10, 5, 0, 0);
  6. Graphics g = Graphics.FromImage(bmp);
  7. g.Clear(Color.White);
  8. g.SmoothingMode = SmoothingMode.AntiAlias;
  9. g.InterpolationMode = InterpolationMode.HighQualityBicubic;
  10. g.PixelOffsetMode = PixelOffsetMode.HighQuality;
  11. g.DrawString(Session["captcha"].ToString(), new Font("Thaoma", 12, FontStyle.Italic), Brushes.Chocolate, rectf);
  12. g.DrawRectangle(new Pen(Color.Blue), 1, 1, width - 2, height - 2);
  13. g.Flush();
  14. Response.ContentType = "image/jpeg";
  15. bmp.Save(Response.OutputStream, ImageFormat.Jpeg);
  16. g.Dispose();
  17. bmp.Dispose();

Step 11: Press F5 to run the application.

Step 12: Add a new entry in the registration form as in the following:

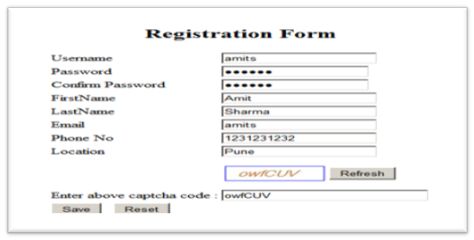

Entry in registration form

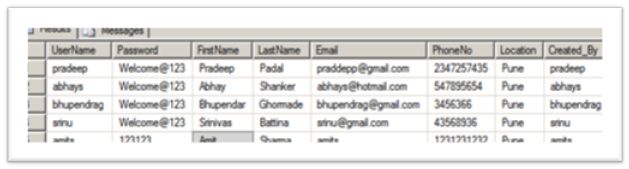

Step 13: Records are stored in the database as below:

Records stored in the database

Conclusion

In this article, I have explained how to work with a registration form with Captcha feature and store data in SQL Server using Stored Procedure.
