Fetching DataBase Records Using Swing in Java

Introduction

This article explains how to set up a database connection with a Swing GUI in Java. The NetBeans IDE is used to create the sample examples.

Fetching Records from Database using Swing GUI

For creating this app we need the following files:

  1. Java file (SwingDatabaseApp.java)
  2. SQL table (emp.sql)

1. SwingDatabaseApp.java

This Java consists of the entire logic. First of all we initialize JFrame components using a constructor then create a database connection and finally set the database value to the textfield and display it using a constructor.

2. emp.sql

For fetching records we need a database table; for that we create an "emp" table in our database.

Syntax

emp.sql

create table emp
 (
    uname varchar2(20), umail varchar2(30),
    upass varchar2(20), ucountry varchar2(20)
 );

Insert some rows

The following SQL will insert some rows in it:

1. insert into emp values ('sandeep', 'sandy05.1991@gmail.com', 'welcome', 'India');

2. insert into emp values ('rahul', 'rahul@gmail.com' , '123', 'India');

Now let's start creating this app. Use the following procedure to do that in the NetBeans IDE.

Step 1

Open the NetBeans IDE.

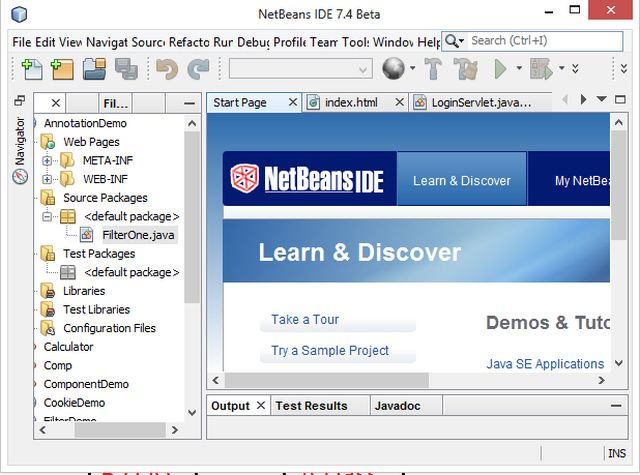

NetBeans IDE

Step 2

Choose "Java" -> "Java application" as shown below.

Java Application

Step 3

Type your project name as "SwingDatabaseApp" as in the following.

Java Application

Step 4

Now provide the following code in the "SwingDatabaseApp.java" file.

SwingDatabaseApp.java

import javax.swing.*;

import java.awt.event.*;

import java.awt.*;

import java.sql.*;



public class SwingDatabaseApp extends JFrame {



//Initializing Components

    JLabel lb, lb1, lb2, lb3, lb4;

    JTextField tf1, tf2, tf3, tf4;



    //Creating Constructor for initializing JFrame components

    SwingDatabaseApp() {

        //Providing Title

        super("Fetching Student Information");



        lb = new JLabel("Fetching Student Information From Database");

        lb.setBounds(20, 50, 450, 20);

        lb.setForeground(Color.red);

        lb.setFont(new Font("Serif", Font.BOLD, 20));

        setVisible(true);

        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

        setSize(500, 500);

        lb1 = new JLabel("U_Name:");

        lb1.setBounds(50, 105, 100, 20);

        tf1 = new JTextField(50);

        tf1.setBounds(160, 105, 100, 20);

        lb2 = new JLabel("U_Mail:");

        lb2.setBounds(50, 135, 100, 20);

        tf2 = new JTextField(100);

        tf2.setBounds(160, 135, 200, 20);

        lb3 = new JLabel("U_Pass:");

        lb3.setBounds(50, 165, 100, 20);

        tf3 = new JTextField(50);

        tf3.setBounds(160, 165, 100, 20);

        lb4 = new JLabel("U_Country:");

        lb4.setBounds(50, 200, 100, 20);

        tf4 = new JTextField(50);

        tf4.setBounds(160, 200, 100, 20);

        setLayout(null);



        //Add components to the JFrame

        add(lb);

        add(lb1);

        add(tf1);

        add(lb2);

        add(tf2);

        add(lb3);

        add(tf3);

        add(lb4);

        add(tf4);



        //Set TextField Editable False

        tf1.setEditable(false);

        tf2.setEditable(false);

        tf3.setEditable(false);

        tf4.setEditable(false);



        //Create DataBase Coonection and Fetching Records for uname='sandeep'

        try {

            String str = "sandeep";

            Class.forName("oracle.jdbc.driver.OracleDriver");

            Connection con = DriverManager.getConnection("jdbc:oracle:thin:@mcndesktop07:1521", "sandeep", "welcome");

            PreparedStatement st = con.prepareStatement("select * from emp where uname=?");

            st.setString(1, str);



            //Excuting Query

            ResultSet rs = st.executeQuery();

            while (rs.next()) {

                String s = rs.getString(1);

                String s1 = rs.getString(2);

                String s2 = rs.getString(3);

                String s3 = rs.getString(4);



                //Sets Records in TextFields.

                tf1.setText(s);

                tf2.setText(s1);

                tf3.setText(s2);

                tf4.setText(s3);

            }

        } //Create Exception Handler

        catch (Exception ex) {

            System.out.println(ex);

        }

    }

//Running Constructor



    public static void main(String args[]) {

        new SwingDatabaseApp();

    }

}

Step 5

Now our project is ready to run. Right-click on the project menu, then choose "Run". The following output will be generated.

Saandeep Records

Step 6

Now change the uname and this time we are fetching records for "rahul".

String str = "rahul";

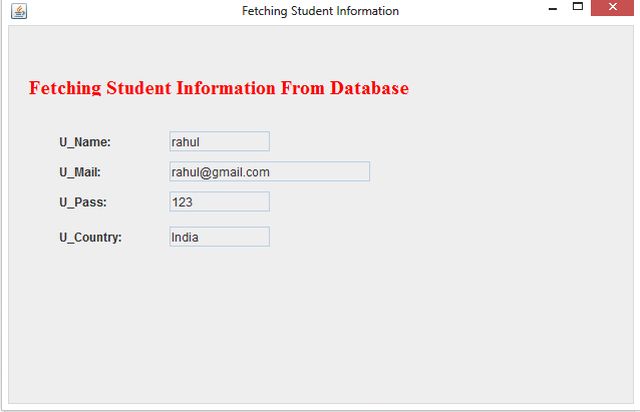

Fetching Rahul Records
