ADO.NET using C#

Simple windows application using ADO.NET to make connection and display information in data grid.



Begin your first ADO.NET application by launching VS.NET and creating a new project using File - > Project and choose C# Windows Application template as shown in figure below:

Add a new item application configuration file as shown below from Project -> Add New Item:



The code for the application configuration file:



<?xml version="1.0" encoding="utf-8" ?>

<configuration>

  <connectionStrings>

    <add name="constr" connectionString="initial catalog=puran; data source=MCN002; integrated security=sspi"/>



  </connectionStrings>

</configuration>



Note: In the above code I have made a connection using windows authentication.



In the form design view drop a DataGrid and a button. Name the button as Fill.



DataGrid is used to display multiple tables (MARS - Multiple Active Result Sets concept is used).



Double click the Fill Button to come to form.cs file.

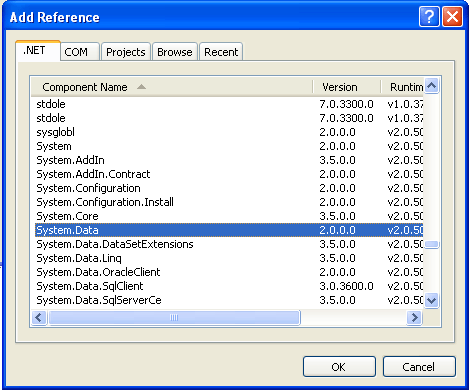

Add the necessary reference file from the solution explorer – Reference as below:



The code for the application is as:



using System;

using System.Data;

using System.Data.SqlClient;

using System.Drawing;

using System.Linq;

using System.Text;

using System.Windows.Forms;

using System.Configuration;



namespace ADO_example1

{

    public partial class Form1 : Form

    {

        public Form1()

        {

            InitializeComponent();

        }



        SqlDataAdapter da;

        DataSet ds;



        private void button1_Click(object sender, EventArgs e)

        {

            da = new SqlDataAdapter("select * from testpuran", ConfigurationManager.ConnectionStrings["constr"].ConnectionString);

            ds = new DataSet();

            da.Fill(ds, "testpuran");

            dataGrid1.DataSource = ds;

            da.SelectCommand.CommandText = "select * from emp";

            da.Fill(ds, "emp");

            dataGrid1.DataSource = ds;

        }

    }

}



Output of the above program







Note: In the above article you have to change the database server, connection string and query statements accordingly.



Conclusion



Thought its a simple program but will help you in understanding basic of ADO.NET connection and displaying information.
