Introduction
Today we want to share a experimental 3D image
animation with jQuery and CSS3 animations. We'll be using CSS3 3D Transforms for Webkit only. CSS Transforms were first introduced in WebKit in 2007, and have
now reached mass-adoption by all the major browser vendors. This is great news
for web developers, especially in the case of 3D transforms which are
hardware-accelerated, resulting in extremely smooth animations and responsive
applications. jQuery is a great tool that helps our imagination turn ideas into
reality. We can do almost everything we can think of with the help of this
useful tool.
Step 1: First we have to create a Web
Application.
- Go to Visual Studio 2010.
- New--> And select the Web Application.
- Give whatever name you want to.
- Click OK.
Step 2: Secondly you have to add a new
page to the website.
- Go to the Solution Explorer.
- Right-click on the project name.
- Select add new item.
- Add new web page and give it a name.
- Click OK.
Step 3: Now add some image in the
"Images" folder of the project.
![img1.jpg]()
Step 4: In this step add the CSS code
inside the <style> tag and placed it into the <head> section of your page.
<style
type="text/css">
html,
body
{
font-family: Verdana,
Arial, sans-serif;
width: 100%;
height: 100%;
}
body
{
margin: 0px;
padding: 0px;
width: 100%;
height: 100%;
background-image:
url('images/bg.gif');
background-repeat:
repeat;
}
a
{
color: #fff;
}
.clearfix:before,
.clearfix:after
{
content: "\0020";
display: block;
height: 0;
overflow: hidden;
}
.clearfix:after
{
clear: both;
}
.clearfix
{
zoom: 1;
}
h1, h2,
h3
{
font-size: 2.5em;
color:
#fff;
text-shadow: 2px
2px 2px
#0080cc;
-webkit-text-stroke:
0.5px #0089db;
-moz-text-stroke: 0.5px
#0089db;
text-stroke: 0.5px
#0089db;
}
h3
{
font-size: 1.5em;
}
#content
{
width: 760px;
text-align: left;
margin: 0
auto;
position: relative;
}
.animal
{
position: absolute;
}
.animal
.label
{
position: relative;
width: 150px;
height: 30px;
background-color: #fff;
background: -webkit-gradient(
linear, 0 0, 0% 100%, from(#eee), to(#fff) );
background: -moz-linear-gradient(
top left, #ccc, #fff );
border: 2px
solid #009af5;
text-align: center;
color: #009af5;
font-size: 1.5em;
padding: 10px
0px 10px
0px;
-webkit-border-radius:
9px;
-moz-border-radius: 9px;
border-radius: 9px;
-webkit-box-shadow: 2px
2px 6px
rgba(0,0,0,0.6);
-moz-box-shadow: 2px
2px 6px
rgba(0,0,0,0.6);
box-shadow: 2px
2px 6px
rgba(0,0,0,0.6);
cursor: pointer;
}
.animal
.labelOver
{
background: -webkit-gradient(
linear, 0 0, 0% 100%, from(#009af5), to(#006baa) );
background: -moz-linear-gradient(
top left, #009af5, #006baa );
text-align: center;
color: red;
}
#myanimal
{
position: absolute;
font-size: 5em;
color: #8B008B;
}
</style>
Step 5: In this step we have to write the
script reference to the aspx page; let us see from where you have to write the
script code.
![img2.jpg]()
Right-click on selected files respectively -> copy
and paste it inside <Head> section of your page; see step 6.
Step 6: Let us see the script code which
you have to add inside the <script></script> tags and that will be placed either
in <head> section or the <body> section as you prefer.
<script
src="Scripts/jquery-1.4.1.min.js"
type="text/javascript"></script>
<script
src="Scripts/jquery-1.6.2.js"
type="text/javascript"
></script>
<script
src="Scripts/jquery-ui-1.8.custom.min.js"
type="text/javascript"
></script>
<script
src="Scripts/jquery-css-transform.js"
type="text/javascript"></script>
Step 7: In this step we have to write the javascript code in the <body> tag
of our page which is given below.
<script
type="text/javascript">
var log = function
(msg) {
console.log(msg);
return this;
};
var mousePos = { x: 0, y: 0 };
var animals;
var i;
function frameStep() {
for (i = 0; i < animals.length; i++) {
var animal = animals[i];
var label = $(animal).children(".label");
if (!label.data("isMouseOver"))
{
var angle = label.data("angle");
var startLeft = label.data("leftStart");
var startTop = label.data("topStart");
if ((angle += 0.002) >= 360) angle = 0;
label.css("left",
(Math.cos(180 / Math.PI * angle) * 7 + startLeft) + "px");
label.css("top",
(Math.sin(180 / Math.PI * angle) * 7 + startTop) + "px");
label.data("angle", angle);
var img = $(animal).children("img");
img.stop(false,
true);
img.rotateY((img.offset().left + img.data("width")
/ 2 - mousePos.x) / -10 + "deg");
img.rotateX((img.offset().top + img.data("height")
/ 2 - mousePos.y) / 10 + "deg");
console.log(img.data("width"));
}
}
}
$(document).ready(function
() {
animals = $(".animal").toArray();
$("#myanimal")
.hide()
.css("top",
$(window).height() / 2 - parseFloat($("#myanimal").height())
/ 2)
.translate3d("0px",
"0px", "100px");
$(".animal
img").each(function () {
$(this).data("width",
$(this).width());
$(this).data("height",
$(this).height());
$(this).translate3d("0px",
"0px", "-50px");
});
$(".label").each(function
() {
$(this).data("angle",
0)
.data("leftStart",
parseFloat($(this).css("left")))
.data("topStart",
parseFloat($(this).css("top")));
})
.mouseenter(function
() {
var label = $(this);
if (!label.data("isMouseOver"))
{
label.data("isMouseOver",
true);
label.addClass("labelOver");
var img = $(this).siblings("img");
img.stop(false, true);
img.scale(0.8);
img.animate({ scale: 1, translate3d: "0px -70px -5px",
rotateY: '0deg' }, { queue:
false, duration: 1000, easing:
"easeOutElastic" });
}
})
.mouseleave(function
() {
var label = $(this);
var img = $(this).siblings("img");
if (label.data("isMouseOver"))
{
label.removeClass("labelOver");
img.stop(false, true);
img.animate({ scale: 1, translate3d: "0px 0px -5px"
}, { queue: false, duration: 100, complete:
function () { label.data("isMouseOver",
false); } });
}
})
.click(function
(event) {
$("#myanimal").rotateY("-140deg");
$("#myanimal").rotateX("20deg");
$("#myanimal")
.stop(true,
true)
.html($(event.target).parent().attr("id").toString().toUpperCase()
+ "!")
.css("left",
$(window).width())
.show()
.animate({ rotateX: "0deg", rotateY:
"0deg", left: $(window).width() / 2 -
parseFloat($(this).width()) / 2 }, { easing:
"easeOutElastic", duration: 2500 })
.fadeOut('fast');
});
$("body").mousemove(function
(event) {
mousePos.x =
event.pageX;
mousePos.y =
event.pageY;
});
log("starting
animation");
setInterval(frameStep, 33);
});
</script>
Step 8:
In this step you will see the body code of
the Default2.aspx
page which is given below.
Code
<body>
<div
id="content">
<div>
<div
id="Tiger"
class="animal"
style="left:
50px; top:
210px;">
<img
src="images/Tiger.png"
/>
<div
class="label"
style="left:
35px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="lion"
class="animal"
style="left:
400px; top:
200px;">
<img
src="images/lion.png"
/>
<div
class="label"
style="left:
30px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="fox"
class="animal"
style="left:
100px; top:
580px;">
<img
src="images/fox.png"
/>
<div
class="label"
style="left:
15px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="bear"
class="animal"
style="left:
400px; top:
500px;">
<img
src="images/bear.png"
/>
<div
class="label"
style="left:
15px; top:
-80px;">
CLICK ME</div>
</div>
</div>
</div>
<h1
id="myanimal">ANIMAL!</h1>
</body>
Step 9: In this step we will see the complete code of the Default2.aspx page
which is given below.
Code
<%@
Page Language="C#"
AutoEventWireup="true"
CodeFile="Default2.aspx.cs"
Inherits="Default2"
%>
<!DOCTYPE
html PUBLIC
"-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html
xmlns="http://www.w3.org/1999/xhtml">
<head
runat="server">
<title>A
Simple 3D Animation Using jQuery and CSS3</title>
<script
src="Scripts/jquery-1.4.1.min.js"
type="text/javascript"></script>
<script
src="Scripts/jquery-1.6.2.js"
type="text/javascript"></script>
<script
src="Scripts/jquery-ui-1.8.custom.min.js"
type="text/javascript"></script>
<script
src="Scripts/jquery-css-transform.js"
type="text/javascript"></script>
<script
type="text/javascript">
var
log = function (msg) {
console.log(msg);
return
this;
};
var
mousePos = { x: 0, y: 0 };
var
animals;
var i;
function
frameStep() {
//
animate labels
for
(i = 0; i < animals.length; i++) {
var
animal = animals[i];
var
label = $(animal).children(".label");
if
(!label.data("isMouseOver")) {
var angle = label.data("angle");
var startLeft = label.data("leftStart");
var startTop = label.data("topStart");
// animate label on circular path
if ((angle += 0.002) >= 360) angle = 0;
label.css("left",
(Math.cos(180 / Math.PI * angle) * 7 + startLeft) + "px");
label.css("top",
(Math.sin(180 / Math.PI * angle) * 7 + startTop) + "px");
label.data("angle",
angle);
// rotate animal images based on mouse position if
they are not currently animating
var img = $(animal).children("img");
img.stop(false,
true);
img.rotateY((img.offset().left + img.data("width")
/ 2 - mousePos.x) / -10 + "deg");
img.rotateX((img.offset().top + img.data("height")
/ 2 - mousePos.y) / 10 + "deg");
console.log(img.data("width"));
}
}
}
$(document).ready(function
() {
animals = $(".animal").toArray();
$("#myanimal")
.hide()
.css("top",
$(window).height() / 2 - parseFloat($("#myanimal").height())
/ 2)
.translate3d("0px",
"0px", "100px");
$(".animal
img").each(function () {
$(this).data("width",
$(this).width());
$(this).data("height",
$(this).height());
$(this).translate3d("0px",
"0px", "-50px");
});
$(".label").each(function
() {
$(this).data("angle",
0)
.data("leftStart",
parseFloat($(this).css("left")))
.data("topStart",
parseFloat($(this).css("top")));
})
.mouseenter(function
() {
var label = $(this);
if
(!label.data("isMouseOver")) {
label.data("isMouseOver",
true);
label.addClass("labelOver");
var img = $(this).siblings("img");
img.stop(false,
true);
img.scale(0.8);
img.animate({ scale: 1,
translate3d: "0px -70px -5px", rotateY:
'0deg' }, { queue:
false, duration: 1000, easing: "easeOutElastic"
});
}
})
.mouseleave(function
() {
var label = $(this);
var img = $(this).siblings("img");
if
(label.data("isMouseOver")) {
label.removeClass("labelOver");
img.stop(false,
true);
img.animate({ scale: 1,
translate3d: "0px 0px -5px" }, { queue:
false, duration: 100, complete:
function () { label.data("isMouseOver",
false); } });
}
})
.click(function
(event) {
$("#myanimal").rotateY("-140deg");
$("#myanimal").rotateX("20deg");
$("#myanimal")
.stop(true,
true)
.html($(event.target).parent().attr("id").toString().toUpperCase()
+ "!")
.css("left",
$(window).width())
.show()
.animate({ rotateX:
"0deg", rotateY:
"0deg", left: $(window).width() / 2 - parseFloat($(this).width())
/ 2 }, { easing: "easeOutElastic", duration:
2500 })
.fadeOut('fast');
});
$("body").mousemove(function
(event) {
mousePos.x = event.pageX;
mousePos.y = event.pageY;
});
//
start animation
log("starting
animation");
setInterval(frameStep, 33);
});
</script>
<style
type="text/css">
html,
body
{
font-family: Verdana,
Arial, sans-serif;
width:
100%;
height:
100%;
}
body
{
margin:
0px;
padding:
0px;
width:
100%;
height:
100%;
background-image: url('images/bg.gif');
background-repeat: repeat;
}
a
{
color:
#fff;
}
.clearfix:before,
.clearfix:after
{
content:
"\0020";
display:
block;
height:
0;
overflow:
hidden;
}
.clearfix:after
{
clear:
both;
}
.clearfix
{
zoom:
1;
}
h1,
h2, h3
{
font-size:
2.5em;
color:
#fff;
text-shadow: 2px
2px 2px #0080cc;
-webkit-text-stroke:
0.5px #0089db;
-moz-text-stroke:
0.5px #0089db;
text-stroke: 0.5px
#0089db;
}
h3
{
font-size:
1.5em;
}
#content
{
width:
760px;
text-align: left;
margin:
0 auto;
position:
relative;
}
.animal
{
position:
absolute;
}
.animal
.label
{
position:
relative;
width:
150px;
height:
30px;
background-color: #fff;
background: -webkit-gradient( linear, 0 0, 0%
100%, from(#eee), to(#fff) );
background: -moz-linear-gradient( top left, #ccc,
#fff );
border:
2px solid
#009af5;
text-align: center;
color:
#009af5;
font-size:
1.5em;
padding:
10px 0px
10px 0px;
-webkit-border-radius:
9px;
-moz-border-radius:
9px;
border-radius: 9px;
-webkit-box-shadow:
2px 2px
6px rgba(0,0,0,0.6);
-moz-box-shadow:
2px 2px
6px rgba(0,0,0,0.6);
box-shadow: 2px
2px 6px
rgba(0,0,0,0.6);
cursor:
pointer;
}
.animal
.labelOver
{
background: -webkit-gradient( linear, 0 0, 0%
100%, from(#009af5), to(#006baa) );
background: -moz-linear-gradient( top left,
#009af5, #006baa );
text-align: center;
color:
red;
}
#myanimal
{
position:
absolute;
font-size:
5em;
color:
#8B008B;
}
</style>
</head>
<body>
<div
id="content">
<div>
<div
id="Tiger"
class="animal"
style="left:
50px; top:
210px;">
<img
src="images/Tiger.png"
/>
<div
class="label"
style="left:
35px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="lion"
class="animal"
style="left:
400px; top:
200px;">
<img
src="images/lion.png"
/>
<div
class="label"
style="left:
30px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="fox"
class="animal"
style="left:
100px; top:
580px;">
<img
src="images/fox.png"
/>
<div
class="label"
style="left:
15px; top:
-80px;">
CLICK ME</div>
</div>
<div
id="bear"
class="animal"
style="left:
400px; top:
500px;">
<img
src="images/bear.png"
/>
<div
class="label"
style="left:
15px; top:
-80px;">
CLICK ME</div>
</div>
</div>
</div>
<h1
id="myanimal">ANIMAL!</h1>
</body>
</html>

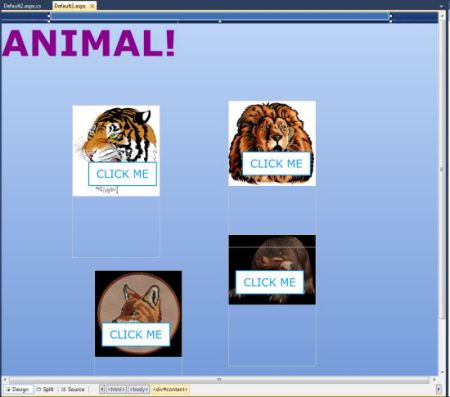

Step 10: In this step we will see the
design of the Default2.aspx page which is given below.
![img3.jpg]()

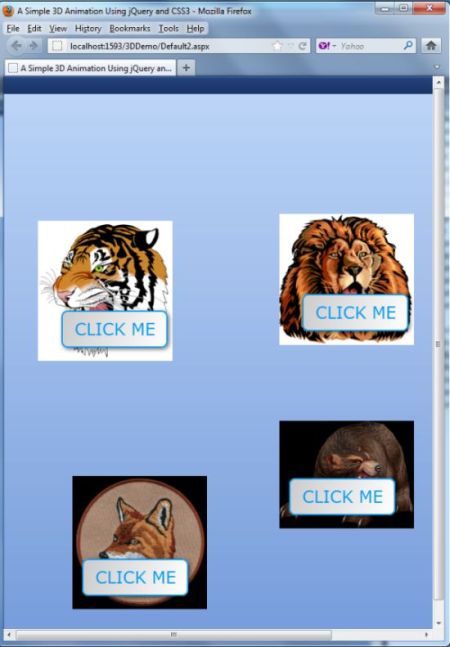

Step 11: In this step we are going to run
the Default2.aspx page by pressing F5.
![img4.jpg]()

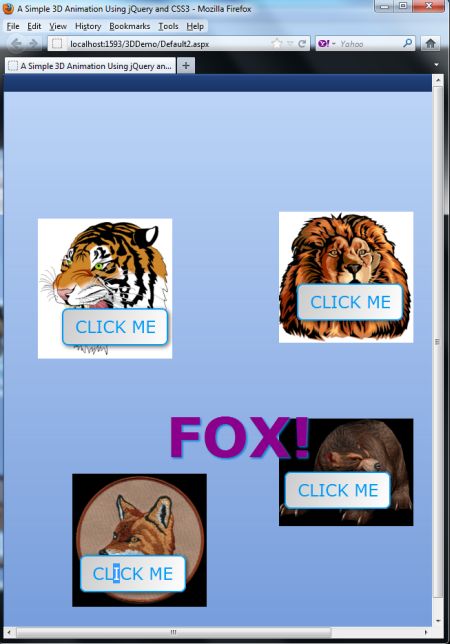

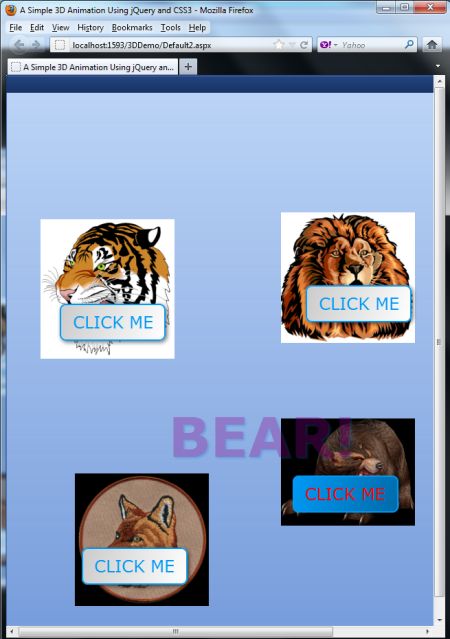

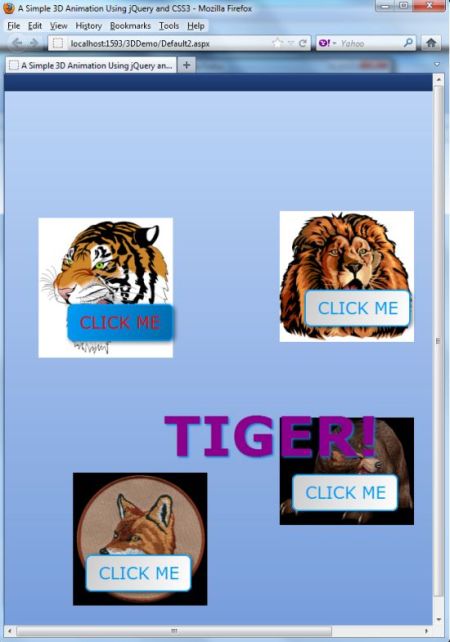

Now you can see the 3D animation effect for more MouseHover
and click on the animal image.
![img5.jpg]()
![img6.jpg]()
![img7.jpg]()
![img8.jpg]()
