Styles in WPF

This article describes the use of styles in WPF.

Styles in WPF

Styles in WPF have been introduced to provide a consistent look and feel of the UI. For example, all the buttons in our application should have the same color, height, widht and other properties. Styles are objects that contain setter object (and a trigger that I will dicuss in another article) collections that in turn can be used to assign the properties of a control. Each setter can be used to set the property that needs to be a dependency property. What a CSS in HTML does to control is the same as what a Style does to control in WPF.

We need to take care of the following things when using styles:

  • Setting a style or property locally will override the style defined above in the element tree.
  • Styles can be set in the following two ways that I will explain later.

Named Style and Targeted Style

  • Styles are declared as resources so that they can be used by the elements below them in the element tree.

Named Style

We can always declare a key for the style that can be used in the application down the element tree by specifying the key for the style. An example of the named style in the resource is shown below.

  1. <Window.Resources>
  2.    <Style x:Key="buttonNamedStyle">
  3.      <Setter Property="Button.Height" Value="40"></Setter>
  4.      <Setter Property="Button.Width" Value="100"></Setter>
  5.      <Setter Property="Button.Background" Value="Red"></Setter>
  6.    </Style>
  7. </Window.Resources>
I have defined a style for the button in the window resources. As we can see in the snippet I have provided a name for the style using a x:key element. Futher I have defined values for a number of styles using the Setter attribute. However we need to keep one point in mind when using a named style. When defining a setter we need to provide the element name along with the propertyName in the property, for example Button.Height, as shown in the preceding code snippet. It doesn't need to be the exact class name, it can also be the classs name from which the control derives, for example Control.Height, that in turn would help you to apply the property for any class down the Hierarchy derived from that control. If some of the properties are relevant to the target control then they would be simply ignored. Now I will show how it can be used.
  1. <Grid>
  2.      <Grid.ColumnDefinitions>
  3.          <ColumnDefinition></ColumnDefinition>
  4.          <ColumnDefinition></ColumnDefinition>
  5.      </Grid.ColumnDefinitions>
  6.      <Button Style="{StaticResource ResourceKey=buttonNamedStyle}" Content="MyButton" Grid.Column="0"></Button>
  7.      <Button Content="MyButton" Grid.Column="1"></Button>
  8.  </Grid>
In the preceding code snippet I have used two buttons. One button explicitly uses the style definesd in the resources section of the window and the other one is not at all using any style. When we run the application we can see the difference between the two buttons as shown in the figure below.



Targeted Styles

This style is desigened to provide a style for some specific type of control only and is applied automatically to the elements of the type below the element tree in the declaration. The following is the code snippet for the targeted style.

  1. <Style TargetType="Button">
  2.    <Setter Property="Height" Value="40"></Setter>
  3.    <Setter Property="Width" Value="100"></Setter>
  4.    <Setter Property="Background" Value="Red"></Setter>
  5. </Style>
The changes that we can see from that of the names style are as in the following.
  1. There is no x:Key.
  2. We have used the TargetType attribute.
  3. In the setter we have removed the class name from the Property attribute.

As soon as we apply this style in the resources section of the window, both of the buttons that we have used in the previous section are changed as shown in the following figure that shows that whatever elements come down in the element tree they take the style by default.

One more change I want you to see is that if we are using a targeted style then there is no need to use the Style attribute for the button as have used for the first button in Named Style.

Style Inheritance

Styles in WPF also support inheritane much like the inheritance in OOP. This can be done using the BasedOn property that must point to another style to inherit from. If there is a target type specified in the base style then it must be specified in the derived style also. Please check the following code snippet to get more about the BasedOn Property.

  1. <Window.Resources>
  2.    <Style TargetType="Button" x:Key="mybaseStyle">
  3.       <Setter Property="Height" Value="40"></Setter>
  4.       <Setter Property="Width" Value="100"></Setter>
  5.       <Setter Property="Background" Value="Red"></Setter>
  6.    </Style>
  7.    <Style TargetType="Button" x:Key="derivedStyle" BasedOn="{StaticResource ResourceKey=mybaseStyle}">
  8.       <Setter Property="FontWeight" Value="ExtraBold" />
  9.       <Setter Property="Effect">
  10.       <Setter.Value>
  11.          <DropShadowEffect Color="Black" />
  12.       </Setter.Value>
  13.    </Setter>
  14.    </Style>
  15. </Window.Resources>

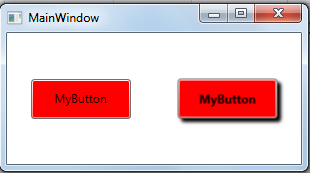

And the output is as shown in the figure below.

However it is not recommended to have more then one level of inheritance since it would be a nightmare to debug the changes if we have multiple levels.

Automatic Style

We can define a specific style for the entire the application for a single control by defining it in the App.xaml as shown below . These styles are created without a key.

  1. <Application.Resources>
  2.    <Style TargetType="Button">
  3.       <Setter Property="Height" Value="40"></Setter>
  4.       <Setter Property="Width" Value="100"></Setter>
  5.       <Setter Property="Background" Value="Red"></Setter>
  6.    </Style>
  7. </Application.Resources>
If we want to revert the default style for the control we need to set the style as null (x:Null in XAML) or set the style to another named style. We can also create a style based on the application style as shown below.
  1. <Style TargetType="Button" x:Key="myButtonStyle"BasedOn="{StaticResource {x:Type Button}}">
The myButtonStyle in the example above derives from the automatic style and this is specified by looking up a resource with the key of typeof(Button), expressed in XAML as {x:Type Button}.
