ASP.NET Core SignalR with an Individual User Account

Introduction


SignalR is the open-source Microsoft API which is used to add real-time web functionality to the ASP.NET Core web application. SignalR provides a persistent connection between the client-server. It uses remote procedure calls shortly known as RPC to call the client from the server.

In this article, I’m going to show how to implement ASP.NET Core SignalR with a simple chat application with a user identity.

Create an ASP.NET Core Web application

Step 1: Create a new project in Visual Studio 2019

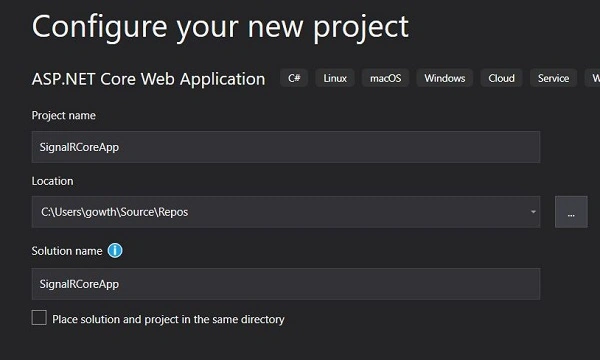

Step 2. Select ASP.NET Core Web application template. In my case, I named the project SignalRCoreApp



Step 3: Click on create, in the next wizard select web application template and click on the change link under the Authentication section.

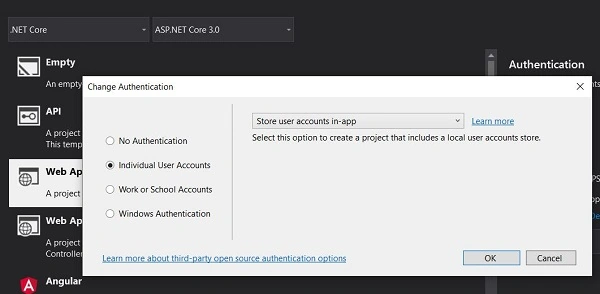

Step 4: Select the individual user account from the popup, as shown in the below figure.



Create a SignalR Hub

Step 1: Right-click on the SignalRCoreApp project and create the Hub folder

Step 2: Add the Chat.cs file under the Hub folder

Chat.cs
  1. public class Chat: Microsoft.AspNetCore.SignalR.Hub
  2. {
  3.     public async Task SendMessage(string message)
  4.     {
  5.         await Clients.All.SendAsync("ReceiveMessage",Context.User.Identity.Name?? "anonymous", message);
  6.     }
  7. }
Context.User.Identity.Name gives the user name of the Identity based on the current user session.

Include the following namespaces:
  1. using Microsoft.AspNetCore.Authorization;
  2. using Microsoft.AspNetCore.SignalR;
Step 3: Open starup.cs file and let's configure the SignalR

Add the below code under the ConfigurationServices method:
  1. services.AddSignalR();
Add the endpoints in the configure method:
  1. app.UseEndpoints(endpoints =>
  2.            {
  3.                endpoints.MapRazorPages();
  4.                endpoints.MapHub<Chat>("/chat");
  5.            });
SignalR with JavaScript Client library

Step 1: Right-click on the project Add->Client-side Library

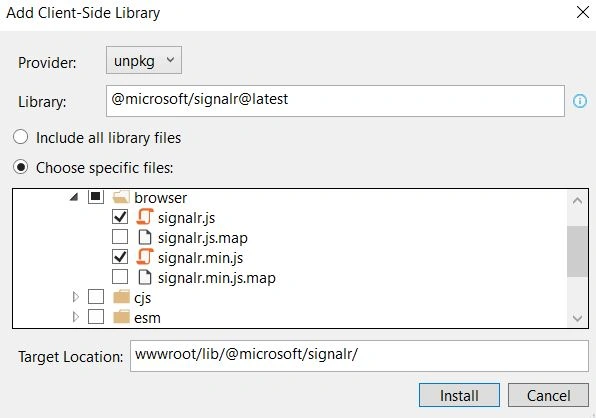

Step 2: The add client-side library wizard will appear, under provider section select unpkg

Step 3: Library- >enter @microsoft/signalr@latest

Step 4: Select specific files expand files->dist->browser->signalr.js, signalr.min.js



Step5: create a chat.js file under wwwroot->js folder

chat.js
  1. "use strict";
  2.
  3. var connection = new signalR.HubConnectionBuilder().withUrl("/Chat").build();
  4.
  5. //Disable send button until connection is established
  6. document.getElementById("sendBtn").disabled = true;
  7.
  8. connection.on("ReceiveMessage"function (user, message) {
  9.     var msg = message.replace(/&/g, "&").replace(/</g, "<").replace(/>/g, ">");
  10.     var encodedMsg = user + " says " + msg;
  11.     var li = document.createElement("li");
  12.     li.textContent = encodedMsg;
  13.     document.getElementById("ulmessages").appendChild(li);
  14. });
  15.
  16. connection.start().then(function () {
  17.     document.getElementById("sendBtn").disabled = false;
  18. }).catch(function (err) {
  19.     return console.error(err.toString());
  20. });
  21.
  22. document.getElementById("sendBtn").addEventListener("click"function (event) {
  23.     var message = document.getElementById("txtmessage").value;
  24.     connection.invoke("SendMessage", message).catch(function (err) {
  25.         return console.error(err.toString());
  26.     });
  27.     event.preventDefault();
  28. });
Step 6: Open index.cshtml page and add the below code
  1. @page
  2. <div class="container">
  3.
  4.     <div class="row">
  5.         <div class="col-2">Message</div>
  6.         <div class="col-4"><input type="text" id="txtmessage" /></div>
  7.     </div>
  8.     <div class="row"> </div>
  9.     <div class="row">
  10.         <div class="col-6">
  11.             <input type="button" id="sendBtn" value="Send" />
  12.         </div>
  13.     </div>
  14. </div>
  15. <div class="row">
  16.     <div class="col-12">
  17.         <hr />
  18.     </div>
  19. </div>
  20. <div class="row">
  21.     <div class="col-6">
  22.         <ul id="ulmessages"></ul>
  23.     </div>
  24. </div>
  25. <script src="~/lib/@@microsoft/signalr/dist/browser/signalr.js"></script>
  26. <script src="~/js/chat.js"></script>
Run the application

I logged in as gowthamk91@outlook.com in Chrome and with the same app running in Firefox along with the user session gowthamk@nousinfo.com

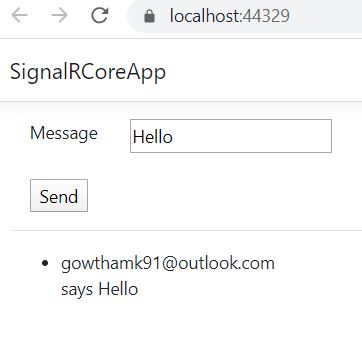

Case 1: When user 1 – gowthamk91@outlook.com sends a message:







The above figure shows the message which is sent by user1-gowthamk91@outlook.com in the firefox browser where the app is running with the user (gowthamk@nousinfo.com) session.

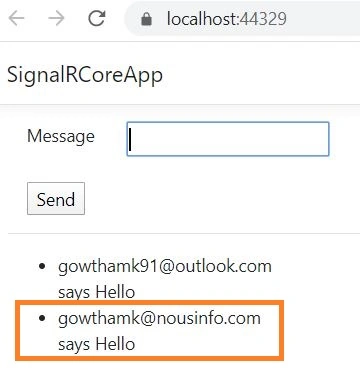

Case 2: When user 2 – gowthamk@nousinfo.com sends a message:







The above figure shows the message which is sent by user2-gowthamk91@outlook.com in the chrome browser where the app is running with the user (gowthamk@nousinfo.com) session.

Source code- Github


Summary


We have seen how to implement ASP.NET Core SignalR with an individual user account. I hope you have enjoyed this article. Your valuable feedback, questions, or comments about this article are always welcome.

Happy Coding!
