Blazor Server App CRUD With Entity Framework Core In .Net 5

Introduction


In this article, we will learn what Blazor is and how we can set up Blazor by making a basic CRUD Application with Entity Framework Core Code first approach in .Net 5 (the latest version).

Prerequisites
  • Install the latest .NET Core 3.1 SDK from here.
  • Install the latest version of Visual Studio 2019 from here.
What we are going to cover in this?
  • What is Blazor and why it is exciting for C# Developers?
  • Difference between Blazor Server - Blazor Web Assembly
  • Setup the CRUD App using Blazor
  • Run and Test
Download Source Code - Git Hub


What is Blazor and why is it exciting for C# Developers?


Blazor is a .NET web system that runs in the program. Think Angular or React however controlled by C# and Razor. Designers make Blazor applications utilizing a combination of C#, Razor, and HTML. These applications execute .NET congregations utilizing the Mono .NET runtime carried out through WebAssembly. Blazor utilizes the most recent web guidelines and requires no extra modules or additional items to run, this is not another Silverlight.


Blazor Server App

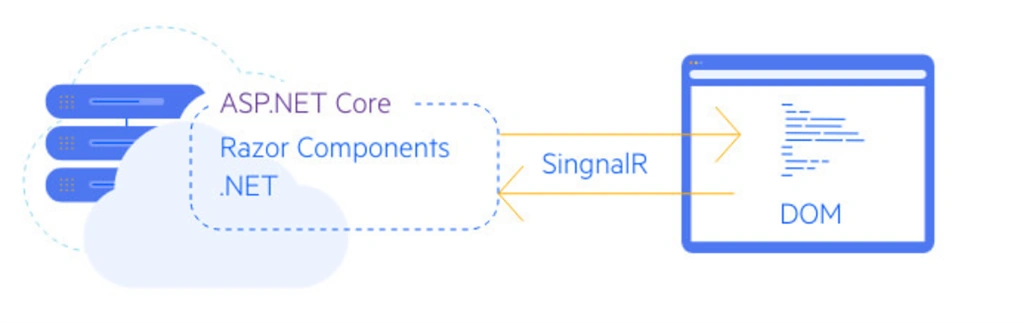

In the worker side facilitating model (Blazor Server-Side), Blazor is executed on the worker from inside an ASP.NET Core application. UI refreshes, occasion dealing with, and JavaScript brings are taken care of over a SignalR association.

Blazor also supports features of the SPA(Single Page Application)  framework such as,
  • Routing
  • Layouts
  • Forms and validation
  • JavaScript interop
  • Build on save during development
  • Server-side rendering
  • Dependency Injection
Blazor Server App CRUD With Entity Framework Core In .Net 5

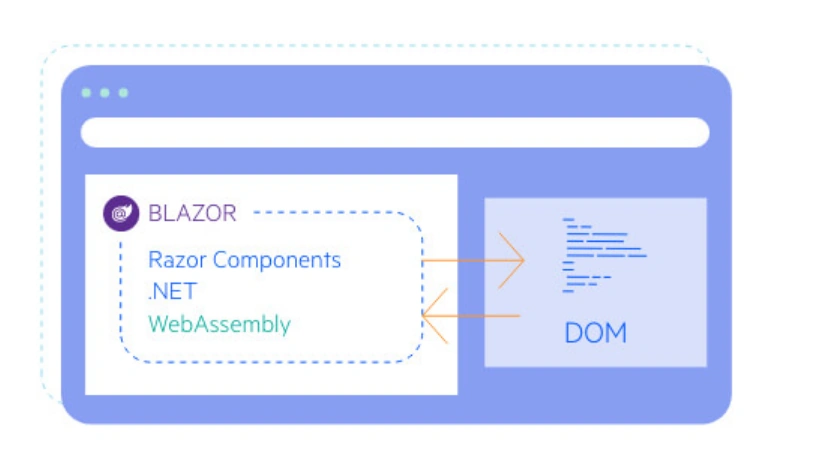

Blazor Web Assembly


In the customer-side model (Blazor WebAssembly), the Blazor application, its conditions, and the .NET runtime are downloaded to the program, and the application is executed straightforwardly on the program UI string. All UI updates and occasions taking care of occur inside a similar cycle.
Blazor Server App CRUD With Entity Framework Core In .Net 5

Setup

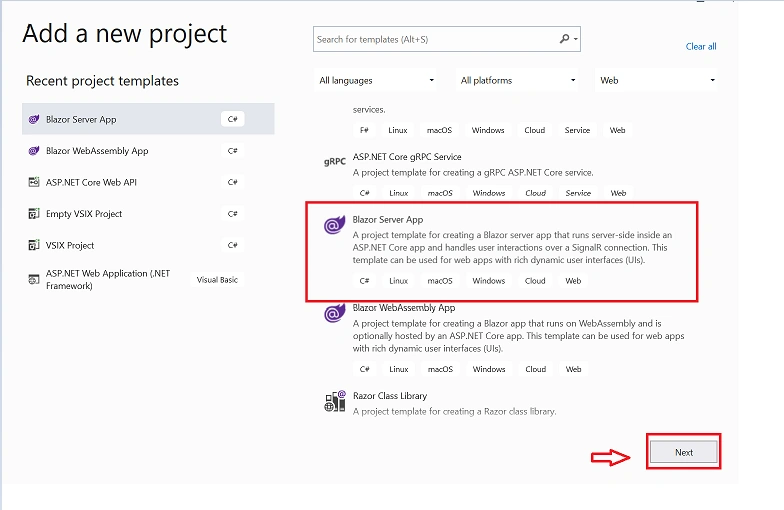

Create a Blazor Server App.

Blazor Server App CRUD With Entity Framework Core In .Net 5

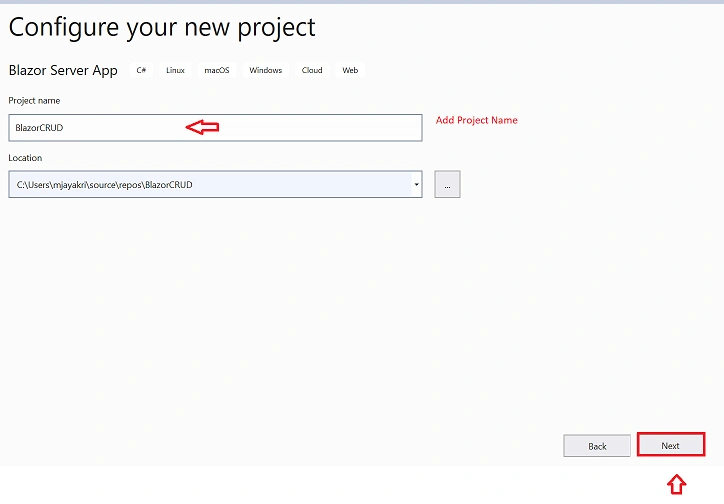

Add the project name for your Application

Blazor Server App CRUD With Entity Framework Core In .Net 5

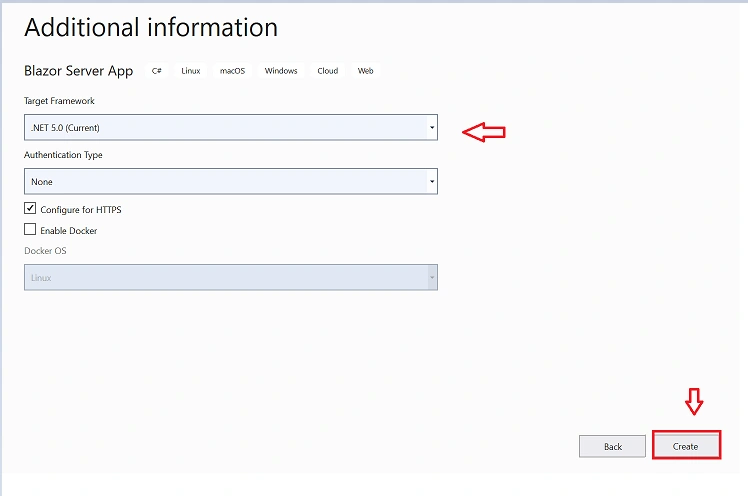

Make sure you have .Net 5.0 installed in your machine and then it will automatically be added in the dropdown select target framework as .Net 5.0

Blazor Server App CRUD With Entity Framework Core In .Net 5

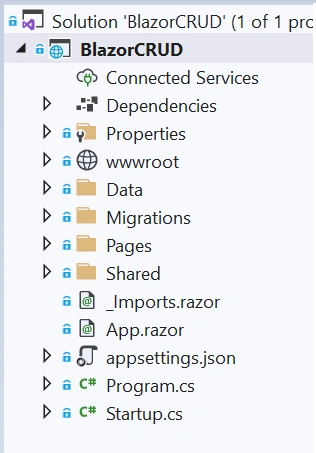

A basic scaffolded template will generate here is the project structure

Blazor Server App CRUD With Entity Framework Core In .Net 5

 Create an class in the Data folder to act as table in database to store all our CRUD Operations.

Employee.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.Linq;
  5. using System.Threading.Tasks;
  6.
  7. namespace BlazorCRUD.Data
  8. {
  9.     public class Employee
  10.     {
  11.         [Key]
  12.         public int Id { getset; }
  13.         public string EmployeName { getset; }
  14.         public string Gender { getset; }
  15.         public string City { getset; }
  16.         public string Designation { getset; }
  17.     }
  18. }
 Create a dbcontext file to setup the configuration with Database.

AppDbContext.cs
  1. using Microsoft.EntityFrameworkCore;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.Linq;
  5. using System.Threading.Tasks;
  6.
  7. namespace BlazorCRUD.Data
  8. {
  9.     public class AppDBContext : DbContext
  10.     {
  11.         public AppDBContext(DbContextOptions<AppDBContext> options) : base(options)
  12.         {
  13.
  14.         }
  15.         public DbSet<Employee> Employees { getset; }
  16.     }
  17. }
Create an employee service with all the business logic inside this service.

Setup a connection string in appsettings.json file.

appsettings.json
  1. {
  2.   "Logging": {
  3.     "LogLevel": {
  4.       "Default""Information",
  5.       "Microsoft""Warning",
  6.       "Microsoft.Hosting.Lifetime""Information"
  7.     }
  8.   },
  9.   "AllowedHosts""*",
  10.   "ConnectionStrings": {
  11.     "myconn""server= Your Server name; database=BlazorCRUD;Trusted_Connection=True;"
  12.   }
  13. }

EmployeeService.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Threading.Tasks;
  5. using Microsoft.EntityFrameworkCore;
  6.
  7. namespace BlazorCRUD.Data
  8. {
  9.     public class EmployeeService
  10.     {
  11.         #region Property
  12.         private readonly AppDBContext _appDBContext;
  13.         #endregion
  14.
  15.         #region Constructor
  16.         public EmployeeService(AppDBContext appDBContext)
  17.         {
  18.             _appDBContext = appDBContext;
  19.         }
  20.         #endregion
  21.
  22.         #region Get List of Employees
  23.         public async Task<List<Employee>> GetAllEmployeesAsync()
  24.         {
  25.             return await _appDBContext.Employees.ToListAsync();
  26.         }
  27.         #endregion
  28.
  29.         #region Insert Employee
  30.         public async Task<bool> InsertEmployeeAsync(Employee employee)
  31.         {
  32.             await _appDBContext.Employees.AddAsync(employee);
  33.             await _appDBContext.SaveChangesAsync();
  34.             return true;
  35.         }
  36.         #endregion
  37.
  38.         #region Get Employee by Id
  39.         public async Task<Employee> GetEmployeeAsync(int Id)
  40.         {
  41.             Employee employee = await _appDBContext.Employees.FirstOrDefaultAsync(c => c.Id.Equals(Id));
  42.             return employee;
  43.         }
  44.         #endregion
  45.
  46.         #region Update Employee
  47.         public async Task<bool> UpdateEmployeeAsync(Employee employee)
  48.         {
  49.              _appDBContext.Employees.Update(employee);
  50.             await _appDBContext.SaveChangesAsync();
  51.             return true;
  52.         }
  53.         #endregion
  54.
  55.         #region DeleteEmployee
  56.         public async Task<bool> DeleteEmployeeAsync(Employee employee)
  57.         {
  58.             _appDBContext.Remove(employee);
  59.             await _appDBContext.SaveChangesAsync();
  60.             return true;
  61.         }
  62.         #endregion
  63.     }
  64. }
Configure the connection setup and inject the EmployeeService in Configure Services method in startup.cs file

Startup.cs
  1. public void ConfigureServices(IServiceCollection services)
  2.         {
  3.             services.AddRazorPages();
  4.             services.AddServerSideBlazor();
  5.             services.AddSingleton<WeatherForecastService>();
  6.             services.AddScoped<EmployeeService>();
  7.
  8.             #region Connection String
  9.             services.AddDbContext<AppDBContext>(item => item.UseSqlServer(Configuration.GetConnectionString("myconn")));
  10.             #endregion
  11.
  12.         }
Create the table by using these commands in Package Console Manager

Commands:
  • Add-Migration 'Your Migration Name'
  • Update-Databse

Now the actual binding of Data will see once we create the Razor pages inside the Pages folder lets create pages and for each form. Will create the Employee Form where it will have the datatable to show all the Saved information in it.

To create a Razor component Right Click on pages ->  Click on Add -> Click on Razor Component then create a page with the Employee.Razor .

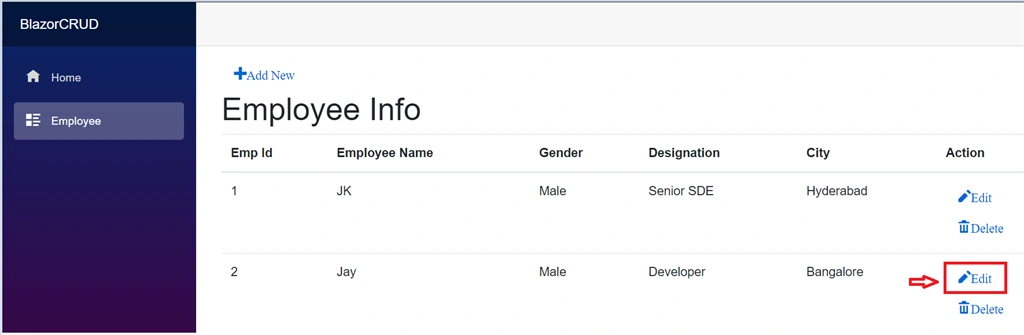

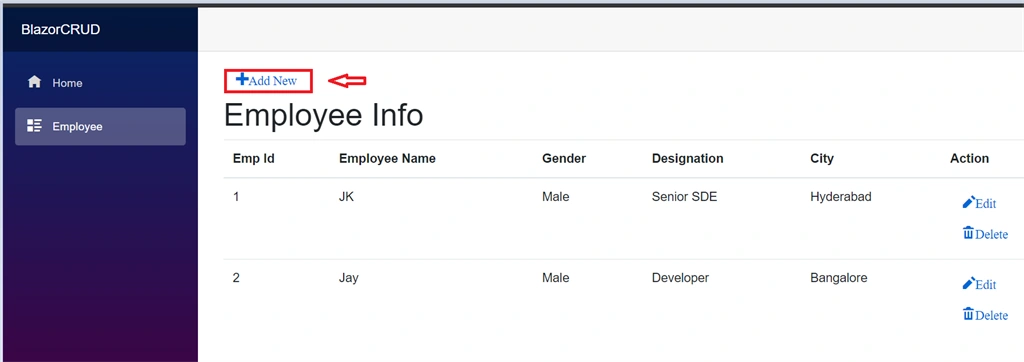

Employees.Razor
  1. @page "/Employees"
  2. @using BlazorCRUD.Data
  3. @inject EmployeeService employeeService
  4.
  5. <NavLink class="nav-link" href="AddEmployee">
  6.     <span class="oi oi-plus" aria-hidden="true">Add New</span>
  7.
  8. </NavLink>
  9.
  10. <h1>Employee Info</h1>
  11. @if (EmpObj is null)
  12. {
  13.     <p><em>Loading... !</em></p>
  14. }
  15. else
  16. {
  17.     <table class="table">
  18.             <thead>
  19.                 <tr>
  20.                     <th>Emp Id</th>
  21.                     <th>Employee Name</th>
  22.                     <th>Gender</th>
  23.                     <th>Designation</th>
  24.                     <th>City</th>
  25.                     <th>Action</th>
  26.                 </tr>
  27.             </thead>
  28.         <tbody>
  29.             @foreach(var emp in EmpObj)
  30.                 {
  31.             <tr>
  32.                 <td>@emp.Id</td>
  33.                 <td>@emp.EmployeName</td>
  34.                 <td>@emp.Gender</td>
  35.                 <td>@emp.Designation</td>
  36.                 <td>@emp.City</td>
  37.                 <td>
  38.                     <a class="nav-link" href="EditEmployee/@emp.Id">
  39.                         <span class="oi oi-pencil" aria-hidden="true">Edit</span>
  40.                     </a>
  41.                     <a class="nav-link" href="Delete/@emp.Id">
  42.                         <span class="oi oi-trash" aria-hidden="true">Delete</span>
  43.                     </a>
  44.                 </td>
  45.             </tr>
  46.                 }
  47.         </tbody>
  48.     </table>
  49. }
  50.
  51.
  52. @code {
  53.     List<Employee> EmpObj;
  54.     protected override async Task OnInitializedAsync()
  55.     {
  56.         EmpObj = await Task.Run(() => employeeService.GetAllEmployeesAsync());
  57.     }
  58. }
@page - the actual navigation page name

@inject - Injection of Service layer here to have interaction with Business logic

@code - Where we call the service method to bind all the values inside the Razor component.

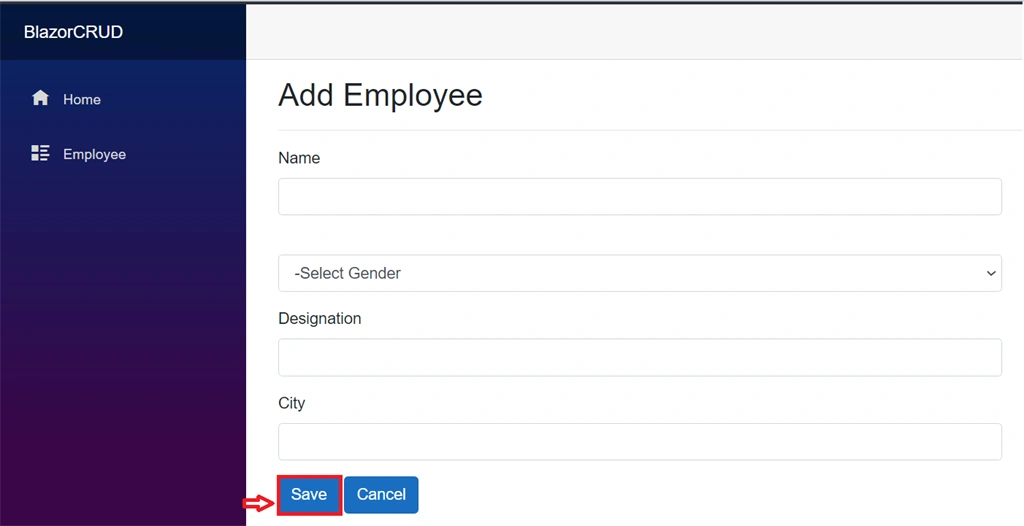

AddEmployee.cs

Injected the NavigateManager to navigate from one page to another with the page names.
  1. @page "/AddEmployee"
  2. @using BlazorCRUD.Data
  3. @inject EmployeeService employeeService
  4. @inject NavigationManager NavigationManager
  5.
  6. <h2>Add Employee</h2>
  7. <hr />
  8.
  9. <form>
  10.     <div class="row">
  11.         <div class="col-md-8">
  12.             <div class="form-group">
  13.                 <label for="Name" class="control-label">Name</label>
  14.                 <input form="Name" class="form-control" @bind="@obj.EmployeName" />
  15.             </div>
  16.             <div class="form-group">
  17.                 <label for="Gender" class="control-label"></label>
  18.                 <select @bind="@obj.Gender" class="form-control">
  19.                     <option value="">-Select Gender</option>
  20.                     <option value="Male">Male</option>
  21.                     <option value="Female">Female</option>
  22.                 </select>
  23.             </div>
  24.             <div class="form-group">
  25.                 <label for="Designation" class="control-label">Designation</label>
  26.                 <input form="Designation" class="form-control" @bind="@obj.Designation" />
  27.             </div>
  28.             <div class="form-group">
  29.                 <label for="City" class="control-label">City</label>
  30.                 <input form="City" class="form-control" @bind="@obj.City" />
  31.             </div>
  32.
  33.         </div>
  34.     </div>
  35.
  36.     <div class="row">
  37.         <div class="col-md-4">
  38.             <div class="form-group">
  39.                 <input type="button" class="btn btn-primary" @onclick="@CreateEmployee" value="Save"/>
  40.                 <input type="button" class="btn btn-primary" @onclick="@Cancel" value="Cancel"/>
  41.             </div>
  42.         </div>
  43.     </div>
  44. </form>
  45.
  46. @code {
  47.     Employee obj = new Employee();
  48.     protected async void CreateEmployee()
  49.     {
  50.         await employeeService.InsertEmployeeAsync(obj);
  51.         NavigationManager.NavigateTo("Employees");
  52.     }
  53.     void Cancel()
  54.     {
  55.         NavigationManager.NavigateTo("Employees");
  56.     }
  57. }

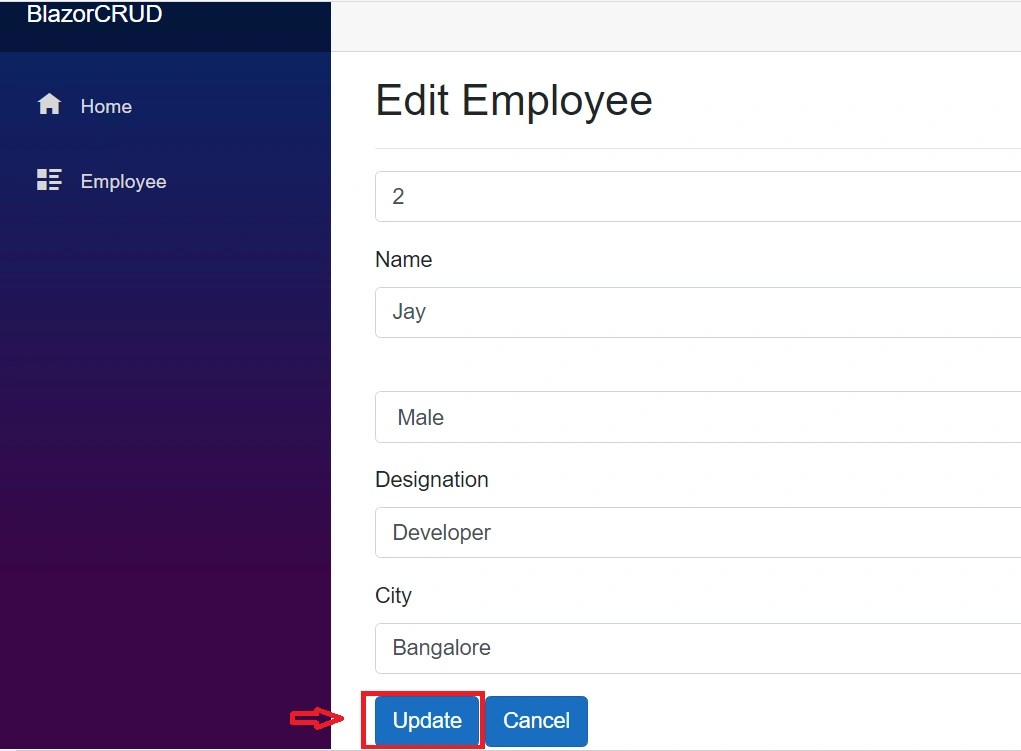

 EditEmployee.razor
  1. @page "/EditEmployee/{Id}"
  2. @using BlazorCRUD.Data
  3. @inject EmployeeService employeeService
  4. @inject NavigationManager NavigationManager
  5.
  6. <h2>Edit Employee</h2>
  7. <hr />
  8.
  9. <form>
  10.     <div class="row">
  11.         <div class="col-md-8">
  12.             <div class="form-group">
  13.                 <input form="Name" class="form-control" @bind="@obj.Id" />
  14.             </div>
  15.             <div class="form-group">
  16.                 <label for="Name" class="control-label">Name</label>
  17.                 <input form="Name" class="form-control" @bind="@obj.EmployeName" />
  18.             </div>
  19.             <div class="form-group">
  20.                 <label for="Gender" class="control-label"></label>
  21.                 <select @bind="@obj.Gender" class="form-control">
  22.                     <option value="">-Select Gender</option>
  23.                     <option value="Male">Male</option>
  24.                     <option value="Female">Female</option>
  25.                 </select>
  26.             </div>
  27.             <div class="form-group">
  28.                 <label for="Designation" class="control-label">Designation</label>
  29.                 <input form="Designation" class="form-control" @bind="@obj.Designation" />
  30.             </div>
  31.             <div class="form-group">
  32.                 <label for="City" class="control-label">City</label>
  33.                 <input form="City" class="form-control" @bind="@obj.City" />
  34.             </div>
  35.
  36.         </div>
  37.     </div>
  38.
  39.     <div class="row">
  40.         <div class="col-md-4">
  41.             <div class="form-group">
  42.                 <input type="button" class="btn btn-primary" @onclick="@UpdateEmployee" value="Update" />
  43.                 <input type="button" class="btn btn-primary" @onclick="@Cancel" value="Cancel" />
  44.             </div>
  45.         </div>
  46.     </div>
  47. </form>
  48.
  49. @code {
  50.     [Parameter]
  51.     public string Id { getset; }
  52.     Employee obj = new Employee();
  53.     protected override async Task OnInitializedAsync()
  54.     {
  55.         obj = await Task.Run(() => employeeService.GetEmployeeAsync(Convert.ToInt32(Id)));
  56.     }
  57.     protected async void UpdateEmployee()
  58.     {
  59.         await employeeService.UpdateEmployeeAsync(obj);
  60.         NavigationManager.NavigateTo("Employees");
  61.     }
  62.     void Cancel()
  63.     {
  64.         NavigationManager.NavigateTo("Employees");
  65.     }
  66. }
 Actually we used to pass the the Id for Edit employee to fetch the details from the database and to store in edit employee form.

Delete.Razor
  1. @page "/Delete/{Id}"
  2. @using BlazorCRUD.Data
  3. @inject EmployeeService employeeService
  4. @inject NavigationManager NavigationManager
  5.
  6. <h2>Delete Employee</h2>
  7. <hr />
  8. <h3>Are you sure want to delete this?</h3>
  9. <form>
  10.     <div class="row">
  11.         <div class=" col-md-8">
  12.             <div class="form-group">
  13.                 <label>Employee Id:</label>
  14.                 <label>@obj.Id</label>
  15.             </div>
  16.             <div class="form-group">
  17.                 <label>Employee Name:</label>
  18.                 <label>@obj.EmployeName</label>
  19.             </div>
  20.             <div class="form-group">
  21.                 <label>Desigation:</label>
  22.                 <label>@obj.Designation</label>
  23.             </div>
  24.             <div class="form-group">
  25.                 <label>Gender:</label>
  26.                 <label>@obj.Gender</label>
  27.             </div>
  28.             <div class="form-group">
  29.                 <label>City:</label>
  30.                 <label>@obj.City</label>
  31.             </div>
  32.         </div>
  33.
  34.     </div>
  35.     <div class="row">
  36.         <div class="col-md-4">
  37.             <div class="form-group">
  38.                 <input type="button" class="btn btn-danger" @onclick="@DeleteEmployee" value="Delete" />
  39.                 <input type="button" class="btn btn-primary" @onclick="@Cancel" value="Cancel" />
  40.             </div>
  41.         </div>
  42.     </div>
  43. </form>
  44.
  45. @code {
  46.     [Parameter]
  47.     public string Id { getset; }
  48.     Employee obj = new Employee();
  49.     protected override async Task OnInitializedAsync()
  50.     {
  51.         obj = await Task.Run(() => employeeService.GetEmployeeAsync(Convert.ToInt32(Id)));
  52.     }
  53.     protected async void DeleteEmployee()
  54.     {
  55.         await employeeService.DeleteEmployeeAsync(obj);
  56.         NavigationManager.NavigateTo("Employees");
  57.     }
  58.     void Cancel()
  59.     {
  60.         NavigationManager.NavigateTo("Employees");
  61.     }
  62. }
Run and test the applicaton

Click on employee tab you will see all the existing details in the grid

Blazor Server App CRUD With Entity Framework Core In .Net 5

Add the employee details and save in Database.

 Blazor Server App CRUD With Entity Framework Core In .Net 5

 Edit the employee details

Blazor Server App CRUD With Entity Framework Core In .Net 5

 Update the details

Blazor Server App CRUD With Entity Framework Core In .Net 5

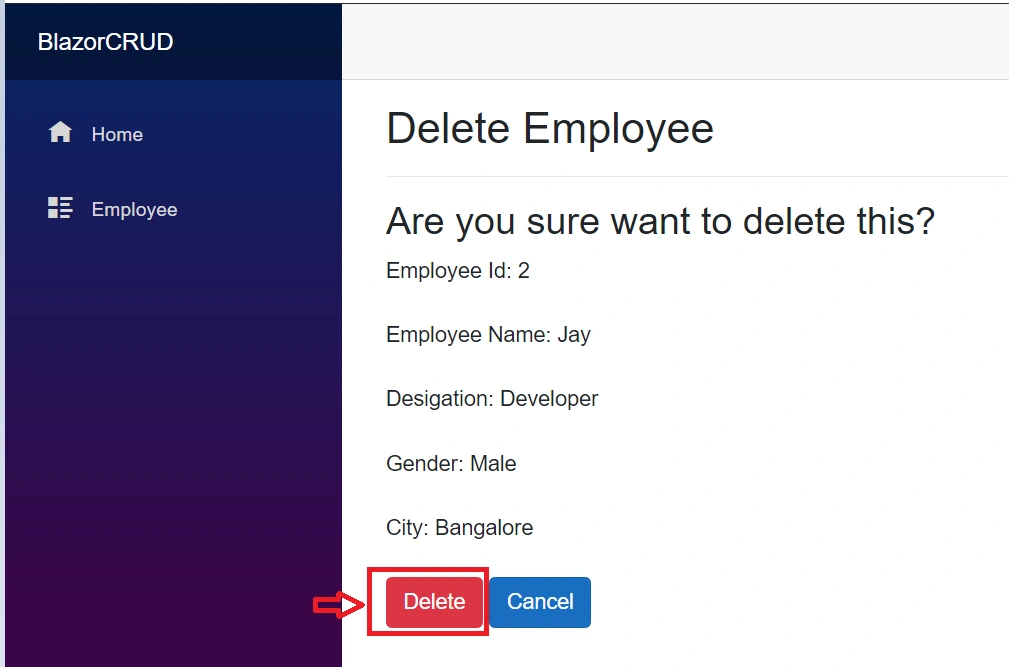

 Delete operation

Blazor Server App CRUD With Entity Framework Core In .Net 5

Here is a clear picture of the Crud Application in Blazor and I hope this article helps you... !!!

Keep learning .... !!!!!
